PXIe-4163 Request for Availability

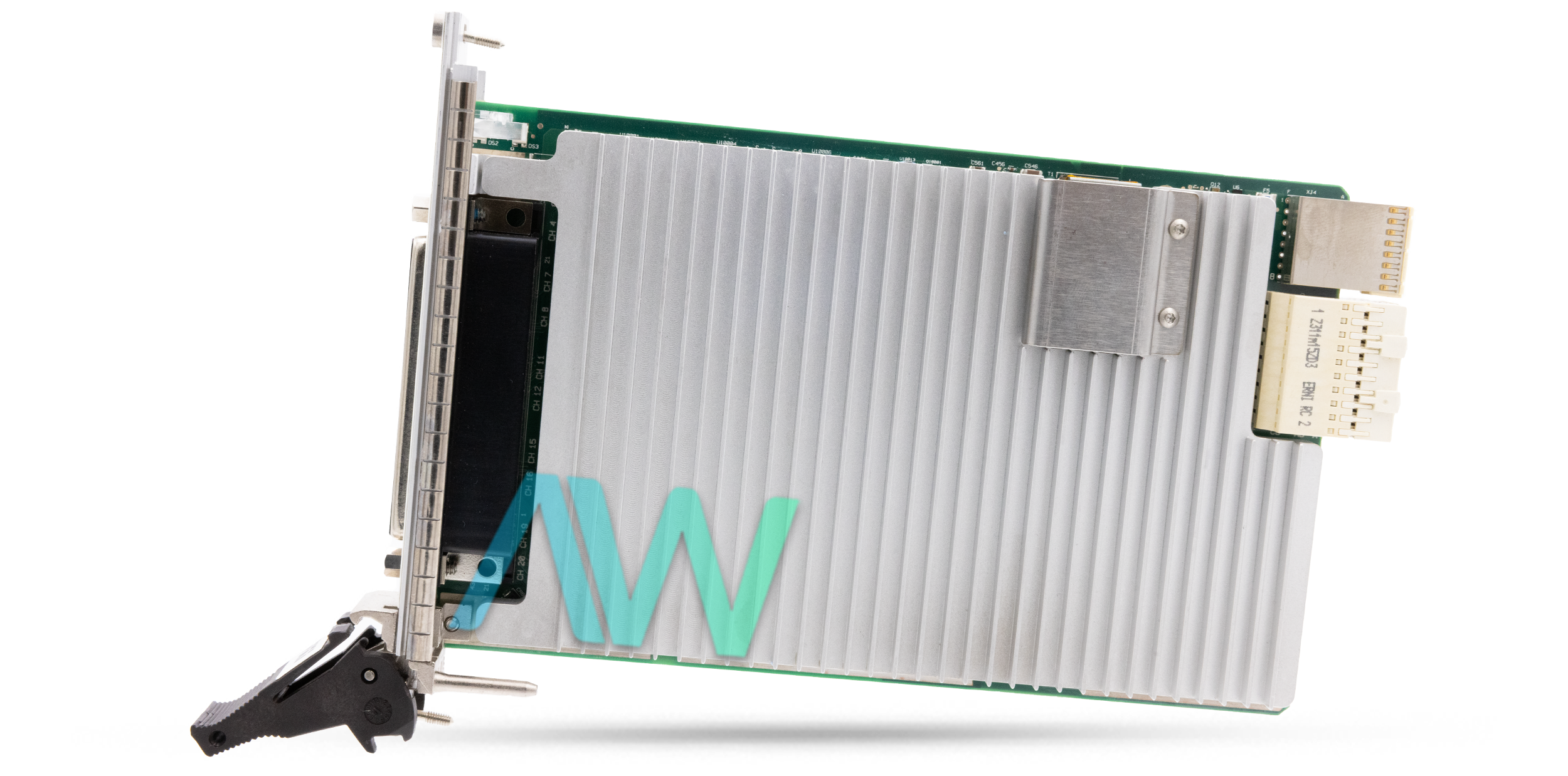

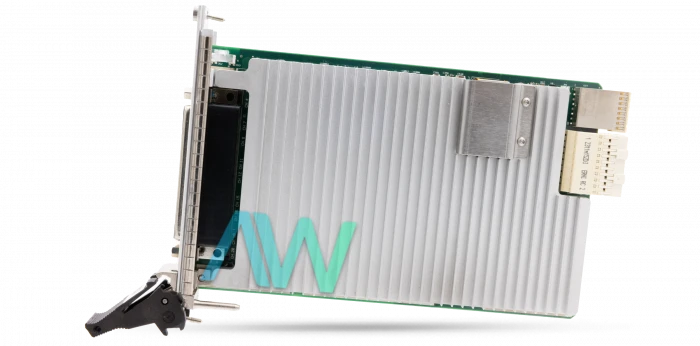

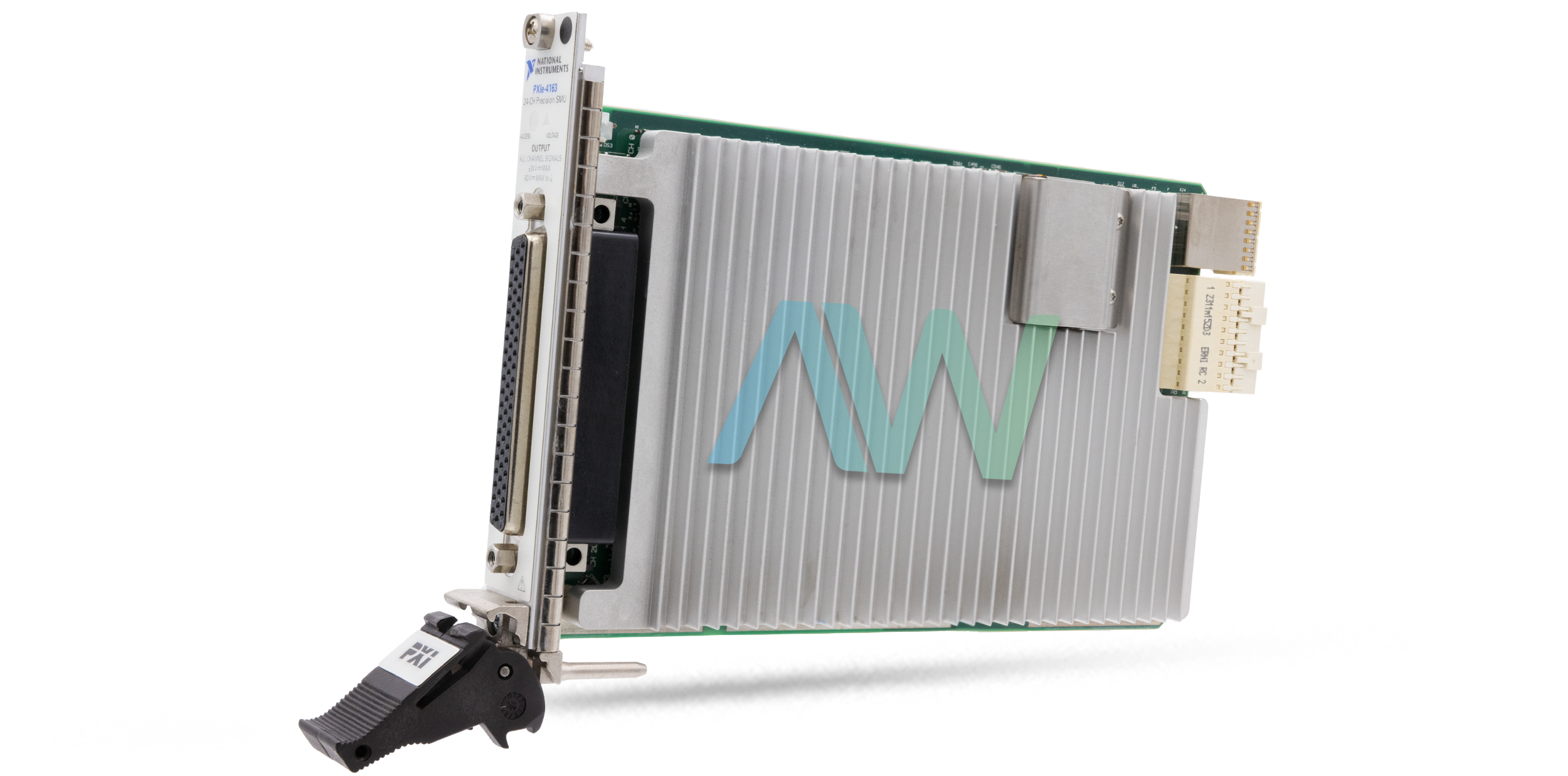

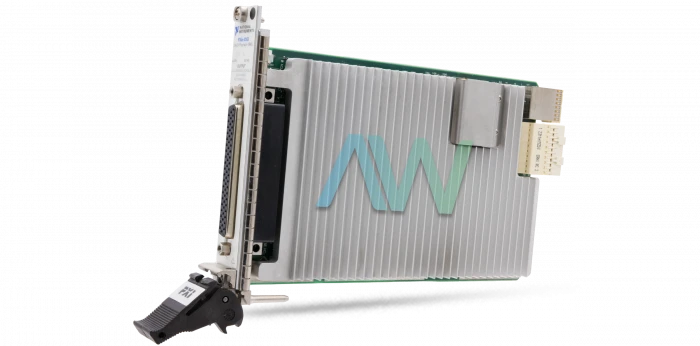

PXIe-4163, 24-Channel, 62-Pin DSUB I/O Connector, PXI Source Measure Unit
Rated 4.7/5 | 6 ratings
Actual item may vary if no part number is provided on quote request.
✔ 2 Year Warranty Included
✔ Free Ground Shipping
✔ NIST Calibration Available
Expert Insights for the PXIe-4163
"The PXIe-4163 is a source measurement unit for PXIe systems that need a lot of channels and high accuracy. Each channel has 4 wire sensing and comes with a high-performance analog to digital converter. Using Source Adapt technology, it can tune the transient response to match the characteristics of any load applied to the device. This SMU is perfect for a broad range of mixed-signal integrated circuits for testing semiconductors."
- Chris B.
LabVIEW Trained
In-House Technician
Andrew Gar**** Verified Buyer
" Amazing to work with and had my order within 1 week after purchasing with all NI certs and data that were needed. "
March 2025
Said Sai**** Verified Buyer
" Competent contact for highly specialized components. The support team is very knowledgeable. Many thanks for the help and the fast shipping! "
January 2025
Bob C**** Verified Buyer
" Jason was able to get our emergency situation taken care of quickly and professionally. "
May 2025
Gregg Flecki**** Verified Buyer
" Great service and great products. This is my 2nd time using Apex Waves, truly impressed. "
January 2025
Carol Zimme**** Verified Buyer
" Very responsive and helpful, competitive pricing. Good source! "
July 2025
Andrew Gar**** Verified Buyer
" Amazing to work with and had my order within 1 week after purchasing with all NI certs and data that were needed. "
March 2025
Said Sai**** Verified Buyer
" Competent contact for highly specialized components. The support team is very knowledgeable. Many thanks for the help and the fast shipping! "
January 2025
Bob C**** Verified Buyer
" Jason was able to get our emergency situation taken care of quickly and professionally. "
May 2025
Gregg Flecki**** Verified Buyer
" Great service and great products. This is my 2nd time using Apex Waves, truly impressed. "
January 2025
Expert Insights for the PXIe-4163
"The PXIe-4163 is a source measurement unit for PXIe systems that need a lot of channels and high accuracy. Each channel has 4 wire sensing and comes with a high-performance analog to digital converter. Using Source Adapt technology, it can tune the transient response to match the characteristics of any load applied to the device. This SMU is perfect for a broad range of mixed-signal integrated circuits for testing semiconductors."
- Chris B.
LabVIEW Trained
In-House Technician
National Instruments PXIe-4163 PXI Source Measure Unit
National Instruments developed the high-precision source measure unit (SMU) PXIe-4163 (Part Numbers: 784483-01, 784483-02, 140185D-01L) for use in semiconductor manufacturing test applications. With 24 identical SMU channels that provide 4-quadrant operation and integrated remote sensing for accurate measurements, it is rather impressive. With its built-in analog-to-digital converter, it makes it easier to do high-precision measurements that are necessary for testing mixed-signal integrated circuits (ICs).
One of its unique features is SourceAdapt technology, which matches load parameters to adjust transient response, maximizing stability and measurement accuracy. This boosts overall productivity by guaranteeing dependable performance across a range of testing scenarios. The PXIe-4163 provides versatility to meet a multitude of testing requirements because to its broad DC voltage range of ±24 V. Accurate measurements are guaranteed by its sample rate accuracy of ±50 ppm, and effective data capture is made possible by its remarkable maximum measure rate of 100,000 S/s per channel.
With support for Start, Source, Sequence Advance, and Measure triggers among others, the module allows for flexibility in test sequencing. For synchronization with external devices, it also offers output triggers like Source Complete and Measure Complete. To ensure steady and dependable performance over time, the PXIe-4163 recommends calibrating at an annual interval. Because of its small 3U, one-slot design, it can be integrated into PXI Express/CompactPCI Express systems and save a lot of rack space. With proper chassis cooling and operating temperature ranges of 0°C to 55°C, dependable performance is guaranteed even in harsh conditions. Rugged design ensures longevity in industrial environments by withstanding operational vibration up to 0.3 g RMS and non-operating vibration up to 2.4 g RMS.
The physical dimensions of the PXIe-4163 measure 0.8 in. × 5.1 in. × 8.4 in. (2.1 cm × 13.1 cm × 21.4 cm), and it weighs in at 13.9 oz (394 g). The front panel connector of the device is a custom female 62-position DSUB connector type. For chassis with a slot cooling capacity less than 58 W, the operating temperature range is 0 °C to 55 °C. For all other chassis, this temperature range of the Source Measure Unit is 0 °C to 40 °C. For all chassis types, the storage temperature range is -40 °C to 71 °C.
| Model | PXIe-4163 |
|---|---|
| Part Number | 784483-01, 784483-02, 140185D-01L |
| Manufacturer | National Instruments |
| Type | PXI Source Measure Unit |
| SMU Channels | 24 |
| I/O Connector | 62-Pin DSUB |
| Voltage Range | -24 V to 24 V |
| Current Range | -50 mA to 50 mA (only in High-Power Chassis); -30 mA to 30 mA (in Standard Chassis) |
| Dimensions | 0.8 x 5.1 x 8.4 in. |
| Weight | 13.9 oz. |
| Warranty | Three Year Warranty |
| PXIe-4163 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Request a Quote Today for Pricing |
Associated part numbers for PXIe-4163:
National Instruments PXIe-4163 Frequently Asked Questions
Question: What is the current range for the PXIe-4163 when it is in the PXIe-1095 Chassis?
Answer: When the PXIe-4163 is in the PXIe-1095 Chassis, the current range is 10 µA, 100 µA, 1 mA, 10 mA, 50 mA. When the PXIe-4163 is in any other chassis, the current range is 10 µA, 100 µA, 1 mA, 10 mA, 30 mA.
Question: What is the NI PXIe-4163 driver called?
Answer: The driver used by the SMU is called NI-DCPower.
Question: What is the sample rate accuracy of the PXIe-4163?
Answer: The sample rate accuracy is ±50 ppm.
Question: What types of input triggers does the NI PXIe-4163 have?
Answer: The PXI SMU has Source, Measure, Start, and Sequence Advance triggers.
| Accessory Type | Model Name | Part Number |
|---|---|---|
| Screw Terminal Accessory | Screw Terminal Connector Kit | 786985-01 |
| Cable | SHDB62M-DB62M-LL SHDB62M-BW-LL |
PXIe-4163 PDF Manuals
PXI-SOURCE-MEASURE-UNITS-PRODUCT-FLYER.PDF
PXIE-4162-4163-CALIBRATION-PROCEDURE.PDF
PXIE-4162-AND-PXIE-4163-LETTER-OF-VOLATILITY.PDF
PXIE-4163-GETTING-STARTED-GUIDE.PDF
PXIE-4163-SAFETY-ENVIRONMENTAL-AND-REGULATORY-INFORMATION.PDF
