Test & Measurement Misc > National Instruments > Area Scan Cameras

acA2000-340km In Stock | Ships Today

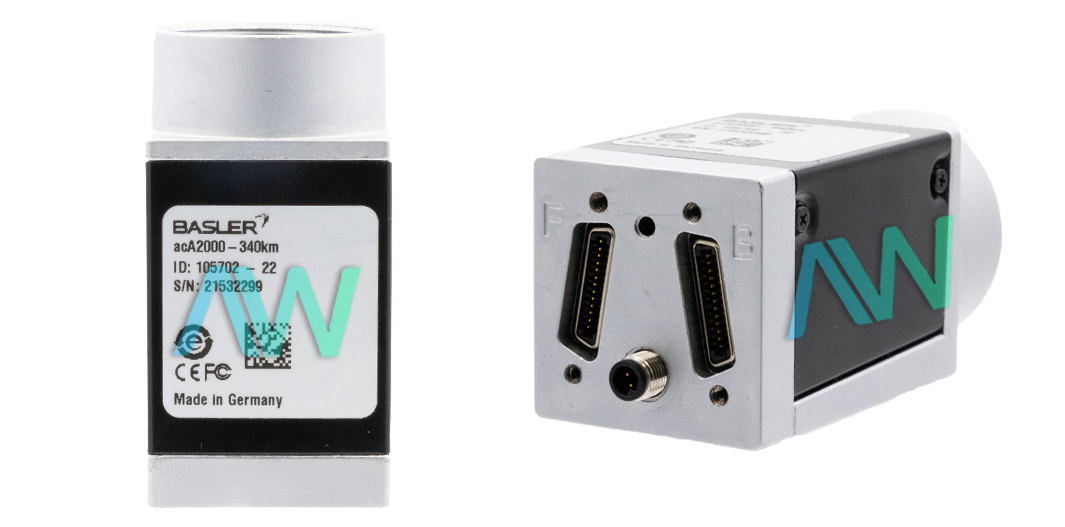

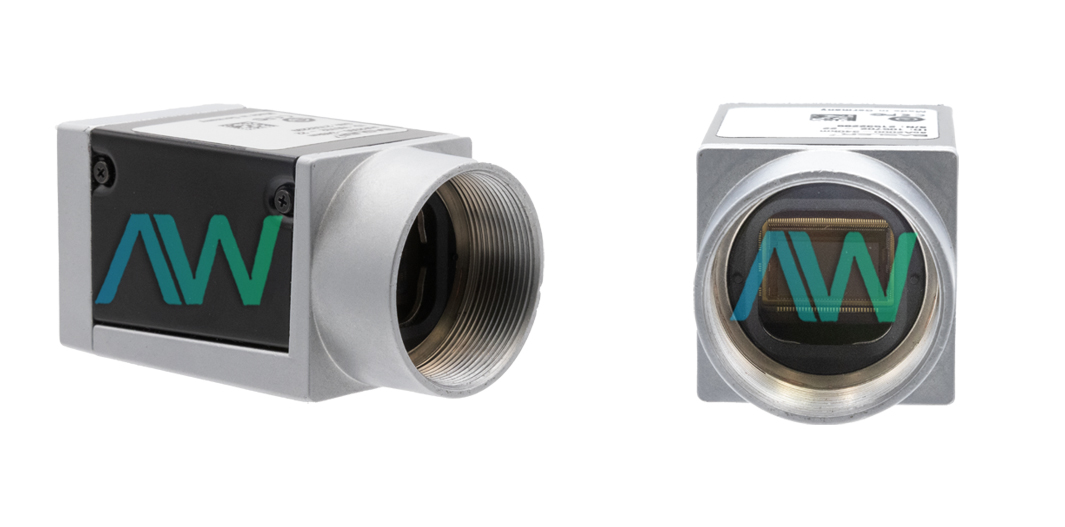

Basler acA2000-340km, 2048 X 1088 Resolution, 340 FPS, Area Scan Camera

Rated 5/5 | 11 ratings

acA2000-340km NI Area Scan Camera | Apex Waves | Image
acA2000-340km NI Area Scan Camera | Apex Waves | Image
acA2000-340km New
acA2000-340km Refurbished
❮ ❯

Actual item may vary if no part number is provided on quote request.

acA2000-340km NI Area Scan Camera | Apex Waves | Image
acA2000-340km NI Area Scan Camera | Apex Waves | Image
acA2000-340km New
acA2000-340km Refurbished

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

+Add more parts

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to:   1-919-809-5227

Basler acA2000-340km Area Scan Camera

The acA2000-340km (part number: 782142-01) is an Area Scan Camera that is manufactured by Basler and sold by National Instruments. As part of the Basler Area Scan Cameras family, the device functions with Basler Pylon Camera Software Suite and can also be used with 3rd party Camera Link Software. This camera is capable of capturing an exposure cycle for a single image, supporting a range of operating systems including Linux, Mac, and Windows.

The acA2000-340km Area Scan Camera features a monochrome image sensor and a CMV2000 camera sensor. Known for delivering a high-quality performance, this versatile camera has a maximum frame rate of 340 fps and is equipped with a global shutter as well as a Camera Link camera interface. The pixel size of the acA2000-340km measures 5.5 x 5.5 μm2, and the camera sensor resolution is 2048 x 1088.

This Basler Area Scan Camera is mounted with a C lens, featuring a single opto-isolated channel. This channel can be used as either an input or an output, depending on the specific needs of the user’s application. Featuring 3.0 W of power consumption, the camera device boasts enhanced vision capabilities. Synchronization for the device is made possible through a few options, including software trigger, hardware trigger, or free-run. Physically, the acA2000-340km typically weighs less than 100 g and measures 43.5 mm x 29.0 mm x 29.0 mm (without the adapter and connectors included) or 58.9 mm x 29.0 mm x 29.0 mm (with the adapter and connectors included).

ModelacA2000-340km
ManufacturerBasler / National Instruments
Part Number782142-01
TypeArea Scan Camera
Camera Interface TypeCamera Link
Camera SensorCMV2000
Image Sensor ColorMonochrome
Shutter TypeGlobal
Shutter Speed340 FPS
Resolution2048 X 1088
Pixel Size5.5
Dimensions43.5 mm x 29.0 mm x 29.0 mm (w/o adapter/connectors)
58.9 mm x 29.0 mm x 29.0 mm (with adapter/connectors)
WeightLess than 100 g.
Warranty 2-3 Year Warranty
PricingRequest a Quote Today for Pricing!
