Spirent SmartBits WN-3441A WAN SmartMetrics SmartCard
The SmartBits WN-3441A is a powerful multipurpose WAN SmartMetrics SmartCard. The producer of the SmartBits WN-3441A WAN SmartMetrics SmartCard is Spirent Communications. The principal purpose of developing the Spirent SmartBits WN-3441A is for the testing of network devices such as LAN switches, routers, and other broadband devices with up to frame level precision. The testing is carried out at 100% wire-rate for WAN and LAN devices under test. The SmartBits WN-3441A is applied to test the operation and interoperability of the Frame Relay devices with other Frame Relay devices. Furthermore, the interoperation of Frame Relay to ATM, Frame Relay to LAN, and Frame Relay to PPP devices can also be evaluated using the SmartBits WN-3441A WAN SmartCard.

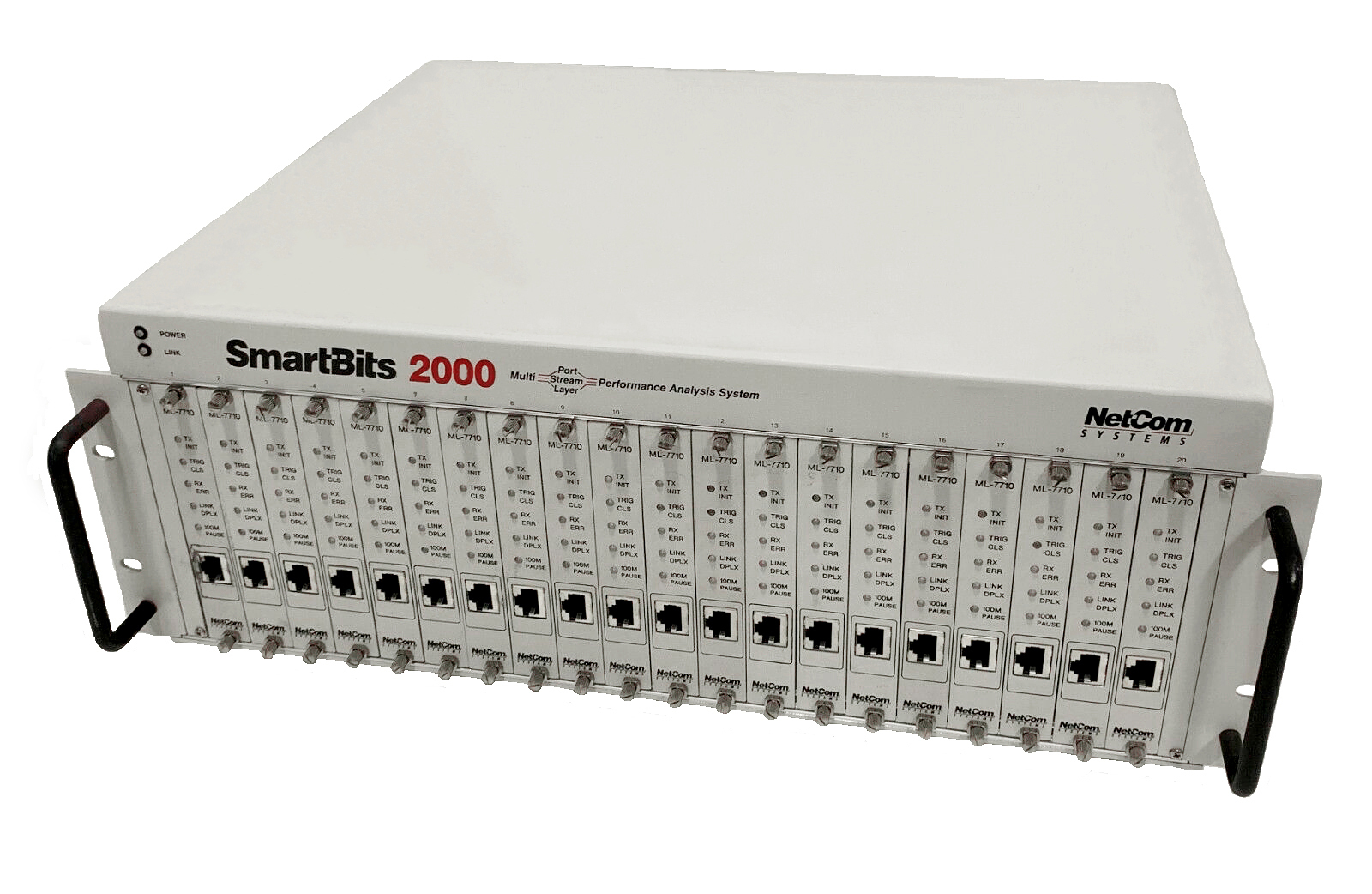

The SmartBits WN-3441A SmartCard is compatible with the Spirent SmartBits SMB-200 and SMB-2000 Network Performance Testers. Featured with a 4-port interface per module, 10 SmartBits WN-3441A can be set up in the SMB-2000 Chassis. A maximum of 24 channels can be supported on each port of the SmartBits WN-3441A SmartMetrics SmartCard. The SmartBits WN-3441A SmartCard supports a maximum line speed of 1.544 Mbps with Super Frame or Extended Super Frame features. Due to promising features embedded in the hardware, the SmartBits WN-3441A SmartCard is one of the premium choices for Layer 2 and Layer 3 testing applications.
The SmartBits WN-3441A SmartCard is provided with an RJ-48C connector interface. Equipped with the advanced technical specifications, the SmartBits WN-3441A can be confidently deployed to execute thorough testing of a single DUT, as well as a large-scale intricate network system for their degree of performance, throughput, sequence tracking, and latency measurements with precise results. The SmartBits WN-3441A can support 2,048 IP streams with 64K flows in each stream.
| Model | WN-3441A |
|---|---|
| Manufacturer | Spirent Communications |
| Type | WAN SmartMetrics SmartCard |
| Number of Ports | 4 |
| Compatible Chassis | SMB-200, SMB-2000 |
| Line Rate | T1 (1.544 Mbps) |
| Interface Type | RJ-48C |
| Max. Channels per Port | 24 |
| Line Encoding | B8ZS or AMI |
| Max. IP Streams | 2,048 |
| Warranty | 2-3 Year Warranty |
| WN-3441A User Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
