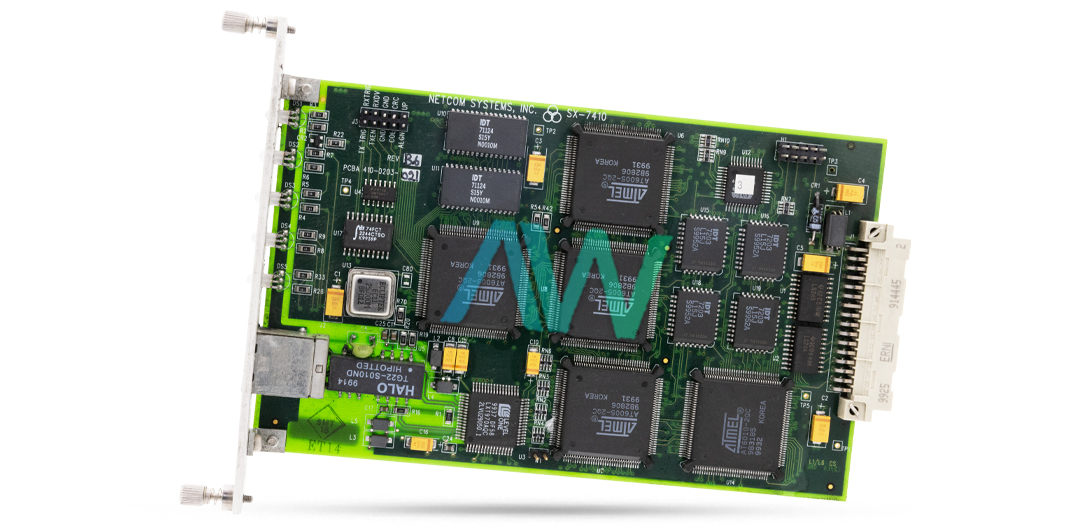

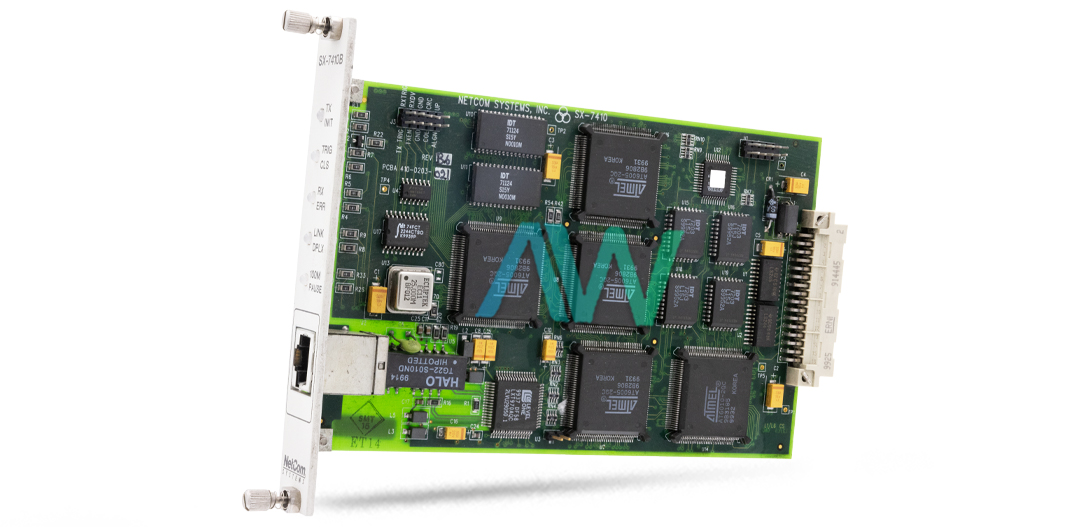

Spirent SX-7410B 10/100 Ethernet Module
The Spirent SX-7410B is a high-performance Ethernet testing module, designed to support network performance and analysis both in 10- and 100-Mbps environments. The SX-7410B interfaces through an RJ-45 connection and provides comprehensive data and VLAN capture, and Ethernet-based network testing. Supporting half and full duplex, the SX-7410B offers flexible test configurations that enable engineers to conduct realistic assessments across variable network speeds.
The SX-7410B is designed for special testing capability with the Spirent SmartBits platform and supports major applications such as SmartWindow, SmartLib, and SmartApplications. The SX-7410B is also compatible with both SMB-200 and SMB-2000 chassis, utilizing a single slot to save the so-valuable space in dense test environment configurations. Its packet-based traffic generation capability enables precise testing of network performance, conformance, and interoperability. The SX-7410B is a flexible tool, well-suited to test the performance of Ethernet devices and network backbones based on various operational conditions.
The SX-7410B controls a frame length range starting from 1 byte up to 8191 bytes maximum, thus being highly flexible for a variety of traffic situations. With a buffer to support as many as 2,048 packets, the SX-7410B can capture high-density data flows for comprehensive analysis. Some of the advanced features supported by the SX-7410B include VLAN tagging, flow control, and collision detection, which allow detailed error monitoring of CRC, alignment, dribble, and frame-size errors. This capacity thus allows the engineers to undertake an accurate data analysis during the test cycles.
The SX-7410B is designed to run at high-density data tracking and error reporting, ensuring accurate capture with real-time error detection. Besides packet capture, the ethernet module allows for features such as VLAN tagging and alternate stream handling in order to extend advanced network performance evaluations. Coming with reliability in Ethernet testing, the SX-7410B should be a weapon of choice for network engineers looking to uphold stringent standards in network analysis and maintain strong infrastructure insight.
| Model Name | SX-7410B |
|---|---|
| Model Type | Ethernet Test Module |
| Interface | RJ-45 (10/100 Mbps) |
| Duplex Mode | Half and Full Duplex |
| Frame Length Range | 1 - 8191 bytes |
| Capture Buffer Capacity | Up to 2,048 packets |
| VLAN Tagging | Supported |
| Traffic Rates | Above wire speed |
| Supported Applications | SmartWindow, SmartLib, SmartApps |
| Error Detection | CRC, alignment, dribble, size errors |
Associated part numbers for SX-7410B:
