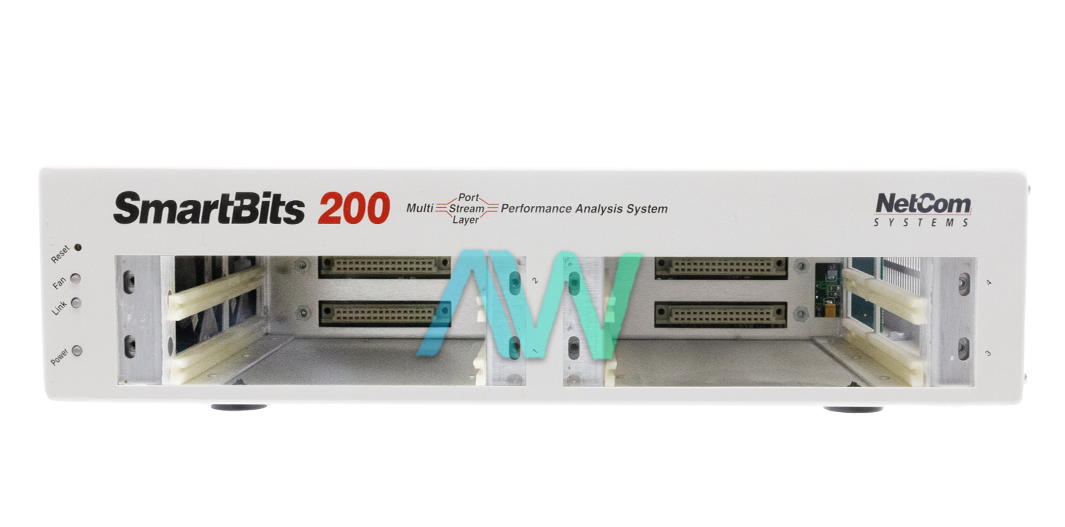

Spirent SmartBits SMB-200 Portable Network Performance Analysis System
The SmartBits SMB-200 is a high-performance network performance analyzer chassis. The SmartBits SMB-200 performance analysis system is designed by Spirent Communications. The features of lightweight, compact size, and portable design enable the Spirent SmartBits SMB-200 chassis to test, analyze, and certify various devices to standardize their performance on site. The SmartBits SMB-200 portable performance analyzing system is carefully designed to carry out end-to-end performance surveillance to identify weak spots, erratic points, and loopholes in the network systems of telecommunication companies (Telcos) and internet service providers (ISPs).

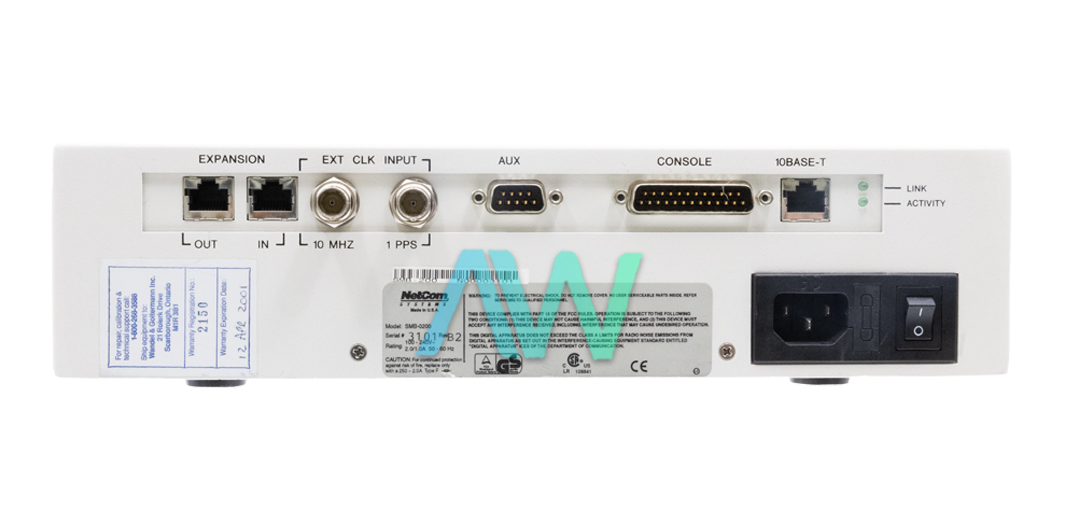

The Spirent SmartBits SMB-200 portable performance analysis system is featured with 04 ports. Through these provided ports, up to 04 SmartCards can be connected to the SmartBits SMB-200 performance analyzer chassis. The SmartBits SMB-200 portable chassis is provided with 03 software applications, i.e. SmartWindow, SmartLib, and SmartApplications. These applications are compatible with the OS Windows. The connection between the host PC and the SmartBits SMB-200 portable chassis can be made through a 10 Mbps Ethernet connection. The SmartBits SMB-200 network performance analysis system can be remotely controlled through the Internet or it is connected locally through an RS-232 port. The SmartBits SMB-200 portable chassis can also be expanded to SmartBits multiple chassis extended units and up to 512 chassis can be synchronized.
The Spirent SmartBits SMB-200 portable performance analysis system is provided with GPS support. Through an external GPS kit, a cluster of SmartBits SMB-200 chassis can be remotely synchronized. The SmartBits SMB-200 portable chassis is a lightweight unit weighing only 5 lbs. with 12.25” x 3” x 12” dimensions and can be easily be delivered to the test sites for on-site industrial applications.
| Model | SMB-200 |
|---|---|
| Manufacturer | Spirent Communications |
| Type | Portable Performance Analysis System |
| Number of Slots | 4 |
| Ethernet Connection | 10 Mbps |
| Maximum Scalable Chassis | 512 |
| Interface | RS-232 |
| Expansion Interface Type | RJ-45 |
| Operating Temperature | 15 degrees C to 40 degrees C |
| Warranty | 2-3 Year Warranty |
| SMB-200 User Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
