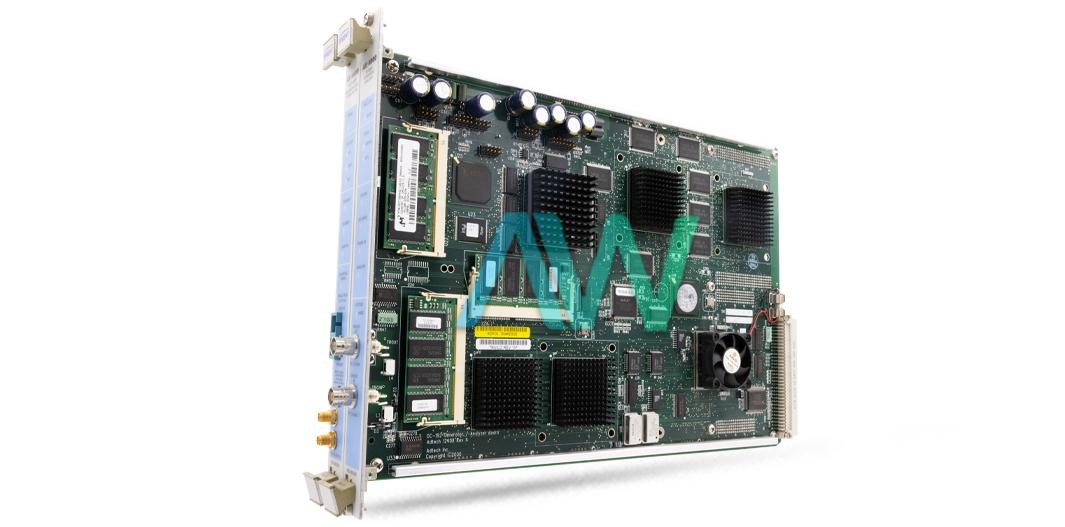

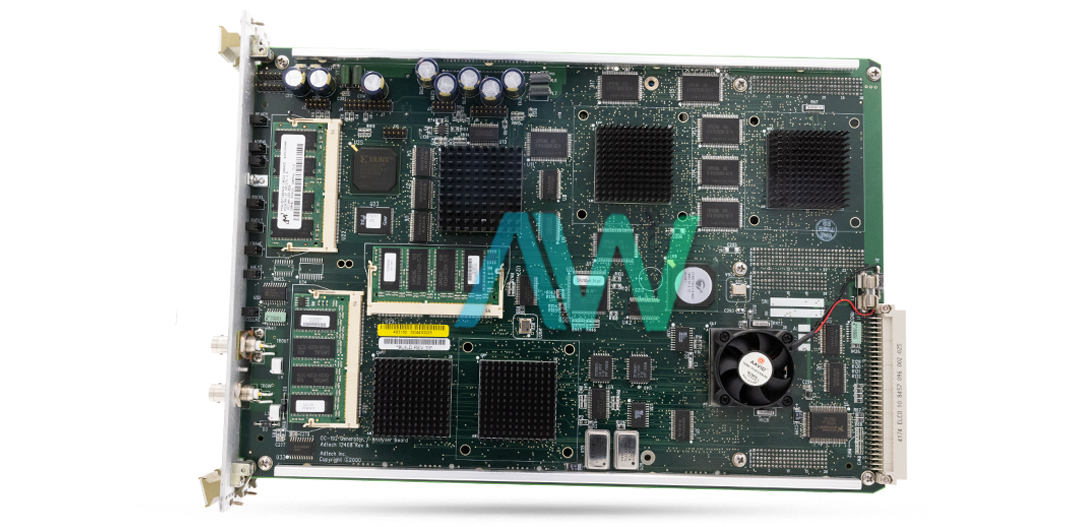

Spirent 403100 Generator/Analyzer Module
The Spirent 403100 10 Gbps Generator/Analyzer module for the AX/4000 Broadband Test System is a high speed testing solution for broadband network equipment and infrastructure. This module supports multiple protocols (ATM, IP, Frame Relay, Ethernet) and can test multiple protocols and interfaces simultaneously. It operates from 1.554 Mbps to 10 Gbps and is suitable for a wide range of network applications.
This module can validate network characteristics such as scalability, reliability and overall performance and can test technologies used in access, mobile backhaul, routing, multicast, switching and MPLS environments. Field programmable and versatile the AX/4000 system has over 35 interchangeable interfaces and can meet the changing demands of network development and evolving industry standards. It can do end to end testing scenarios, simulate conditions from subscriber edge to core network backbone and ensure the network is ready before deployment.
The 403100 module also includes conformance test suites for many protocols so users can detect and fix protocol implementation issues early in the development cycle. These suites help troubleshoot and refine device functionality by isolating variables and increasing diagnostic accuracy. With high scalability, the AX/4000 can support up to 32,000 subscriber sessions per port and 256,000 sessions per chassis so is ideal for environments that require extensive, repeated and consistent testing.
Using the Spirent AX/4000 with the 403100 module reduces the complexity, time and cost of testing and increases the exhaustiveness and repeatability of tests. Users can test network performance under varying traffic loads and operating conditions and have confidence in the network before deployment. Designed with input from leading network service providers and telecommunications manufacturers, this solution simplifies testing workflows and is essential for delivering high quality broadband networks that meet performance and reliability requirements.
| Model Name | Spirent 403100 Generator/Analyzer |
|---|---|
| Product Family | AX/4000 System |
| Protocols Supported | ATM, IP, Frame Relay, Ethernet |
| Speed | 10 Gbps |
| Interface Options | 35+ programmable, interchangeable interfaces |
| Session Capacity | 32,000 sessions/port; 256,000 sessions/chassis |
| Conformance Testing | Suites for ATM, MPLS, IPv6, OSPF, BGP |
| Applications | Broadband, backhaul, routing, MPLS, switching |
| Network Simulation | End-to-end from edge to core |
| Scalability | High-demand, repeatable testing |
