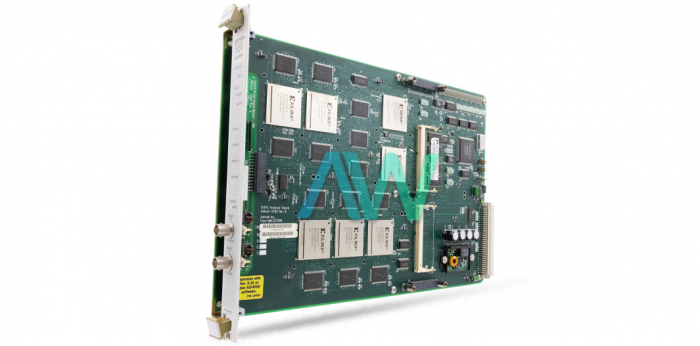

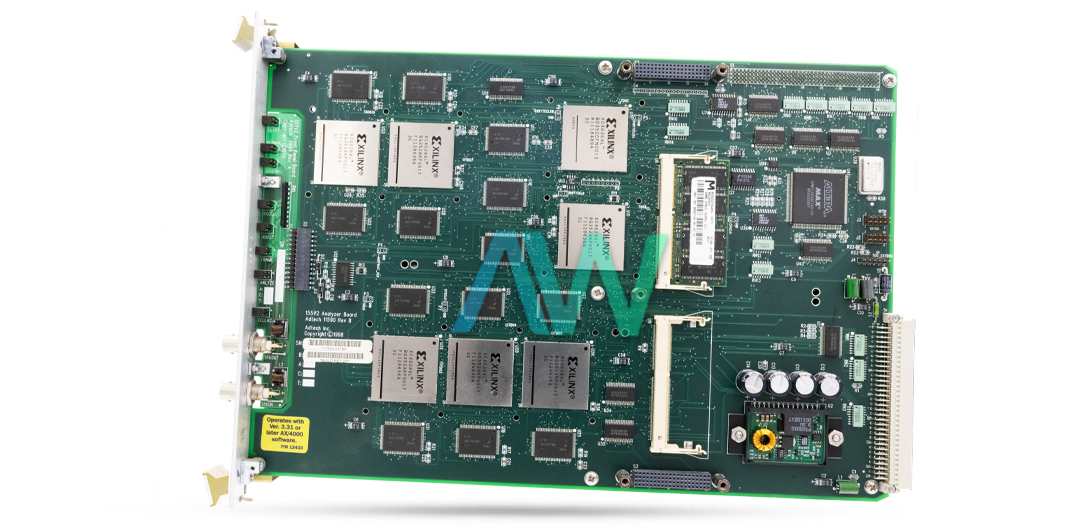

Spirent 401311 155.52 Mbps Generator/Analyzer for AX4000
The Spirent 401311 module is a 155.52 Mbps Generator/Analyzer module for the AX4000 Broadband Test System that provides solid testing of ATM, IP, Frame Relay, and Ethernet protocols. This module combines both generator and analyzer in one module to make high-precision tests of broadband technologies and validate performance, scalability, and protocol compliance of network devices. The 401311 features powerful support for industry-standard conformance test suites, focused on environments where rigorous verification of devices and networks is required before their deployment. This will make sure that the equipment performs under varied conditions of a network and heavy loads.
The 401311 module is perfect for testing applications in broadband access, mobile backhaul, core routing, and switching and can emulate a great part of the network scenarios. It easily supports multiple interface options, including the 400305 OC-3c/STM-1 interface, for compatibility with SONET/SDH networks. This module operates at 155.52 Mbps, providing accurate data generation and analysis in order to test network equipment response for specific traffic patterns and performance requirements.
The 401311 addresses broadband network testing issues of time and costs with scalability and efficiency. It enables engineers to simulate an end-to-end network, from subscriber edge through the core backbone, replicating conditions and load demands of the real world. Such simulation capability ensures that devices can meet expected performance standards prior to being deployed in live network environments. This reduces risk and enhances the reliability of operations.
The controller software AX4000 allows easy configuration, setting up, and running test cases for flexibility in testing-real-time data monitoring and analysis. Field-programmable 401311 allows the on-the-fly adjustments, adapting to changing test conditions, and detailed data collection enables quick troubleshooting and validation. This module automates the conformance testing and performance assessment of such solutions, allowing repeatable and exhaustive tests to be run to reinforce integrity and efficiency in broadband solutions.
| Model Name | Spirent AX4000 401311 |
|---|---|
| Module Type | 155.52 Mbps Generator/Analyzer |
| Protocols Supported | ATM, IP, Frame Relay, Ethernet |
| Interface Compatibility | Compatible with 400305 OC-3c/STM-1 Interface |
| Transmission Rate | 155.52 Mbps |
| Testing Capabilities | Conformance and performance testing |
| End-to-End Simulation | Simulates subscriber edge to core backbone |
| Configuration | Field-programmable, real-time adjustments |
| Controller Software | AX4000 software for setup and data monitoring |
| Application Areas | Broadband access, mobile backhaul, routing, switching |
Associated part numbers for 401311:
