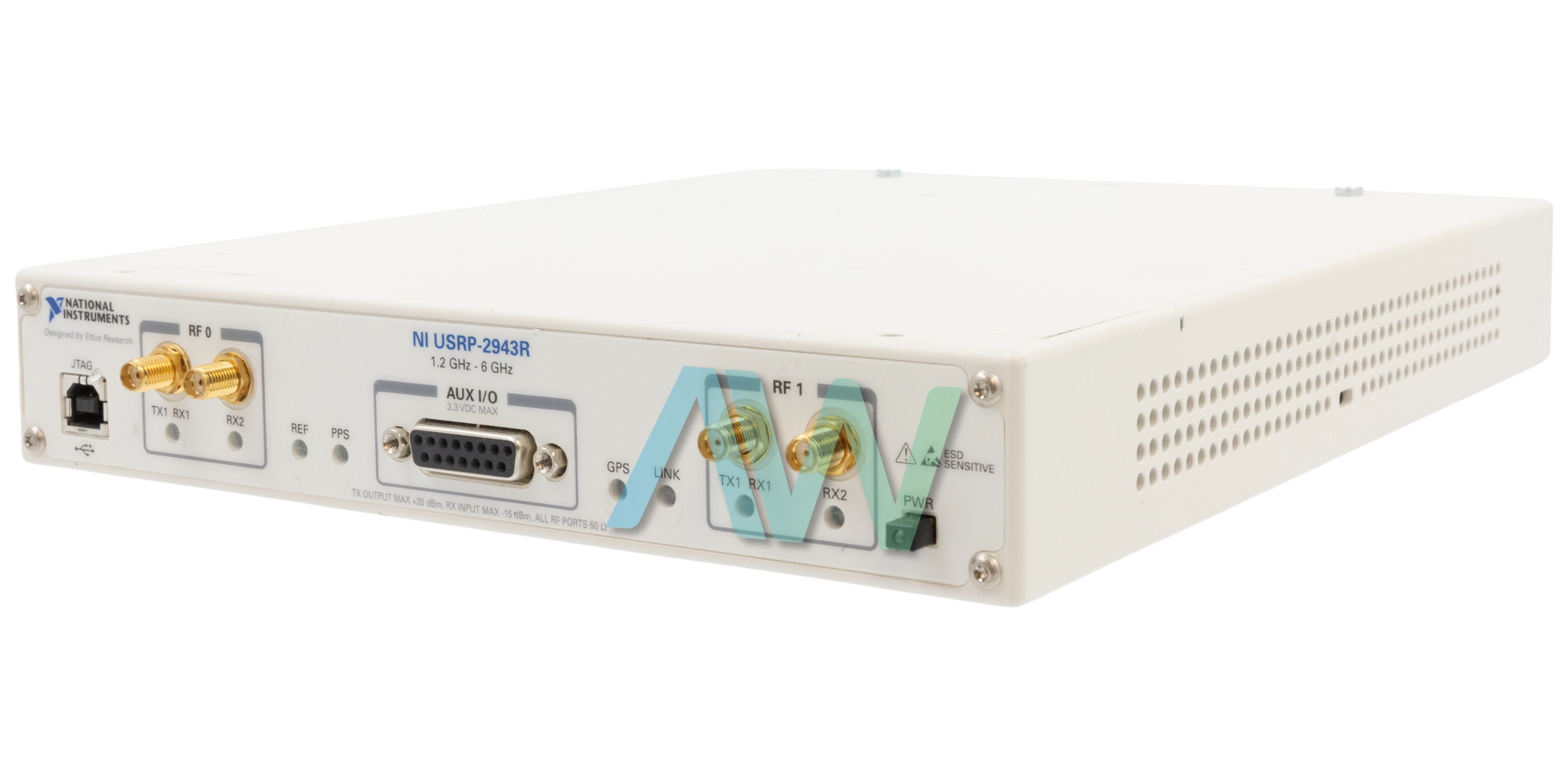

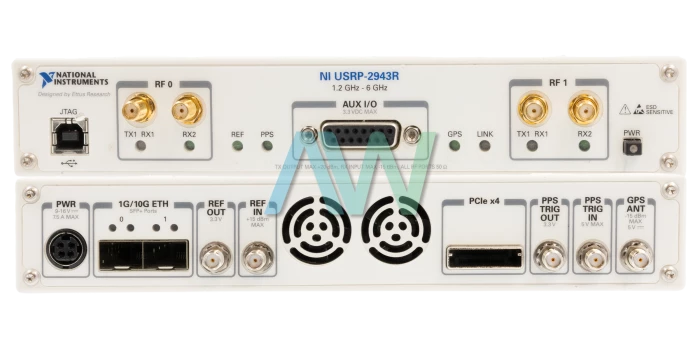

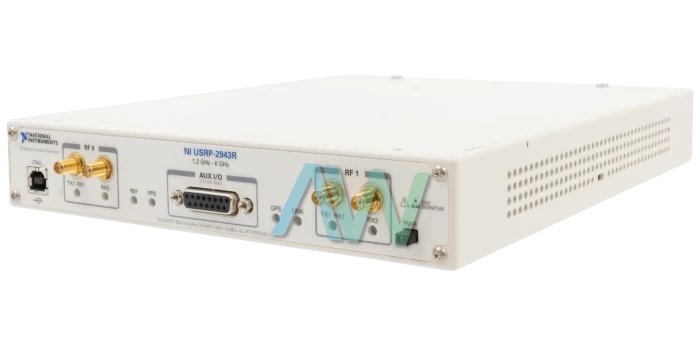

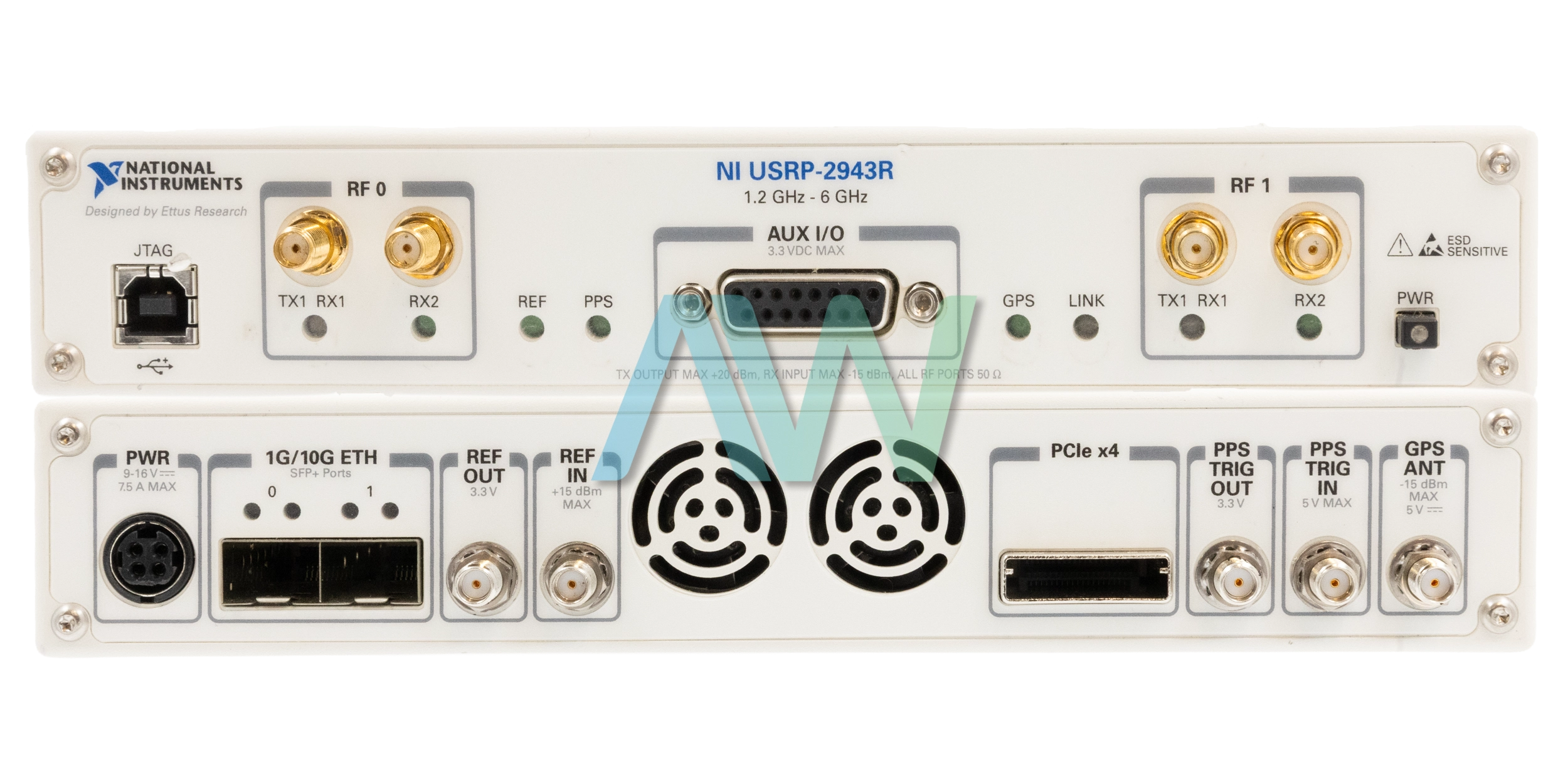

National Instruments USRP-2943 USRP Software-Defined Radio Device
The USRP-2943 is a USRP Software Defined Radio Device. The USRP-2943 device is designed by National Instruments. The NI USRP-2943 device comes in two versions with different part numbers: 783148-01 and 783925-01. The USRP-2943 device can be programmed with an NI instrument driver available with the NI USRP-2943 device. The USRP-2943 USRP Software Defined Radio Device is designed to be utilized with Windows operating systems.
The National Instruments USRP-2943 USRP Software Defined Radio Device works with two types of bus connectors: Ethernet and MXIe. There is a Kintex-7 410T FPGA available in the NI USRP-2943. The USRP-2943 device communicates with 2 input channels and 2 output channels. The NI USRP-2943 can model the wireless communication systems with pre-defined integration of hardware and software architectures. The USRP-2943 USRP Software Defined Radio Device is comprised of RIO architecture. The USRP-2943 device is evaluated with gain steps of 0.5 dB at both the transmitter and receiver sides.
The NI USRP-2943 can be used with a voltage supply of 9 to 16 V of DV. The current is a maximum of 7.5 A for the inputs of the USRP-2943 USRP Software Defined Radio Device. The NI USRP-2943 is designed with an onboard DRAM of 1024 MB memory size. The USRP-2943 device can function with an RF frequency from 1.2 GHz to 6 GHz. The instantaneous bandwidth of RF frequencies for the NI USRP-2943 device is 40 MHz. The weight of the USRP-2943 device is about 1.588 kilograms.
| Model | USRP-2943 |
|---|---|
| Manufacturer | National Instruments |
| Part Numbers | 783148-01 and 783925-01 |
| Type | USRP Software Defined Radio Device |
| Input Channels | 2 |
| Output Channels | 2 |
| RF Frequency Range | 1.2 GHz to 6 GHz |
| Bus Connector | Ethernet, MXIe |
| Dimensions | 10.5 in. × 1.6 in. × 8.6 in. |
| Weight | 3.50 lb. |
| Warranty | 2-3 Year Warranty |
| USRP-2943 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for USRP-2943:
USRP-2943 PDF Manuals
MIMO-PROTOTYPING-SYSTEM-GETTING-STARTED-GUIDE.PDF
NI-USRP-2940-2942-2943-LETTER-OF-VOLATILITY.PDF
NI-USRP-AND-LABVIEW-COMMUNICATIONS-SYSTEM-DESIGN-SUITE-GETTING-STARTED-GUIDE.PDF
USRP-2940-2942-2943-2944-2945-GETTING-STARTED-GUIDE.PDF
USRP-2943-SAFETY-ENVIRONMENTAL-AND-REGULATORY-INFORMATION.PDF
