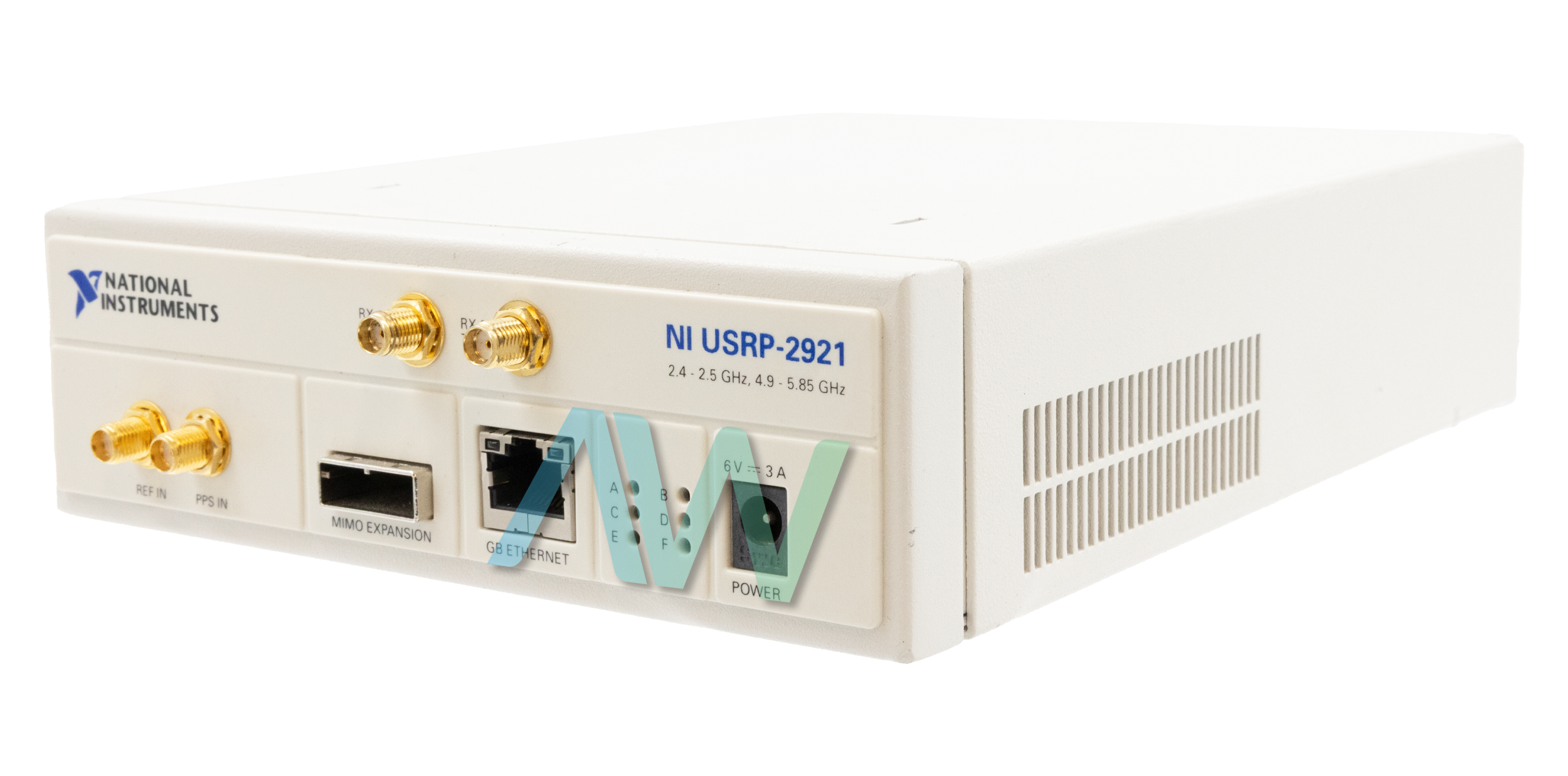

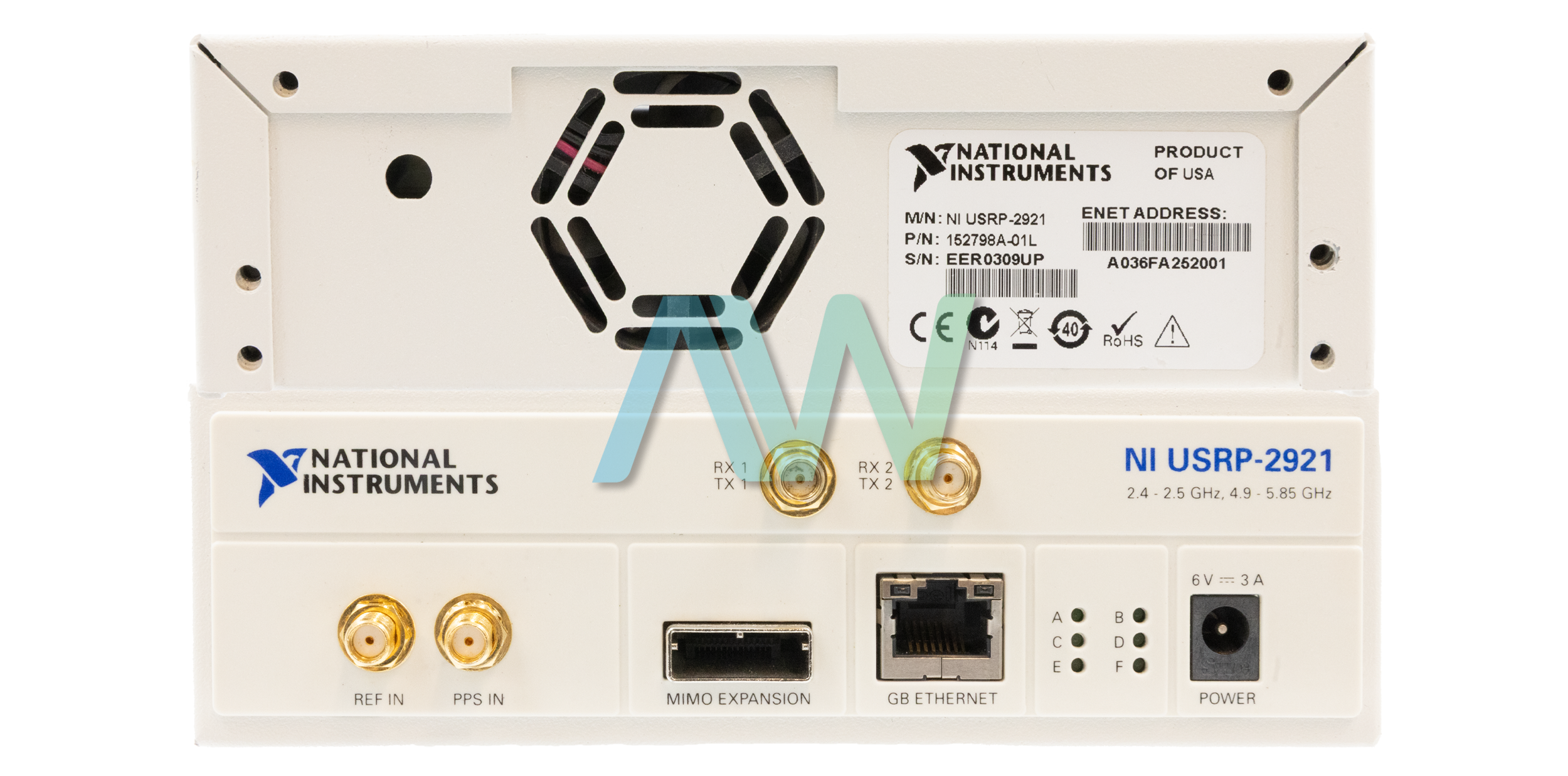

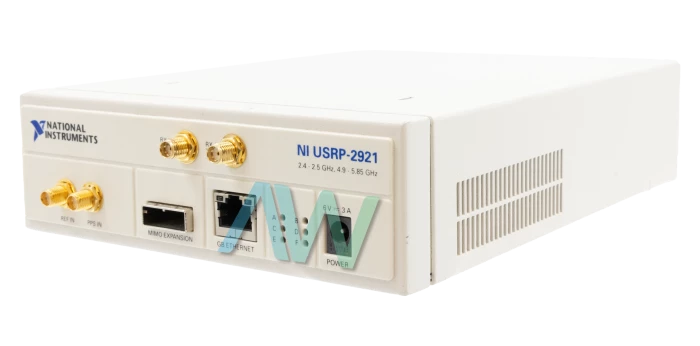

National Instruments USRP-2921 USRP Software-Defined Radio Device
The USRP-2921 is a USRP Software-Defined Radio Device. The NI USRP-2921 device comprises software-defined radio frequencies. These RF frequencies are tunable to different frequency levels. The USRP-2921 is made by National Instruments. National Instruments introduces this device with part number 781907-01. The USRP-2921 USRP Software-Defined Radio Device belongs to the product series of NI USRP devices. The user can utilize the NI USRP-2921 functions by installing the NI-USRP instrument driver on the LabVIEW application software.
The National Instruments USRP-2921 USRP Software-Defined Radio Device performs signal operations with two different versions of RF frequencies. The USRP-2921 device is compatible with 2.4 to 2.5 GHz and 4.9 to 5.9 GHz ranges for RF frequencies. The NI USRP-2921 is connected over an Ethernet bus for different signaling tasks. The RF bandwidth for the USRP-2921 is available at 20 MHz. The RF transceiver in the NI USRP-2921 device is equipped with an analog-to-digital-converter for the receiver and a digital-to-analog-converter for the transmitter.
The USRP-2921 is delivered with a gain step for the transmitter of 0.5 dB, while the gain step if 2 dB for the receiver. The NI USRP-2921 device consists of one input and one output channel. The USRP-2921 is configured as a half-duplex device, since it cannot operate in two-way communication at a similar time. The NI USRP-2921 USRP Software-Defined Radio Device can handle a noise figure of 5 dB to a 7 dB. The USRP-2921 device is operated with 23 °C ± 5 °C.
| Model | USRP-2921 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 781907-01 |
| Type | USRP Software Defined Radio Device |
| Input Channels | 1 |
| Output Channels | 1 |
| RF Frequency Range | 2.4 GHz to 2.5 GHz, 4.9 GHz to 5.9 GHz |
| Bus Connector | Ethernet |
| Dimensions | 6.25 in. × 1.9 in. × 8.35 in. |
| Weight | 2.63 lb. |
| Warranty | 2-3 Year Warranty |
| USRP-2921 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for USRP-2921:
USRP-2921 PDF Manuals
NI-USRP-2920-2921-2922-GETTING-STARTED-GUIDE.PDF
NI-USRP-292029212922-LETTER-OF-VOLATILITY.PDF
NI-USRP-AND-LABVIEW-COMMUNICATIONS-SYSTEM-DESIGN-SUITE-GETTING-STARTED-GUIDE.PDF
USRP-2920-2921-2922-GETTING-STARTED-GUIDE.PDF
USRP-2921-SAFETY-ENVIRONMENTAL-AND-REGULATORY-INFORMATION.PDF
