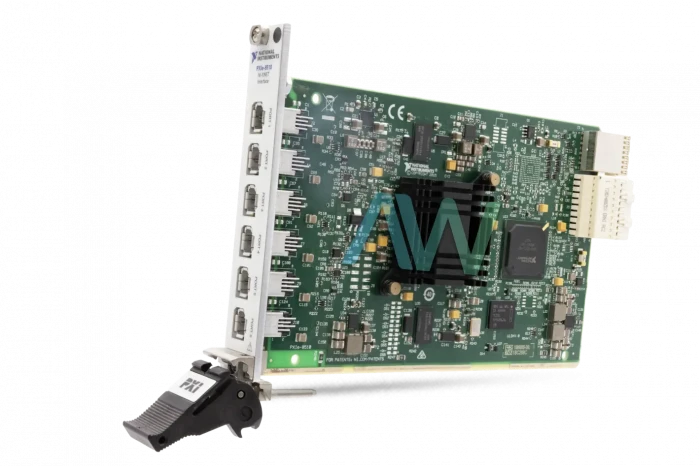

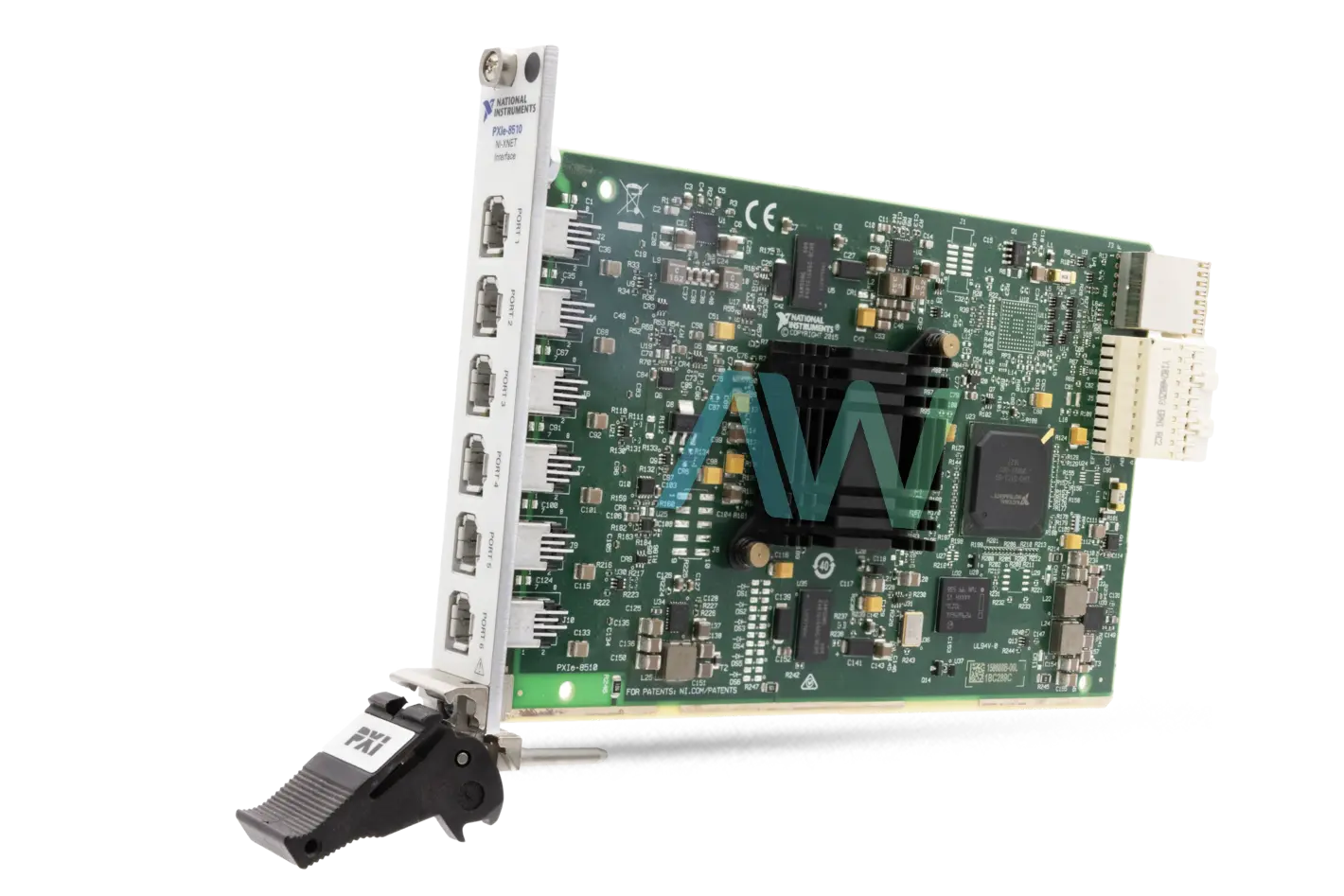

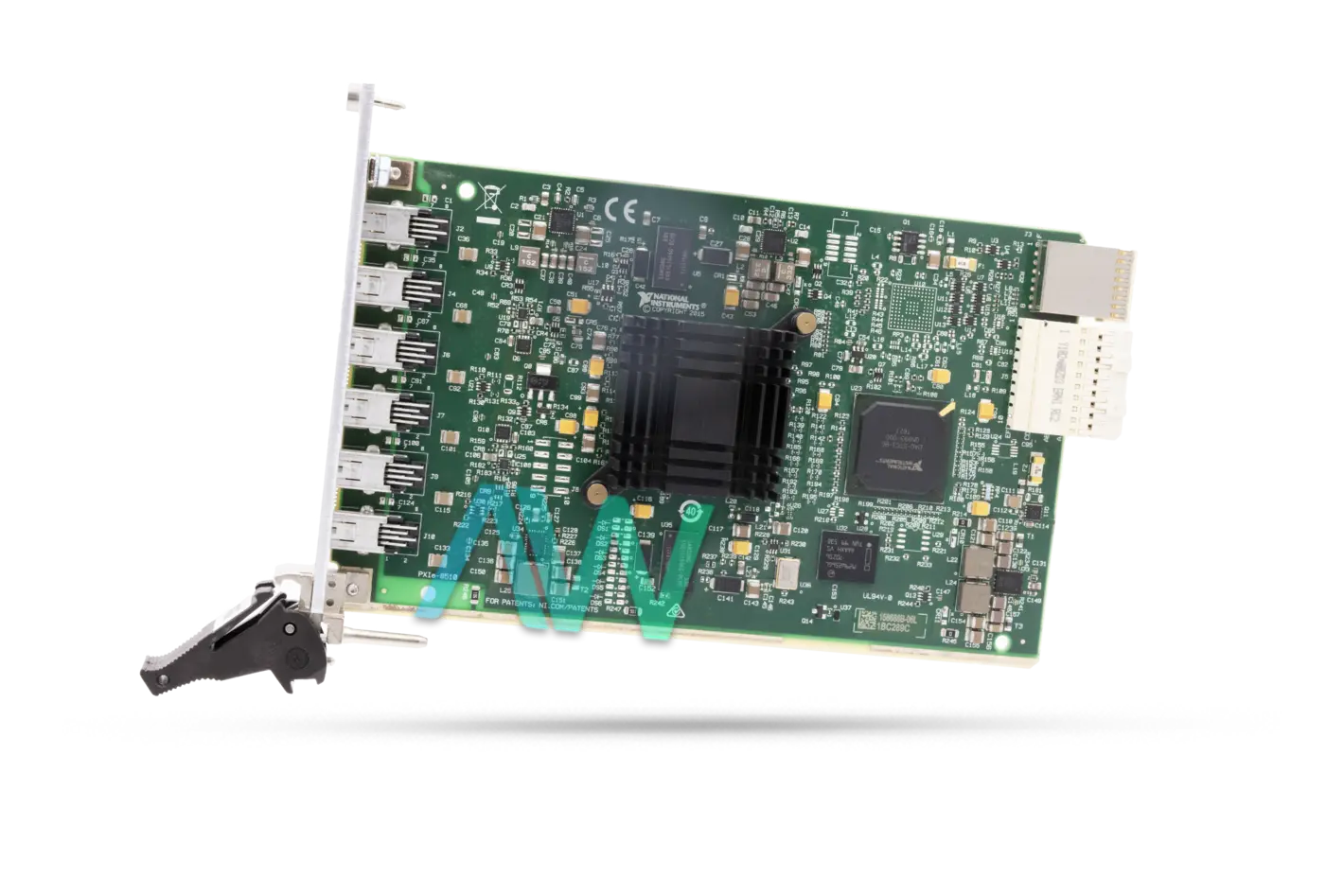

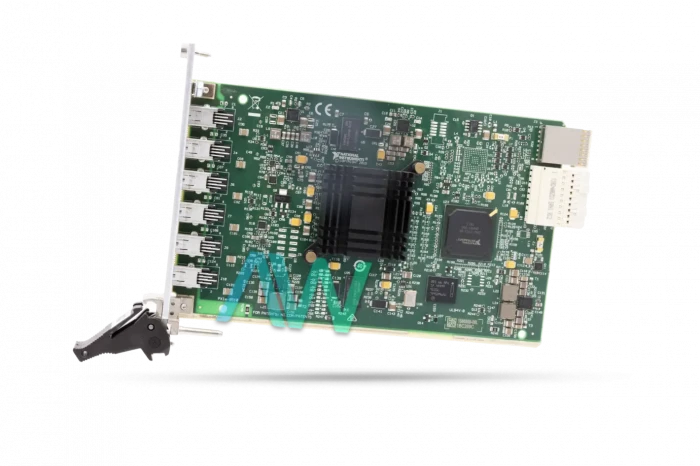

National Instruments PXIe-8510 PXI Vehicle Multiprotocol Interface Module
The PXIe-8510 (Part Numbers: 784121-01, 784122-01, 158688B-06L) is a Portable Multiprotocol Interface Module that comes with 2 or 6 Ports and is an equipment selectable controller zone organization interface, as well as a local interconnect device for creating applications with an NI Controller.
XNET is a function incorporated in the NI PXIe-8510, which exceeds expectations in applications that require fast ongoing control of several casings and CAN signals, such as hardware-in-the-loop simulation, quick generation of control models, bus checking, mechanization control, and many others. The DMA motor controlled by the NI-XNET gadget empowers the inside processor to move outlines and CAN motions between the interface and the client program without intruding on the CPU, which limits message dormancy and arranges for the season of the fundamental processor for process complex models and applications. The NI-XNET driver can be used to program and design NI-XNET links. With the capacity to meet the developing benchmarks for higher information rates, CAN FD is the generation of rapid CAN communication. NI has empowered speed to 8 Mb/s utilizing the TJA1043 handset through the NI-XNET driver. As the handset suppliers meet the CAN FD speed criteria, NI will refresh its documentation, as essential.
The NI PXIe-8510 offers a CAN HS/FD and/or LIN interface with equipment selectable NI-XNET handset links, a NI-XNET driver for creating casing and signal applications in LabVIEW, LabWindows ™/CVI, and C/C ++, along with a driven DMA motor for coupling to host memory to limit message latency.
| Model | PXIe-8510 |
|---|---|
| Part Numbers | 784121-01, 784122-01, 158688B-06L |
| Manufacturer | National Instruments |
| Type | PXI Vehicle Multiprotocol Interface Module |
| Ports | 2 or 6 |
| Slot Compatibility | x1 and x4 PXI Express or PXI Express Hybrid Slots |
| Connector | NI-XNET Hardware Selectable Interface Port |
| Bus Connector | PXI Express |
| CAN Physical Layer | High-Speed, Low-Speed/Fault Tolerant, Flexible Data Rate |
| LIN Physical Layer | LIN |
| Dimensions | 6.3 x 3.9 in. |
| Weight | 2-Port model: 140 g; 6-Port model: 150 g. |
| Warranty | 2-3 Year Warranty |
| PXIe-8510 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for PXIe-8510:
National Instruments PXIe-8510 Frequently Asked Questions
Question: What are the differences between the two part numbers for the PXIe-8510?
Answer: The two part numbers for the PXIe-8510 have different weights and different port numbers. Part number 784121-01 has 2 ports and weighs 140 g. Part number 784122-01 has 6 ports and weighs 150 g.
Question: Which types of transceiver cables are supported by the ports on the NI PXIe-8510?
Answer: NI-XNET transceiver cables (CAN/LIN) are supported by the ports on the NI PXIe-8510.
Question: What is the form factor for the NI PXIe 8510?
Answer: The form factor for the NI PXIe 8510 is x1 PXI Express peripheral module, specification rev 1.0 compliant.
Question: What are the power requirements for the PXIe-8510?
Answer: The power requirements for the PXIe-8510 are 1.03 (0.42) A at +3.3 V or 0.24 (0.17) A at +12 V for the 2-Port model. However, for the 6-Port model, the power requirements are 1.6 (0.76) A at +3.3 V and 0.5 (0.34) A at +12 V.
