PXIe-8430-8 In Stock | Ships Today

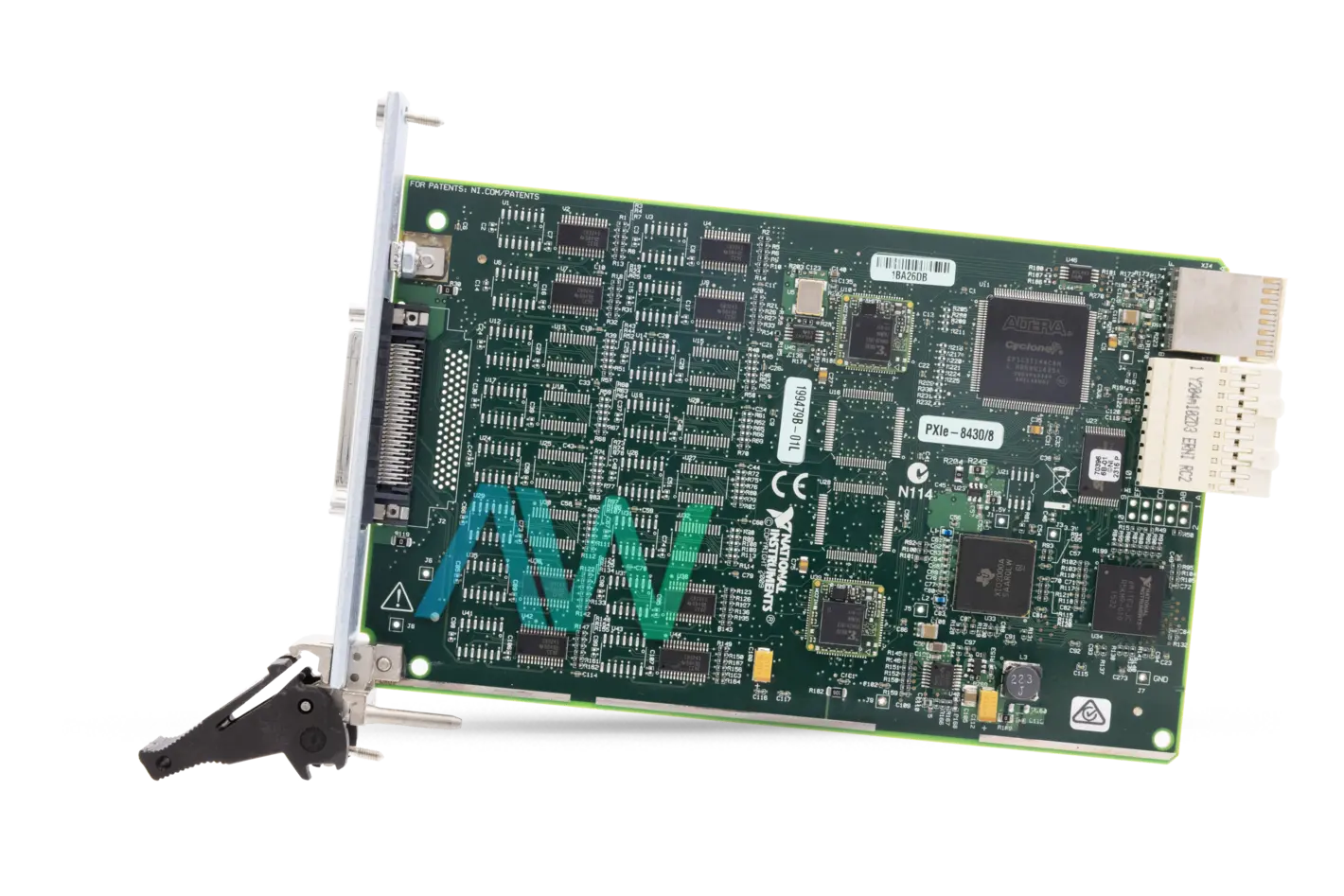

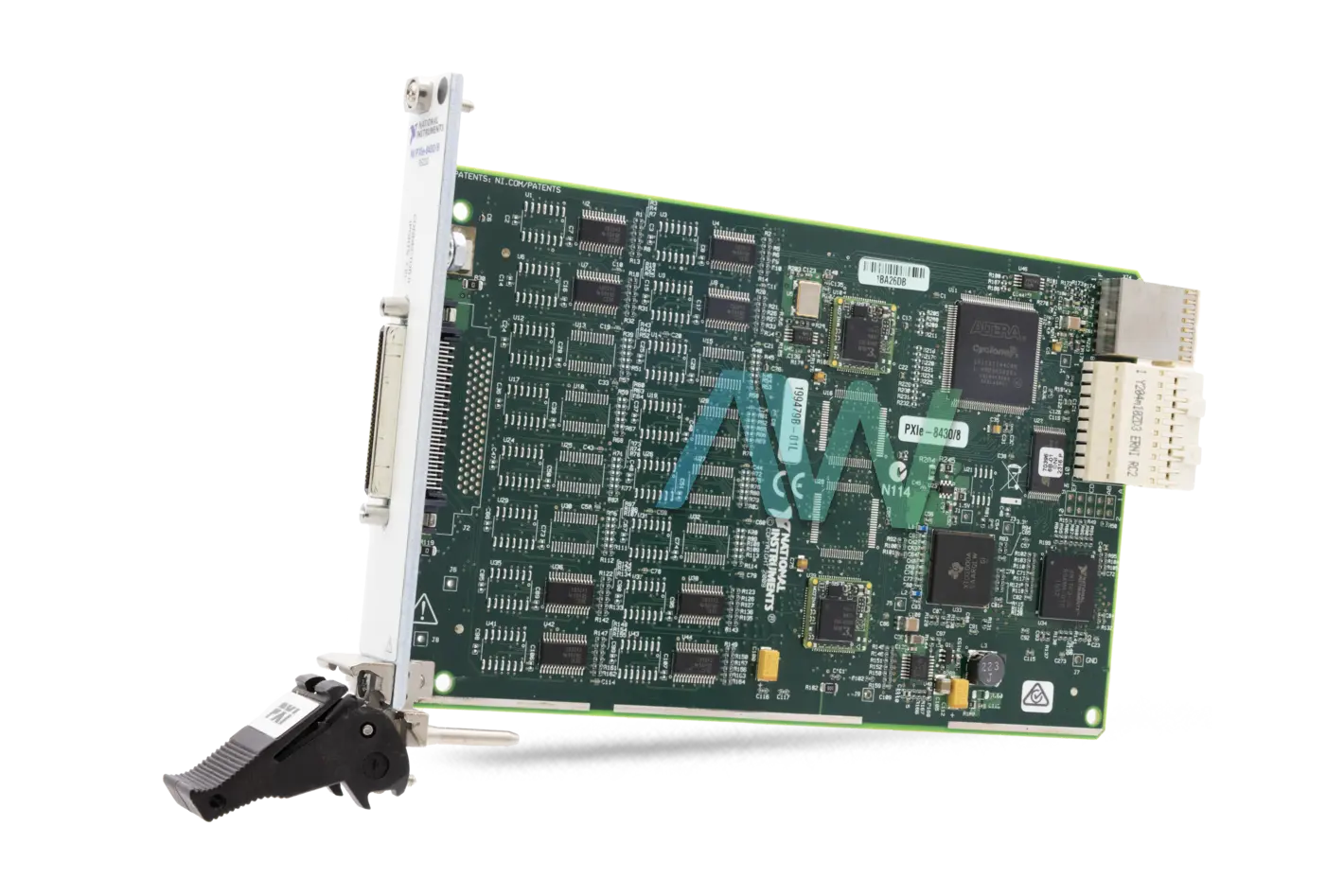

PXIe-8430/8, 8-Port, RS232, PXI Serial Interface Module
Rated 5/5 | 20 ratings
Actual item may vary if no part number is provided on quote request.
✔ 2 Year Warranty Included
✔ Free Ground Shipping
✔ NIST Calibration Available
Andrew Gar**** Verified Buyer
" Amazing to work with and had my order within 1 week after purchasing with all NI certs and data that were needed. "
March 2025
Said Sai**** Verified Buyer
" Competent contact for highly specialized components. The support team is very knowledgeable. Many thanks for the help and the fast shipping! "
January 2025
Bob C**** Verified Buyer
" Jason was able to get our emergency situation taken care of quickly and professionally. "
May 2025
Gregg Flecki**** Verified Buyer
" Great service and great products. This is my 2nd time using Apex Waves, truly impressed. "
January 2025
Carol Zimme**** Verified Buyer
" Very responsive and helpful, competitive pricing. Good source! "
July 2025
Andrew Gar**** Verified Buyer
" Amazing to work with and had my order within 1 week after purchasing with all NI certs and data that were needed. "
March 2025
Said Sai**** Verified Buyer
" Competent contact for highly specialized components. The support team is very knowledgeable. Many thanks for the help and the fast shipping! "
January 2025
Bob C**** Verified Buyer
" Jason was able to get our emergency situation taken care of quickly and professionally. "
May 2025
Gregg Flecki**** Verified Buyer
" Great service and great products. This is my 2nd time using Apex Waves, truly impressed. "
January 2025

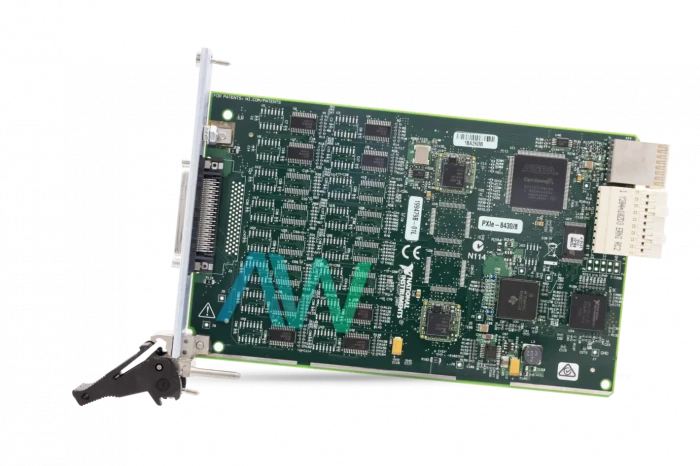

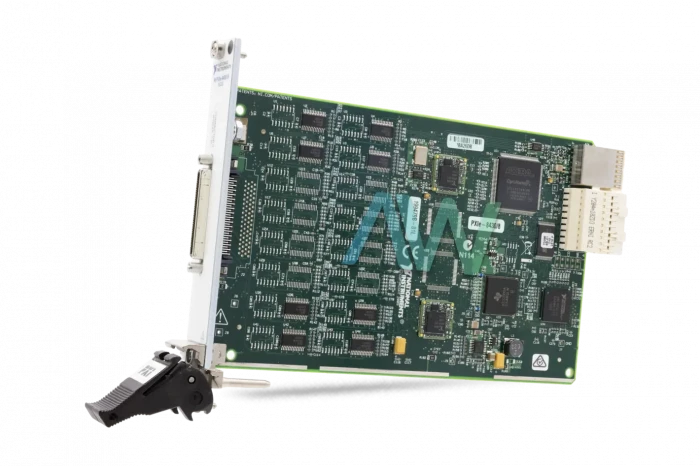

National Instruments PXIe-8430/8 Serial Interface Module
The NI PXIe-8430/8 (Part Number: 781472-01) is a Serial Interface Module that includes 8 Ports. Each of the 8-port serial association incorporates a connector link that associates with the SCSI 68-stick connector that belongs to the gadget and ends in eight basic DB-9 male connectors. These DB-9 male connectors give basic stick assignments to RS232 associations. With multiprocessor and hyper-threading similarity, the user can exploit the most recent PC innovation for higher speeds and enhanced productivity. The new driver programming included with the NI PXIe-8430/8 Serial Interface Module offers better asset portion, along with DMA access for higher throughput with insignificant CPU use. Also, the PXIe-8430/8 module incorporates new memory-mapping highlights that can be used to interface with more serial gadgets without asset clashes.
The TCP/IP communication convention, which handles all communication between the serial gadget server and the host PC, keeps running on implanted firmware in the serial gadget server. A design utility arranges the IP address of the serial gadget server and uncovers all extra serial ports to the OS for quick use by any application programming bundle utilizing a standard Microsoft Windows Serial (COM) port interface.
The user can additionally install and utilize the USB-232 and USB-48 as basic serial ports from current applications or with applications composed with NI-VISA. Also, the USB-232 2 and 4-port forms include software eligible DTE or DCE handset modes, and a programmed handset discovery mode, or Auto232. The USB-485 highlights programming eligible biasing, with which users can turn biasing on and off for each port. The PXIe-8430/8 has a power requirement of 220 mA typical and 250 mA maximum at +12 VDC, 200 mA typical and 750 mA maximum at +3.3 VDC.
The NI device weighs 143 g, and measures 3.94 x 6.37 in. in physical dimensions. It has recommended operating and storage temperature ranges of 0 to 55 °C and -40 to 71 °C respectively, non-condensing operating and storage humidity ranges of 10 to 90% RH and 5 to 95% RH respectively, operating and non-operating random vibrations of 0.3 grms and 2.4 grms respectively–all at a frequency range of 5 to 500 Hz.
| Model | PXIe-8430/8 |
|---|---|
| Part Number | 781472-01 |
| Manufacturer | National Instruments |
| Type | PXI Serial Interface Module |
| Serial Channels | 8 |
| Supported Serial Protocols | RS-232 |
| Isolated | No |
| Dimensions | 3.94 x 6.37 in. |
| Weight | 143 g. |
| Warranty | Three Year Warranty |
| PXIe-8430/8 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Request a Quote Today for Pricing |
Associated part numbers for PXIe-8430-8:
National Instruments PXIe-8430/8 Frequently Asked Questions
Question: What is the connector type on the PXIe-8430/8?
Answer: The Serial Interface Module has a 68-pin VHDCI connector.
Question: What is the minimum baud rate supported by the NI PXIe-8430/8?
Answer: The device supports a minimum baud rate of 2 baud.
Question: Does the PXIe-8430/8 have an RS-232 transceiver state?
Answer: Yes, the Serial Interface Module has an RS-232 transceiver state.
Question: What are the power requirements for the module at +12 VDC?
Answer: The power requirements for the NI PXIe-8430/8 at +12 VDC are 220 mA typical and 250 mA maximum.
