National Instruments PXIe-8240 PXI Ethernet Interface Module
The PXIe-8240 (Part Number: 784977-01) by National Instruments is a 40 Gigabit PXI Ethernet Interface Module. This PXI Express module has an Intel XL710 40Gb Ethernet controller. It incorporates two 40-Gigabit Ethernet QSFP + ports in a single slot PXI Express module and will work with both copper and fiber optic cabling. QSFP + 40GBase-SR4 offers a 40 Gigabit network through a multimode fiber optic link, with a fiber optic wavelength of 850nm and in a scope of 150m maximum. It is an economical and reliable way to include, supplant, or refresh the ports of a system hardware, notwithstanding being ensured by a lifetime guarantee. As it offers usefulness and adaptability, this QSFP + fiber optic transceiver can be hot-plugged whenever, enabling the user to introduce it without interfering with network activity or having to restart a computer. It is a flexible and economical solution and is also compatible with an assortment of 40 Gigabit organize gadgets.
The NI PXIe-8240 is perfect for use with switches, routers, and other Cisco network equipment. This QSFP + fiber optic transceiver offers reliable execution, enabling the user to extend their network economically to remote segments. The MM (multimode) fiber optic transceiver module is compatible with DDM/DOM ("Digital Diagnostics Monitoring"), maximum distance up to 150m and maximum data transfer rates of up to 40Gbps.

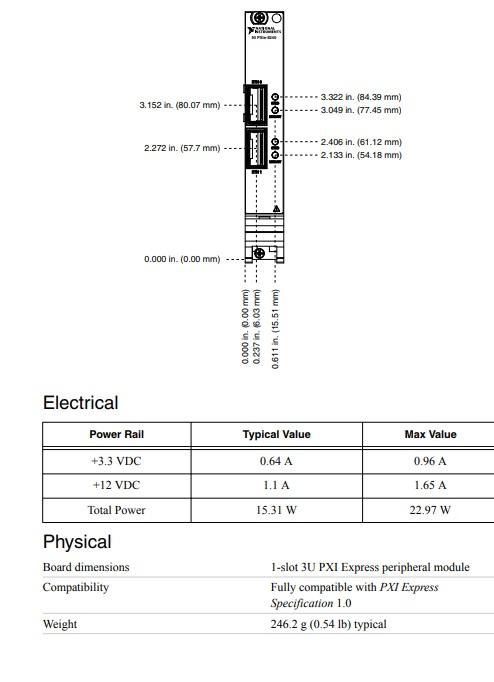

| Model | PXIe-8240 |
|---|---|
| Part Number | 784977-01 |
| Manufacturer | National Instruments |
| Type | PXI Ethernet Interface Module |
| Ethernet Ports | 2 |
| Ethernet Bandwidth | 40 Gbits/s |
| Slot Requirement | One peripheral slot |
| Board Dimensions | 1-slot 3U PXI Express peripheral module |
| Weight | 0.54 lb. |
| Warranty | 2-3 Year Warranty |
| PXIe-8240 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for PXIe-8240:
National Instruments PXIe-8240 Frequently Asked Questions
Question: What type of Ethernet ports are on the PXIe-8240?
Answer: The PXIe-8240 has two QSFP+ ports.
Question: What is the typical value for the total power on the NI PXIe-8240?
Answer: The typical value for the total power on the NI PXIe-8240 is 15.31 W.
Question: What type of PXI Express Link Configuration does the PXIe-8240 have?
Answer: The PXIe-8240 has a Gen3 x8 PCI Express connection.
Question: What does the 40Gb Ethernet capability on the NI PXIe-8240 enable?
Answer: The 40Gb Ethernet on the NI PXIe-8240 enables the model to offload information from a PXI Express system to an external storage method or a server for additional assessment. The 40Gb Ethernet additionally enables information exchange and aggregation via two or more PXI Express systems.
