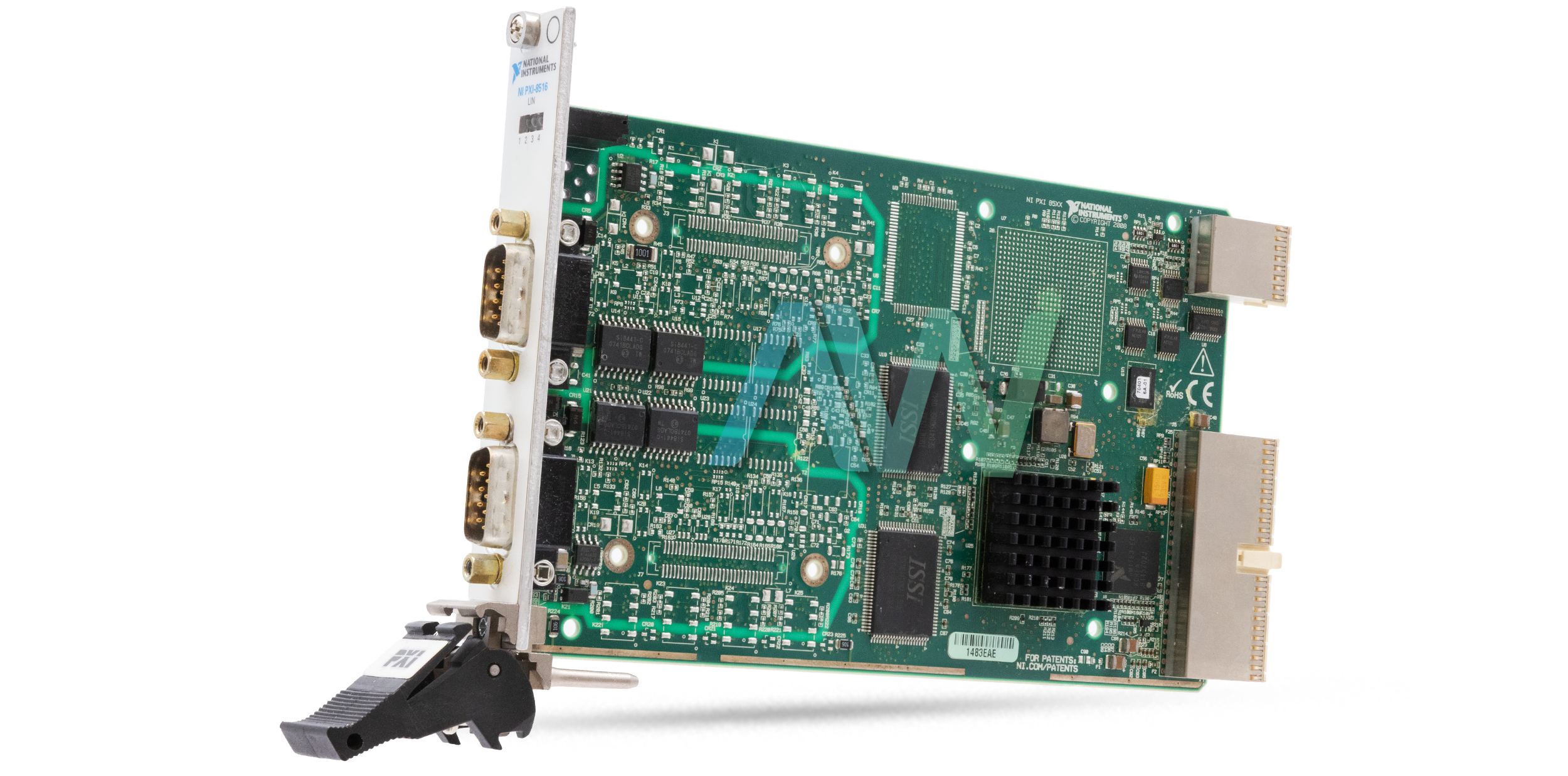

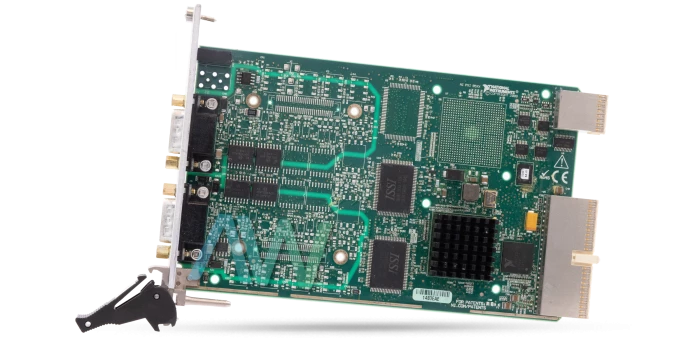

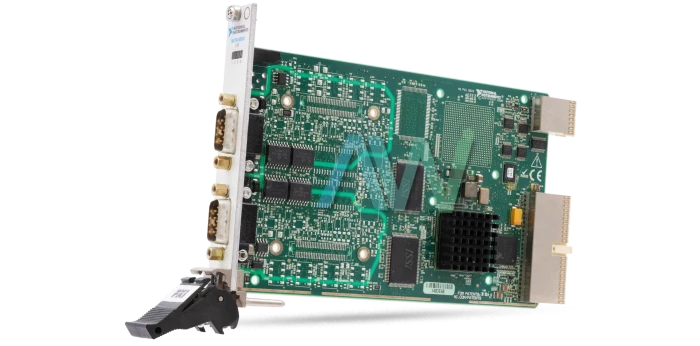

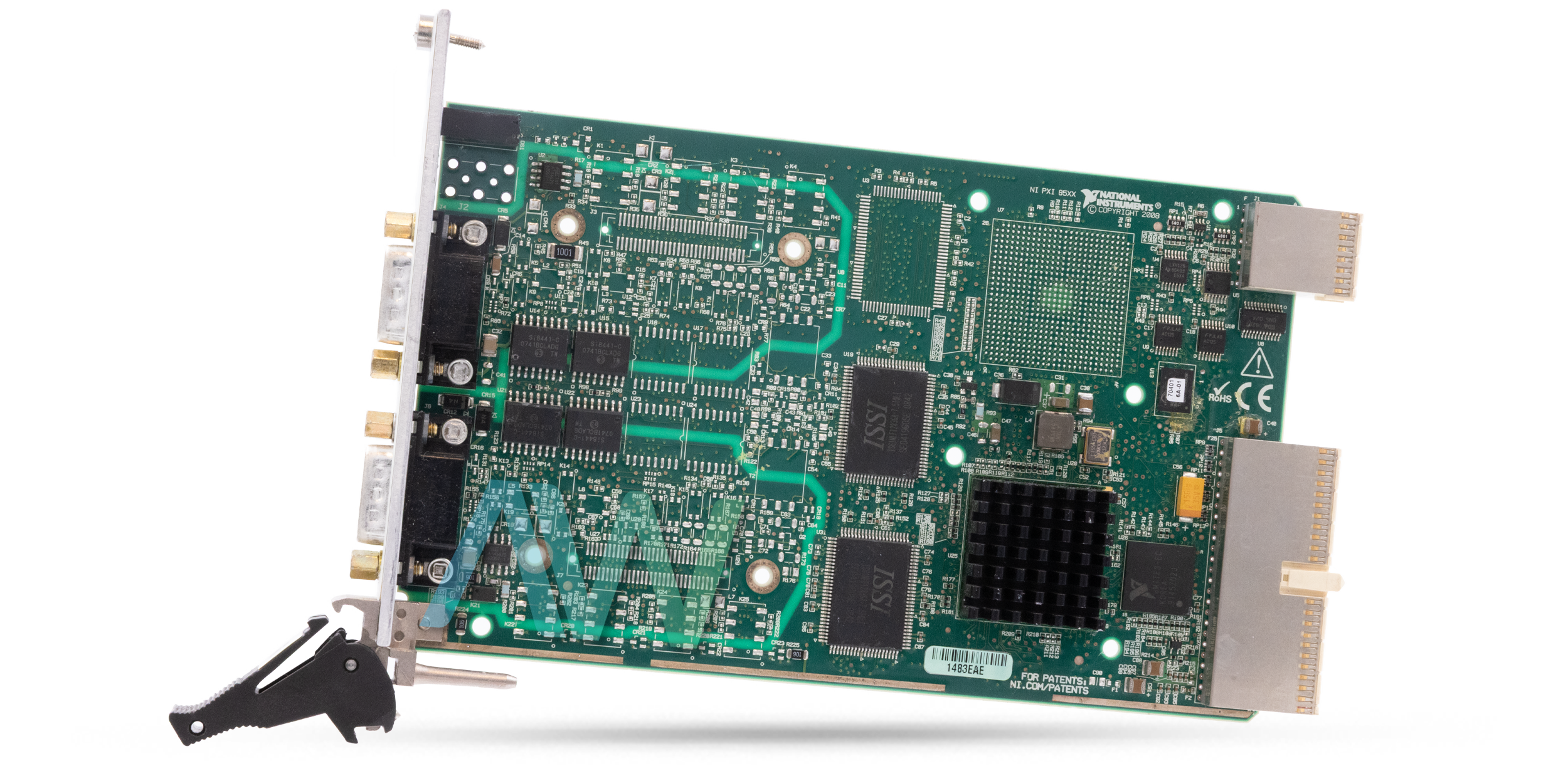

National Instruments PXI-8516 PXI LIN Interface Module
The PXI-8516 (Part number: 781366-01, 194923F-72L ) LIN Interface Module includes 2 ports and has a Local Interconnect Network (LIN) interface for application development with the NI-XNET driver. The NI PXI 8516 is ideal for applications, including but not limited to, applications requiring real-time, high-speed manipulation of hundreds of LIN frames and signals, such as hardware-in-the-loop simulation, rapid control prototyping, bus monitoring, automation control, etc.
The NI framework assurance programs are intended to additionally encourage the ownership of a NI framework. These programs incorporate configuration and execution services for NI PXI, CompactRIO or Compact FieldPoint frameworks. When the user configures their framework with the NI Standard System Assurance Program, they can choose from the accessible NI framework controller sets and the application development environments to create customized and reordered software configurations. Your framework arrives totally assembled in a box with its pre-installed software.
When you request your system with the standard program, you additionally get framework particular documentation that incorporates a list of materials, an integration test report, a recommendation maintenance plan and frequently asked question documents.
The PXI 8516 uses a pair of NI-XNET FlexRay transceivers for each port. The TJA1080 is completely compatible with the FlexRay standard and supports baud rates as high as 10 Mbps. This LIN Interface Module additionally supports advanced power management through a low-control sleep mode.
| Model | PXI-8516 |
|---|---|
| Part Number | 781366-01, 194923F-72L |
| Manufacturer | National Instruments |
| Type | PXI LIN Interface Module |
| Ports | 2 |
| Interface | NI XNET-LIN |
| Maximum Baud Rate | 20 kbps |
| Dimensions | 6.3 x 3.9 in. |
| I/O Connector | 9-pin male D-SUB for each port |
| Warranty | Three Year Warranty |
| PXI-8516 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for PXI-8516:
National Instruments PXI-8516 Frequently Asked Questions
Question: What type of transceiver does the PXI-8516 have?
Answer: The PXI-8516 has a ATMEL ATA6620 or ATA6625 transceiver.
Question: What is the minimum baud rate of the NI PXI-8516?
Answer: The minimum baud rate of the NI PXI-8516 is 2.4 kbps.
Question: What is the bus power required for the NI PXI 8516?
Answer: The NI PXI 8516 requires +8 V to +18 V bus power.
