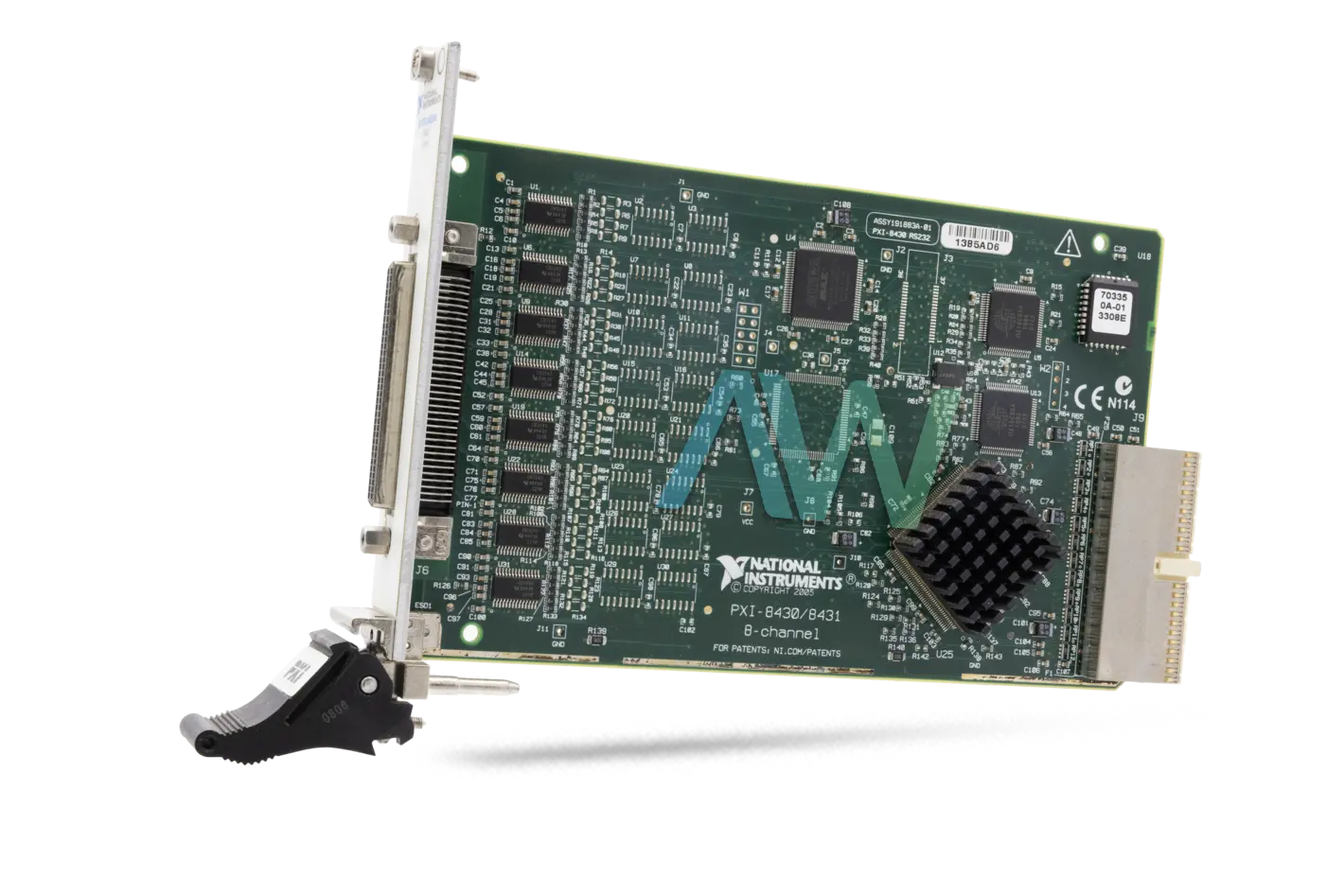

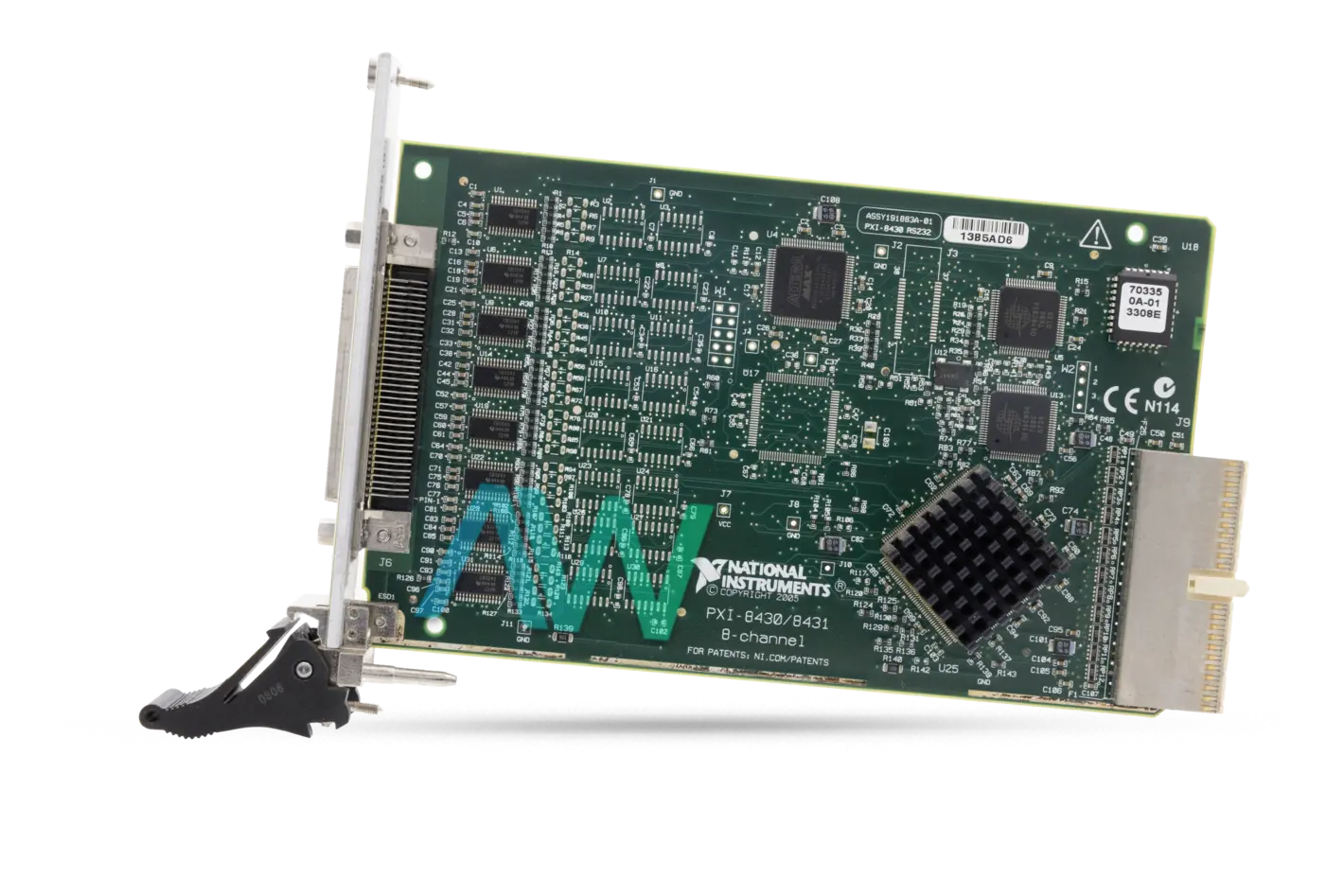

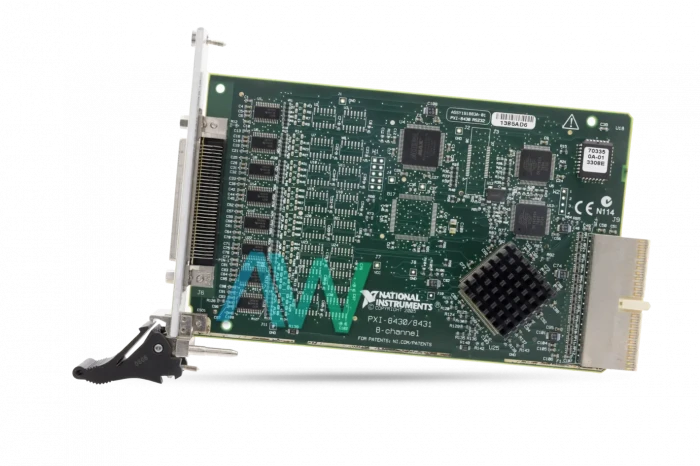

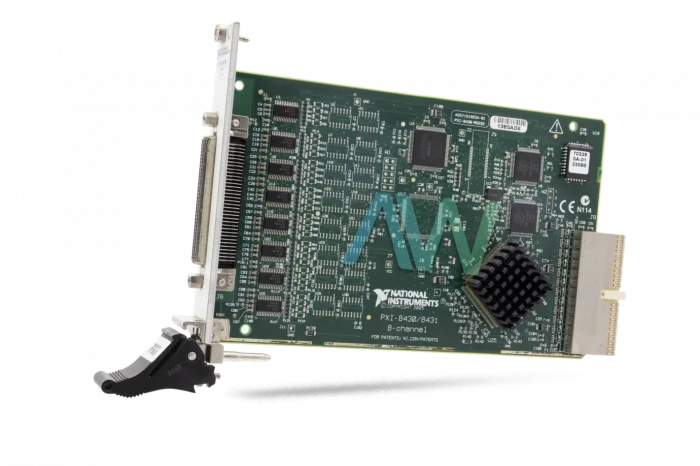

National Instruments PXI-8430/8 PXI Serial Interface Module
The National Instruments PXI-8430/8 (Part Number: 779536-01) is an RS-232 Interface with an elite DMA motor, that will allow users to accomplish high throughput with insignificant CPU utilization. Utilizing memory mapping, users can associate with more communication focuses. National Instruments additionally offers simple-to-utilize great programming that fundamentally diminishes the user’s advancement time for frameworks utilizing serial communication with the PXI-8430/4. The NI PXI-8430/8 incorporates four converter links (RJ50 to DB9 male connectors). After floating the raw information by a numerical low-pass filter to expel the background noise (invalid mean esteem) and by a Butterworth channel with the lower and upper cut-off frequencies determined by the client, the amplitude and period of the test output voltage must be processed, by utilizing the "Tone Measurements Express" VI. This accompanies the "Full Development System" of LabVIEW and can estimate the sine wave amplitude, initial phase, and frequency. This model is also used for alternate channels to assess the adequacy and starting period of the excitation voltage and excitation current. With these parameters, the excitation loop impedance and the phase contrast between excitation current and sensor voltage are registered.
The PWR/RDY LED in the PXI-8430/8 has a few purposes on the serial ENETs. When the user first powers on the unit, the PWR/RDY LED substitutes quickly amongst red and yellow while it finishes its capacity on individual tests and obtains arrangement parameters. When the tests finish effectively and the IP address is allowed from either nonvolatile memory or the system, the PWR/RDY LED stays yellow, demonstrating that the unit is prepared to work.
PXI-8430/8 Mature Status has been announced by National Instruments, but the module will still be available for purchase and repairs by Apex Waves.
| Model | PXI-8430/8 |
|---|---|
| Part Number | 779536-01 |
| Manufacturer | National Instruments |
| Type | PXI Serial Interface Module |
| Ports | 8 |
| Supported Serial Protocols | RS-232 |
| Module Width | 1 |
| Dimensions | 3.94 x 6.37 in. |
| Weight | 135 g. |
| Warranty | 2-3 Year Warranty |
| PXI-8430/8 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for PXI-8430-8:
National Instruments PXI-8430/8 Frequently Asked Questions
Question: Is the PXI-8430/8 compatible with MXI?
Answer: Yes, the PXI-8430/8 is compatible with MXI.
Question: What is the maximum cable length for the NI PXI-8430/8?
Answer: The NI PXI-8430/8 maximum cable length is 15.6 m.
Question: What is the maximum baud rate of the PXI-8430/8?
Answer: The maximum baud rate of the PXI-8430/8 is 1 Mbps.
Question: What type of connector does the NI PXI-8430/8 have?
Answer: The NI PXI-8430/8 has a 68-pin SCSI connector.
