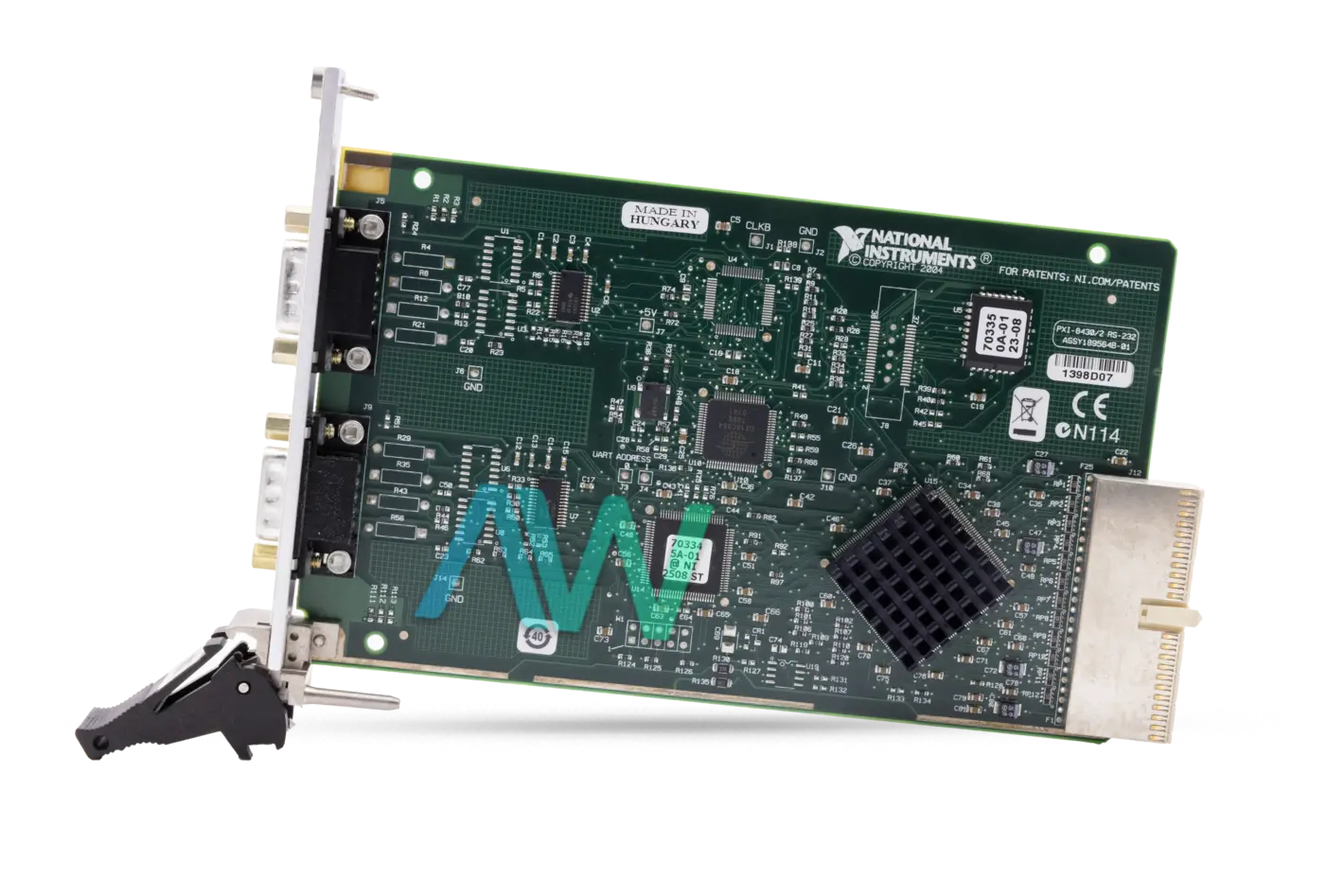

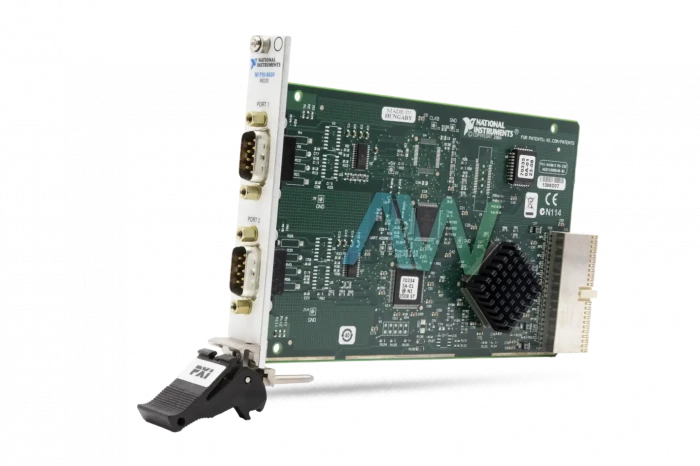

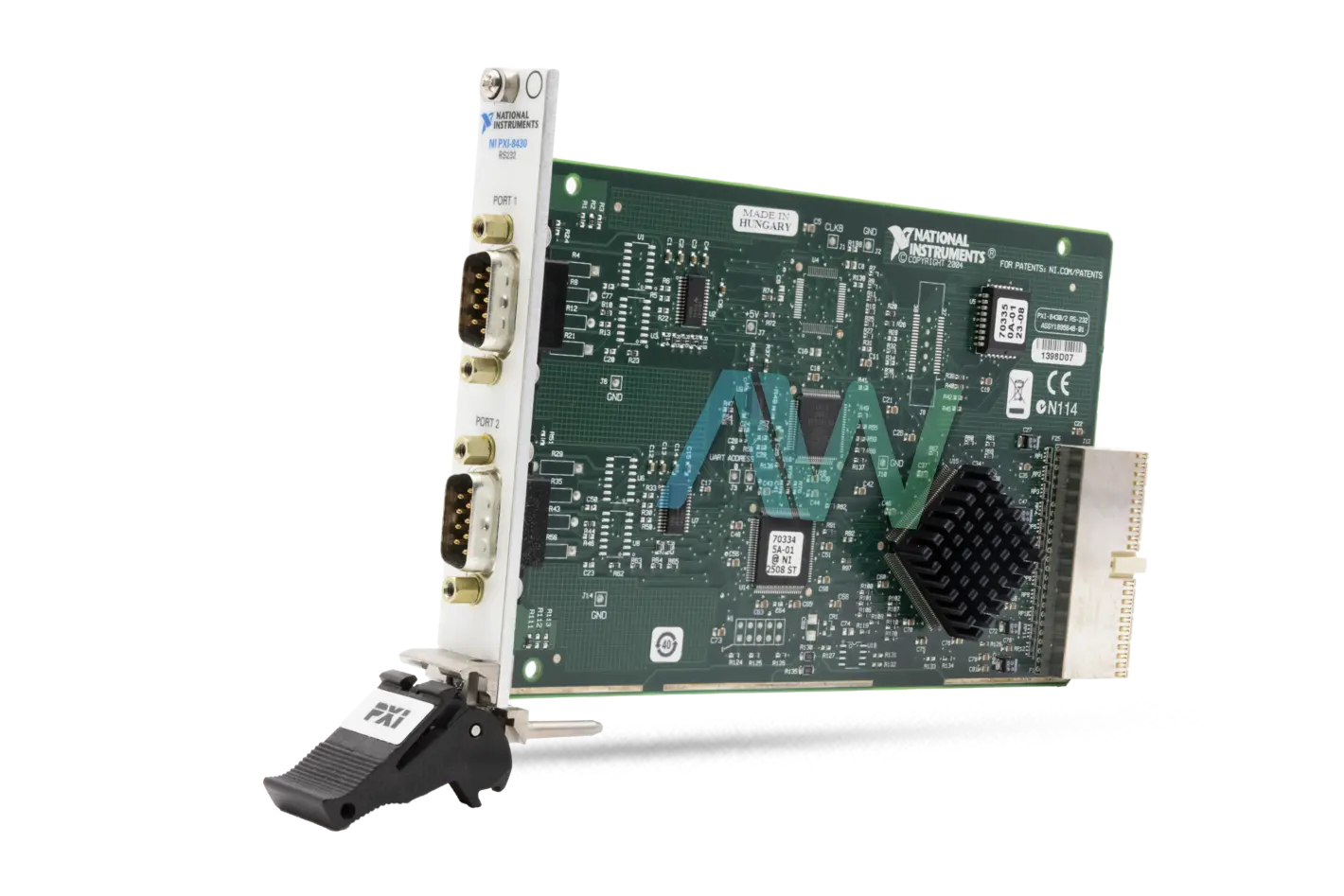

National Instruments PXI-8430/2 PXI Serial Interface Module
The NI PXI-8430/2 (Part Number: 778982-01) is a 2-port, RS-232 Interface for fast communication with RS232 gadgets at rates up to 1 Mbit/s. The PXI-8430/2 offers adaptable baud rates for information transmissions between 57 baud and 1,000,000 baud to inside 1 percent precision for nonstandard baud rates and 0.01 percent exactness for standard baud rates. With the elite DMA motor, the user accomplishes high throughput with insignificant CPU utilization. Utilizing memory mapping, users can associate with more communication focuses without asset clashes.
National Instruments additionally offers simple-to-utilize intense programming that lessens the development time on frameworks utilizing serial communication with the PXI-8430/2. The checked zone must be described and the test set at the underlying position. The instruments are designed and each run enables the client to pick a list of test frequencies. Consequently, at each situation of the test, estimations are taken for all the predefined frequencies and just a short time later the test is moved to the following position. The application to control the computerized estimating framework was produced in a PC with the graphical programming language LabVIEW. The program incorporates a few segments: to control the XY-situating framework, to energize the framework and procure information, to process carefully the raw information, and to show the outcomes
The PXI-8430/2 comes with a "Movement Config" tab control sheet. The client must set the region to be examined by the test determining the most extreme qualities for the X and Y course and the desired additions toward every path. The client must ensure that the test is situated at the underlying position. Alternate presentations demonstrated are figured by the program: add up to number of focuses, current position, number of residual focuses, and the order sent to control the XYpositioner.
The PXI-8430/2 is now considered by National Instruments to be Obsolete, but the PXI Serial Interface Module will still be available for purchase and repairs in perpetuity with Apex Waves.
| Model | PXI-8430/2 |
|---|---|
| Part Number | 778982-01 |
| Manufacturer | National Instruments |
| Type | PXI Serial Interface Module |
| Ports | 2 |
| Supported Serial Protocols | RS-232 |
| Maximum Transfer Rate | 1,000 kb/s |
| Operating Temp Range | 0 to 55 °C |
| Storage Temp Range | –20 to 70 °C |
| Dimensions | 3.94 x 6.37 in. (100 × 160 mm) |
| Weight | 134 g. |
| Warranty | 2-3 Year Warranty |
| PXI-8430/2 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Request a Quote Today for Pricing |
Associated part numbers for PXI-8430-2:
National Instruments PXI-8430/2 Frequently Asked Questions
Question: What type of I/O connector is on the PXI-8430/2?
Answer: The Serial Interface Module has a DB-9 male I/O connector.
Question: What is the power requirement for the NI PXI-8430/2?
Answer: The module typically requires 325 mA or a maximum of 500 mA, at +5 VDC.
Question: Which types of signals are compatible with the PXI-8430/2?
Answer: All signals are compatible with the Serial Interface Module.
Question: What is the FIFO size of the module?
Answer: The NI PXI-8430/2 has a FIFO size of 128.
