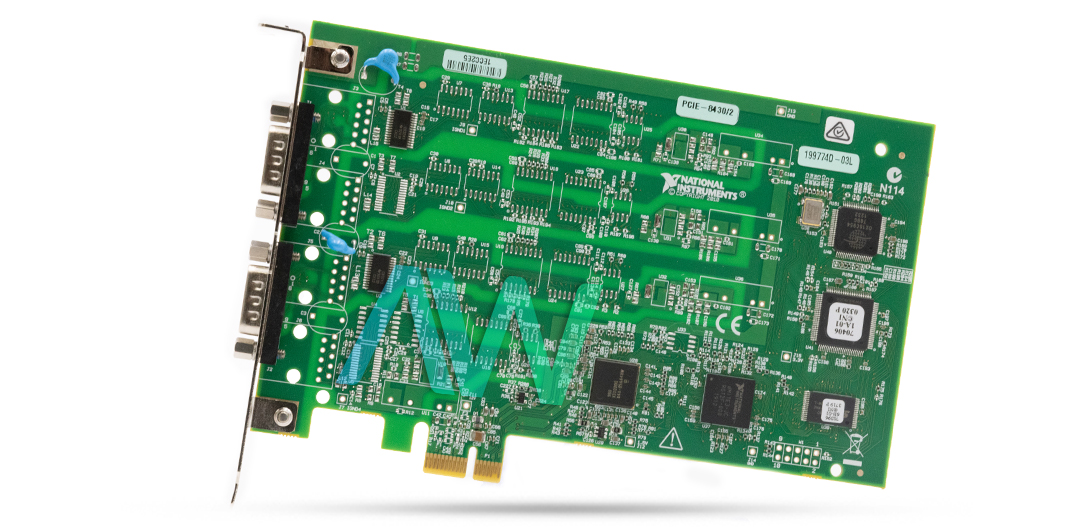

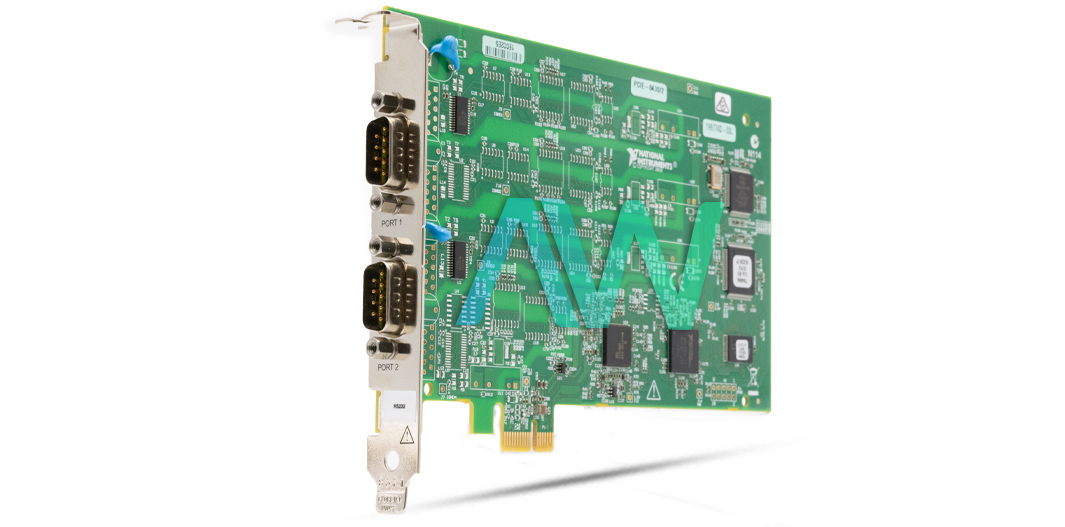

National Instruments PCIe-8430/2 Serial Interface Device
The National Instruments PCIe-8430/2 (Part number: 782122-01) is a 2-Port, PCI Express based Serial Interface Device that supports RS232 serial communications. This model is the perfect answer for efficient communications between a PCIe enabled PC and different RS232 devices. The National Instruments PCIe-8430/2 device has some powerful features, such as DMA transfers, multiprocessor support, and multithreading. The DMA transfer scheme allows the I/O device to transmit data to or from the main memory, while keeping the CPU out of the loop. This configuration brings much faster memory operations and is controlled by a chip called a DMA controller or DMAC. The ability to work in multi-processor or multithreading environments allows the NI PCIe-8430/2 to have its resources used at an optimum level.
This RS-232 Serial Interface Device requires one PCI Express slot, which the device turns into two RS-232 (or DB-9) serial connections since it comes with two DB-9 connectors. The NI PCIe-8430/2 RS-232 Serial Interface Device draws 325 mA of current (typical) or 500 mA (maximum) at +5 VDC. This model offers from 2 baud minimum to 1000.0 kbaud maximum baud rate. This device comes with a 128 byte FIFO as well. This device supports the following types of settings: adjustable FIFO settings, Get Interface, RS-232 Transceiver State, RTS/CTS, DTR/DSR, and Xon/Xoff settings. The National Instruments PCIe-8430/2 device is offered in the standard PCIe form factor. This RS-232 Serial Interface Device weighs around 88 g and has 10.67 × 14.22 cm physical dimensions.
| Model | PCIe-8430/2 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 782122-01 |
| Type | Serial Interface Device |
| Standard | RS232 |
| Number of Ports | 2 |
| Isolated | No |
| Maximum Baud Rate | 1000 kbits/s (1 Mbps) |
| Connector Type | 68-pin VHDCI |
| FIFO Size | 128 Bytes |
| Power Requirements | +3.3 VDC, +12 VDC - 200 mA, 190 mA |
| Dimensions | 4.38 × 6.9 in. |
| Weight | 0.19 lb. |
| Software Driver | NI-Serial |
| Warranty | 2-3 Year Warranty |
| PCIe-8430/2 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for PCIe-8430-2:
National Instruments PCIe-8430/2 Frequently Asked Questions
Question: What type of devices does the PCIe-8430/2 communicate with?
Answer: The PCIe‑8430/2 is a high-performance interface designed for high-speed communication with RS232 devices.
Question: Is the PCIe-8430/2 compatible with programs that use serial communications?
Answer: Yes, the NI serial interfaces appear as standard COM ports for compatibility with programs that use serial communications.
Question: Does the NI PCIe-8430/2 support Real Time?
Answer: The NI PCIe-8430/2 does support Real Time.
