Q: What are the power requirements for the PCI-232/2?

The power requirements for the PCI-232/2 are 50 mA typical and 100 mA maximum for +5 VDC.

Q: Which type of I/O connectors are on the NI PCI-232/2?

The NI PCI-232/2 has DB-9 male I/O connectors.

PCI-232/2, 2-Port, DB-9 Male I/O Connector, Serial Interface

Rated 4.5/5 | 6 ratings

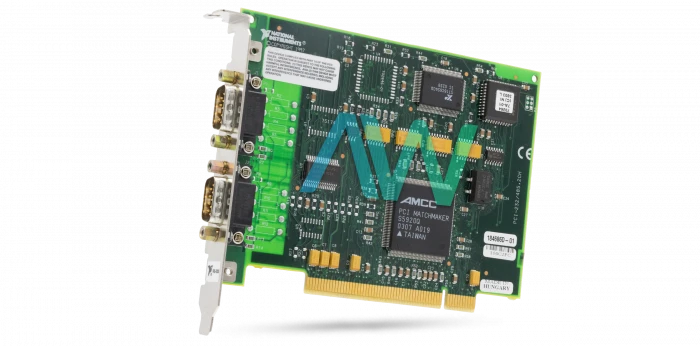

PCI-232/2 National Instruments Serial Interface | Apex Waves | Image

❮ ❯

Actual item may vary if no part number is provided on quote request.

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Anonymous Verified Buyer

" Very responsive and helpful, competitive pricing. Good source! "

July 2025

Andrew Gar**** Verified Buyer

" Amazing to work with and had my order within 1 week after purchasing with all NI certs and data that were needed. "

March 2025

Said Sai**** Verified Buyer

" Competent contact for highly specialized components. The support team is very knowledgeable. Many thanks for the help and the fast shipping! "

January 2025

Bob C**** Verified Buyer

" Jason was able to get our emergency situation taken care of quickly and professionally. "

May 2025

Gregg Flecki**** Verified Buyer

" Great service and great products. This is my 2nd time using Apex Waves, truly impressed. "

January 2025

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

Name*

Email Address*

Model Name

Part Number

Qty

+Add more parts

Additional Info - Calibration, Expedited Shipping or Other Notes

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to: 1-919-809-5227

Carol Zimme**** Verified Buyer

" Very responsive and helpful, competitive pricing. Good source! "

July 2025

Andrew Gar**** Verified Buyer

" Amazing to work with and had my order within 1 week after purchasing with all NI certs and data that were needed. "

March 2025

Said Sai**** Verified Buyer

" Competent contact for highly specialized components. The support team is very knowledgeable. Many thanks for the help and the fast shipping! "

January 2025

Bob C**** Verified Buyer

" Jason was able to get our emergency situation taken care of quickly and professionally. "

May 2025

Gregg Flecki**** Verified Buyer

" Great service and great products. This is my 2nd time using Apex Waves, truly impressed. "

January 2025

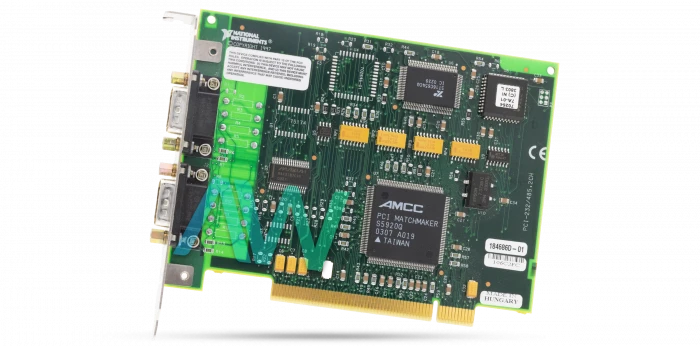

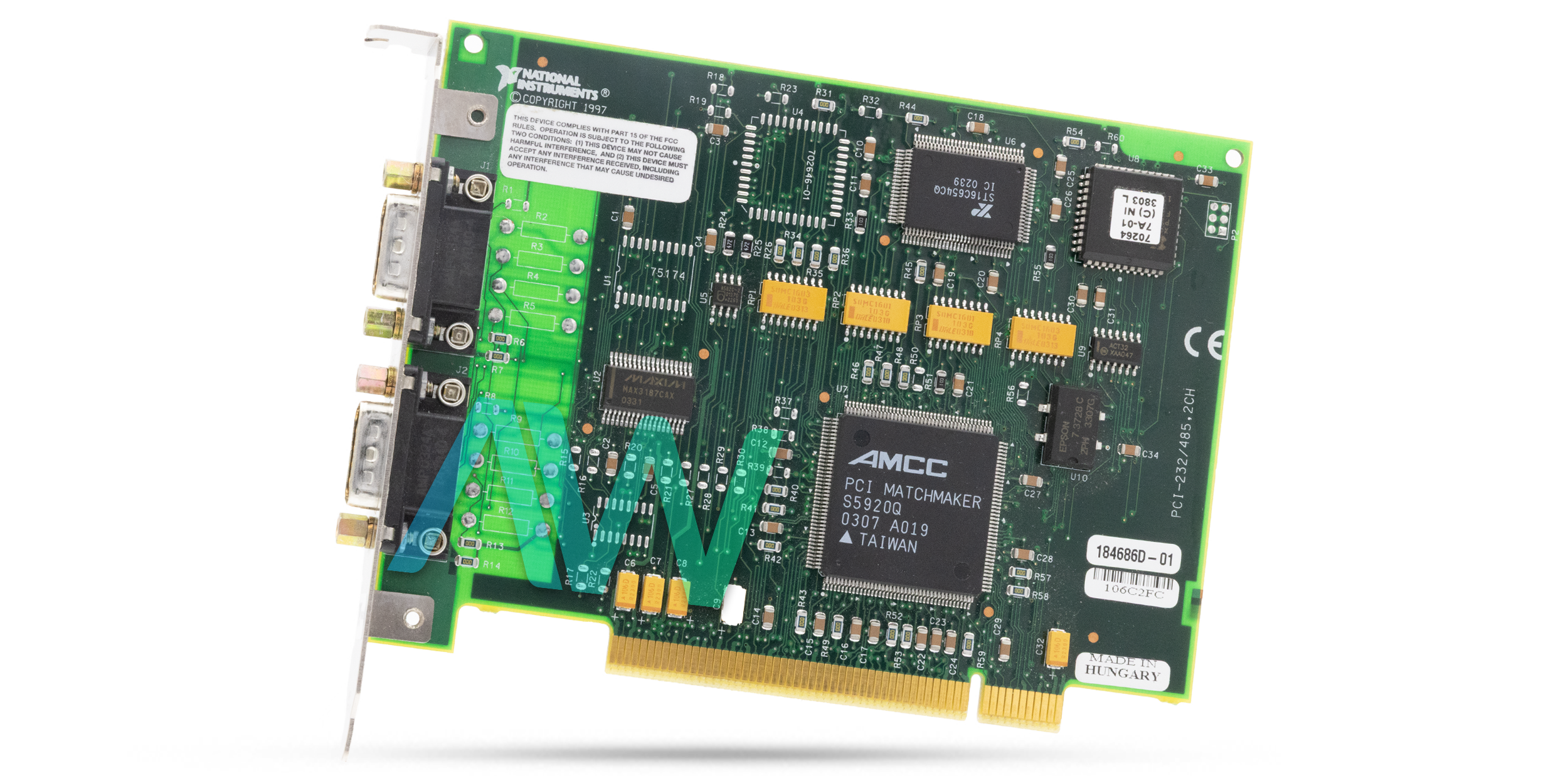

National Instruments PCI-232/2 Serial Interface

The National Instruments PCI-232/2 (Part Number: 777642-02) is a 2-port RS-232 serial interface. This model is fully compatible with the PCI Specs Ver 2.2 standard and supports both 32-bit and 64-bit PCI buses, as well as 3.3 V and 5 V connector keys. This 2-port RS232 PCI card comes with a DB-9 male connector with standard pin assignments for RS232 and RS485 connectors.

The NI PCI-232/2 offers up to 115.2 kb/s maximum transfer rate, 64 B FIFO, and 15 kV line ESD protection. This Multi-2/PCI 232 Serial Interface operates in the handshaking mode with RS-232 full-duplex bus transceivers, RS-232 1 driver per line, and RS-232 1 receiver per line. With this interface card, it is possible to use any Windows-based personal computer since it supports Windows OS (up to XP). In addition, the NI PCI-232/2 supports the Linux operating system.

This serial interface can work with a broad range of DB9M/DB25M serial devices. Because of its efficient performance and reliability, the PCI-232/2 is an ideal choice in various fields, including automatic postal machines, the telecommunication industry, power distribution control systems, and more.

Another notable feature of the NI PCI-232/2 is its plug-and-play compatibility. Thus, the user can have this module installed and configured automatically. This module is available in three other versions, which are a 4-port model, an 8-port model, and a 16-port version. This board is designed to work with the RS-232 communication protocol and can be utilized for up to 50 ft of distance serial communications.

PCI-232/2 Obsolete Status has been announced by National Instruments, but it will still be available for purchase and repairs through Apex Waves.

Model	PCI-232/2
Manufacturer	National Instruments
Part Number	777642-02
Type	Serial Interface
Ports	2
I/O Connectors	DB-9 Male
FIFO Size	64 Bytes
Dimensions	4.2 x 5.6 in.
Driver Software	NI-Serial
Warranty	2-3 Year Warranty
PCI-232/2 Manual	User Manual and Maintenance Manual Available for Download
