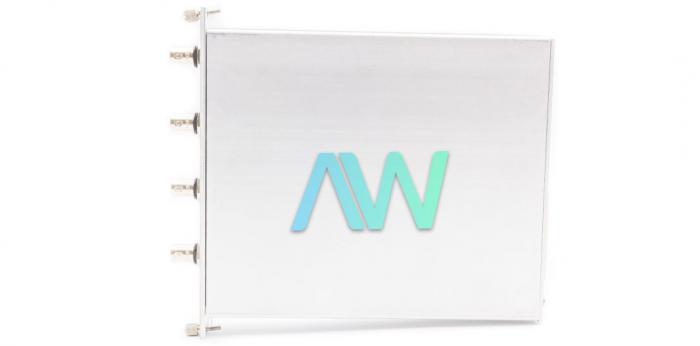

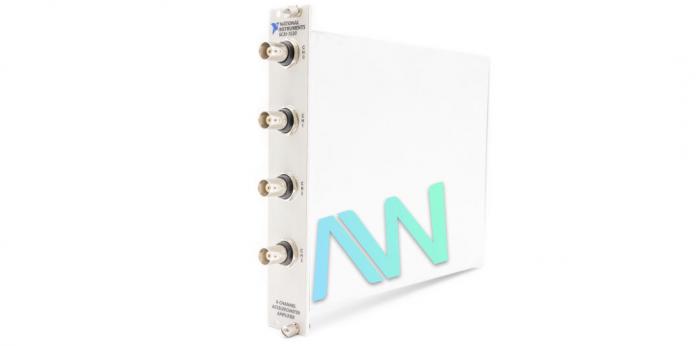

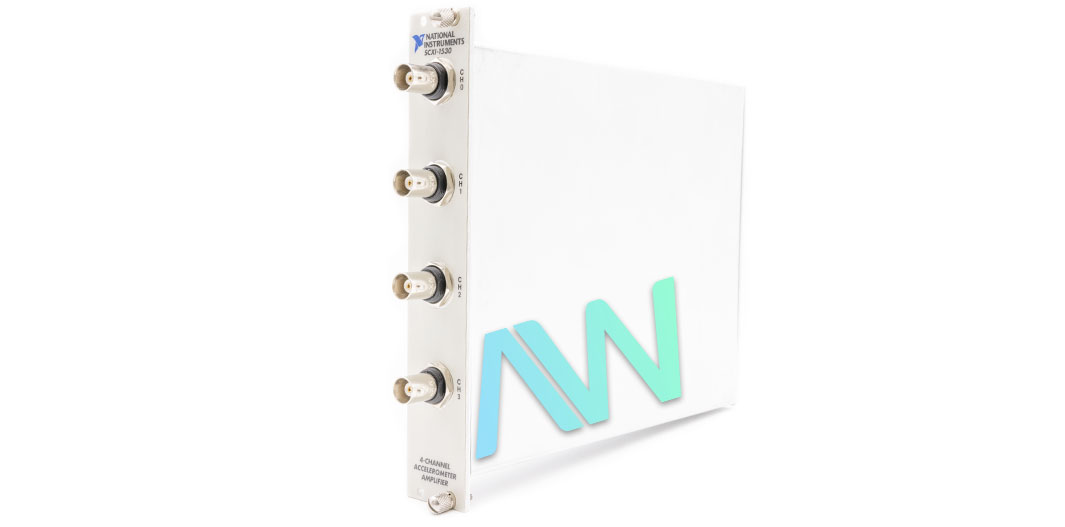

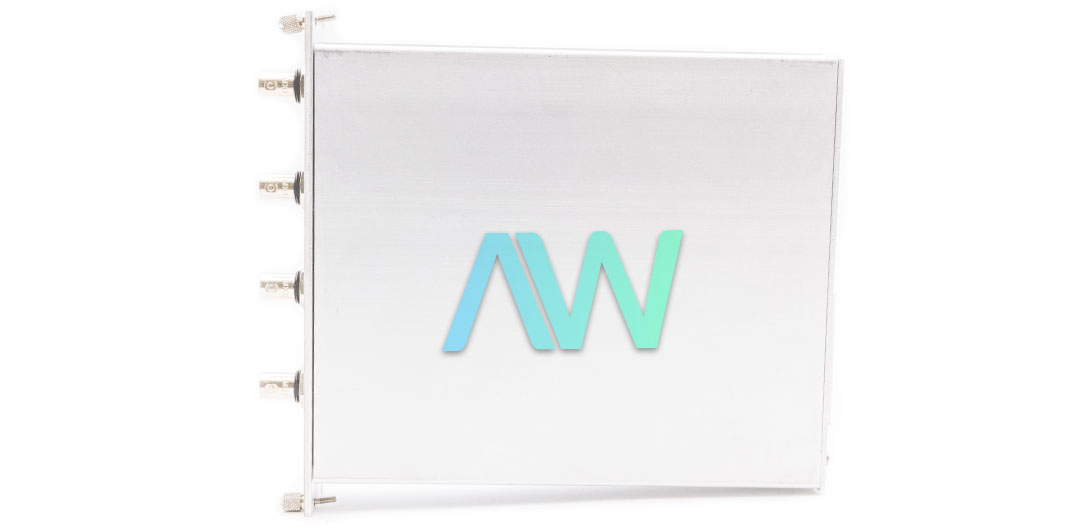

SCXI-1530, 4-Channel, Sound and Vibration Input Module

Rated 4.5/5 | 7 ratings

SCXI-1530 National Instruments Sound and Vibration Input Module | Apex Waves | Image
SCXI-1530 National Instruments Sound and Vibration Input Module | Apex Waves | Image
SCXI-1530 New
SCXI-1530 Refurbished
❮ ❯

Actual item may vary if no part number is provided on quote request.

SCXI-1530 National Instruments Sound and Vibration Input Module | Apex Waves | Image
SCXI-1530 National Instruments Sound and Vibration Input Module | Apex Waves | Image
SCXI-1530 New
SCXI-1530 Refurbished

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

+Add more parts

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to:   1-919-809-5227

National Instruments SCXI-1530 Sound and Vibration Input Module

The SCXI-1530 (Part Number: 777966-30) is a signal conditioning module designed for integrated electronic piezoelectric (IEPE) accelerometers and microphones. This module can work with accelerometer conditioning modules that incorporate programmable current, gain, and filter configurations on every channel. The NI SCXI-1530 includes 4 input channels, 1 MΩ of amplifier input impedance while powered on and off, AC amplifier coupling, 4 mA +/-10% of accelerometer input excitation current, more than 400 KΩ of current source dynamite impedance, +/- 10 V of maximum output voltage, and 200 Ω of output impedance.

On the SCXI-1530 Sound and Vibration Input Module, the accelerometer is stimulated by the current source. The user can debilitate the current source to quantify noise in the framework. There is also a ground switch that the user can turn on or off with software to suit both ground-referenced and non-referenced accelerometers. The boosts signal is AC-coupled to a programmable-gain instrumentation intensifier. This intensifier helps the incoming signal by a gain of 1, 10, or 100. Next, the signal goes through a programmable-data transfer capacity low-pass Bessel filter for aliasing reduction. The synchronous sample-and-hold circuitry assurers that all channels are referenced to a similar moment in time. Lastly, the conditioned signal is sent to the multiplexer circuitry and back connectors to improve the signal association.

SCXI-1530 Obsolete Status has been announced by National Instruments, but the module will still be available for purchase and repairs by Apex Waves.

ModelSCXI-1530, 777966-30
ManufacturerNational Instruments
SeriesSCXI
TypeSound and Vibration Input Module
Input Channels4
Amplifier Input Impedance1 MΩ
Maximum Output Voltage±10 V
Warranty2-3 Year Warranty
SCXI-1530 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for SCXI-1530:

National Instruments SCXI-1530 Frequently Asked Questions



Question: What type of lowpass filter does the SCXI-1530 have?



Answer: The SCXI-1530 has a 4-pole Bessel lowpass filter.



Question: Are BNC connectors available on the SCXI 1350?



Answer: Yes, the SCXI 1530 has BNC connectors for signal connection.



Question: Would the NI SCXI-1530 work with accelerometers or microphones?



Answer: Yes, the NI SCXI-1530 module is designed for Integrated Electronic Piezoelectric (IEPE) accelerometers and microphones.



Question: What type of current source does the NI SCXI-1530 provide?



Answer: Each channel of the NI SCXI-1530 has a 4 mA, 24 V compliant current source to power IEPE accelerometers/ microphone.
