National Instruments SCXI-1180 Custom Circuitry Module

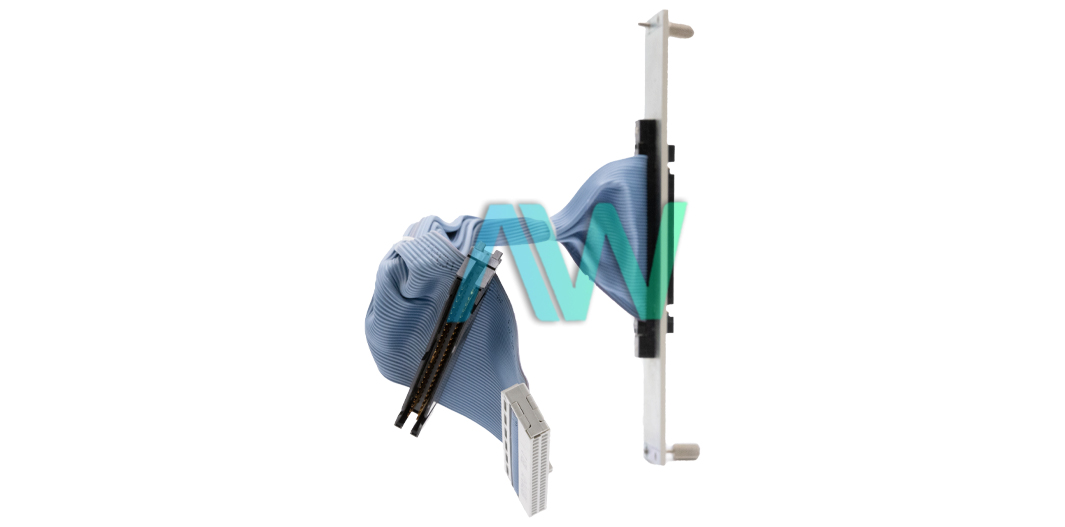

The NI SCXI-1180 (Part Numbers: 776572-80, 181710E-01) has a front panel and a 50-pin ribbon-cable assembly utilized to incorporate unconditioned signals into a small, durable SCXI chassis-based system. This module can be utilized with the SCXI-1302 Terminal Block for signal breakout. The SCXI-1180 can be operated with the PC, AT, and MC data acquisition board and an SCXI module, with NI-DAQ software for DOS/Windows/LabWindows. This Custom Circuitry Module can also be used with the NB Series data acquisition boards and an SCXI module, with LabVIEW or NI-DAQ software for Macintosh.

The SCXI 1180 module is designed for use with the NI SCXI products. This module extends signal lines for signals that do not need conditioning from the back to the front of an SCXI chassis. The NI SCXI-1180 only takes up one slot of an SCXI system and links with ease to the user’s SCXI cable accessory. In addition, this Custom Circuitry Module can be utilized to direct the I/O signals of individual DAQ instruments to the front of the user’s SCXI system for convenience. This module can also be used as a daisy-chain extender with the SCXI-1340, SCXI-1341, or SCXI-1342 cable assembly. With those combinations, the user can access signals on the cable between a module and a plug-in board, especially signals that the module does not utilize.The male breakout connection of a SCXI-1340, SCXI-1341, SCXI-1342, SCXI-1344, or SCXI-1351 can be connected to the rear connector in the adjacent slot.  An example of this is that the user can access the analog output of digital I/O lines of an MIO board while the analog input lines of the board are linked to a module.

SCXI-1180 Obsolete Status has been announced by National Instruments, but the module will still be available for purchase and repairs by Apex Waves.

ModelSCXI-1180
ManufacturerNational Instruments
Part Number776572-80, 181710E-01
TypeCustom Circuitry Module
For Use With:SCXI product lines
Cable Assembly Type50-pin
WarrantyThree Year Warranty
SCXI-1180 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for SCXI-1180:

National Instruments SCXI-1180 Frequently Asked Questions



Question: What type of cable assembly is used for the SCXI 1180?

Answer: The SCXI 1180 has a 50‑pin ribbon-cable assembly.



Question: Do you configure the SCXI-1180 as part of the SCXI system if you want to access digital lines on a PCI-6221?

Answer: When being used to read digital lines on a PCI-6221, the SCXI-1180 is not configured as part of the SCXI system, since it does not communicate with the backplane. The slot should be labeled as “empty” then use the channel names of the DAQ device to access the lines you need.



Question: How is the feedthrough panel on the NI SCXI-1180?

Answer: The feedthrough panel on the NI SCXI-1180 is a 50-pin cable-extension device.
