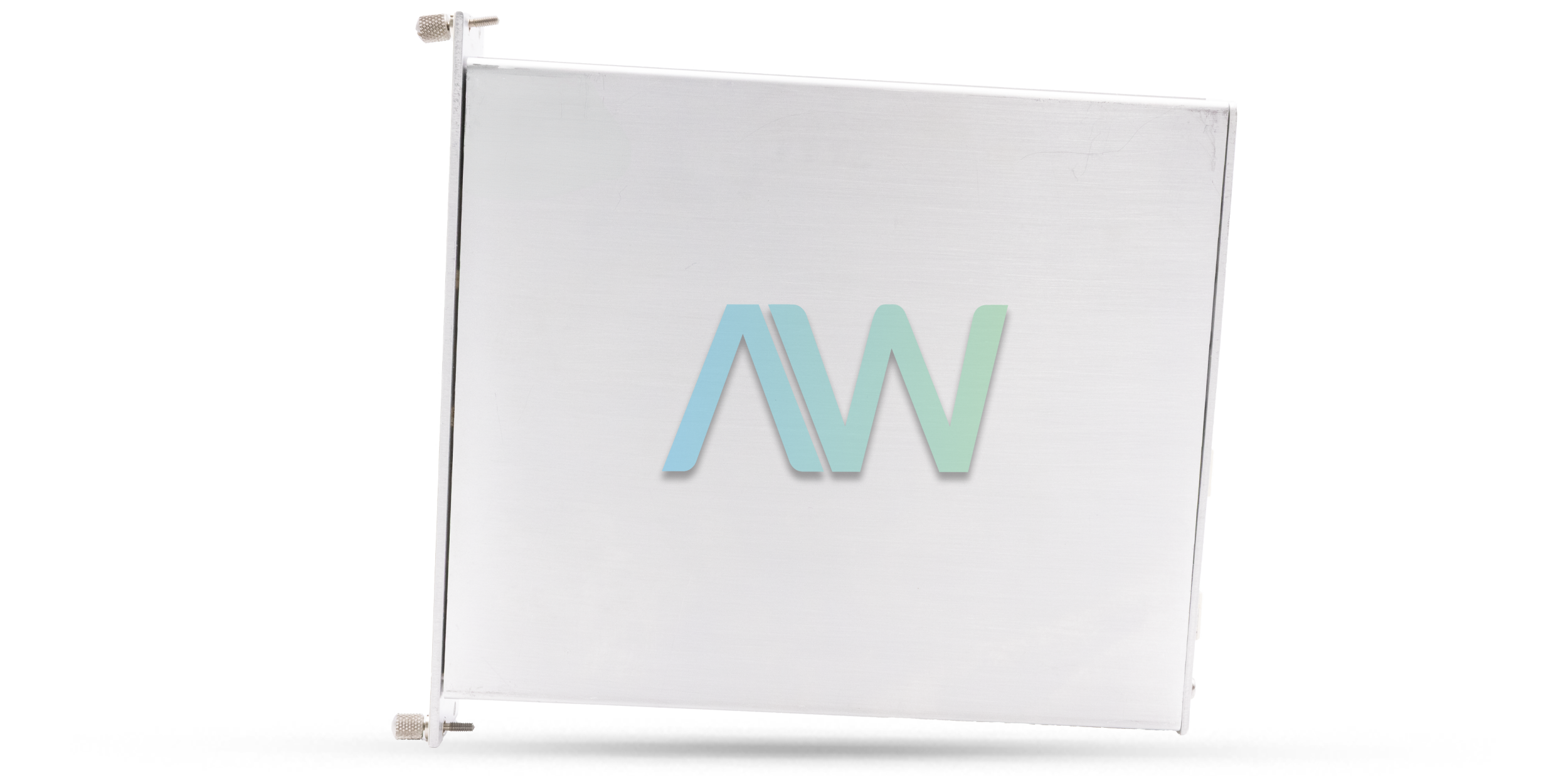

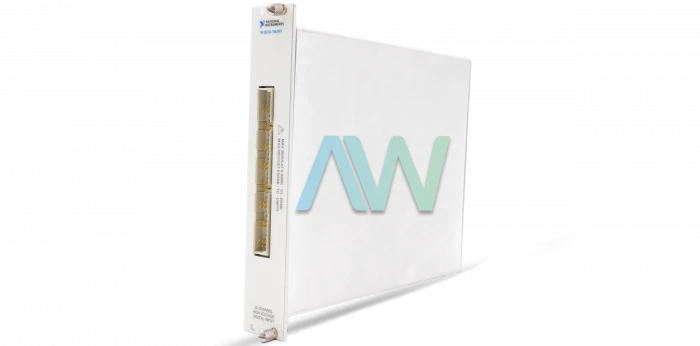

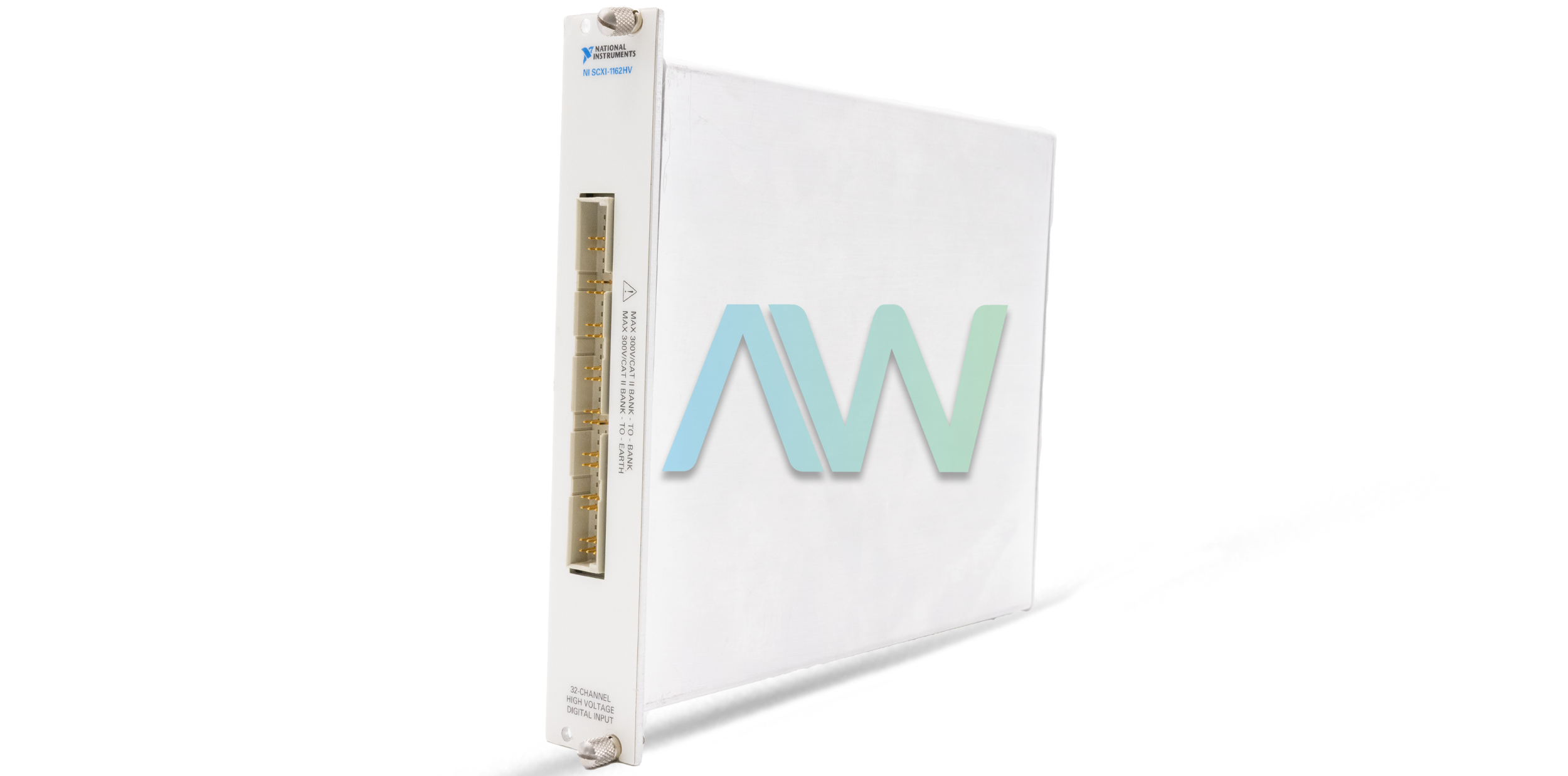

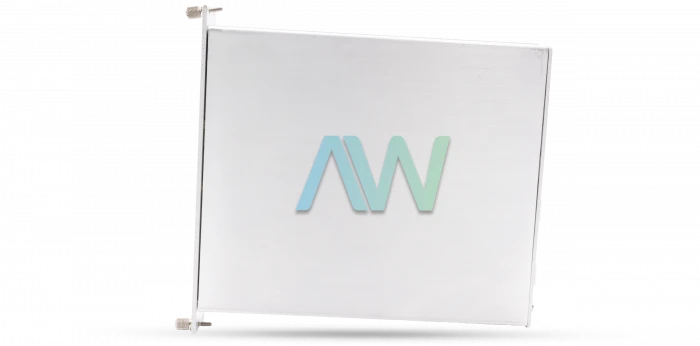

SCXI-1162HV NI Digital I/O Module | In Stock Ships Today | Image
SCXI-1162HV NI Digital I/O Module | In Stock Ships Today | Image
SCXI-1162HV New
SCXI-1162HV Refurbished
❮ ❯

Actual item may vary if no part number is provided on quote request.

SCXI-1162HV NI Digital I/O Module | In Stock Ships Today | Image
SCXI-1162HV NI Digital I/O Module | In Stock Ships Today | Image
SCXI-1162HV New
SCXI-1162HV Refurbished

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

+Add more parts

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to:   1-919-809-5227

National Instruments SCXI-1162HV Digital I/O Module

The NI SCXI-1162HV (Part Number: 776572-62H) has 32 channels of optically-isolated digital inputs, which are organized into eight separate banks of four input lines each. This Digital I/O Module senses the existence of a variety of AC or DC signals. These signals can be anything from digital logic level signals to 240 VAC/VDC maximum signals. The optical isolation on the SCXI-1162HV removes ground-loop issues and separates the host computer from harmful voltages. An SCXI system containing the NI SCXI 1162HV can be operated in many types of industrial and laboratory applications. This module keeps the computer safe from large common-mode voltages, ground loops, and voltage spikes that frequently take place in industrial and research settings.

The SCXI-1162HV Digital I/O Module can monitor TTL level inputs and sense the existence of high-voltage AC and DC signals. One such example is that the SCXI-1162HV can be utilized to sense the on/off status of power circuits, proximity switches, pushbutton switches, thermostats, and relays. This module interfaces straight to field digital logic input signals that should be segregated from the host computer. Field digital signals link to screw terminals in the SCXI-1326 Terminal Block, which links to the front of the NI SCXI-1162HV. Another option is to link the TBX-1326 DIN-rail mountable Terminal Block to the SCXI-1162HV module with a SH48-48-B Shielded Cable. The device is equipped with a 50-pin male ribbon-cable rear connector and a 48-pin DIN C male front connector.

This Digital I/O Module has two modes of operation: multiplexer and parallel mode. The first mode allows one DAQ instrument to read 32-bit digital patterns from the information register of one or more SCXI module through the SCXIbus by utilizing a serial data protocol. This mode can utilize five DIO lines of the DAQ instrument at the most. However, parallel mode links every module straight to a digital I/O DAQ device. These devices include: 503 (DIO-24), 6533 (DIO-32HS), 6534, and 6508 (DIO-96). The NI device measures 1.2 x 6.8 x 8.0 in. in physical dimensions.

The status of the SCXI-1162HV has been declared as Obsolete by National Instruments, but the Digital I/O Module will still be available for both purchase and repairs in perpetuity with Apex Waves!

ModelSCXI-1162HV
ManufacturerNational Instruments
Part Number776572-62H
TypeDigital I/O Module
Channels32 (in 8 Optically Isolated Banks)
Serial Data Rate1,000 Words/s
Input Current Limiting1 mA
I/O Connectors50-Pin Male Ribbon-Cable Rear Connector and
48-Pin DIN C Male Front Connector
Operating Temp Range 0Ëš to 50Ëš C
Storage Temp Range-40Ëš to 125Ëš C
Dimensions1.2 by 6.8 in. by 8.0 in. (33.78 by 9.91 cm)
WarrantyThree Year Warranty
SCXI-1162HV ManualUser Manual and Maintenance Manual Available for Download
PriceRequest a Quote for Pricing Information

Associated part numbers for SCXI-1162HV:

National Instruments SCXI-1162HV Frequently Asked Questions



Question: Which driver software should be used with the SCXI-1162HV?

Answer: The NI-DAQ 7 driver software should be used with the Digital I/O Module.



Question: What is the input current limiting?

Answer: The input current limiting of the SCXI-1162HV is 1 mA.



Question: What is the propagation delay in parallel mode?

Answer: The NI SCXI-1162HV has a propagation delay of 1.5 ms in parallel mode.



Question: What is the serial data rate of the NI SCXI-1162 HV?

Answer: The serial data rate is 1,000 words/s.
