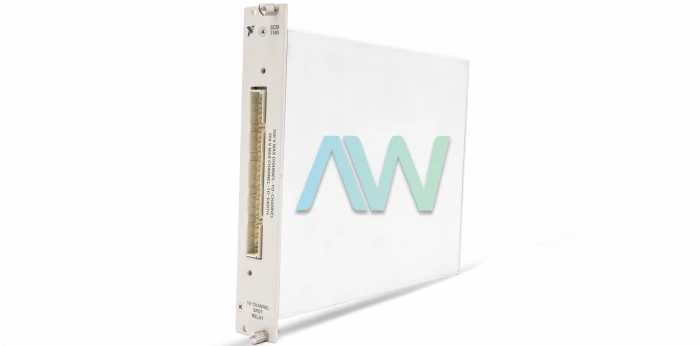

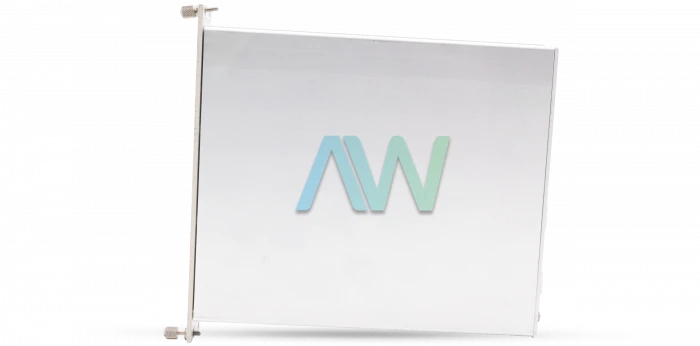

SCXI-1160 NI Relay Switch Module | In Stock Ships Today | Image

❮ ❯

Actual item may vary if no part number is provided on quote request.

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Anonymous Verified Buyer

" Very responsive and helpful, competitive pricing. Good source! "

July 2025

Andrew Gar**** Verified Buyer

" Amazing to work with and had my order within 1 week after purchasing with all NI certs and data that were needed. "

March 2025

Said Sai**** Verified Buyer

" Competent contact for highly specialized components. The support team is very knowledgeable. Many thanks for the help and the fast shipping! "

January 2025

Bob C**** Verified Buyer

" Jason was able to get our emergency situation taken care of quickly and professionally. "

May 2025

Gregg Flecki**** Verified Buyer

" Great service and great products. This is my 2nd time using Apex Waves, truly impressed. "

January 2025

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

Name*

Email Address*

Model Name

Part Number

Qty

+Add more parts

Additional Info - Calibration, Expedited Shipping or Other Notes

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to: 1-919-809-5227

Carol Zimme**** Verified Buyer

" Very responsive and helpful, competitive pricing. Good source! "

July 2025

Andrew Gar**** Verified Buyer

" Amazing to work with and had my order within 1 week after purchasing with all NI certs and data that were needed. "

March 2025

Said Sai**** Verified Buyer

" Competent contact for highly specialized components. The support team is very knowledgeable. Many thanks for the help and the fast shipping! "

January 2025

Bob C**** Verified Buyer

" Jason was able to get our emergency situation taken care of quickly and professionally. "

May 2025

Gregg Flecki**** Verified Buyer

" Great service and great products. This is my 2nd time using Apex Waves, truly impressed. "

January 2025

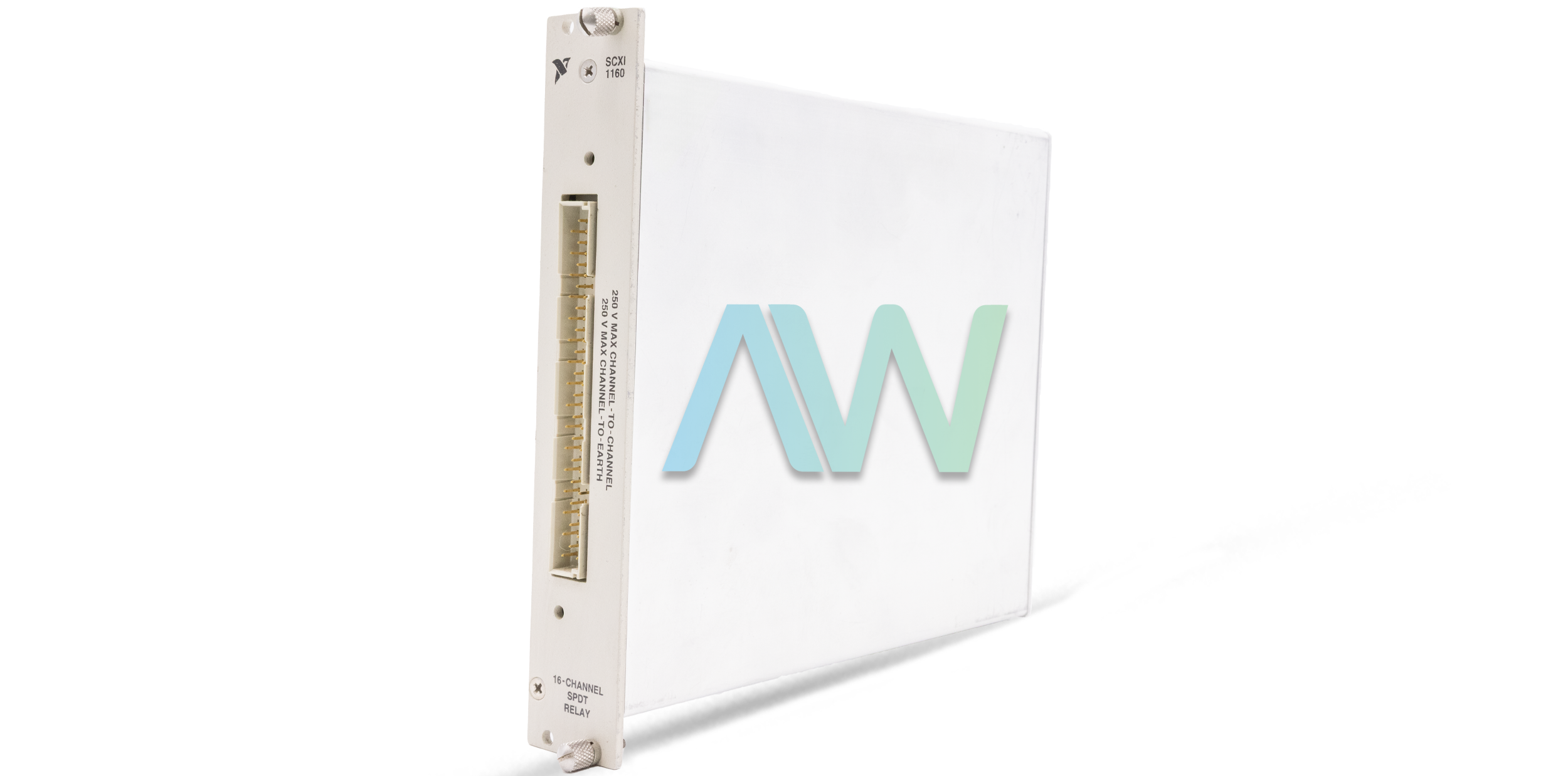

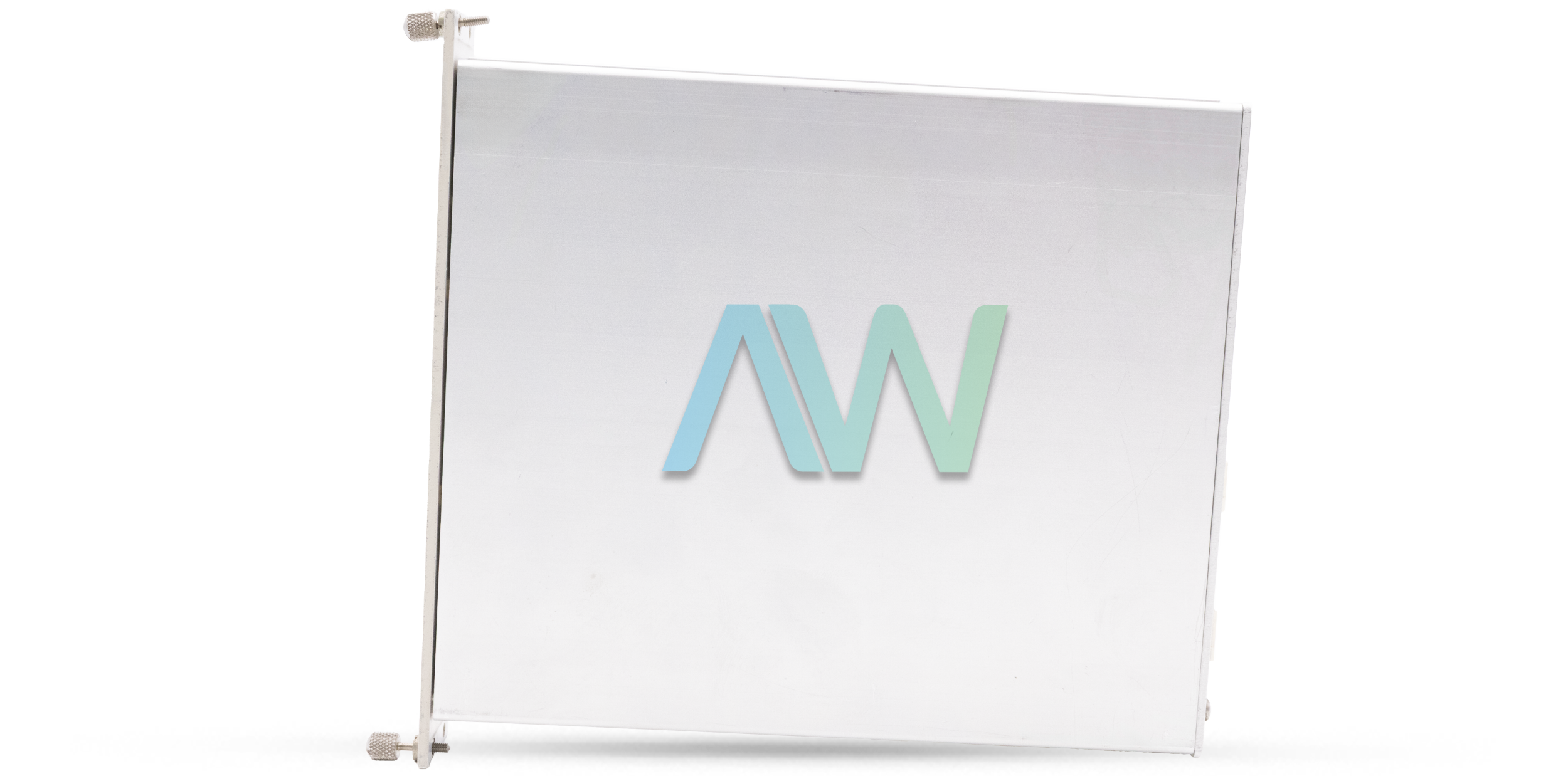

National Instruments SCXI-1160 General-Purpose Relay Switch Module

The NI SCXI-1160 (Part Number: 776572-60, 182139D-01) General-Purpose Switch Module has 16 individual SPDT Form C, electromechanical, latching relays, which have extremely low on-resistance and thermal offset. This module’s relays are capable of switching, routing, and controlling medium-level signals. The SCXI 1160 Switch Module has a maximum switching rate of 50 operations per second and is completely software programmable. The switching capacity of the module is 2 A at 250 VRMS or 2 A at 30 VDC. The NI SCXI-1160 can be used with NI MIO-16 Boards; Lab-NB, Lab-PC, Lab-PC+, Lab-LC, and PC-LPM-16 boards, as well as with the DIO-24, DIO-32F, and DIO-96 boards. The device has a relay operating time of 10 ms, with an offset voltage of 3 µV.

An advantage of using the SCXI-1160 module is that more than one module can be used in one or more chassis, resulting in the capability to control and switch thousands of signals. When the SCXI 1160 is used with an SCXI chassis, the chassis can function as a controller or switch in several types of applications, such as industrial process monitoring, production testing, and laboratory testing. The device operates using the NI-SWITCH driver software which is compatible with software packages such as LabVIEW, and LabWindows/CVI.s

There are five jumpers on the NI SCXI-1160 Relay Switch Module. First, Jumper W1 links a pullup resistor to the SERDATOUT signal on the back signal connector. Jumpers W2, W3, and W4 designate if the SCXI-1160 is going to be linked to a DIO board or an MIO board. If the SCXI 1160 does not have anything cabled to the back signal connector, then the arrangement of these jumpers does not matter. Finally, Jumper W5 carries the SCXI bus MISO line, after buffering, to the SERDATOUT signal on the back signal connector. This Relay Switch Module does not have access to the analog backplane to safeguard the backplane from faults when high voltages are present on the relay contacts. The NI instrument has the dimensions: 7.8 in. × 1.2 in. × 6.7 in. (19.8 cm × 3 cm × 17.3 cm).

The status of the SCXI-1160 is now considered Obsolete and it is no longer available from National Instruments, but the General-Purpose Switch Module will be available in perpetuity for purchase and repairs with Apex Waves!

Model	SCXI-1160
Part Number	776572-60, 182139D-01
Manufacturer	National Instruments
Type	General-Purpose Switch Module
Relays	16
Relay Type	Electromechanical SPDT (Form C), Latching
Relay Operate and Release Time	10 ms
I/O Connector	48-Pin DIN C Male
Offset Voltage	3 µV Typical
Operating Temperature	0 °C to 50 °C
Storage Temperature	–20 °C to 70 °C
Dimensions	7.8 in. × 1.2 in. × 6.7 in. (19.8 cm × 3 cm × 17.3 cm)
Weight	1 lb 8 oz (675 g)
Warranty	2-3 Year Warranty
SCXI-1160 Manual	User Manual and Maintenance Manual Available for Download
