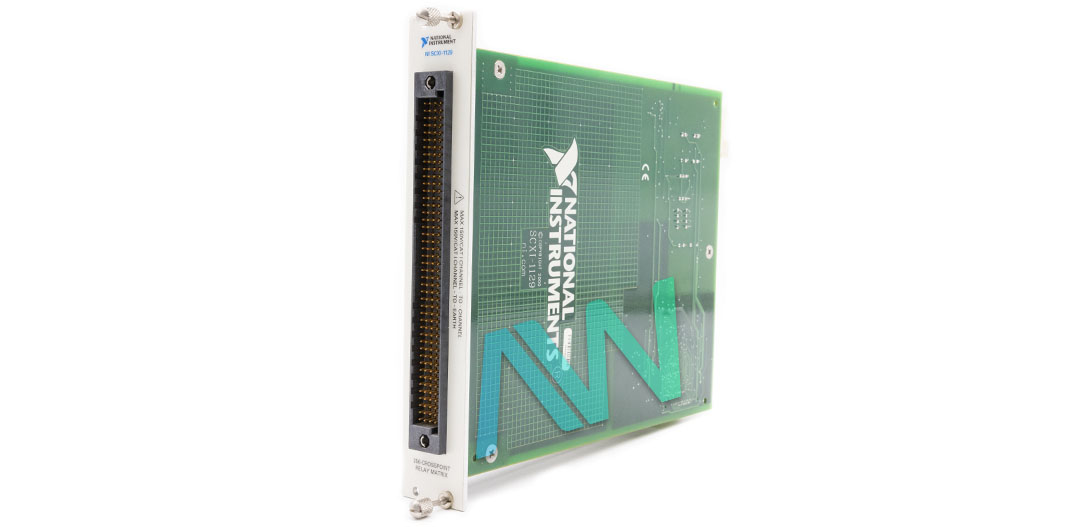

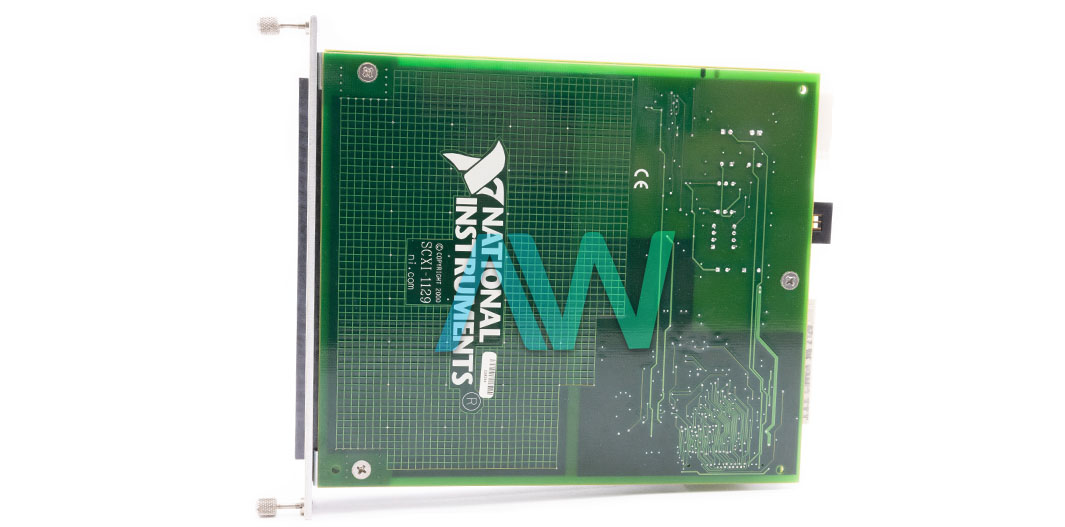

SCXI-1129 National Instruments Matrix Switch Module | Apex Waves | Image
SCXI-1129 National Instruments Matrix Switch Module | Apex Waves | Image
SCXI-1129 New
SCXI-1129 Refurbished
❮ ❯

Actual item may vary if no part number is provided on quote request.

SCXI-1129 National Instruments Matrix Switch Module | Apex Waves | Image
SCXI-1129 National Instruments Matrix Switch Module | Apex Waves | Image
SCXI-1129 New
SCXI-1129 Refurbished

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

+Add more parts

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to:   1-919-809-5227

National Instruments SCXI-1129 Matrix Switch Module

The SCXI-1129 (Part Number: 776572-29) is a 256 crosspoint high-density Matrix Switch Module, with a maximum scan rate of 100 crosspoints per second. This module offers a 4 x 64, 2-wire switch matrix configuration maximum on an SCXI platform. The NI SCXI-1129 Module can additionally function as four 4 x 16, 2-wire matrixes; two 4 x 32, 2-wire matrixes; or two 8 x 16, 2-wire matrixes. The standard matrix language defines matrixes by the quantity of rows by the quantity of columns they comprise. With terminal blocks, the SCXI-1129 module can be configured as a multitude of matrixes.

The SCXI-1129 is created to function well at low and high voltages. For low-voltage measurements, this module utilizes relays with < 9 µV thermal offset to guarantee precise measurements. The device is equipped with electromechanical, latching, and nonlatching relay types. This Matrix Switch Module supports the analog bus with a specific adapter, the high-voltage analog bus backplane adapter in the SCXI-1357/1358 kit, at the back of the module. This adapter enables the user to expand the high-voltage analog bus backplane adapter without the necessity of complex wiring. If the user links several modules to the high-voltage analog bus backplane adapter, then they can expand the matrix size without the need for external row or column connectors. The SCXI-1129 module can be utilized with one of the following terminal blocks: the SCXI-1336, SCXI-1333, SCXI-1335, SCXI-1337, SCXI-1334, or SCXI-1339.

When the user is installing the NI SCXI-1129 module in an SCXI chassis, the farthest right slot (when the chassis is observed from the front) must be the initial slot filled. Then, the user can proceed filling the slot to the left with the next SCXI-1129. Other SCXI modules can be loaded from left to right.

The SCXI-1129 operates using the NI-SWITCH driver software, in conjunction with the NI-DMM software. The device can be programmed using an application development environment such as LabVIEW, Measurement Studio, or Visual Basic. The device weighs 1 lb.(725 g), and measures 7.8 x 1.2 x 6.8 in. (19.8 × 3.0 × 17.3 cm) in dimensions.

The SCXI-1129 has been announced Obsolete by National Instruments, but the Matrix Switch Module will still be available in perpetuity for both purchase and repairs from Apex Waves.

ModelSCXI-1129
ManufacturerNational Instruments
Part Numbers776572-29, 186970C-01
TypeMatrix/Multiplexer Switch Module
Crosspoints256
Maximum Scan Rate100 Crosspoints/s
Relay TypesElectromechanical, Latching and Nonlatching
Maximum Switching Voltage150 V, CAT I
Maximum Switching Current1 A per Channel
Minimum Input Pulse Width150 ns
Output Trigger Pulse Width1 µs
Power Requirement6.3 W at ±18.5 V, 200 mW at 5 V
Dimensions7.8 × 1.2 × 6.8 in. (19.8 × 3.0 × 17.3 cm)
Weight1 lb., 10 oz. (725 g)
WarrantyThree Year Warranty
SCXI-1129 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for SCXI-1129:

National Instruments SCXI-1129 Frequently Asked Questions



Question: When utilizing a DMM to control a SCXI chassis, which mode can the DMM and the SCXI-1129 function?

Answer: When utilizing a DMM to control a SCXI chassis, the DMM and the SCXI-1129 can solely function in synchronous mode.



Question: What is the quickest scan rate for the NI SCXI-1129?

Answer: The quickest scan rate for the NI SCXI-1129 is 125 scans/s.



Question: How do I program the SCXI-1129?

Answer: The SCXI-1129 is programmed with the NI-SWITCH driver software. This software takes care of the functioning system interfacing and complicates issues of register writes to the module.



Question: Which type of I/O connector does the NI SCXI-1129 have?

Answer: The NI SCXI-1129 has a 180-pin HDI I/O connector.

Driver Downloads for SCXI-1129
