Q: Does the SCXI-1125 have a self-calibration capability?

The module does support self-calibration. The SCXI calibration VI should be used for this.

Q: What type of A/D Converter structure does the module have?

The NI SCXI-1125 is a signal conditioning module, so it must be interfaced to a compatible DAQ card for A/D conversion.

Q: Which types of output modes does the SCXI-1125 support?

The Voltage Input Module supports parallel and multiplexed output modes.

SCXI-1125, 8-Channel, 300 Vrms, Voltage Input Module

Rated 4.7/5 | 10 ratings

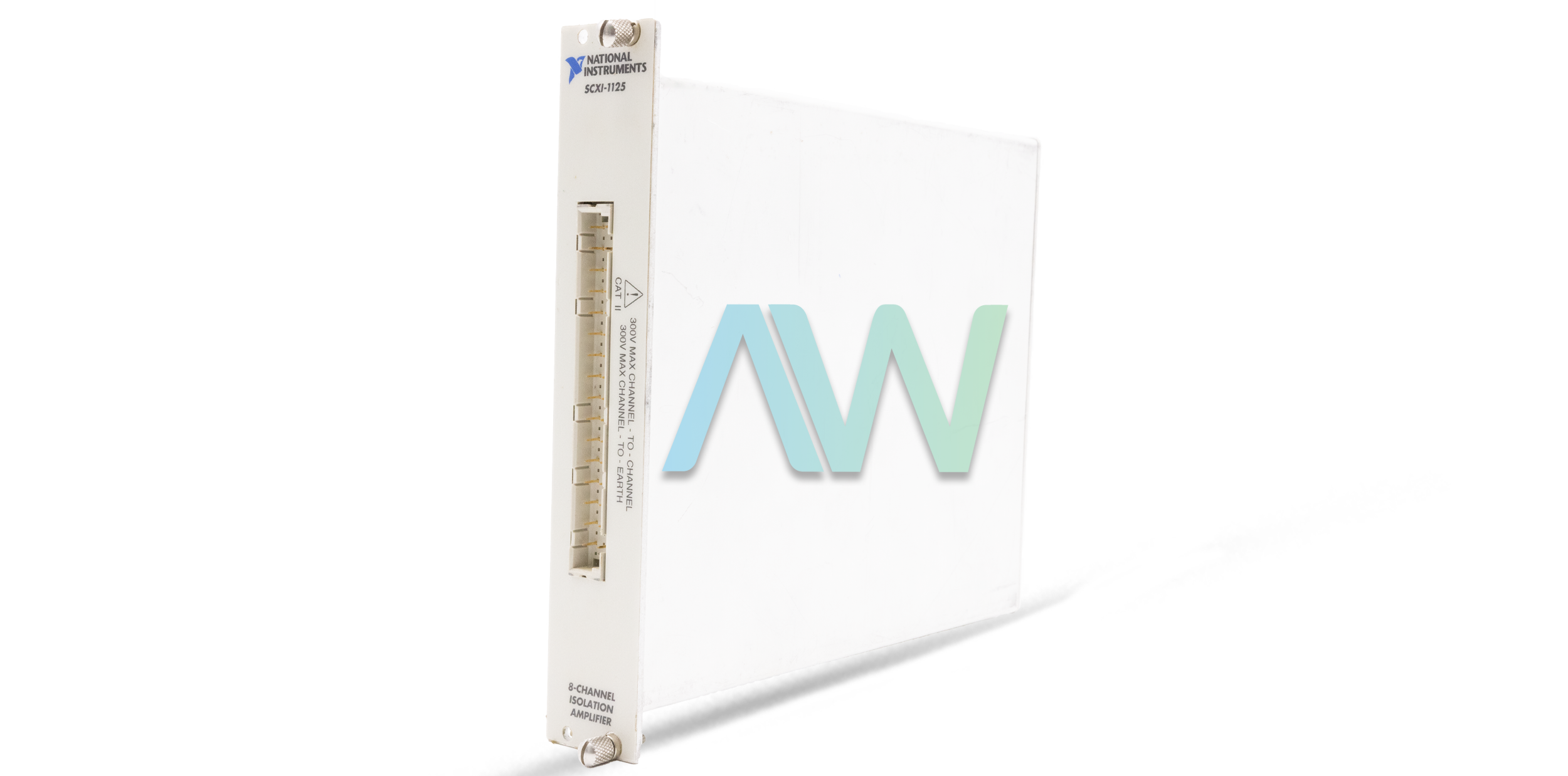

SCXI-1125 NI Voltage Input Module | In Stock Ships Today | Image

❮ ❯

Actual item may vary if no part number is provided on quote request.

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Anonymous Verified Buyer

" Very responsive and helpful, competitive pricing. Good source! "

July 2025

Andrew Gar**** Verified Buyer

" Amazing to work with and had my order within 1 week after purchasing with all NI certs and data that were needed. "

March 2025

Said Sai**** Verified Buyer

" Competent contact for highly specialized components. The support team is very knowledgeable. Many thanks for the help and the fast shipping! "

January 2025

Bob C**** Verified Buyer

" Jason was able to get our emergency situation taken care of quickly and professionally. "

May 2025

Gregg Flecki**** Verified Buyer

" Great service and great products. This is my 2nd time using Apex Waves, truly impressed. "

January 2025

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

Name*

Email Address*

Model Name

Part Number

Qty

+Add more parts

Additional Info - Calibration, Expedited Shipping or Other Notes

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to: 1-919-809-5227

Carol Zimme**** Verified Buyer

" Very responsive and helpful, competitive pricing. Good source! "

July 2025

Andrew Gar**** Verified Buyer

" Amazing to work with and had my order within 1 week after purchasing with all NI certs and data that were needed. "

March 2025

Said Sai**** Verified Buyer

" Competent contact for highly specialized components. The support team is very knowledgeable. Many thanks for the help and the fast shipping! "

January 2025

Bob C**** Verified Buyer

" Jason was able to get our emergency situation taken care of quickly and professionally. "

May 2025

Gregg Flecki**** Verified Buyer

" Great service and great products. This is my 2nd time using Apex Waves, truly impressed. "

January 2025

National Instruments SCXI-1125 Voltage Input Module

The NI SCXI-1125 Voltage Input Module (Part Number: 776872-25) offers 300 Vrms of working isolation and low pass filtering for every analog input channel–all 8 of them. Its architecture is perfect for intensification and confinement of millivolt sources, volt sources, 0 to 20 mA, 4 to 20 mA, and thermocouples. The SCXI-1125 can multiplex its eight channels into a single channel of the DAQ gadget, while also allowing the user to add modules to expand channel count. This module additionally offers parallel-mode operation for expanded output capability.

The NI SCXI-1125 contains calibration hardware to invalid out mistake sources. With programmable offset calibration, software-programmable analog switches ground the inputs of every one of the instrumentation enhancers for offset error calibration. A locally available EEPROM stores the calibration constants for each channel for each input extend in a client characterized zone. The EEPROM also stores an arrangement of factory calibration constants in permanent memory, which cannot be altered. The NI-DAQ driver software straightforwardly utilizes the calibration constants to verify for gain and offset errors. The device has an output range of ±5.0 V, and weighs 22.6 oz. It has the dimensions: 7.4 x 6.8 x 1.2 in.

In this model, each channel incorporates an automatic low pass filter that the user can configure for 4 Hz or 10 kHz. With the SCXI-1125, the user can perform irregular scanning, meaning they can choose just the channels from which they need to pick information, then scan channels in any order. Each channel is independently confined with a working common-mode voltage of 300 Vrms between channels or channel to earth. Furthermore, the SCXI-1125 is CE guaranteed as double insulated, Category II of operational isolation.

The NI-DAQmx 9.0 (or later versions) driver software is required to configure and program the SCXI-1125. Also, the device is compatible with any one of the following application development environments (ADEs): LabVIEW, LabWindows/CVI, Measurement Studio. The device software can be configured using the Measurement & Automation Explorer tool.

The SCXI-1125 is regarded as Obsolete and is no longer available from the manufacturer National Instruments, but the Voltage Input Module will still be available for purchase and repairs in perpetuity with Apex Waves.

Model	SCXI-1125
Manufacturer	National Instruments
Part Number	776572-25
Series	SCXI Series
Type	Voltage Input Module
Channels	8
Output Range	±5.0 V
Dimensions	7.4 x 6.8 x 1.2 in.
Weight	22.6 oz.
Warranty	Three Year Warranty
SCXI-1125 Manual	User Manual and Maintenance Manual Available for Download
Price	Request a Quote Today for More Information
