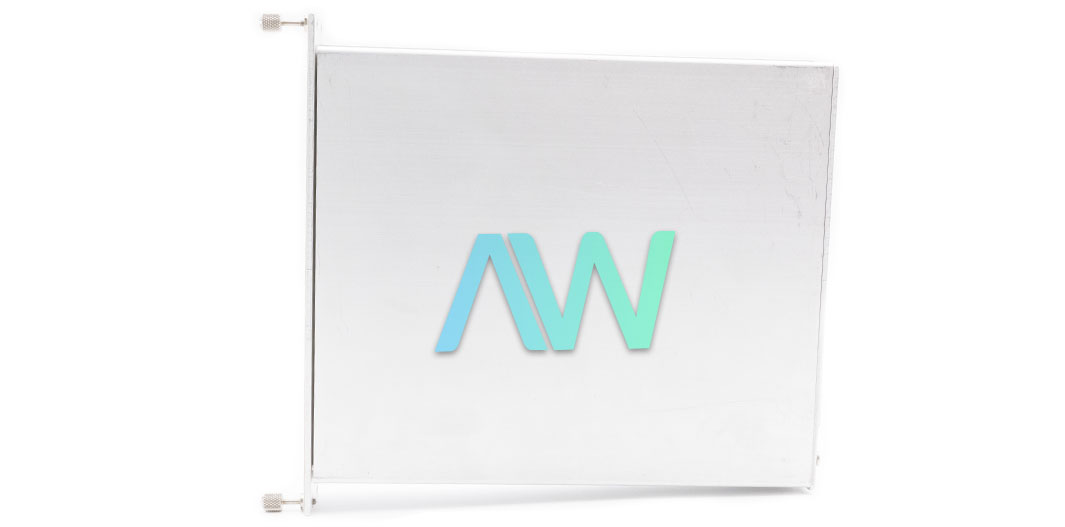

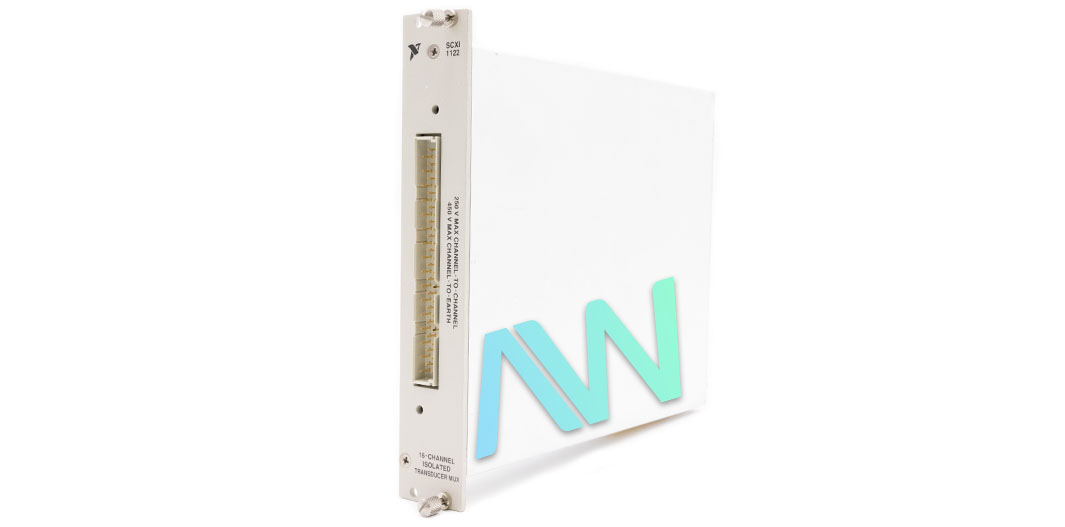

SCXI-1122 National Instruments Multiplexer | Apex Waves | Image
SCXI-1122 National Instruments Multiplexer | Apex Waves | Image
SCXI-1122 New
SCXI-1122 Refurbished
❮ ❯

Actual item may vary if no part number is provided on quote request.

SCXI-1122 National Instruments Multiplexer | Apex Waves | Image
SCXI-1122 National Instruments Multiplexer | Apex Waves | Image
SCXI-1122 New
SCXI-1122 Refurbished

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

+Add more parts

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to:   1-919-809-5227

National Instruments SCXI-1122 Isolated Transducer Multiplexer

The NI SCXI-1122 (Part Number: 776572-22) is a 16-Channel, Isolated Transducer Multiplexer Module, which is designed for signal conditioning. Apart from 16 isolated channels, this module has two isolated excitation channels as well. This module is an excellent choice for applications like the signal conditioning of strain gauges, thermistors, RTDs, volt sources, millivolt sources, and thermocouple.

This module is designed to operate in two modes. In two-wire scan mode, all 16 input channels are used for input. However, in four-wire scan mode eight of the upper channels are used as sense leads, while the eight lower eight channels are configured and utilized as current output channels. The NI SCXI-1122 can operate with the National Instruments Lab-PC+, MIO-16, and the SCXI-1200 boards. For single channel reads, the user can also utilize the PC-LPM-16 board with the SCXI-1122.

The NI SCXI-1122 has a 50-pin male rear connector and a 48-pin female front connector. The integrated amplifier of this module operates at 1 GΩ input impedance with normal power on and with 100 kΩ with power off. As far as its dynamic characteristics are concerned, this model comes with 4 Hz (-10 dB) or 4 kHz software selectable bandwidth. This module has a 3-pole RC, integrated filter, which is designed to operate at 4 Hz (-10 dB) cutoff frequency and 60 dB at 4 Hz bandwidth NMR. In addition, this module has 2 output channels. The voltage and current level remain around 3.333 V ±0.04% and 1.0 mA ±0.04% respectively.

ModelSCXI-1122, 776572-22
ManufacturerNational Instruments
SeriesSCXI
TypeIsolated Transducer Multiplexer
Input Channels16 differential
Bandwidth4 Hz (-10 dB) or 4 kHz, software selectable
Output Range±10 V
Warranty2-3 Year Warranty
SCXI-1122 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for SCXI-1122:

National Instruments SCXI-1122 Frequently Asked Questions



Question: Can you use the SCXI-1122 to multiplex channels?



Answer: You can use the SCXI‑1122 to multiplex channels into a single channel of a data acquisition device.



Question: Can you add modules to the NI SCXI-1122 to increase the channel count?



Answer: Yes, you can add modules to the NI SCXI-1122 to increase channel count.



Question: Does the SCXI 1122 offer parallel-mode operation?



Answer: Yes, the SCXI 1122 offers parallel-mode operation.



Question: Does the SCXI-1122 have isolated analog inputs?



Answer: Yes, the SCXI-1122 has isolated analog inputs.
