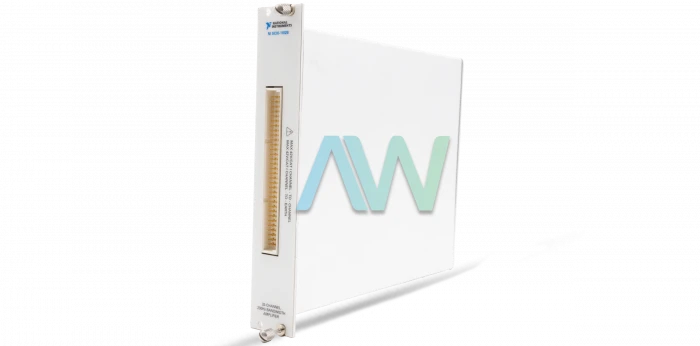

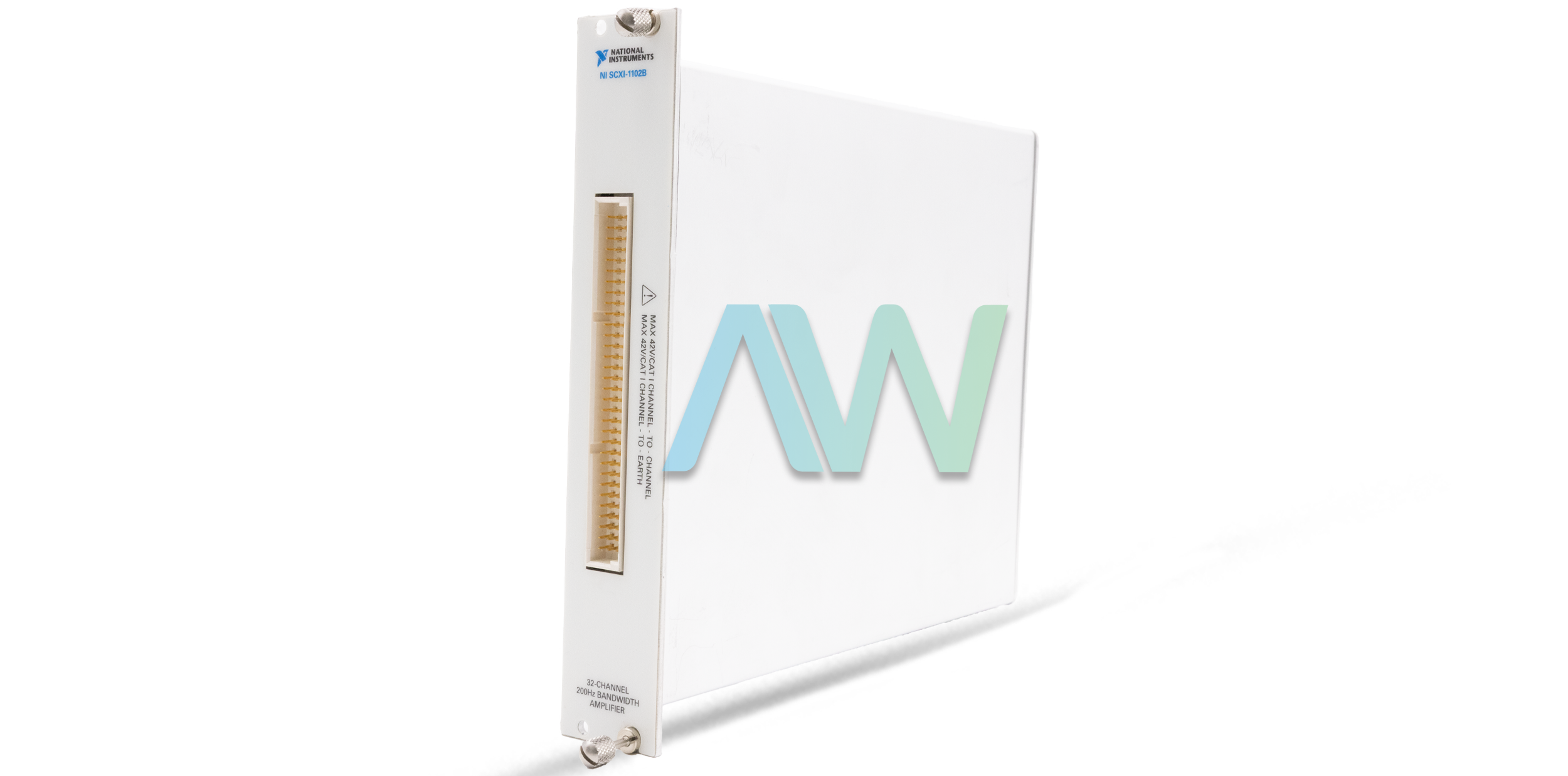

National Instruments SCXI-1102B Voltage Input Module
The SCXI-1102B (Part Number: 776572-02B) has a three-pole lowpass filter with a 200 Hz cutoff frequency, 32 differential channels, and DC input coupling. This module also has a cold-junction compensation sensor for temperature measurements. The inputs on this module can be multiplexed to one output, which in turn drives one DAQ device channel. Applications can be developed on the device using the NI-DAQmx driver software and other application development environments (ADEs) like LabVIEW, LabWindows/CVI, or Measurement Studio.
The SCXI 1102B has a differential input signal range of ±10 V when utilizing a gain of 1 or ±0.1 V when utilizing a gain of 100. The differential input range is the greatest measurable voltage variance between the positive and negative channel inputs. The common-mode input signal range of the NI SCXI-1102B Voltage Input Module is ±10 V. The common-mode input range for positive or negative channel input is the greatest input voltage that leads to an accurate measurement. Every channel on the SCXI-1102B module comes with input protection circuitry to endure the unintentional application of voltages to ±42 VAC peak or 60 VDC maximum. The user should keep in mind that going above the differential or common-mode input channel ranges will lead to an inaccurate signal measurement. It can also result in an increased settling time prerequisite of the linked E/M Series DAQ instrument.
The input signals on the NI SCXI-1102B Voltage Input Module can be ground-referenced or floating. Prior to linking the thermocouple or another signal, the user must confirm if it is ground-referenced or floating. Floating signals must be ground-referenced by linking the negative channel input to chassis ground via a bias resistor. The second option is to utilize the bias resistors included with certain terminal blocks, such as the SCXI-1303. The NI device is equipped with a 96-pin male DIN C front connector and a 50-pin male ribbon cable rear connector. The device weighs 24.6 oz., and measures 1.2 x 6.8 x 8.0 in. in physical dimensions. It has a recommended operating temperature range of 0 to 50 °C.
The SCXI-1102B has been declared Obsolete by National Instruments (NI), but the Voltage Input Module will remain available in perpetuity for both purchase and repair services with Apex Waves.
| Model | SCXI-1102B |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 776572-02B |
| Type | Voltage Input Module |
| Channels | 32 Differential |
| Input Bias Current | ±0.5 nA |
| Bandwidth | 200 Hz |
| Maximum Working Voltage | ±10 V |
| Recommended Warm-Up Time | 20 Min |
| Power Requirements | 15 mA Max for 5V, 150 mA Max for ±15 V |
| I/O Connectors | Front: 96-Pin Male DIN C Front Connector Back: 50-Pin Male Ribbon Cable Rear Connector |
| Operating Temperature Range | 0 to 50 °C |
| Storage Temperature Range | –20 to 70 °C |
| Dimensions | 1.2 in. x 6.8 in. x 7.4 in. (3.0 cm x 17.2 cm x 18.8 cm) |
| Weight | 24.6 oz (611 gm) |
| Warranty | Three Year Warranty |
| SCXI-1102B Manual | User Manual and Maintenance Manual Available for Download |
| Price | Request a Quote Today for Pricing Information |
Associated part numbers for SCXI-1102B:
National Instruments SCXI-1102B Frequently Asked Questions
Question: What is the cutoff frequency of the NI SCXI-1102B?
Answer: The Voltage Input Module has a 200 Hz cutoff frequency.
Question: Can you multiplex the SCXI-1102B inputs to a single output?
Answer: Yes, you can multiplex the inputs of the module to a single output to drive a single DAQ device channel.
Question: What should be paired with the NI SCXI-1102B to measure RTDs and thermistors?
Answer: To measure thermistors and RTDs, the module must be paired with the SCXI-1581.
Question: Does the Voltage Input Module have a cold-junction sensor channel?
Answer: Yes, the SCXI-1102B has 32 differential analog input channels and one cold-junction sensor channel.
Question: Do the channels on the SCXI-1102B have amplifiers?
Answer: Yes, each channel has an amplifier with a selectable gain of 1 or 100.
