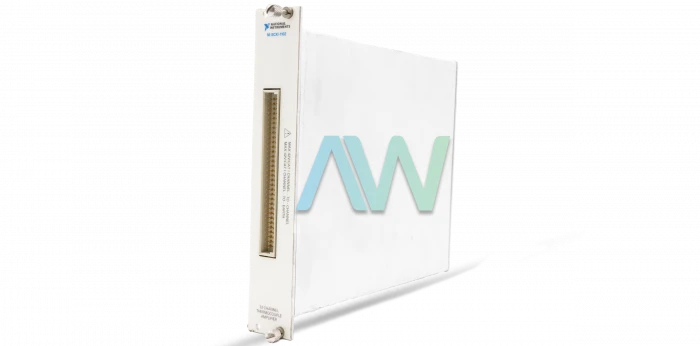

SCXI-1102 NI Voltage Input Module | In Stock Ships Today | Image

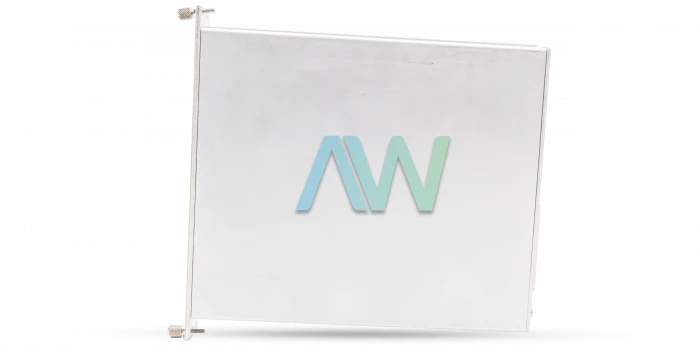

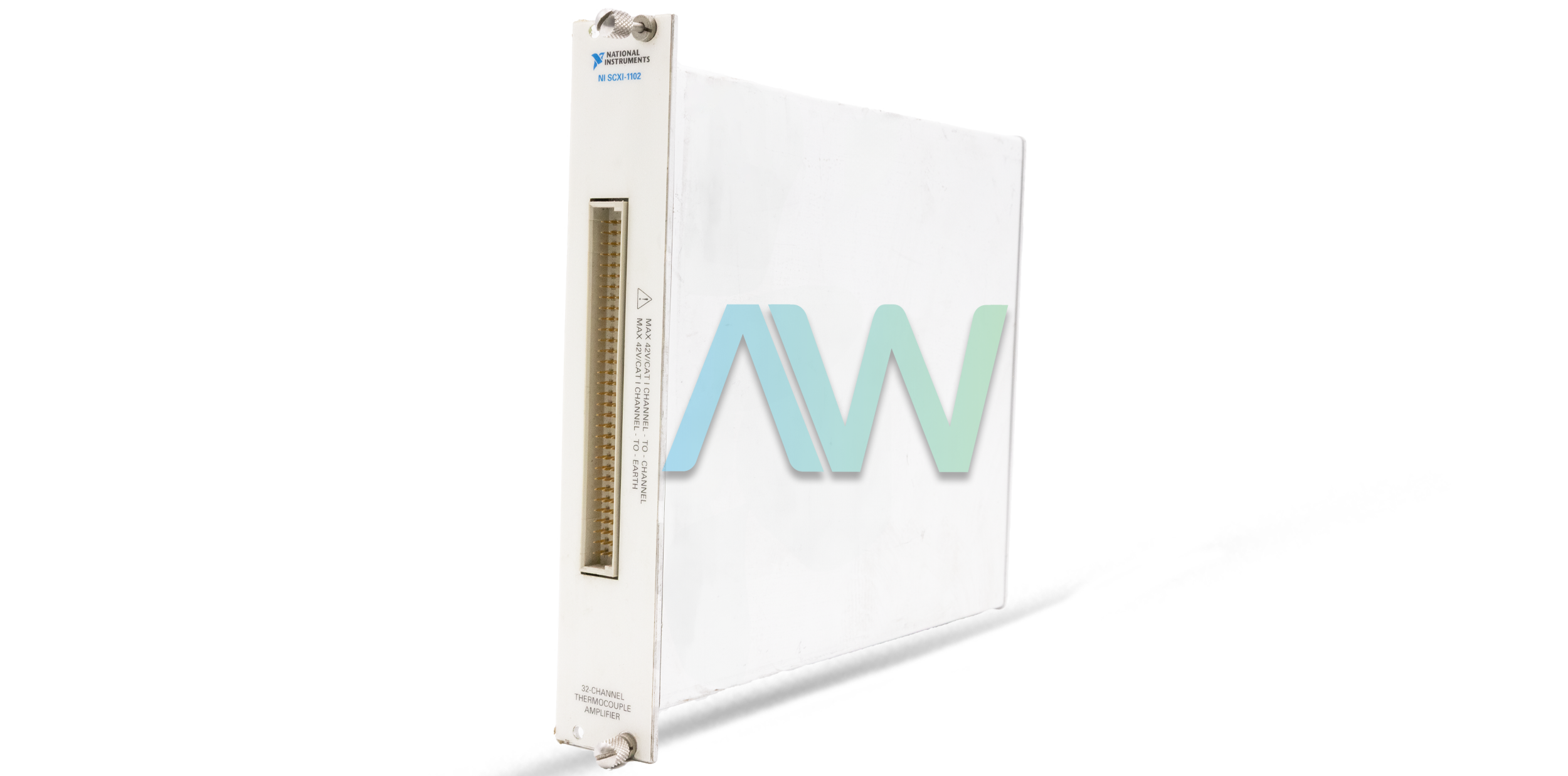

SCXI-1102 NI Voltage Input Module | In Stock Ships Today | Image
SCXI-1102 New
SCXI-1102 Refurbished
❮ ❯

Actual item may vary if no part number is provided on quote request.

SCXI-1102 NI Voltage Input Module | In Stock Ships Today | Image
SCXI-1102 NI Voltage Input Module | In Stock Ships Today | Image
SCXI-1102 New
SCXI-1102 Refurbished

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

+Add more parts

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to:   1-919-809-5227

National Instruments SCXI-1102 Voltage Input Module

The NI SCXI-1102 (Part Number: 776572-02, 183087H-01) is a 32-Channel Voltage Input Module that can complete hardware scanning of cold-junction sensors. This module has 2 Hz lowpass filtering for each channel. This module has overvoltage protection to ±42 V, 2 Hz bandwidth, and 333 kS/s maximum sampling rate. Since this module has a 2 Hz bandwidth, after altering the gains, the user must wait about 3 seconds to obtain a precise measurement. The SCXI-1102 Voltage Input Module is ideal for high-accuracy thermocouple measurements. This module can obtain millivolt, volt, 0 to 20 mA, and 4 to 0 mA current input signals. The NI SCXI-1102 module can obtain signals from RTDs as well when the SCXI-1581 delivers excitation.

The SCXI 1102 can be used with the SCXI-1300, SCXI-1303, SCXI-1308, SCXI-1310, TC-2095, TBX-1303, or TBX-96 terminal blocks. An isothermal terminal block such as the SCXI-1303 is suggested for precise thermocouple measurements. Other items required to operate the NI SCIXI 1102 Voltage Input Module include: an SCXI chassis or PXI/SCXI combination chassis, the SCXI-1600 or E/M Series DAQ Device, a computer (if using an SCXI chassis), cabling, cable adapter, and sensors as needed for the user’s application. Applications can be developed on the device using the NI-DAQmx driver software and other application development environments (ADEs) like LabVIEW, LabWindows/CVI, or Measurement Studio.

The back signal connector on the cabled module is the interface between the DAQ device and the modules in the SCXI chassis. CH 0 is employed to differentially multiplex the 32 channels, the CJ sensor, and analog signals from the modules to the linked DAQ device. If the SCXI-1102 module has a DAQ device linked to it, then the digital lines are not available for general-purpose digital I/O. The Voltage Input Module weighs 24.6 oz., and measures 1.2  x  6.8  x  7.4 in. (3.0 cm × 17.2 cm × 18.8 cm) in physical dimensions. It has a recommended operating temperature range of 0 to 50 °C.

The status of the SCXI-1102 has been announced as Obsolete by the manufacturer National Instruments, but the Voltage Input Module will still be available for purchase and repairs by Apex Waves in perpetuity.

ModelSCXI-1102
ManufacturerNational Instruments
Part Number776572-02, 183087H-01
TypeVoltage Input Module
Analog Input Channels32 Differential
Input CouplingDC
Bandwidth2 Hz
Connectors50-Pin Rear Signal Connector
Cutoff Frequency2 Hz
Recommended Warm-Up 20 min
Operating Temp Range 0 to 50 °C
Storage Temp Range –20 to 70 °C
Dimensions1.2  x  6.8  x  7.4 in. (3.0 cm × 17.2 cm × 18.8 cm)
Weight24.6 oz (611 gm)
WarrantyThree Year Warranty
SCXI-1102 ManualUser Manual and Maintenance Manual Available for Download
PriceRequest a Quote Today for Addiitonal Information

Associated part numbers for SCXI-1102:

National Instruments SCXI-1102 Frequently Asked Questions



Question: Which type of signal compatibility does the SCXI-1102 have?

Answer: The module has RTD, 0 to 20 mA, thermocouple, ±10 V, and ±100 mV signal compatibility.



Question: How often should the Voltage Input Module be calibrated?

Answer: It is recommended to calibrate the NI SCXI-1102 once per year.



Question: What is the bandwidth of the SCXI-1102?

Answer: The bandwidth of the Voltage Input Module is 2 Hz.



Question: Which accessories can be used with the NI SCXI-1102?

Answer: This module can be used with the SH96-96 shielded cable 1 m (Part Number: 183228-01) or the R96-96 ribbon cable 1 m (Part Number: 183425-01).
