Q: What is the input voltage for the chassis?

The NI SCXI-1001 has an input voltage of 100, 120, 220, or 240 VAC at 50 or 60 Hz.

Q: Why does the SCXI-1001 have seven different part numbers? What are the differences between them?

The SCXI-1001 has several different power options meant for use in specific countries: 776571-02 is Swiss 220V, 776571-05 is N. American 240V, 776571-07 is Japan 100V, 776571-04 is Europe 240V, 776571-03 is Australia 240V, 776571-06 is U.K. 240V, 776571-09 is Korea 220V, and 776571-10 is China 220V.

Q: What types of applications is the NI SCXI-1001 best to be used for?

The SCXI Chassis is best for systems with a massive channel count.

SCXI-1001, 12-Slot, Rack Mountable, AC Chassis

Rated 4.5/5 | 10 ratings

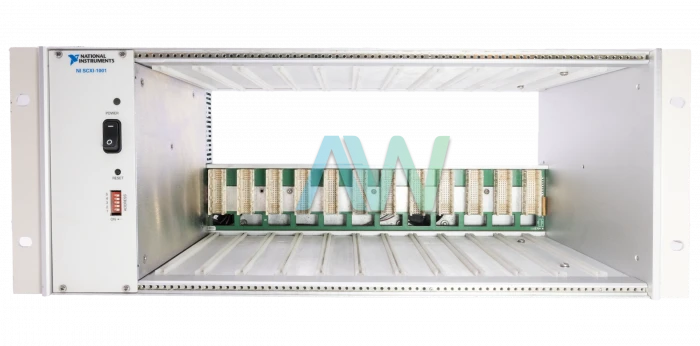

SCXI-1001 NI 12-Slot SCXI Chassis | In Stock Ships Today | Image

❮ ❯

Actual item may vary if no part number is provided on quote request.

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Anonymous Verified Buyer

" Very responsive and helpful, competitive pricing. Good source! "

July 2025

Andrew Gar**** Verified Buyer

" Amazing to work with and had my order within 1 week after purchasing with all NI certs and data that were needed. "

March 2025

Said Sai**** Verified Buyer

" Competent contact for highly specialized components. The support team is very knowledgeable. Many thanks for the help and the fast shipping! "

January 2025

Bob C**** Verified Buyer

" Jason was able to get our emergency situation taken care of quickly and professionally. "

May 2025

Gregg Flecki**** Verified Buyer

" Great service and great products. This is my 2nd time using Apex Waves, truly impressed. "

January 2025

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

Name*

Email Address*

Model Name

Part Number

Qty

+Add more parts

Additional Info - Calibration, Expedited Shipping or Other Notes

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to: 1-919-809-5227

Carol Zimme**** Verified Buyer

" Very responsive and helpful, competitive pricing. Good source! "

July 2025

Andrew Gar**** Verified Buyer

" Amazing to work with and had my order within 1 week after purchasing with all NI certs and data that were needed. "

March 2025

Said Sai**** Verified Buyer

" Competent contact for highly specialized components. The support team is very knowledgeable. Many thanks for the help and the fast shipping! "

January 2025

Bob C**** Verified Buyer

" Jason was able to get our emergency situation taken care of quickly and professionally. "

May 2025

Gregg Flecki**** Verified Buyer

" Great service and great products. This is my 2nd time using Apex Waves, truly impressed. "

January 2025

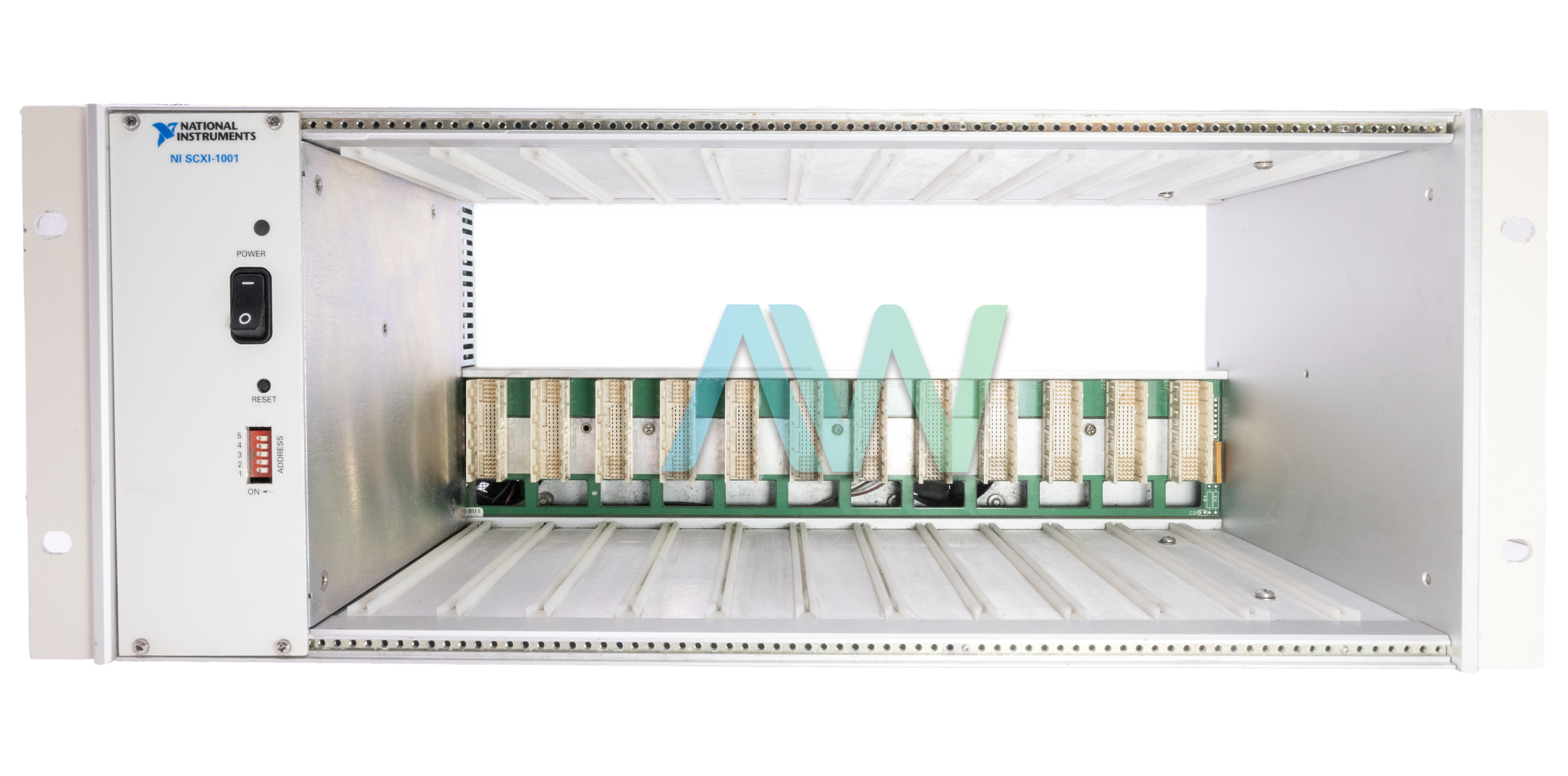

National Instruments SCXI-1001 Chassis

Featured with 3 Internal Analog Busses and 12 slots, the NI SCXI-1001 (Part Numbers: 776571-02, 776571-05, 776571-07, 776571-04, 776571-03, 776571-01, 776571-06, 776571-09, and 776571-10) is a low-noise, rugged Chassis designed to hold up to 12 SCXI modules. This model can not only power SCXI modules, but it can handle all trigger, timing, and signal routing between the user’s SCXI modules and digitizers as well. For future expansion or more extensive systems, a maximum of eight NI SCXI 1001 Chassis can be daisy-chained for high-channel-count applications with the help of a single E series digitizer.

To match the user’s country, this Chassis offers seven different power options, each with a different part number, and can be reconfigured for use in other countries as well. The SCXI 1001 is compatible with all the major operating systems, including Windows, Linux, Mac OS, and LabVIEW RT. The National Instruments SCXI-1001 is fully compatible with the NI-DAQ 7 and NI-SWITCH driver software, making configuration and operations a simple task. It can be programmed using software packages/application development environments (ADEs) such as LabVIEW, LabWindows/CVI, Measurement Studio, or VI Logger. Using any of the above-mentioned ADEs greatly speeds up your development time. The NI SCXI-1001 has optional rear or front rack mountable configurations.

With a forced air cooling mechanism, this Chassis can be used in a rack-mount, panel mount, or portable configuration. This SXCI Chassis is featured with the SCXIbus. Any module installed in the chassis will automatically connect to the bus in the backplane. The SCXIbus enables communication between different module’s routes for digital and analog signals. The NI SCXI 1001 can also synchronize the timing between the DAQ device and each module. Thus, this setup allows the user to scan input channels from multiple modules at a rate of 333 kS/s for every DAQ device. The device weighs 14 oz., and measures 9.8 x 17.3 x 7.0 in. in physical dimensions. It has a recommended operating temperature range of 0 to 50 °C, and a storage temperature range of –20 to 70 °C.

The SCXI-1001 is now considered Obsolete and is no longer available direct from National Instruments, but the Chassis will still be available for purchase and repairs with Apex Waves in perpetuity.

Model	SCXI-1001
Manufacturer	National Instruments
Part Numbers	776571-02, 776571-05, 776571-07, 776571-04, 776571-03, 776571-01, 776571-06, 776571-09, and 776571-10
Series	SCXI Series
Type	Chassis
Slots	12
Internal Analog Buses	3
Dimensions	9.8 by 17.3 by 7.0 in.
Weight	14 lb, 14 oz.
Warranty	Three Year Warranty
SCXI-1001 Manual	User Manual and Maintenance Manual Available for Download
Price	Request a Quote Today for Pricing

Associated part numbers for SCXI-1001:

National Instruments SCXI-1001 Frequently Asked Questions

Question: Is there a way to programmatically detect if the SCXI 1001 is powered on?

Answer: No, the user can only determine if the chassis is communicating with configured modules via NI-DAQ or a LabVIEW VI.

Question: What is the input voltage for the chassis?

Answer: The NI SCXI-1001 has an input voltage of 100, 120, 220, or 240 VAC at 50 or 60 Hz.

Question: Why does the SCXI-1001 have seven different part numbers? What are the differences between them?

Answer: The SCXI-1001 has several different power options meant for use in specific countries: 776571-02 is Swiss 220V, 776571-05 is N. American 240V, 776571-07 is Japan 100V, 776571-04 is Europe 240V, 776571-03 is Australia 240V, 776571-06 is U.K. 240V, 776571-09 is Korea 220V, and 776571-10 is China 220V.

Question: What are the differences between later revisions of the National Instruments SCXI-1001?

Answer: The chassis through revision D utilizes jumpers on Slot 0 for chassis addressing, whereas Revision E and later utilizes a DIP switch.

Question: What types of applications is the NI SCXI-1001 best to be used for?

Answer: The SCXI Chassis is best for systems with a massive channel count.
