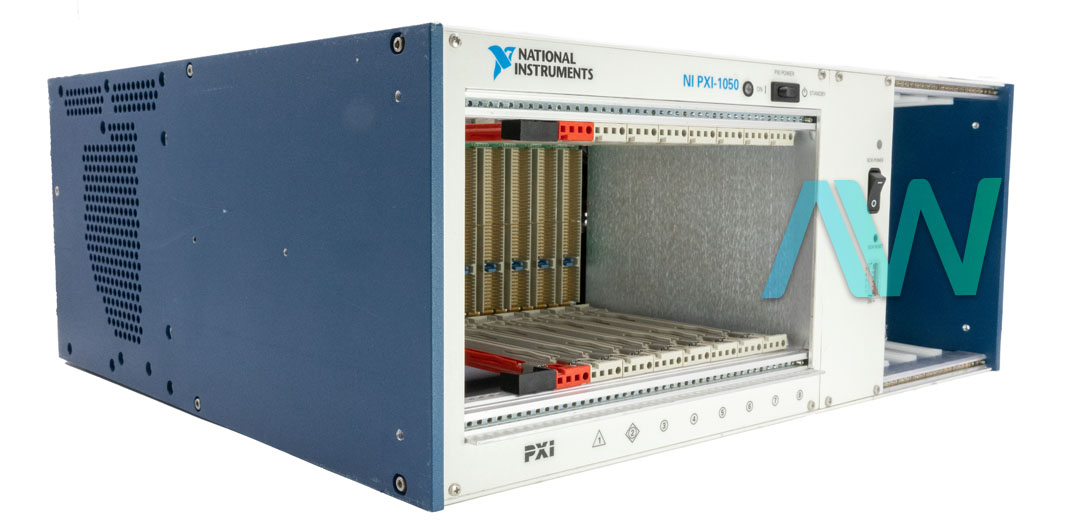

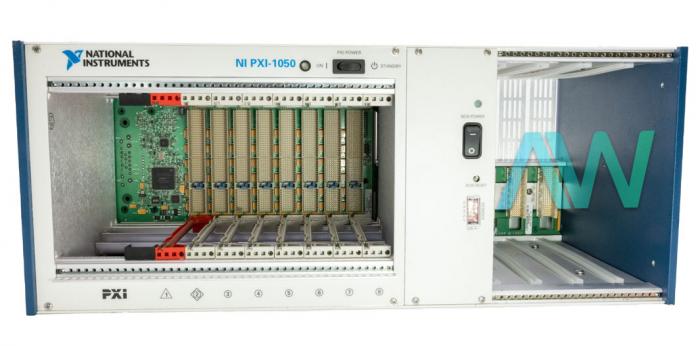

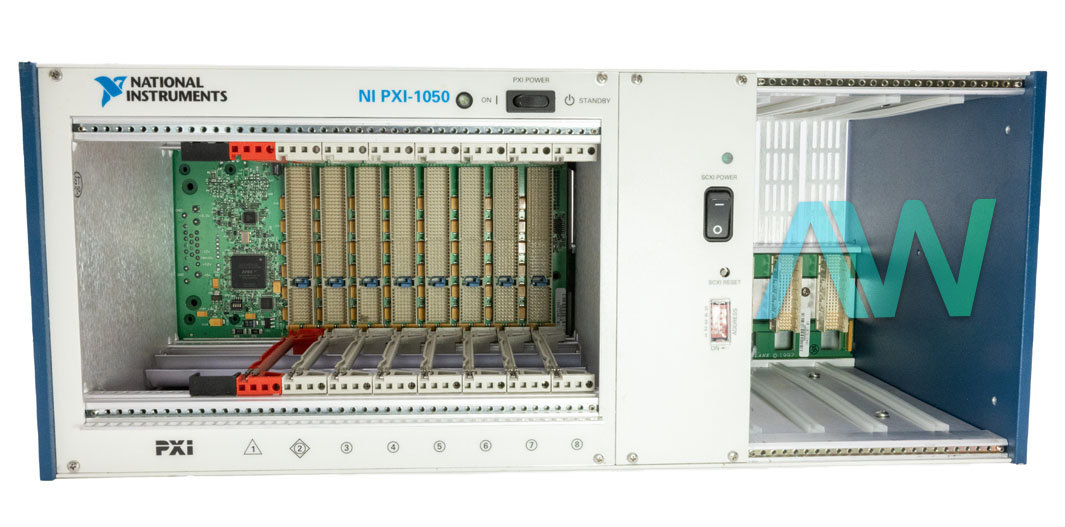

National Instruments PXI-1050 PXI Chassis

The National Instruments PXI-1050 (Part Numbers: 779199-03, 779199-01, 779199-04, 779199-02, 779199-51) is a flexible chassis made for PXI measurement systems that need strong signal conditioning capabilities. A complete solution for a range of applications is provided by this 12-slot chassis, which combines an 8-slot PXI subsystem with a 4-slot SCXI subsystem.

This chassis enables signal processing and high-accuracy measurements all in one device and has both PXI and SCXI slots. The PXI section accommodates an embedded or remote controller along with a range of PXI modules, including multifunction I/O and digital I/O modules. Meanwhile, the four SCXI slots allow signal conditioning modules to be effortlessly integrated into the PXI system, offering isolation, analog and digital input conditioning, and other crucial features.

With a structural design optimized for maximum versatility, the PXI-1050 is suitable for applications where rack-mount space is limited. Its compact form factor combines the computer, plug-in devices, and signal conditioning, minimizing footprint while maximizing functionality. Effective cooling systems guarantee peak efficiency and dependability. Two fans help to maintain forced air circulation, which keeps the device operating quietly and keeps it from overheating.

All of the outputs on the chassis also have over-current protection, which guards against overload and short circuits. The AC input of the PXI-1050 supports a range of voltages and frequencies, so it may be used with a variety of power supplies. Its power supply system allows for smooth integration and control because it has an integrated interface between the PXI and SCXI subsystems. The PXI-1050 is used in a range of industries and environments. It is particularly suited for environments requiring high-accuracy measurements and signal conditioning, such as test and measurement, industrial automation, and scientific research.

Because of its adaptability, it can be used with both current and future SCXI modules, guaranteeing scalability and long-term use. The PXI-1050 is designed to survive harsh environments and continue to operate at peak efficiency, operating between 0 and 50°C in ambient temperature and between 10 and 90% relative humidity.

The PXI-1050 is considered obsolete by National Instruments (NI), but the PXI chassis will remain available in perpetuity with Apex Waves!

ModelPXI-1050
ManufacturerNational Instruments
Part Numbers779199-01, 779199-02, 779199-03, 779199-04
HTS Code8473305100
TypePXI Chassis
Slots12
Slot Cooling Capacity25 W
Power Supply TypeAC
Backplane Size3U-Sized, One System Slot
Input Frequency50 / 60 Hz
Operating Frequency Range 47 to 63 Hz
Module Cooling SystemForced Air Circulation
Operating Temperature Range0 to 50 °C
Storage Temperature Range–20 to 70 °C
Dimensions16.2 by 17.3 by 7.0 in.
Weight29 lb.
WarrantyThree Year Warranty
PXI-1050 ManualUser Manual and Maintenance Manual Available for Download
PriceRequest a Quote Today for Pricing

Associated part numbers for PXI-1050:

National Instruments PXI-1050 Frequently Asked Questions



Question: What is the difference between each of the four part numbers for the NI PXI-1050 PXI/SCXI Combination Chassis

Answer: Each of the four part numbers for the chassis has a different input line voltage. Part number 779199-01 is 120 VAC, part number 779199-02 is 100 VAC, part number 779199-03 is 220 VAC, and part number 779199-04 is 240 VAC.



Question: Is the PXI-8108 Embedded Controller compatible with the PXI-1050 Chassis?

Answer: Yes, the PXI-8108 Controller will work with the PXI-1050 Chassis.



Question: The LED light is not lighting up on my NI PXI-1050 chassis. Is there another method to turn the power on for the SCXI slots besides the switch on the front of the case?

Answer: If the LED light is not lit, it is recommended to check the fuses and circuit breaker on the back of the chassis. If that does not appear to solve the issue, check that the power cable is functioning by testing it on a different machine. Lastly, ensure that the chassis is plugged into the correct main voltage.



Question: What types of applications is the PXI chassis designed for?

Answer: The NI PXI-1050 works well for applications that necessitate extremely precise measurements and signal conditioning in one chassis.
