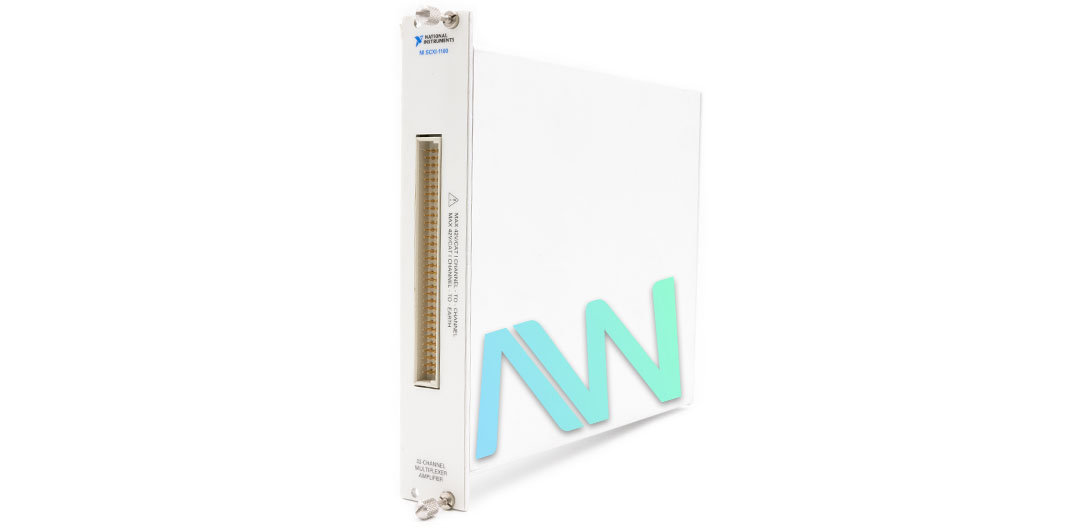

National Instruments 776572-00 Voltage Input Module for SCXI
National Instruments part number 776572-00 is an identifying part number for the SCXI-1100, a Voltage Input Module for SCXI. The 776572-00 module is equipped with 32 Channels, and it features a maximum Input Voltage range of 10 Volts. This versatile device is designed to condition a variety of signals including millivolt, volt, and current.
It offers multiple gain ranges and a jumper-selectable 4 Hz low-pass filter. By merging multiple channels into a single channel, this device increases the DAQ system's total number of channels. The extra shielded terminal block with screw terminals provides easy signal connection.
There is a temperature sensor on the terminal block for thermocouples. This sensor helps adjust for temperature changes. The temperature reference can be connected to one of the 32 channels on the 776572-00. Alternatively, it can be connected to a different channel on the data acquisition board.
The NI device has a 96-pin male DIN C front connector and a 50-pin male ribbon cable rear connector. This DC-coupled device has a maximum working voltage of ±10 V. The 776572-00 Voltage Input Module can be used with a variety of terminal blocks, including rack-mounted thermocouple plugs, screw terminals, BNC connectors, DIN-rail mount solder pins, and front-mounting terminal blocks.
The calibration procedure of the 776572-00 requires the use of a few different modules. These include a calibrator, a DAQ Device (from the NI E Series), an SCXI adapter, a shielded DAQ cable, and a terminal block. These hardware modules can be paired with Calibration Executive software to configure the module to the necessary specifications.
| Part Number | 776572-00 |
|---|---|
| Model Name | SCXI-1100 |
| Part Type | Voltage Input Module for SCXI |
| Number of Channels | 32 Differential |
| Maximum Voltage | ±10 V |
| Input Coupling | DC |
| Bandwidth | 4 Hz, 10 kHz full bandwidth |
| I/O Connectors | Front: 96-pin male DIN C front connector Back: 50-pin male ribbon cable rear connector |
| Warmup Time | 20 minutes |
| Filter Type | RC |
