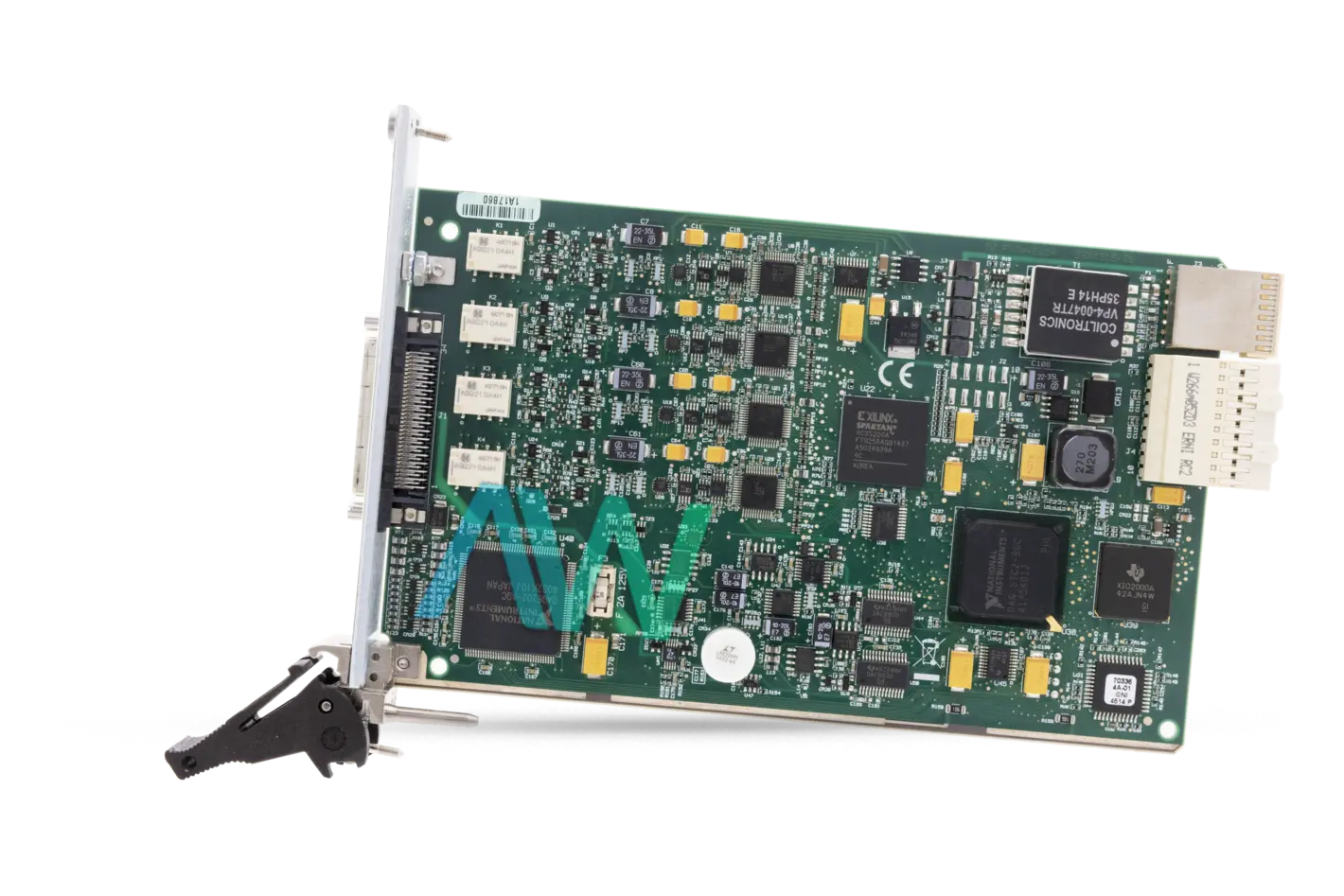

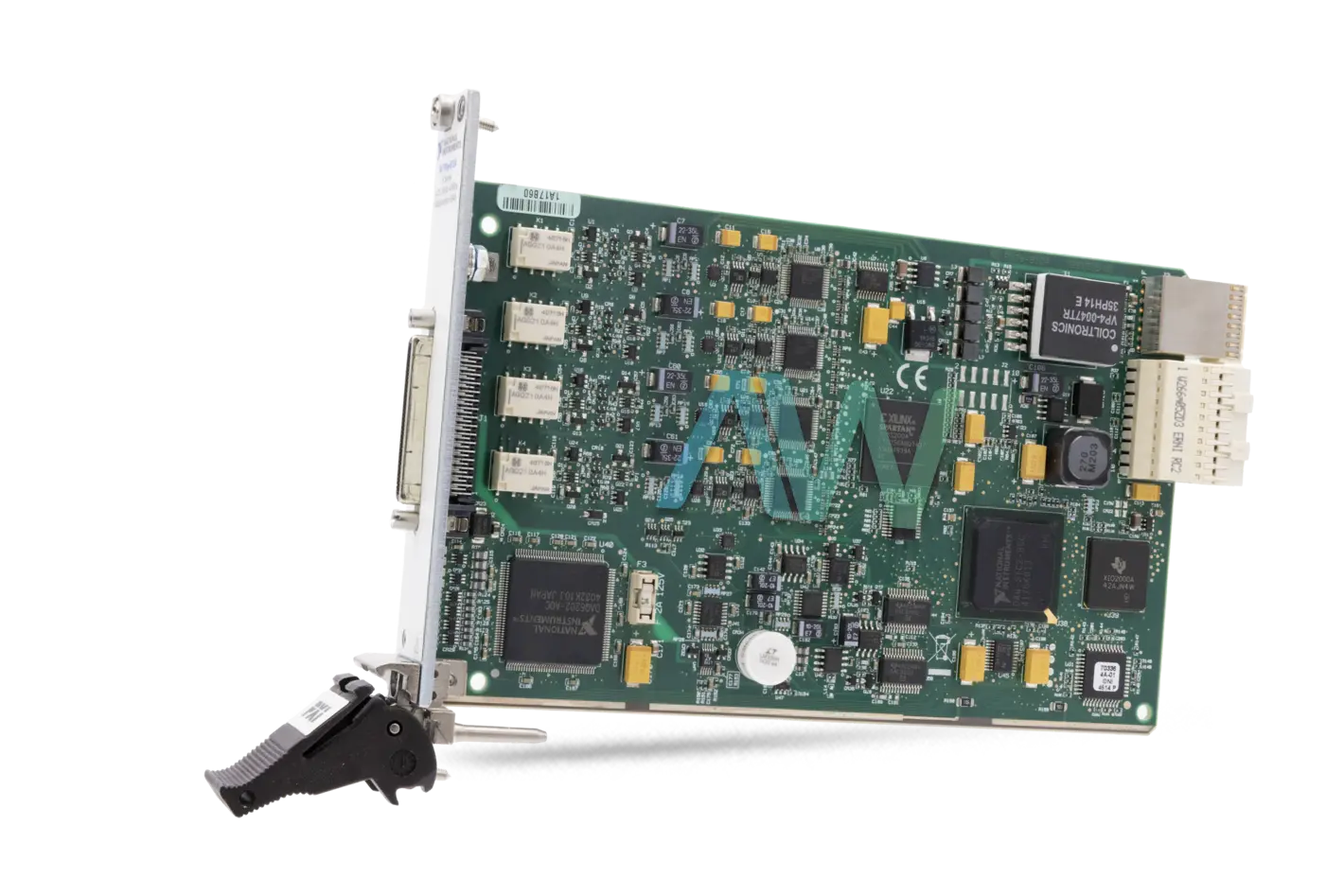

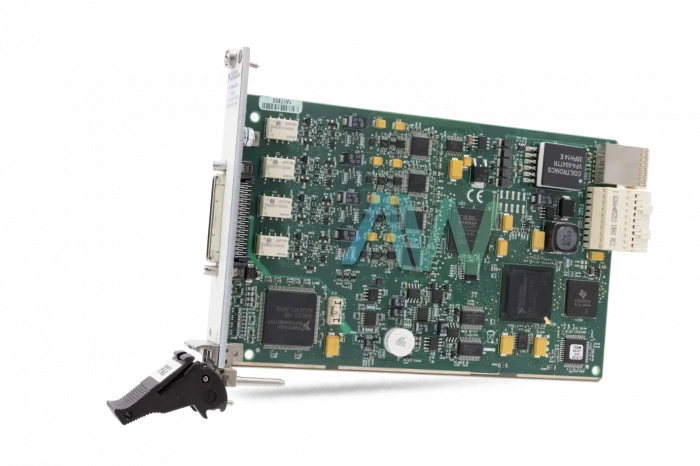

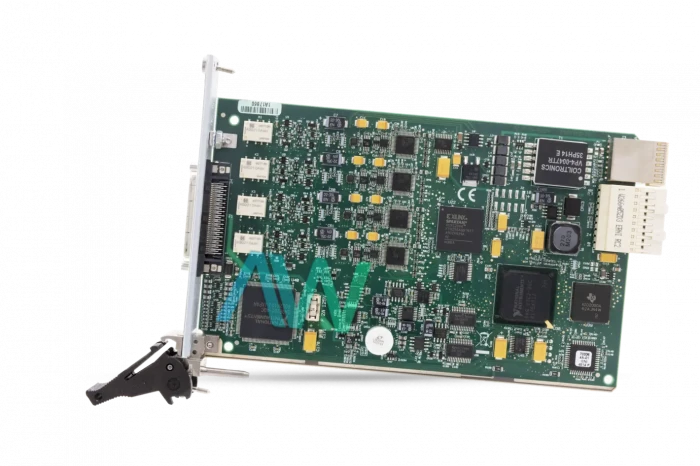

National Instruments PXIe-6124 PXI Multifunction I/O Module
The PXIe-6124 (Part Number: 780536-01) is a Multifunction I/O Module from National Instruments. This module has four differential analog inputs. The NI PXIe-6124 Multifunction I/O Module incorporates a built-in ADC with 16 bits resolution. The instrument also offers a 4 MS per second per channel sample rate. The input bias current of the device is ± 10 pico-amperes. It also implements a DC coupling mechanism for the input. The value for inter-channel slew for the PXIe-6124 I/O Module is 5 nanoseconds.
The NI PXIe-6124 module offers two analog output voltage channels. The sampling rate of one channel is 4 MS per second. The sampling rate of two channels is 2.5 MS per second. The output voltage range of these channels is ± 10 volts. The value for output impedance is 0.4 ohms. The output current drive has the value of ± 5 milliamperes. The range for overdrive protection voltage is ± 25 volts. It also has an overdrive current of 10 milliamperes. The PXIe-6124 has a slew rate of 20 volts per microseconds.
The National Instruments PXIe-6124 Multifunction I/O Module has a low value for power on glitches, which is 1.5 volts for 10 microseconds. It enables the user to fulfill sampling and multifunction DAQ requirements simultaneously. It also has a built-in counter of 32 bits. This module can be used for applications, such as IF digitization, ISDN, ADSL, and POTS testing. These testing procedures are carried out during the manufacturing process of the equipment. The NI PXIe-6124 also supports digital triggering.
| Model | PXIe-6124 |
|---|---|
| Part Number | 780536-01 |
| Manufacturer | National Instruments |
| Type | PXI Multifunction I/O Module |
| Differential Analog Input Channels | 4 |
| Analog Output Channels | 2 |
| Digital I/O Channels | 24 |
| Maximum Sample Rate | 4 MS/s per channel |
| Analog Input Resolution | 16 bits |
| Dimensions | 6.3 x 3.9 in. |
| I/O Connector | 68-pin VHDCI |
| Warranty | 2-3 Year Warranty |
| PXIe-6124 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for PXIe-6124:
National Instruments PXIe-6124 Frequently Asked Questions
Question: What is the analog input FIFO buffer size of the PXIe-6124?
Answer: The PXIe-6124 has an analog input FIFO buffer size of 16,382 samples.
Question: What is the interchannel skew for the NI PXIe-6124?
Answer: The interchannel skew for the NI PXIe-6124 is 5 nS.
Question: What type of electrical signal can the PXIe-6124 measure?
Answer: The PXIe-6124 can measure voltage signals.
Question: What kind of counter measurements can the NI PXIe-6124 perform?
Answer: The NI PXIe-6124 can perform two-edge separation, edge counting, period, semi-period, and pulse counter measurements.
