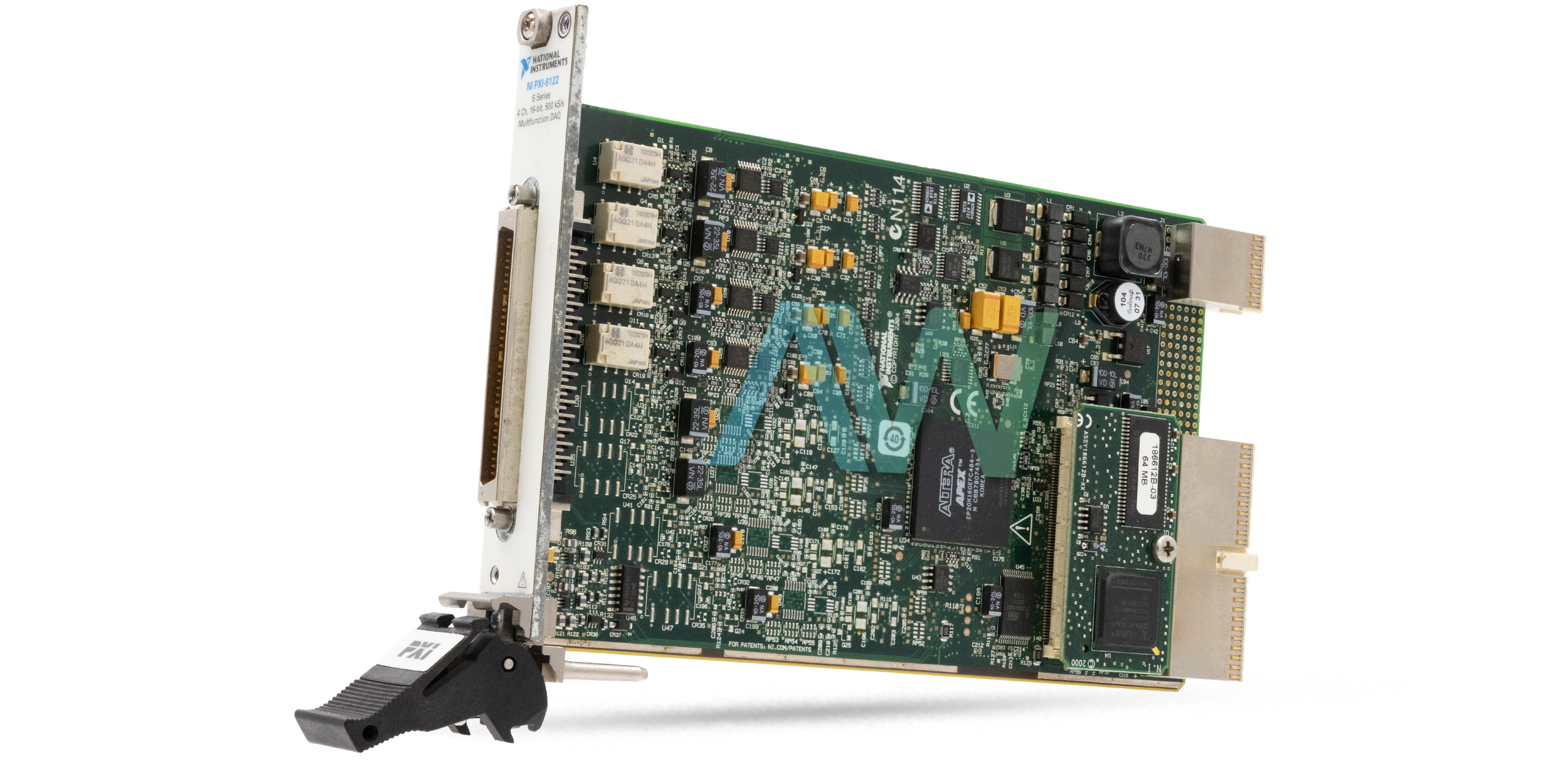

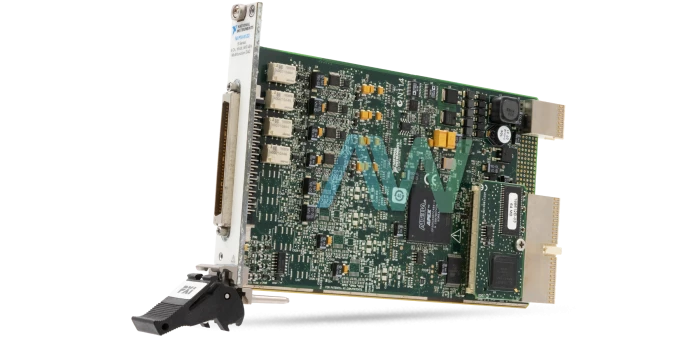

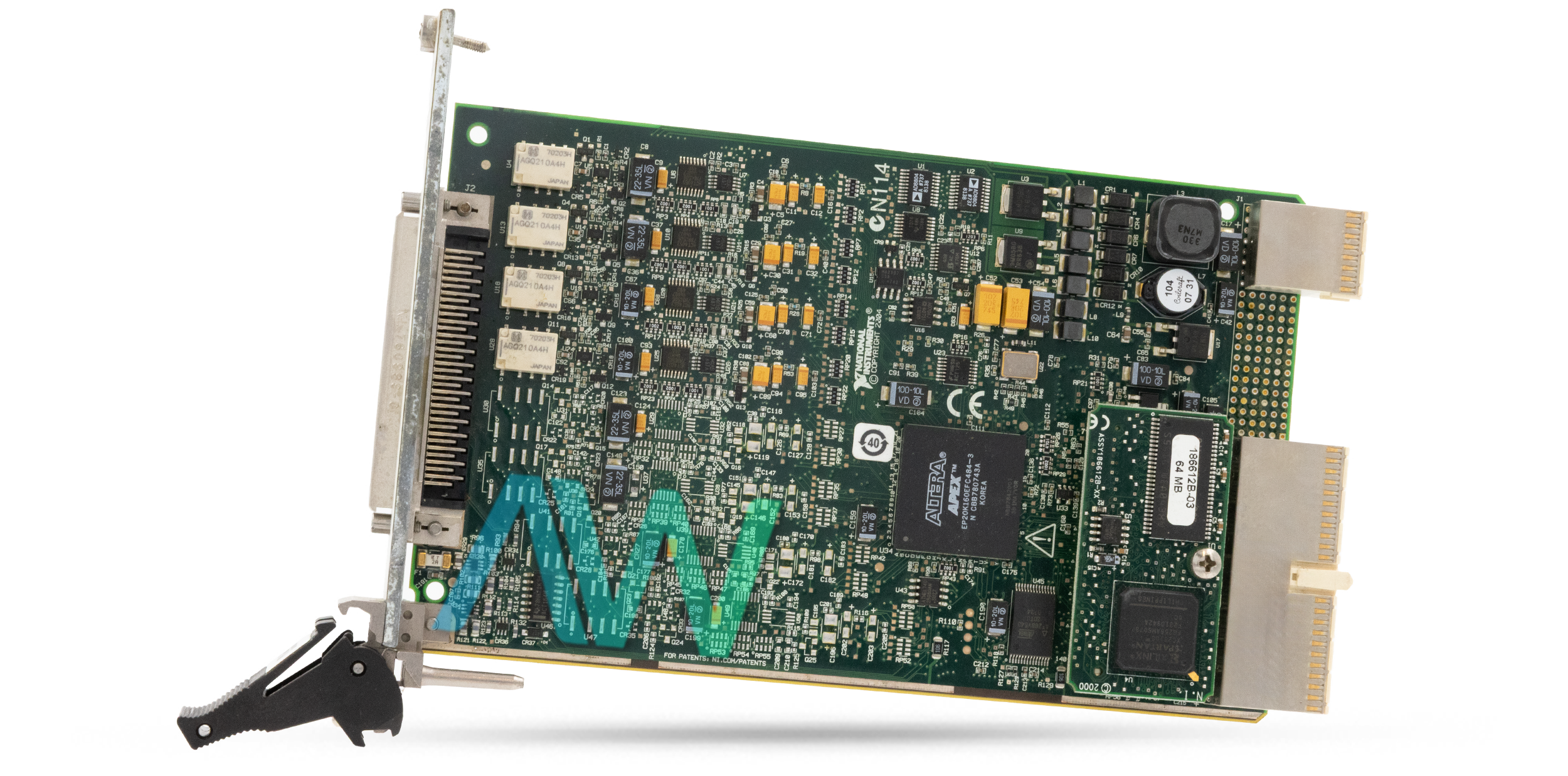

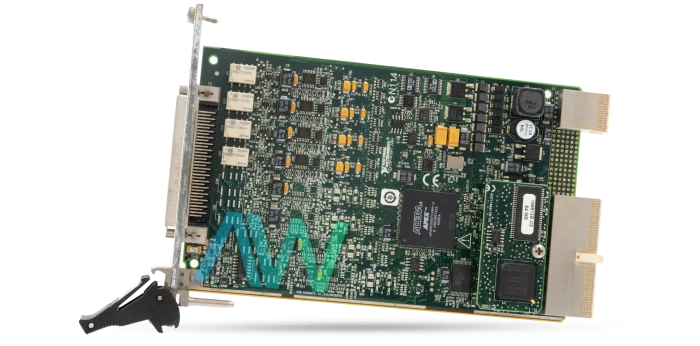

National Instruments PXI-6122 Multifunction I/O Module
The PXI-6122 (Part number: 779179-01) Multifunction I/O Module designed by National Instruments has four input channels, eight digital I/O channels, two timing I/O channels, 16 bits resolution, 500 kS/s maximum sampling rate for each channel, and a 68-pin male SCSI-II type I/O connector. The National Instruments PXI-6122 can be used in numerous industry applications. This module has software-selectable input ranges and input channel isolation features, as well as PXI and PXI Express platform compatibility.
Multifunction data acquisition hardware necessitates onboard timing circuitry to control digital, analog, and counter I/O lines. The PXI-6122 Multifunction I/O Module contains the NI-STC3 chipset, which delivers two enhanced counters, a 100 MHz timebase, and further options for I/O timing and triggering. This PXI Multifunction I/O Module utilizes the intrinsic timing and synchronization features of the PXI family to coordinate measurements among numerous modules. This feature is perfect for high-channel-count applications.
Self-calibration is another useful feature of the PXI-6122 Module. Self-calibration allows the module to characterize gain, nonlinearity, and offset mistakes in the module. These modifications are a result of changes in the operating atmosphere and manufacturing changes in the circuitry that may have shifted since the previous external calibration. NI-MCal is the self-calibration algorithm which characterizes and stores the correction polynomials to an onboard EEPROM in mere seconds. NI-MCal has the valuable capability to return calibrated information from each channel in a scan, even if they are at varying input ranges. Consequently, the National Instruments PXI-6122 can then load and enact correction functions for each channel without slowing down the performance.
PXI-6122 Mature Status has been announced by National Instruments, but will still be available for purchase and repairs by Apex Waves.
| Model | PXI-6122 (779179-01) |
|---|---|
| Manufacturer | National Instruments |
| Series | S Series |
| Type | Multifunction I/O Module |
| Analog Input Channels | 4 |
| Sampling Rate | 500 kS/s |
| Analog Input Resolution | 16 bits |
| Warranty | 2-3 Year Warranty |
| PXI-6122 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for PXI-6122:
National Instruments PXI-6122 Frequently Asked Questions
Question: Can the NI PXI-6122 be used for transient recording?
Answer: Yes, the NI PXI-6122 can be used for transient recording, IF digitization, and a variety of other applications.
Question: Does the PXI 6122 have digital triggering available?
Answer: The PXI 6122 does offer digital triggering.
Question: What is the sampling rate of the PXI-6122?
Answer: The sampling rate of the PXI-6122 is 500 kS/s per channel.
Question: Can the NI PXI-6122 analog input channels be configured by the user?
Answer: Yes, you can configure each analog input channel on the NI PXI-6122 to use one of several voltage ranges.
PXI-6122 PDF Manuals
DAQ-GETTING-STARTED-GUIDE-FOR-PXI-PXI-EXPRESS.PDF
DAQ-GETTING-STARTED-READ-ME-FIRST-NI-DAQMX-AND-DAQ-DEVICE-INSTALLATION-GUIDE.PDF
NI-6122-23-32-33-LETTER-OF-VOLATILITY.PDF
NI-6122-6123-SPECIFICATIONS.PDF
NI-61XX-PINOUT-LABEL-FOR-THE-SCB-68.PDF
NI-61XX-PINOUT-LABEL-FOR-THE-SCB-68A.PDF
PXI-6122 Diagrams
