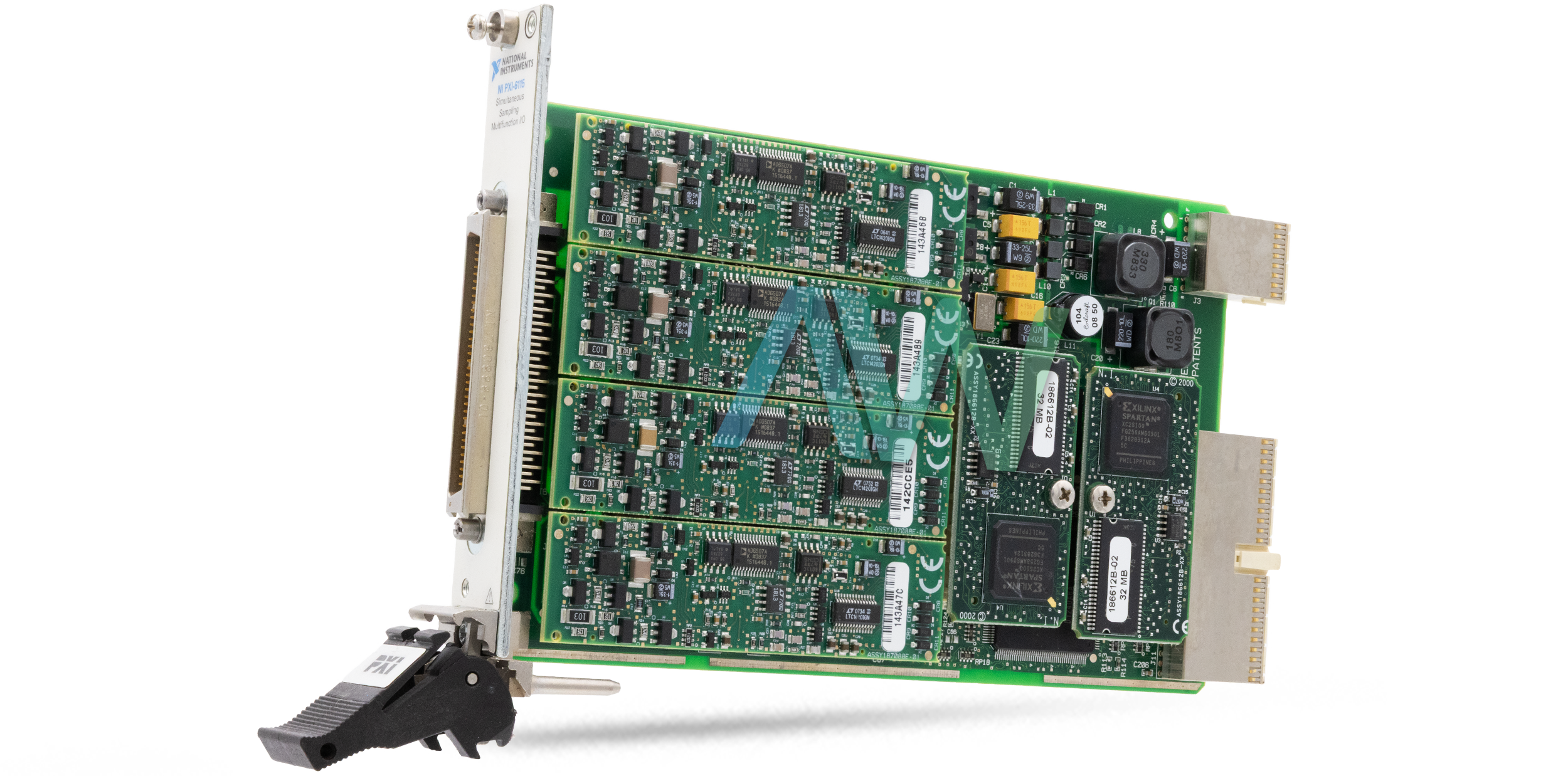

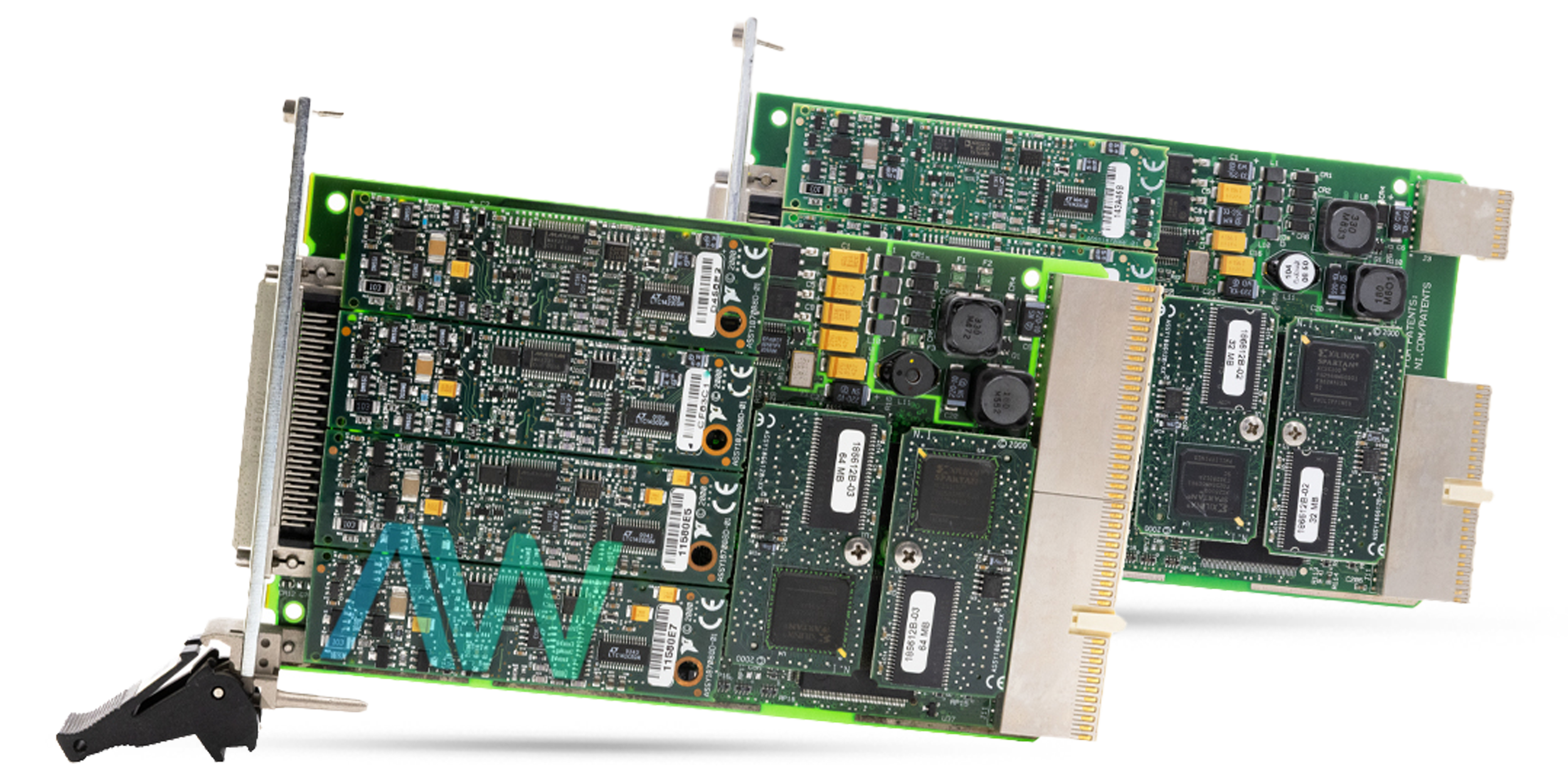

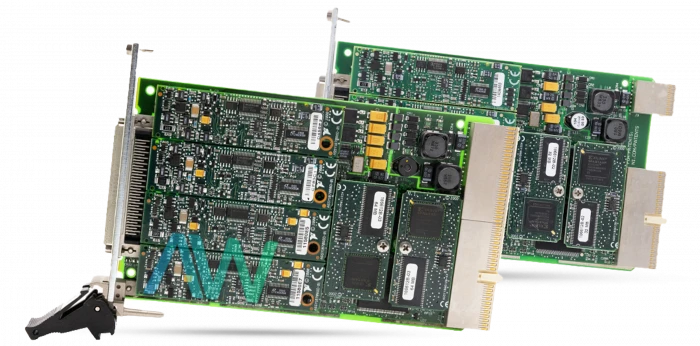

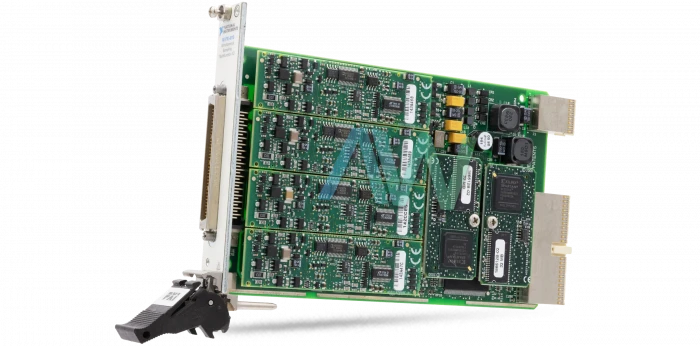

PXI-6115 National Instruments Multifunction I/O Module | Apex Waves | Image
PXI-6115 National Instruments Multifunction I/O Module | Apex Waves | Image
PXI-6115 New
PXI-6115 Refurbished
❮ ❯

Actual item may vary if no part number is provided on quote request.

PXI-6115 National Instruments Multifunction I/O Module | Apex Waves | Image
PXI-6115 National Instruments Multifunction I/O Module | Apex Waves | Image
PXI-6115 New
PXI-6115 Refurbished

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

+Add more parts

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to:   1-919-809-5227

National Instruments PXI-6115 Multifunction I/O Module

The NI PXI-6115 Multifunction I/O Module (Part Numbers: 187227K-01, 187227H-01, 187227R-03, 778194-01, 778204-01) has 4 differential analog input channels with a 12-bit resolution and a 10 MS/s/channel maximum sample rate, 2 analog output channels, 8 digital I/O lines, as well as a dedicated analog-to-digital converter (ADC) per channel for maximum device execution and greater multichannel accuracy. Built-in inward memory offers solid information transmission with fewer conditions on bus accessibility. Half of the inherent memory is committed to the analog input and the other half to the analog output. The PXI-6115 has two part numbers: 778194-01 with a 16 MS analog input FIFO buffer size and 778204-01 with a 32 MS analog input FIFO buffer size. With a maximum sample rate of 10 MS/s per channel, eight input ranges from 0.2 to 42 V, built-in anti-aliasing filters, two 12-bit analog outputs, two 24-bit counter/timers, and eight digital I/O lines, the PXI-6115 can be utilized in a variety of applications, including:

- 42 V automotive applications

- Transient and ballistics estimations

- Radar, sonar, ultrasound

- High-energy physics

- IF digitization.

The NI TB-2708 provides direct SMB availability to the PXI-6115. The nine SMB connectors offer direct access to four analog inputs, two analog outputs, analog or digital trigger lines, onboard counters, or programmable synchronization lines. In addition to the SMB connectors, it is possible to utilize the MFIT-Pigtail link to an assistant connector for access to other onboard counters and digital I/O lines. The device also has a 68-pin male SCSI-II I/O connector. It has 2 analog filters (3-pole Bessel) with a frequency of 50 kHz and 500 kHz.

While utilizing NI LabVIEW, the user can make custom information-securing applications without graphical programming and the power of more than 500 analysis functions and advanced programming apparatuses. LabVIEW full and professional development frameworks incorporate LabVIEW SignalExpress for interactive data logging. The PXI-6115 has a recommended warm-up time of 15 minutes and should be calibrated at least once a year. The device measures 6.3 x 3.9 in. in physical dimensions. It has a recommended operating temperature range of 0 °C to 50 °C and a storage temperature range of -20 °C to 70 °C.

The PXI-6115 has been declared obsolete by National Instruments. However, it will remain available with Apex Waves. We buy, sell, and repair end-of-life NI hardware in perpetuity. Request a quote today!

ModelPXI-6115
ManufacturerNational Instruments
Part Numbers187227K-01, 187227H-01, 187227R-03, 778194-01, 778204-01
SeriesS Series
TypePXI Multifunction I/O Module
Differential Analog Input Channels4
Maximum Sample Rate10 MS/s per Channel
Analog Filters2 (3-Pole Bessel Type)
Analog Output Channels2 Voltage Channels
Power On Output Voltage±400 μV
Slew Rate130 V/μs
Bus Interface TypeMaster, Slave
Digital Trigger CompatibilityTTL
Operating Temp Range0 °C to 50 °C
Storage Temp Range-20 °C to 70 °C
Dimensions6.3 x 3.9 in. (16 cm x 10 cm)
I/O Connector68-Pin Male SCSI-II Type
WarrantyThree Year Warranty
PXI-6115 ManualUser Manual and Maintenance Manual Available for Download
PriceRequest a Quote for Pricing Information

Associated part numbers for PXI-6115:

National Instruments PXI-6115 Frequently Asked Questions



Question: What is the analog input absolute accuracy of the NI PXI-6115?

Answer: The I/O module has an analog input absolute accuracy of 184 mV.



Question: What is the maximum update rate of the PXI-6115?

Answer: The maximum update rate is 4 MS/s.



Question: What type of electrical signal can be measured by the module?

Answer: The PXI-6115 can measure voltage signals.



Question: How often should the NI PXI-6115 be calibrated?

Answer: The Multifunction I/O Module should be calibrated every year.



Question: What is the power requirement of the I/O module?

Answer: The PXI-6115 requires 2.2 A at +5 VDC and 0.8 A at +3.3 V.
