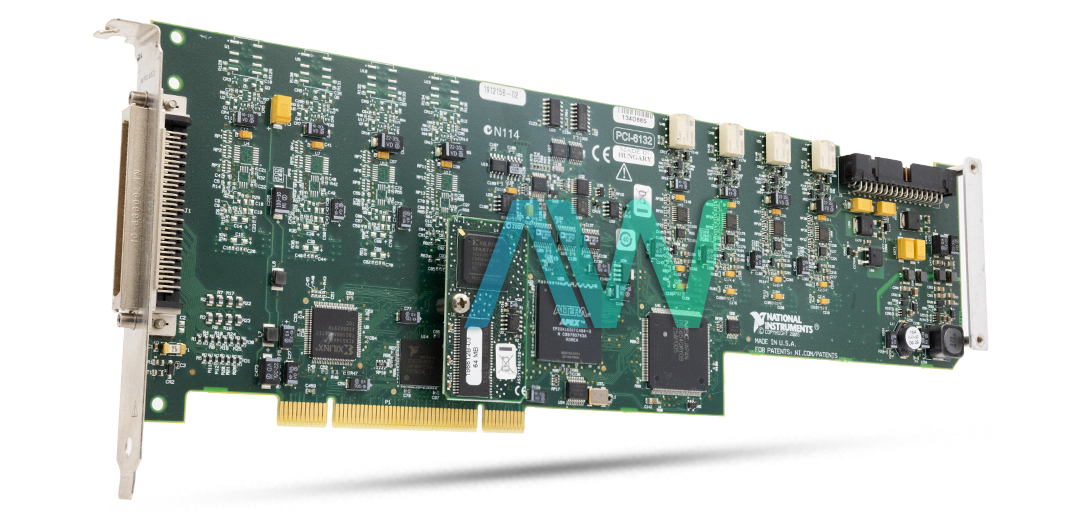

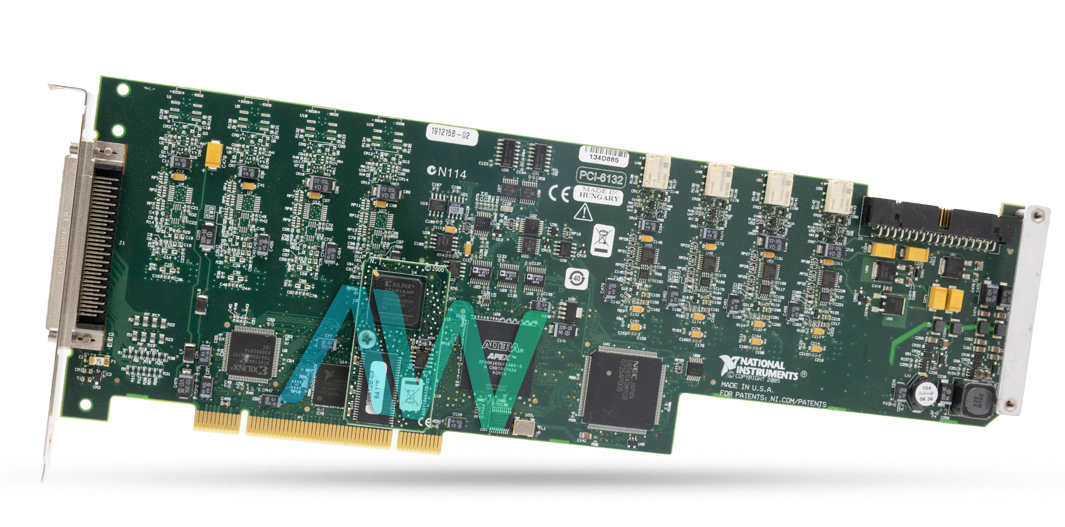

National Instruments PCI-6132 Multifunction I/O Device
The PCI-6132 is a Multifunction I/O Device from National Instruments. It serves multifunctional requirements to compete various testing procedures. The NI PI-6132 has the capability to offer a high sampling rate with the value of 2.5 MS per second. This value is based on each channel separately. The instrument features both analog and digital channels. These channels allow the user to input the signal and output the measurement data. The instrument incorporates four analog and eight digital channels to address these requirements. The PCI-6132 comes with a 68-pin, male SCSI-II connector.
The PCI-6132 comes with built-in counters. These counters offer high frequency and resolution capabilities. Their values are 20 MHz and 24 bits respectively. The instrument implements various advanced mechanisms, such as simultaneous sampling schemes for the input signals. This device has several important accessories available, which help extend the operational capabilities of the device, such as connecting cables. The NI PCI-6132 also offers trigger capabilities to the users.
This device can be used in the manufacturing industry for telecom equipment. This application demands a high level of accuracy and performance efficiency. The NI PCI-6132 Multifunction I/O Device has applications in testing requirements. It includes high energy physics, sonar testing, and other relevant requirements. The device also incorporates software utility, which allows the user to quickly set up the instrument for many types of testing requirements. The PCI-6132 adheres to various safety standards, ensuring safe operation scenarios for the user.
Though the PCI-6132 is no longer available from National Instruments (NI), the Multifunction I/O Device will remain available in perpetuity for purchase and repairs with Apex Waves!
| Model | PCI-6132 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 779422-01 |
| Series | S Series |
| Type | Multifunction DAQ |
| Analog Input Channels | 4 |
| ADC Resolution | 14 Bits |
| Max Sampling Rate | 2.5 MS/s |
| Digital Input/Output | 8 Channels |
| Digital I/O Compatibility | TTL/CMOS |
| Digital I/O Transfer Rate | 10 Mwords/s |
| Timing I/O | 2 Up/Down Channels |
| Timing I/O Resolution | 24 Bits |
| Counter/Timers Base Clock | 20 MHz, 100 kHz |
| I/O Connector | 68-Pin Male SCSI II Type |
| Power Requirements | +5 VDC, +3.3 V, –12 V -- 2.2 A, 1.0 A, 45 mA |
| Dimensions | 12.3 × 4.2 in. (31.2 cm × 10.6 cm) |
| Software | NI-DAQmx Measurement & Automation Explorer VI Logger Lite Data-Logging Software |
| Warranty | 2-3 Year Warranty |
| PCI-6132 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Request a Quote Today for Pricing Information |
Associated part numbers for PCI-6132:
National Instruments PCI-6132 Frequently Asked Questions
Question: I'm getting a 50400 error, what does that mean?
Answer: For the NI PCI-6132, the 50400 error means that the board cannot communicate with the FPGA that is on board.
Question: What driver does the Multifunction DAQ utilize?
Answer: The driver for the NI PCI-6132 is NI-DAQmx.
Question: Which operating systems are compatible with the PCI-6132?
Answer: Windows 2000/NT/XP operating systems are compatible with the device.
Question: When should the device be calibrated?
Answer: The PCI-6132 should be calibrated every two years.
PCI-6132 PDF Manuals
DAQ-GETTING-STARTED-GUIDE-FOR-PCI-PCI-EXPRESS.PDF
DAQ-GETTING-STARTED-READ-ME-FIRST-NI-DAQMX-AND-DAQ-DEVICE-INSTALLATION-GUIDE.PDF
NI-6122-23-32-33-LETTER-OF-VOLATILITY.PDF
NI-6132-6133-SPECIFICATIONS.PDF
NI-61XX-PINOUT-LABEL-FOR-THE-SCB-68.PDF
