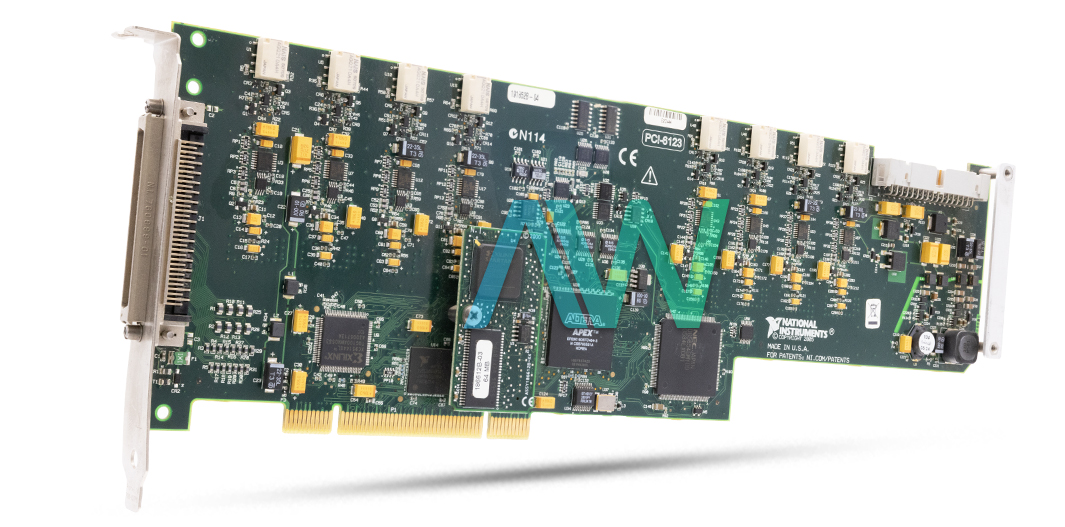

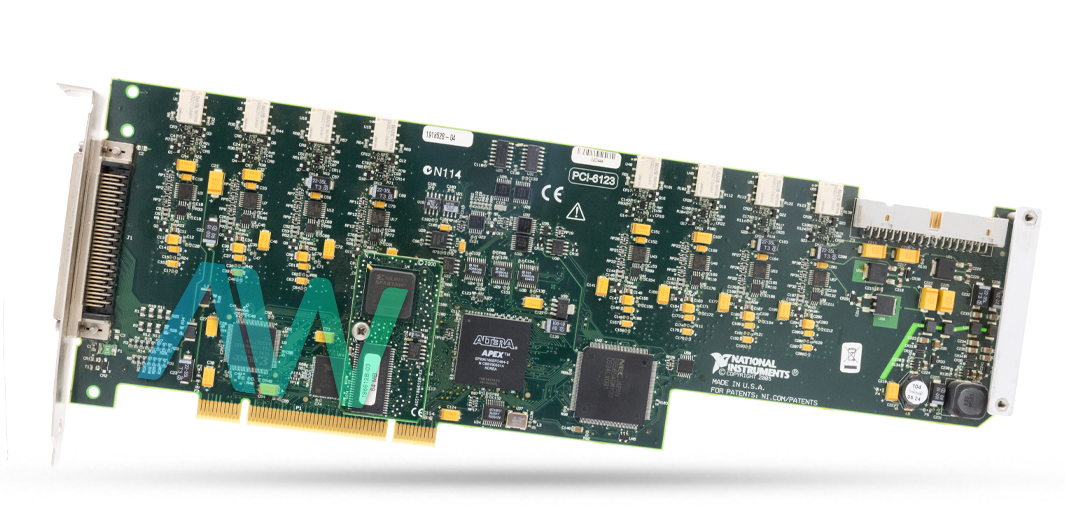

National Instruments PCI-6123 Multifunction I/O Device
The PCI-6123 (Part numbers: 779409-01, 779408-01, 191852C-04, 191852F-03L) is a Multifunction I/O Device from National Instruments. The device comes with eight analog input channels. The NI PCI-6123 Multifunction I/O Device also has eight pseudodifferential analog input channels with 16 bit analog input resolution and 4960 uV analog input absolute accuracy within the ±10 V range. There are also eight bidirectional digital channels (with a TTL/CMOS compatibility), which have a frequency rate of 10 MHz and two 24-bit counters/timers. The device has a sampling rate of 500 kS per second per channel. It is equipped with a 68-pin male SCSI-II type I/O connector. The NI PCI-6123 incorporates the PCI Bus to fulfill operational requirements, which includes both the master and slave bus interface.
The NI PCI-6123 device offers trigger mechanisms, which includes analog and digital trigger capabilities. The user can make use of any input channel as the source for the analog trigger. This device allows the user to program the hysteresis. The digital triggers of the device are TTL compatible. The device has a pulse width of 10 Nano-seconds in one minute. The NI PCI-6123 Multifunction I/O Device can be used for applications, such as high-energy physics, IF digitization, ultrasound and sonar testing, transient recording, and various other high-speed, high-channel count applications.
This Multifunction I/O Device can be programmed with various software types offered by National Instruments, such as LabVIEW 8.2 or higher, Measurement Studio 7.x or higher, LabWindows/CVI 7.x or higher, and Signal Express version 3 or higher. The NI PCI-6123 has several other types of compatible software, including VI Logger 2.x or higher, Visual Basic, C/C++, and C#, and Visual Studio .NET. This device can be used with the NI-DAQmx driver. The NI PCI-6123 device complies with various safety standards, including IEC 61010-1, UL 61010-1, CAN/CSA-C22.2 No. 61010-1, and EN 61010-1. The NI PCI-6123 operates perfectly with a Windows 2000/NT/XP operating system.
The NI device measures 12.3 x 4.2 in. in physical dimensions. It has a recommended operating temperature range of 0 to 50 °C, a storage temperature range of –20 to 70 °C, and a noncondensing humidity range of 10 to 90% RH.
Apex Waves will continue to Buy, Sell, and Repair EOL NI Hardware in perpetuity. While the PCI-6123 is no longer available from National Instruments, it will remain available with Apex Waves. Request your quote today!
| Model | PCI-6123 |
|---|---|
| Manufacturer | National Instruments |
| Part Numbers | 779409-01, 779408-01, 191852C-04, 191852F-03L |
| Series | S Series |
| Type | Multifunction I/O Device |
| Analog Input Channels | 8 |
| Maximum Sample Rate | 500 kS/s |
| Overvoltage Protection | ±36 V |
| Digital I/O Channels | 8 |
| Bus Interface | Master, Slave |
| I/O Connector | 68-pin Male SCSI-II Type |
| Operating Temp Range | 0 to 50 °C |
| Storage Temp Range | –20 to 70 °C |
| Dimensions | 12.3 × 4.2 in. |
| Calibration Interval | 2 Years |
| Warranty | Three Year Warranty |
| PCI-6123 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Request a Quote for Pricing Information |
Associated part numbers for PCI-6123:
National Instruments PCI-6123 Frequently Asked Questions
Question: Why are there two part numbers for this Multifunction I/O Device?
Answer: There are two versions of the PCI-6123 with different analog input FIFO buffer sizes. Part number 779409-01 has 2,046 samples analog input FIFO buffer size, while part number 779408-01 has 32 MS analog input FIFO buffer size.
Question: What is the advantage of the large onboard memory on the PCI-6123?
Answer: The advantage of the large onboard memory is the capability to capture high-bandwidth signals over an extended period, despite bus limits.
Question: Which accessories can be used with the NI PCI-6123?
Answer: The following accessories can be used with the device: the BNC-2110, SCB-68, CB-68LPR, SH68-68-EP, and R6868.
Question: Which type of I/O connector does the Multifunction I/O Device have?
Answer: The NI PCI-6123 has a 68-pin male SCSI-II type I/O connector.
