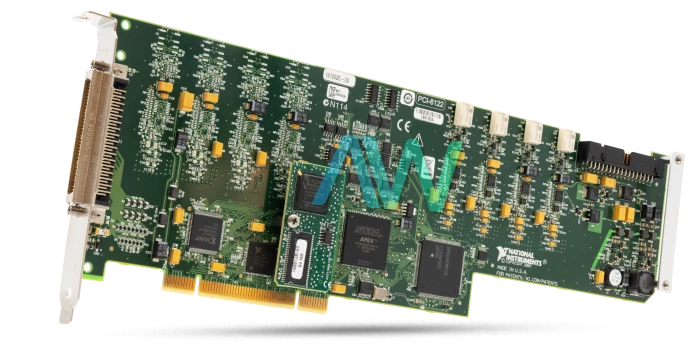

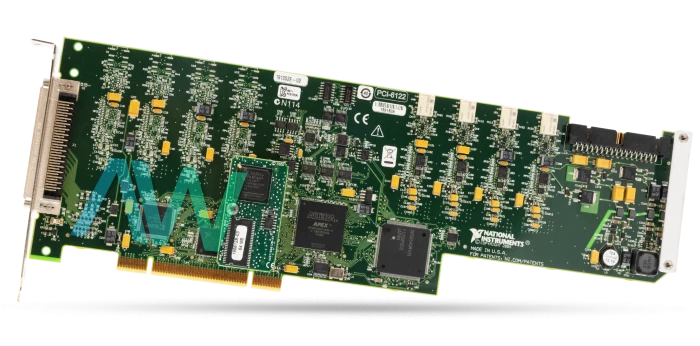

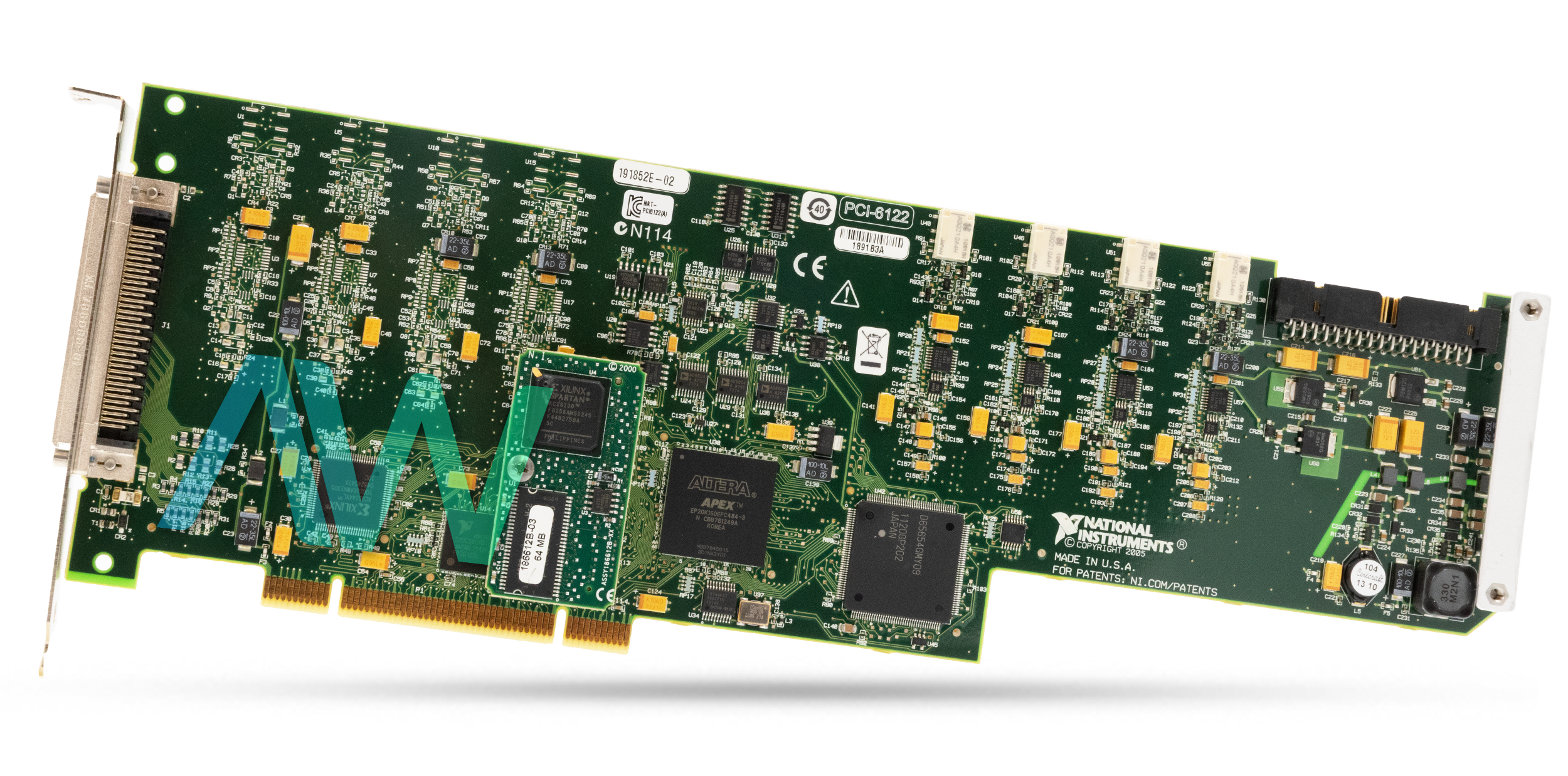

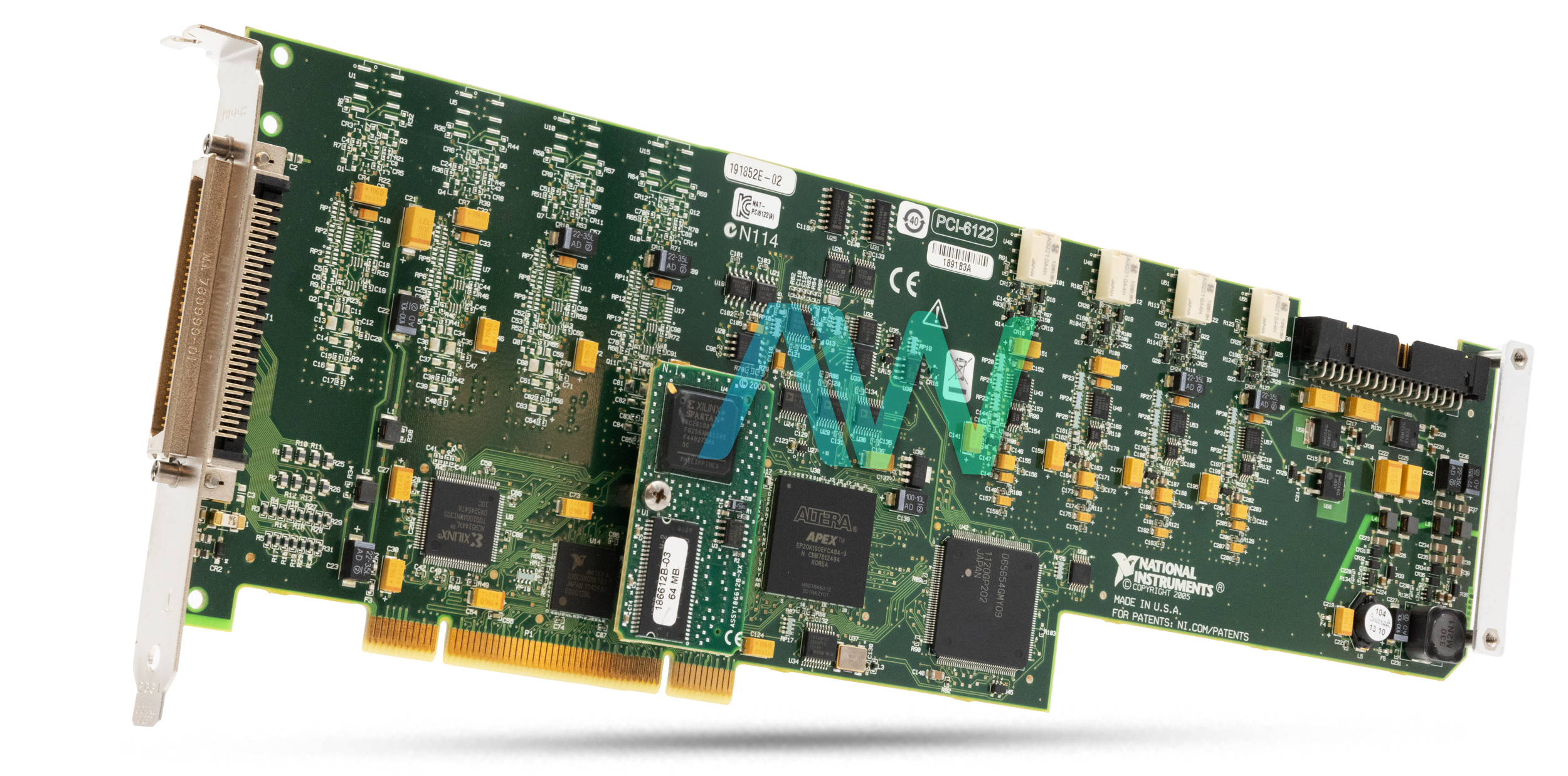

National Instruments PCI-6122 Multifunction I/O Device
The NI PCI‑6122 (Part number: 779407-01) is an instantaneous-sampling, Multifunction I/O Device manufactured by National Instruments. The National Instruments PCI‑6122 is workable for many applications, such as IF digitization. It can also perform transient recording. This device is useful in ADSL, ISDN, and POTS manufacturing test. These tests are used in the telecom industry. The NI PCI‑6122 is also viable for ultrasound and sonar testing and performing high energy physics tests. The NI PCI-6122 is additionally suitable for high speed constant data logging applications. It is also used for measurement of stimulus/response. This requires adjustment between analog input, analog output, digital I/O, and counter/timer operations. This device is compatible with dynamic strain applications.
The NI PCI-6122 device develops a new price/performance ratio. It also upholds high dynamic precision and simultaneity. This device is great for applications that need more than one channel and is workable for maximum throughput per channel than a multiplexed manner can offer. This device has 4 analog input channels and the sample rate is 500 kS/s per channel. The NI PCI-6122 has 8 hardware-timed digital I/O lines and can perform both analog and digital triggering modes. The input voltage ranges from 1.25 V up to 10 V with 16 bit resolution. It also has two 24 bit counters with digital triggering. Furthermore, it has a built in 16 MS memory.
The physical dimensions of the NI PCI-6122 are 12.3 × 4.2 inches without connectors. This model also has SCSI-II type 68-pin male I/O connectors.
| Model | PCI-6122 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 779407-01 |
| Series | S Series |
| Type | Multifunction DAQ |
| Channels | 4 Analog Inputs (16-Bit, 500 kS/s) 8 Digital Inputs/Outputs (10 Mwords/s, CMOS/TTL Compatibility) 2 Counter/Timer I/O (24 bits, 20MHz ) |
| I/O Connector | 68-pin male SCSI II type |
| Power Requirements | +5 VDC, +3.3 V, –12 V -- 1.03 A, 1.1 A, 52 mA |
| Dimensions | 12.3 × 4.2 in |
| Software | NI-DAQmx Measurement & Automation Explorer configuration utility VI Logger Lite data-logging software |
| Warranty | 2-3 Year Warranty |
| PCI-6122 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for PCI-6122:
National Instruments PCI-6122 Frequently Asked Questions
Question: What is the recommended NI software to use with the NI PCI 6122?
Answer: The recommended NI software to use with the NI PCI 6122 is SignalExpress 1.x or higher, LabVIEW 7.x or higher, Digital Waveform Editor, LabWindows/CVI 7.x or higher, and Measurement Studio 7.x or higher.
Question: How often should the PCI-6122 be calibrated?
Answer: The PCI-6122 should be calibrated every two years.
Question: Are any accessories required for the NI PCI-6122?
Answer: Yes, the NI PCI-6122 requires a multifunction cable and a connector block.
Question: What is the maximum source frequency of the timing I/O channels on the PCI-6122?
Answer: The maximum source frequency of the timing I/O channels on the PCI-6122 is 20 MHz.
PCI-6122 PDF Manuals
DAQ-GETTING-STARTED-GUIDE-FOR-PCI-PCI-EXPRESS.PDF
DAQ-GETTING-STARTED-READ-ME-FIRST-NI-DAQMX-AND-DAQ-DEVICE-INSTALLATION-GUIDE.PDF
NI-6122-23-32-33-LETTER-OF-VOLATILITY.PDF
NI-6122-6123-SPECIFICATIONS.PDF
NI-61XX-PINOUT-LABEL-FOR-THE-SCB-68.PDF
