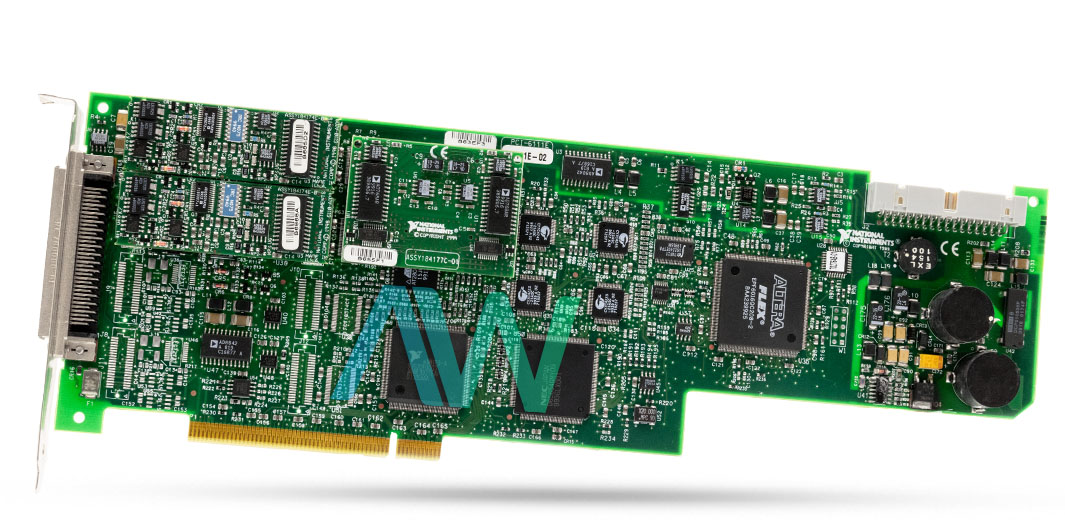

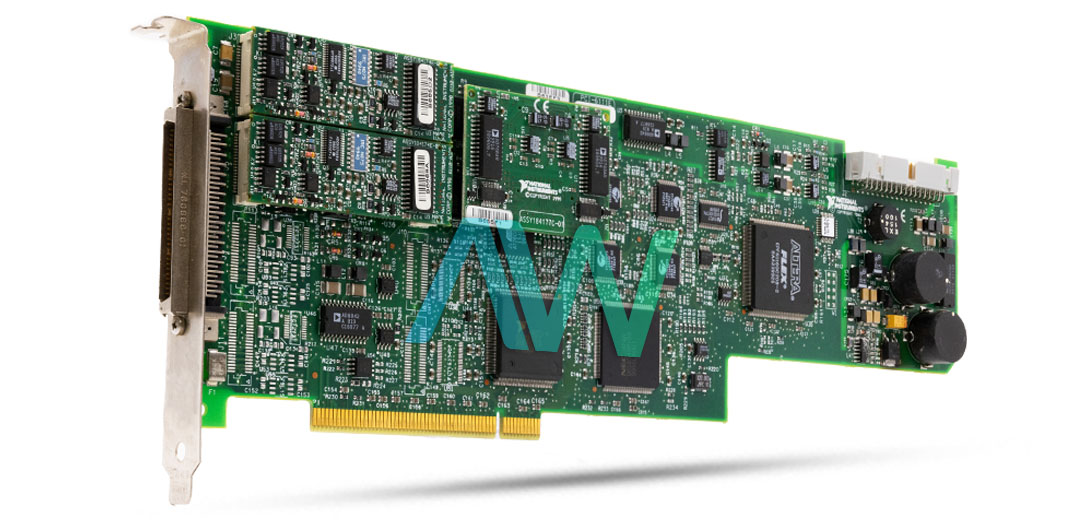

National Instruments PCI-6111E S Series Multifunction DAQ
The PCI-6111E from National Instruments is a sophisticated S-Series Multifunction DAQ (Data collecting) device that is intended to provide dependable and high-performance data collecting capabilities for a broad range of industrial automation applications. This multipurpose device offers flexible flexibility to fulfill a range of industrial demands. It is equipped with two 16-bit analog outputs, eight digital I/O lines, and two 24-bit counters.
With its Measurement Ready technology, the PCI-6111E can handle input voltages up to ±42 V and sample simultaneously at a maximum rate of 5 MS/s with a 12-bit resolution. Accurate and exact measurements are guaranteed by its two pseudodifferential analog inputs. Flexible control and synchronization are made possible by the device's compatibility for both analog and digital triggering.
The PCI-6111E enables effective data handling and processing with onboard memory that can store up to 8,192 samples. Its individual A/D converters for each channel guarantee higher sample rates and simultaneous sampling, improving dynamic accuracy for frequency or transient measurements.
Through its eight input ranges ranging from ±200 mV to ±42 V and its per-channel AC or DC coupling, the PCI-6111E provides a broad range of input configuration options. Because of its adaptability, users can make the gadget work with different kinds of signals and meet different analysis needs.
The device also has hardware-timed digital I/O, which allows it to be used in mixed-signal measurement applications in synchronization with analog input/output, counter/timer I/O, or external clocks. Reliability in data transfers at up to 10 MB/s is ensured by the onboard file system.
This versatile DAQ device offers versatility in system integration since it is compatible with a number of operating systems, including Linux, Mac OS X, and Windows 2000/NT/XP. Data capture and control are made easy with its PCI bus interface, which guarantees simple communication with host computers.
Numerous industrial automation tasks may be effectively executed by the PCI-6111E because to its sturdy architecture, which includes two counter/timers, eight digital I/O lines, and two analog outputs. With its accurate measurement and control capabilities, this multipurpose tool may be used in testing, production, or research settings to improve productivity and simplify processes.
| Model Name | PCI-6111E |
|---|---|
| Product Type | S-Series Multifunction DAQ Device |
| Analog Outputs | (2) 16-Bit |
| Digital I/O Lines | 8 |
| Counters | (2) 24-Bit |
| Maximum Sampling Rate | 5 MS/s per channel |
| Resolution | 12 bits |
| Input Ranges | ±200 mV to ±42 V |
| Input Configuration | Pseudodifferential |
| Memory Capacity | 8,192 samples |
| Operating Systems Supported | Windows 2000/NT/XP, Mac OS X, Linux |
| Triggers | Analog and digital |
| Coupling | AC or DC |
Associated part numbers for PCI-6111E:
National Instruments PCI-6111E Frequently Asked Questions
What is the difference between the PCI-6111E and the PCI-6111 modules?
As officially confirmed by national Instruments, The PCI-6111 and the PCI-6111E are the same board.
How many channels does the PCI-6111E have?
The PCI-6111E equipped with two 16-bit analog outputs, eight digital I/O lines, and two 24-bit counters.
How many data samples can the PCI-6111E store?
The PCI-6111E can store up to 8,192 samples.
