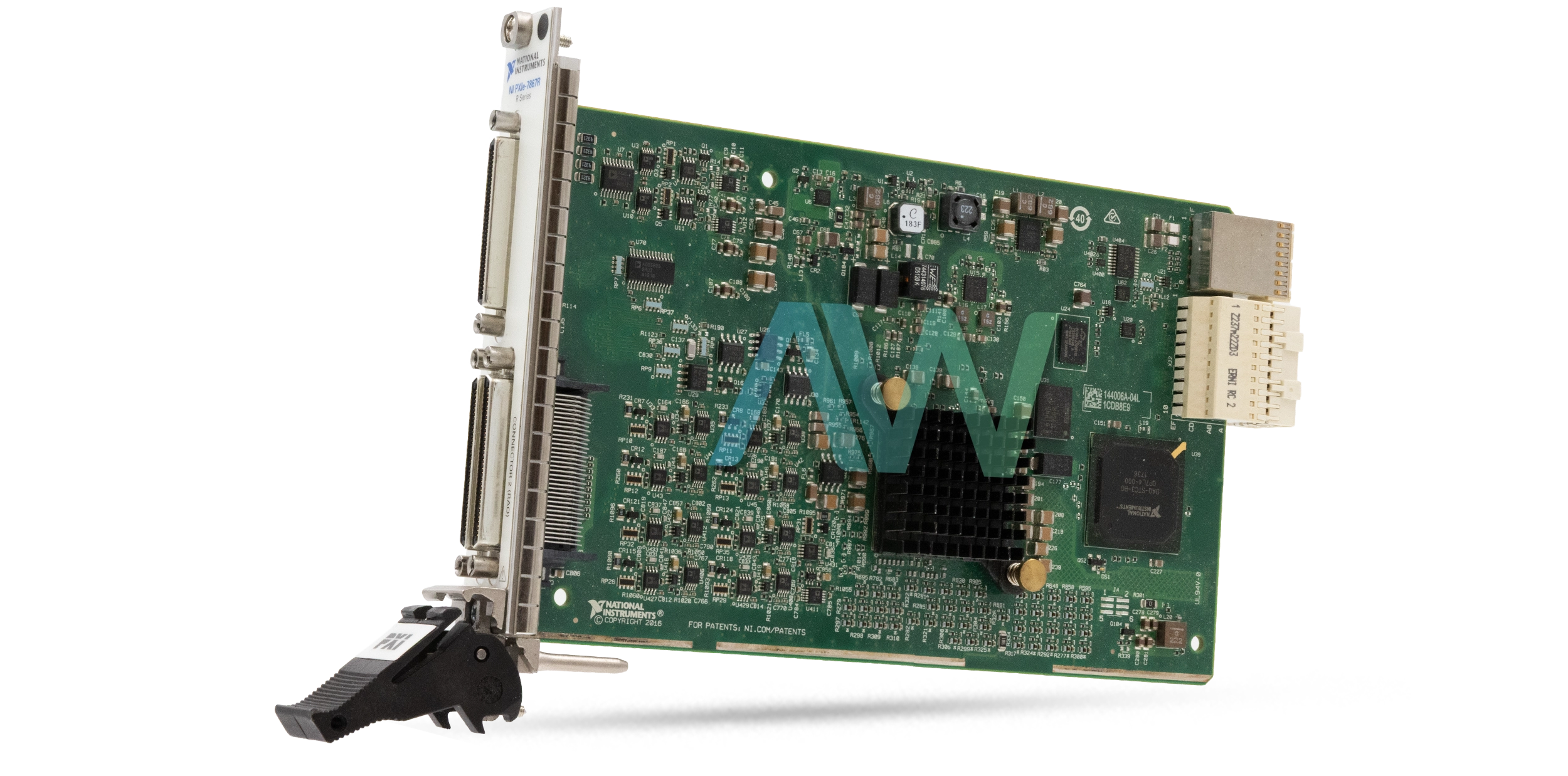

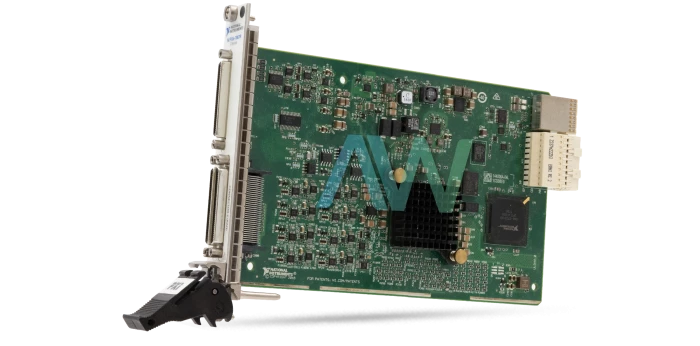

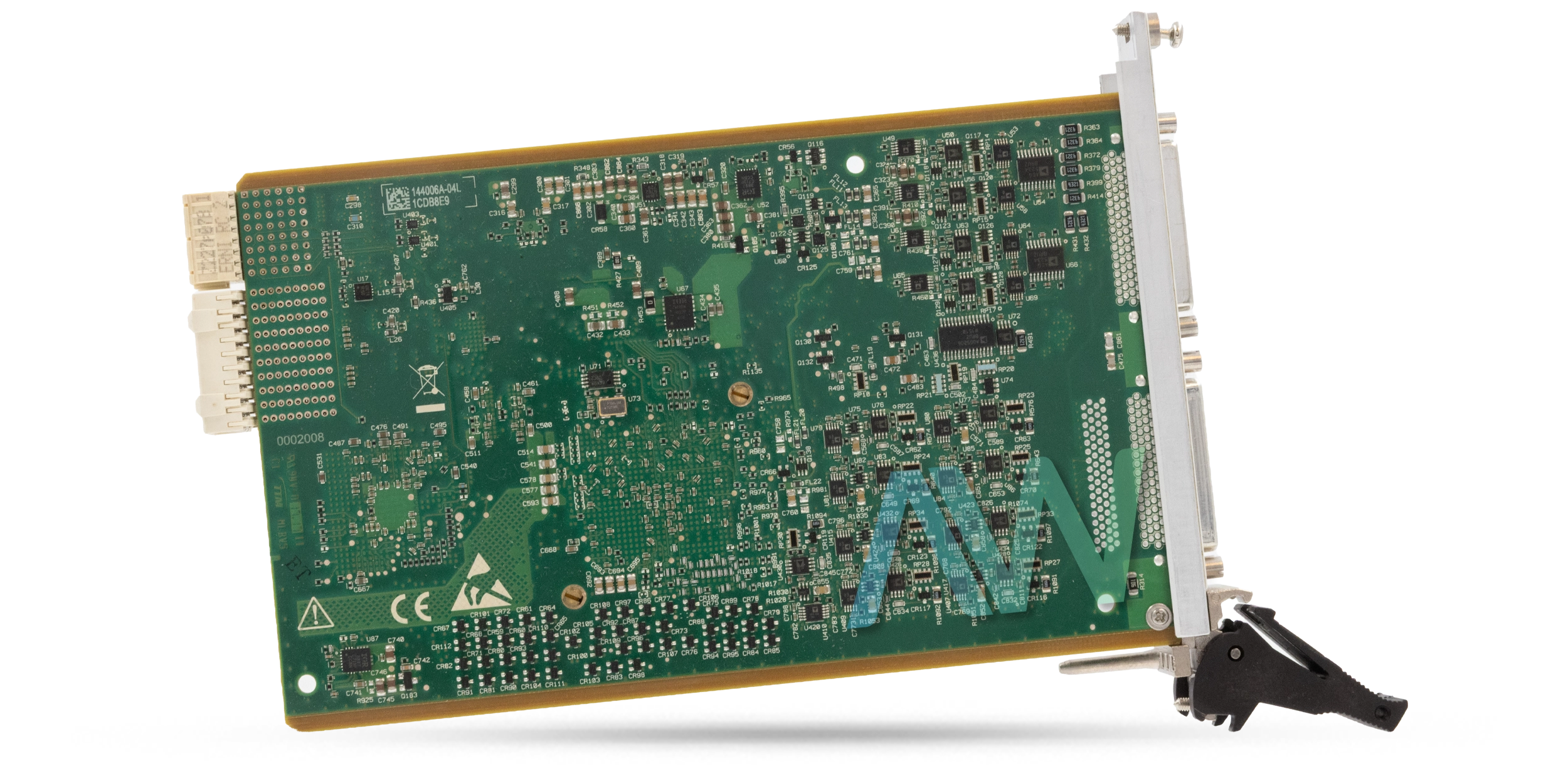

National Instruments PXIe-7867R PXI Multifunction Reconfigurable I/O Module
The PXIe-7867R (Part number: 785570-01) is a Multifunction Reconfigurable I/O Module by National Instruments. This R Series RIO Device has an FPGA chipset that can directly control I/O signals. This device can be synchronized with other modules. The NI PXIe-7867R is compatible with PXI modules. This module can transfer data to other PXI Express devices. The PXIe-7867R features SAR ADCs for all channels. These ADCs are used for multi-rate sampling. This module can trigger all channels independently. The NI PXIe-7867R also supports programmable power-on states. This model incorporates three 68-pin VHDCI connectors.
The National Instruments PXIe-7867R Multifunction Reconfigurable I/O Device has six analog input terminals. The ADC resolution of this module is 16 bits. The maximum rate of sampling is 1 MS/s for each channel. The NI PXIe-7867R supports an input voltage range from +1 V to +10V. The analog input terminals have overvoltage protection up to +42V. The small signal bandwidth is 1 MHz. The PXIe-7867R also has 18, 16-bit analog output terminals. The type of DAC in this module is an Enhanced R-2R DAC. The output signal has a range of +10 V. The impedance of the output terminals is 0.5 Ω. The output terminals are also protected up to +15V.
The NI PXIe-7867R device features 48 digital I/O terminals. The digital terminals have compatibility with LVTTL and LVCMOS. The PXIe-7867R has a fixed logic level of 3.3V. The minimum width of the I/O pulse of the NI PXIe-7867R is 6.25 ns. The onboard FPGA of the PXIe-7867R is a Kintex-7 160T FPGA.
| Model | PXIe-7867R |
|---|---|
| Manufacturer | National Instruments |
| Series | R Series |
| Part Number | 785570-01 |
| Type | PXI Multifunction Reconfigurable I/O Module |
| FPGA Type | Kintex-7 160T |
| Analog Inputs | 6 (16 Bits, 1 MS/s) |
| Analog Outputs | 18 (16 Bits, 1 MS/s) |
| Number of Flip-flops | 202,800 |
| Number of DSP48 Slices | 600 |
| Embedded Block RAM | 11,700 kbits |
| Onboard DRAM | 1 Bank; 512 MB |
| Digital I/O | 48 |
| Number of DMA Channels | 16 |
| Timebase | 40, 80, 120, 160, or 200 MHz |
| I/O Connectors | 3 × 68-pin VHDCI |
| Power Requirements | +3.3 VDC, +12 VDC - 03 A, 02 A |
| Dimensions | 7.3 in. × 6.8 in. × 1.4 in. |
| Weight | 0.39 lb. |
| Software Driver | NI-RIO |
| Warranty | 2-3 Year Warranty |
| PXIe-7867R Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for PXIe-7867R:
National Instruments PXIe-7867R Frequently Asked Questions
Question: Is the PXIe-7867R compatible with RIO Device Drivers from 2016?
Answer: The PXIe-7867R is only compatible with the NI R Series Multifunction RIO Device Drivers July 2017 or later. If you have a previous version installed, update to the later version.
Question: How many AI channels does the NI PXIe-7867R have?
Answer: The NI PXIe-7867R provides connections for six AI channels. Each channel has an AI+ pin, AI- pin, and AIGND pin to which you can connect both single-ended or differential voltage signals.
Question: How many connections to analog output channels does the NI PXIe-7867R have?
Answer: The NI PXIe-7867R provides connections for eighteen analog output channels. Each channel has an AO pin and AOGND pin to which you can connect a load.
