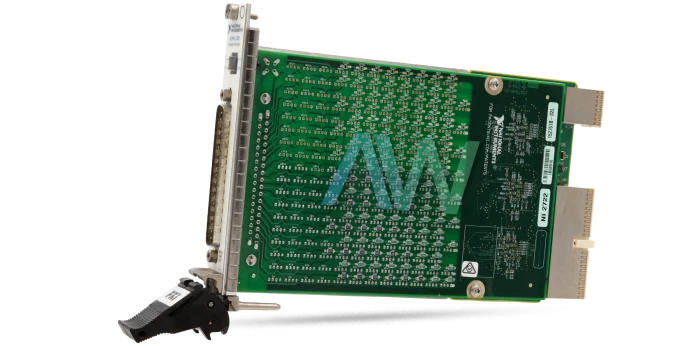

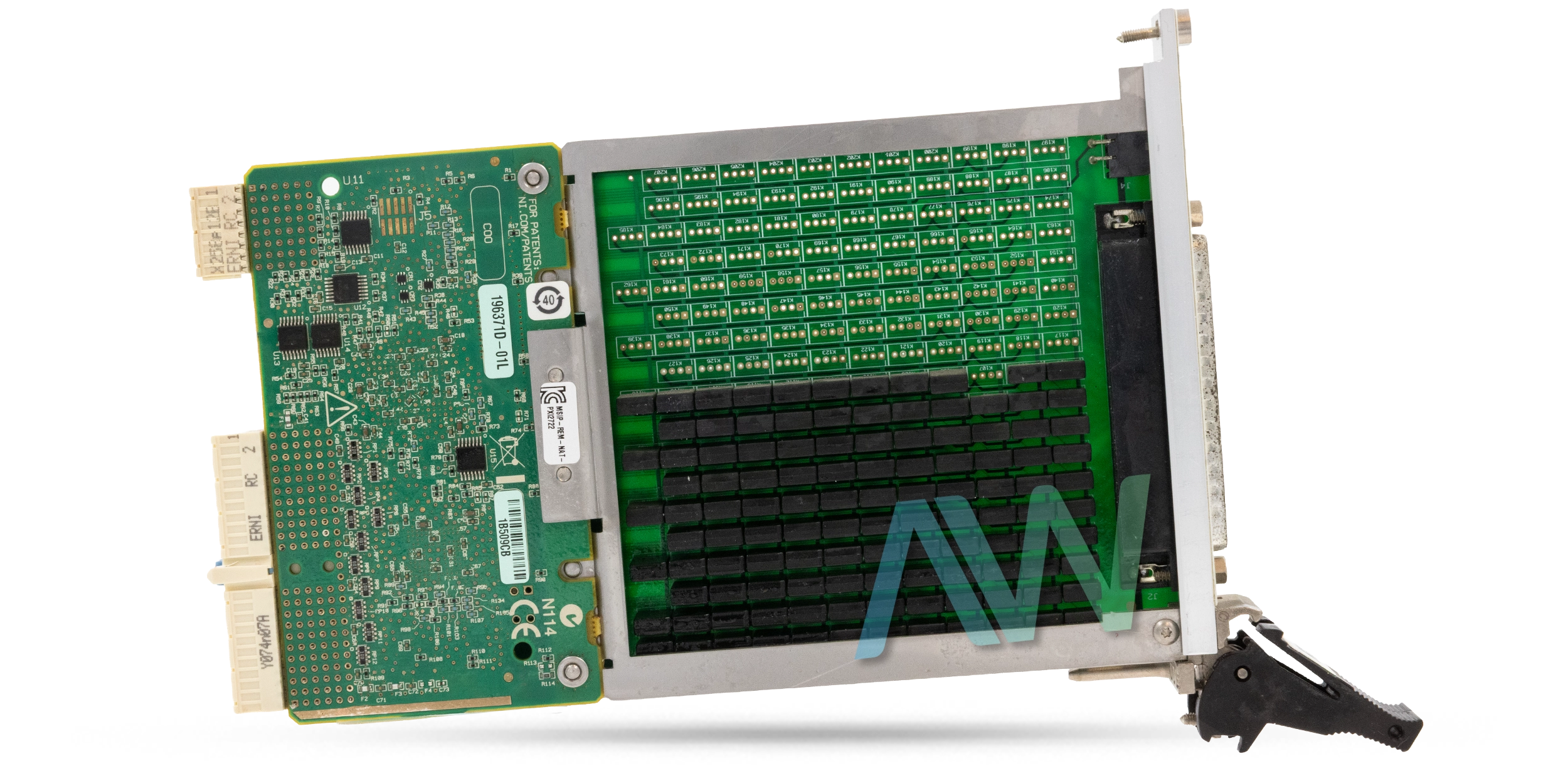

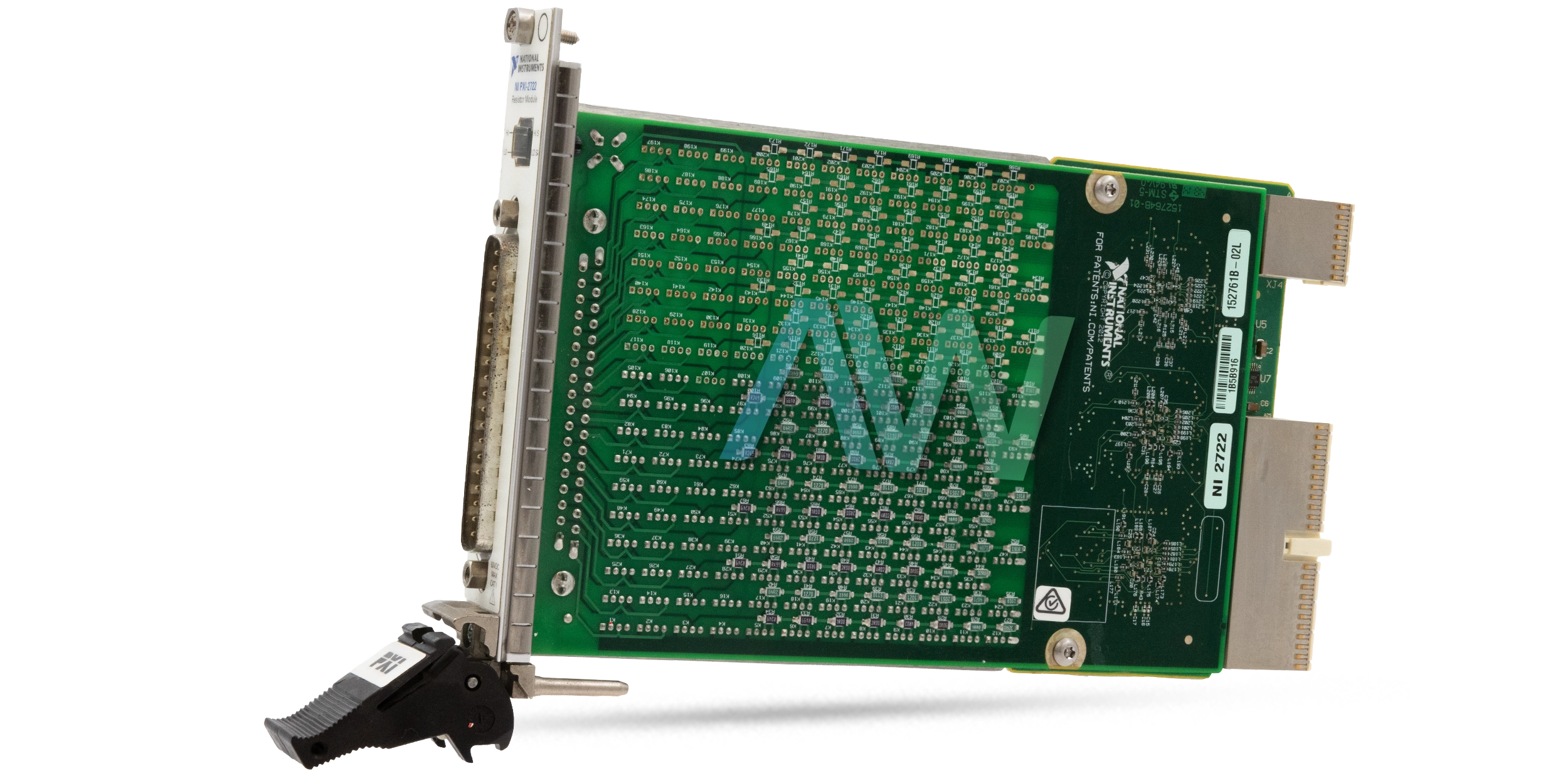

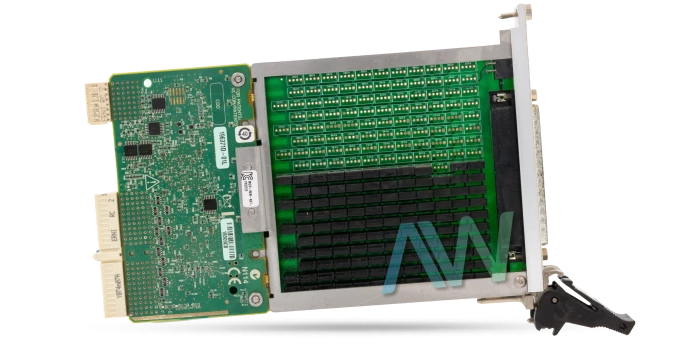

National Instruments PXI-2722 Programmable Resistor Module
The National Instruments PXI-2722 (Part Number: 781985-22, 152761A-02L) is a 5-channel, 16-bit PXI programmable resistor module. It is a test module that is used to replicate the performance of resistance-based inputs/outputs, including voltage dividers, resistance temperature detectors (RTDs), bridge elements, and potentiometers. This module can control an array of relays programmatically to achieve regulations across each channel of an input/output connector.
This tendency makes the NI PXI-2722 an ideal solution for precisely simulating environmental conditions in HIL (hardware-in-the-loop) validation. The National Instruments PXI-2722 offers 60 VDC, 30 VACrms, CAT I (channel-to-channel) and 60 VDC, 30 VACrms, CAT I (channel-to-ground) maximum voltage; 0.3 A maximum current (per channel); 0.25 W maximum power (per channel); 100 ppm TCR; 0.25 Ω steps resolution; and 0.25 Ω to 16,320 Ω (per channel) range. The typical channel accuracy remains around <10.0% while operating with a channel set between 20 Ω and 40 Ω and <5.0% while working with a channel set between 40 Ω and 120 Ω.
With this programmable resistor module, the user can achieve a simultaneous drive limit of 89 relays. The relays utilized in the PXI-2722 Programmable Resistor Module have a typical relay life of 1 × 10^68 cycles (at low power load < 50 mW) and 1 × 10^66 cycles (at full power load < 250 mW). The NI PXI-2722 comes equipped with a 37-pin D-SUB front panel connector and 2 × 2 Micro-Fit DMM port connectors. By design, this module is a 3U, one-slot, PXI module that consumes 11 W of power while operating at 5 V.
Apex Waves will continue to buy, sell, and repair end-of-life NI hardware in perpetuity. While the PXI-2722 is now obsolete, it will remain available with Apex Waves. Request your quote today!
| Model | PXI-2722 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 781985-22 |
| Type | PXI Programmable Resistor Module |
| Resistor Channels | 5 |
| Maximum Resistance | 16 kOhm |
| Resistance Resolution | 0.25 Ohm |
| Simultaneous Drive Limit | 89 Relays |
| Front Panel Connector | 37-Pin D-SUB Connector |
| DMM Port Type | 2×2 Micro-Fit Connector |
| Power Requirement | 11 W Max at 5 V |
| Operating Temp Range | 0 °C to 55 °C |
| Storage Temp Range | -20 °C to 70 °C |
| Dimensions | 8.5 x 0.8 x 5.1 in. |
| Weight | 9.3 oz. |
| Warranty | 2-3 Year Warranty |
| PXI-2722 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Request a quote |
Associated part numbers for PXI-2722:
National Instruments PXI-2722 Frequently Asked Questions
Question: What type of relays are on the PXI-2722?
Answer: The PXI-2722 has reed relays.
Question: What is the minimum pulse width on the PXI-2722?
Answer: The PXI-2722 has a minimum pulse width of 150 ns.
Question: What is the maximum power per channel on the NI PXI-2722?
Answer: The maximum power per channel is 0.25 W on the NI PXI-2722.
Question: What is the resolution for the PXI-2722 module?
Answer: The PXI-2722 module has 16-bit resolution.
