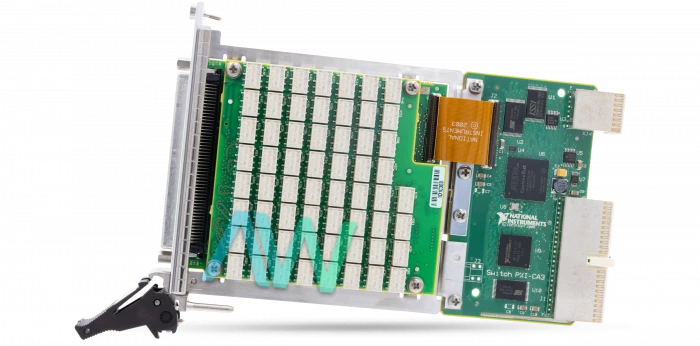

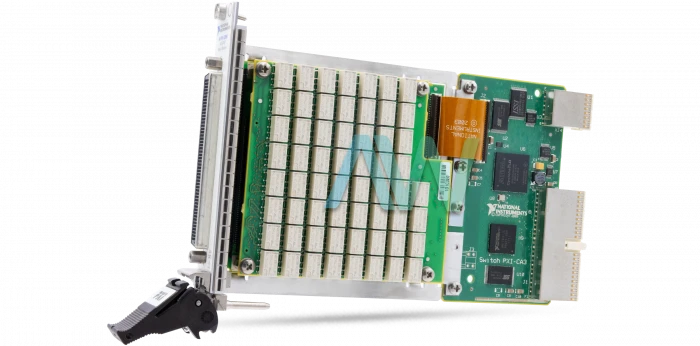

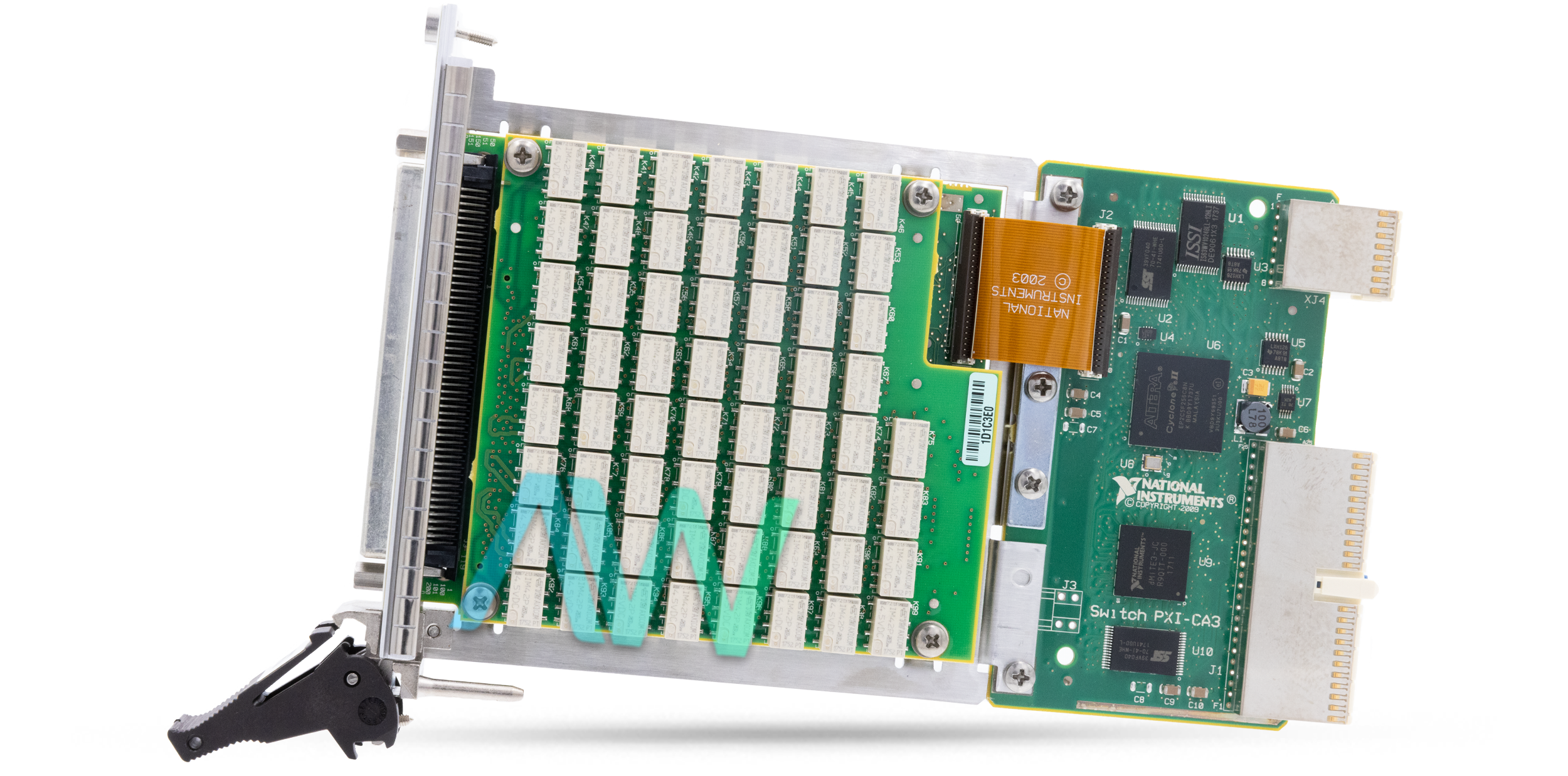

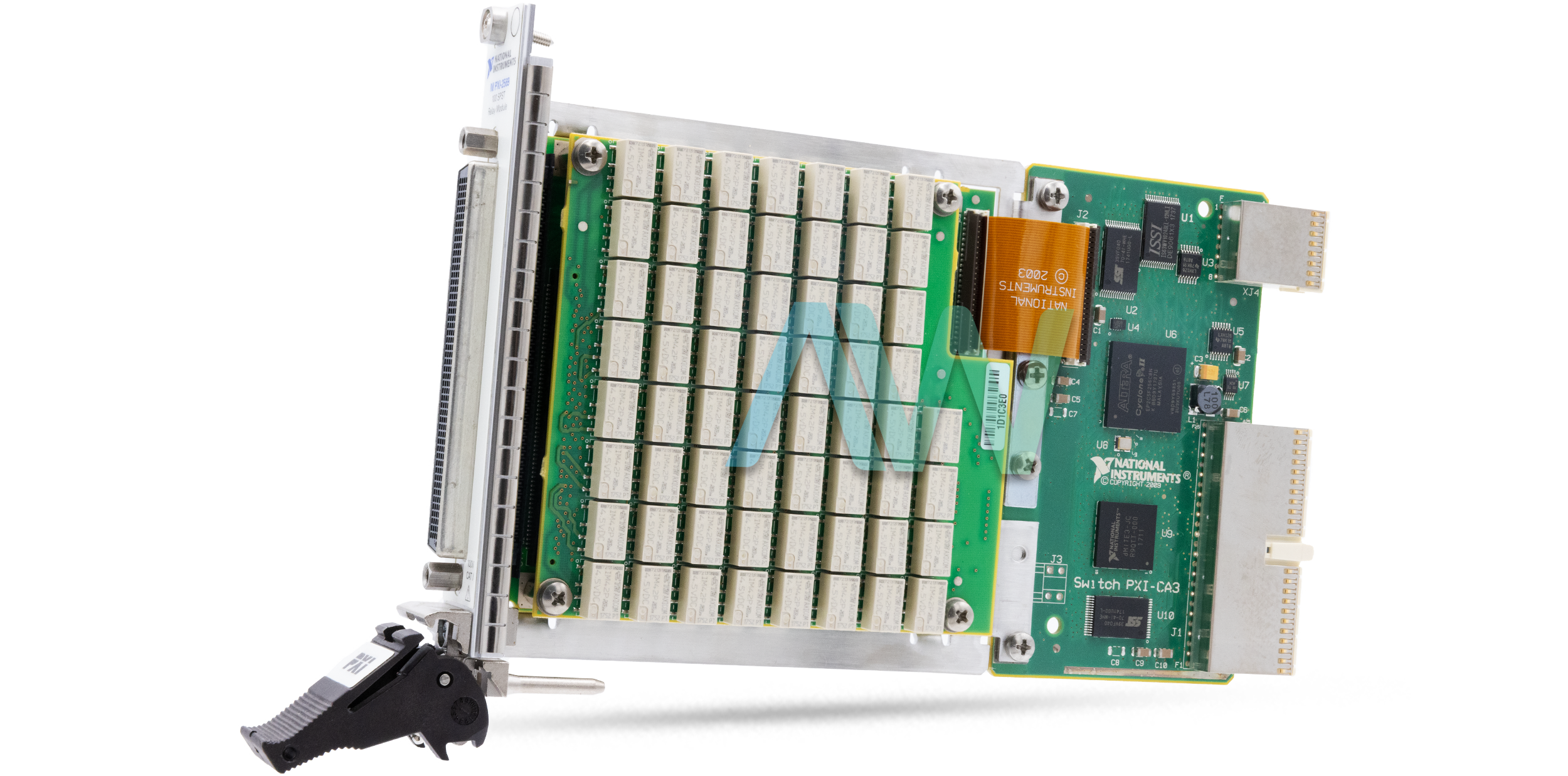

National Instruments PXI-2569 Relay Module
The NI PXI-2569 (Part Number: 778572-69) is a 100-channel switch module that includes SPST (Form A) latching, which is well-suited for medium-control of robotized test loads. The device has a switch bandwidth of 20 MHz, easily integrating with innovative program development software bundles for information acquisition and control applications. LabVIEW utilizes graphical programming, while LabWindows/CVI improves conventional programming languages. The two bundles incorporate broad libraries for information acquisition, instrument control, data analysis, and graphical data presentation. Utilizing LabVIEW or LabWindows/CVI can fundamentally diminish the development time for the user’s information acquisition and control application.
In this model, each channel interfaces with the corresponding common by shutting its relay. The relay name depends on the corresponding signal name. For instance, the relay for the CH9 is K9. The user can have numerous channels associated with the corresponding commons. This instrument allows the user to utilize the driver programming to arrange the switch card for continuous or one-time scanning. In continuous examining, the switch card goes through the output list until the user disables scanning. For one-time scanning, the switch card goes through the scan list just once. The user can also utilize a programming command to clear the output list or reset it to the start. The PXI-2569 PXI Relay Module has a channel-to-channel maximum switching voltage of 100 V and a channel-to-ground maximum switching voltage of 100 V, CAT 1. It has a maximum input current of 1 A per channel and a maximum switching input power of 60 W per channel.
The NI PXI-2569 can utilize an outside trigger input to progress between scan setups in a scan list. Utilizing the driver software, the user can arrange the switch card to course the outer trigger from any of the PXI TTL trigger lines or the PXI trigger. On the other hand, the user can utilize a software command to trigger the switch card. The device weighs 10.2 oz. and measures 8.5 x 0.8 x 5.1 in. in dimensions. It has a recommended operating temperature range of 0 °C to 55 °C.
| Model | PXI-2569 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 778572-69 |
| Type | PXI Relay Module |
| Relays | 100 |
| Switch Bandwidth | 20 MHz |
| Connector Type | LFH 200-Pin |
| I/O Connector | 200 POS LFH Matrix 50 |
| Relay Type | Electromechanical, Latching |
| Power Requirement | 2.5 W at 3.3 V, or 6 W at 5 V |
| Max Switching Voltage | 100 V Channel to Channel |
| Dimensions | 8.5 x 0.8 x 5.1 in. (21.6 cm × 2.0 cm × 13.0 cm) |
| Weight | 10.2 oz. (289 g) |
| Warranty | 2-3 Year Warranty |
| PXI-2569 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Request a Quote |
Associated part numbers for PXI-2569:
National Instruments PXI-2569 Frequently Asked Questions
Question: What is the maximum switching voltage DC of the PXI-2569?
Answer: The PXI Relay Module has a maximum switching DC voltage of 100 V.
Question: How many I/O connectors does the module have?
Answer: The NI PXI-2569 has 200 POS LFH Matrix 50 receptacle I/O connectors.
Question: What is the relay operating time?
Answer: The PXI-2569 has a relay operating time of 1 ms typical and 3.4 ms maximum.
Question: What type of relays does the PXI-2569 have?
Answer: The relays on the module are electromechanical, latching type.
PXI-2569 PDF Manuals
NI-PXI-PXIE-2569-SPECIFICATIONS.PDF
PXI-2569-DECLARATION-OF-CONFORMITY.PDF
PXI-PXIE-2569-LETTER-OF-VOLATILITY.PDF
PXI-2569 Diagrams
