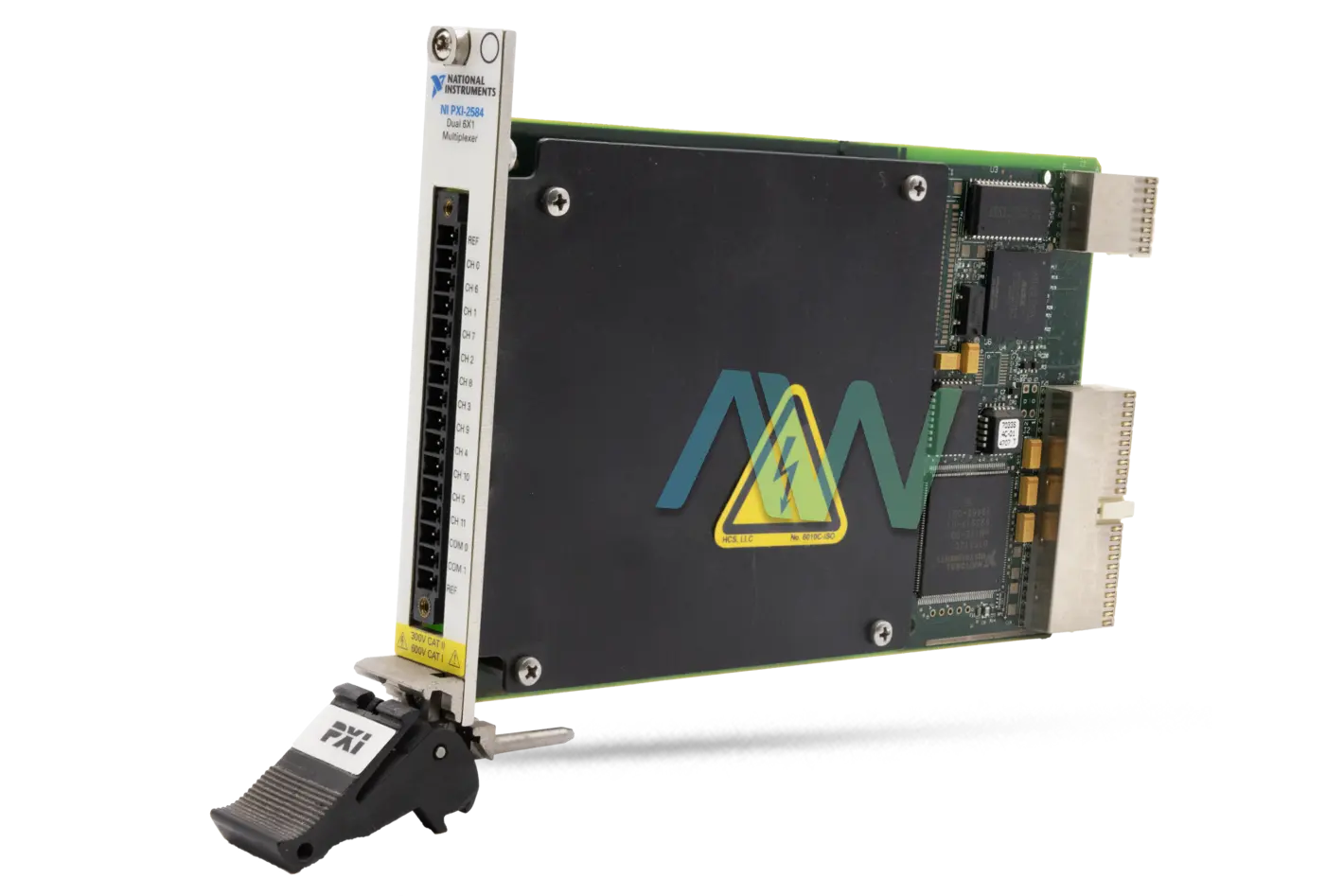

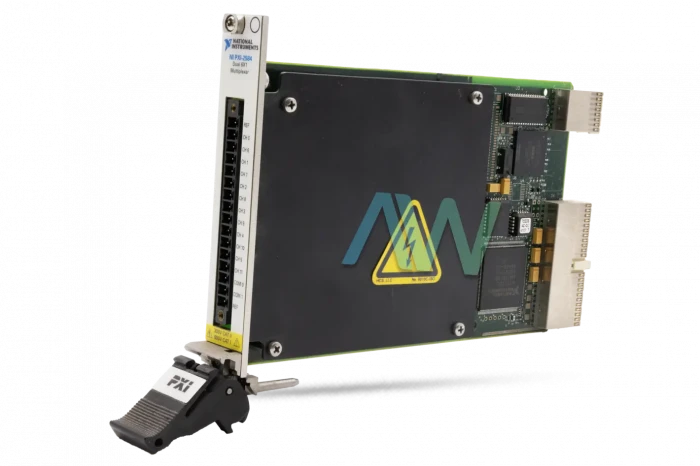

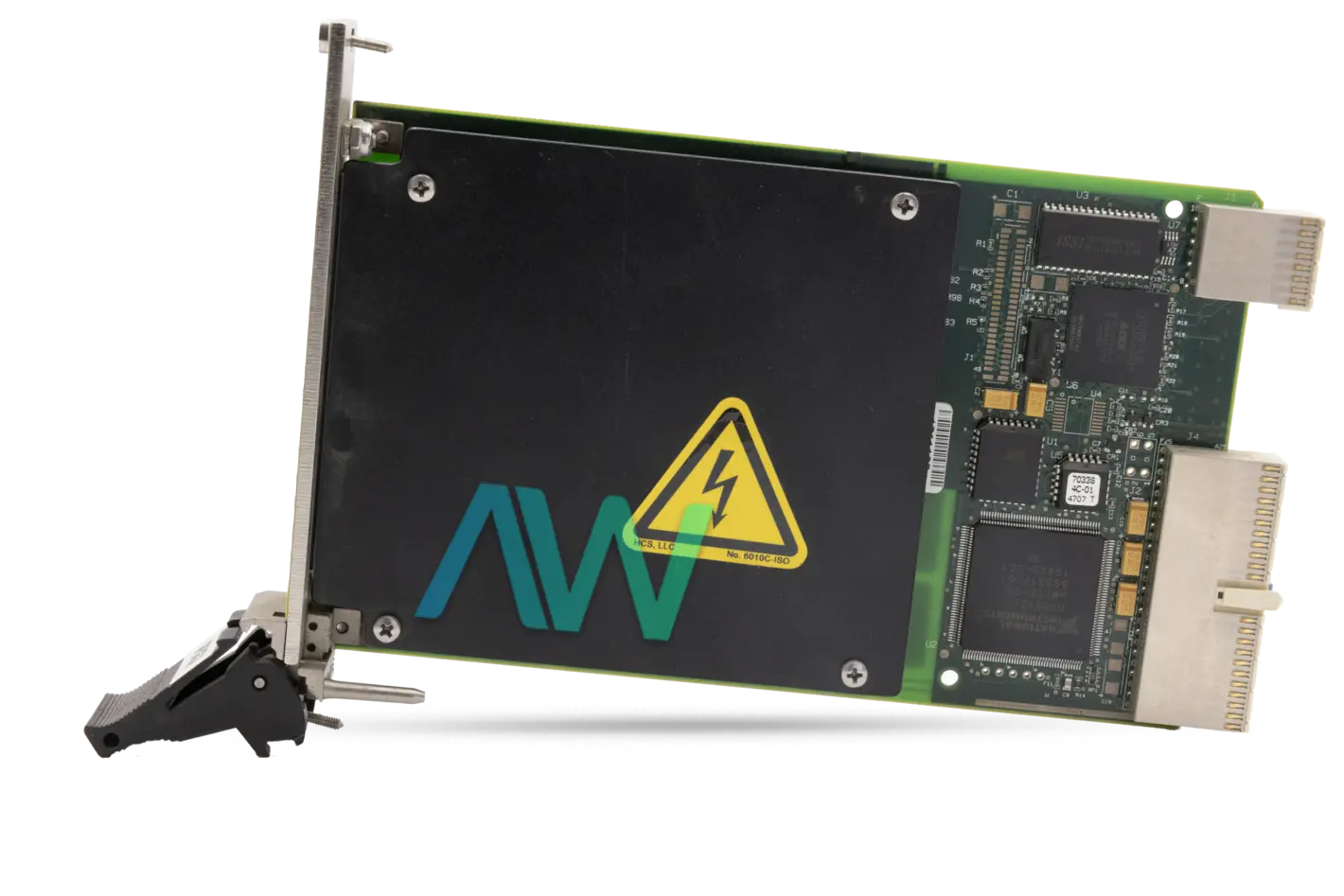

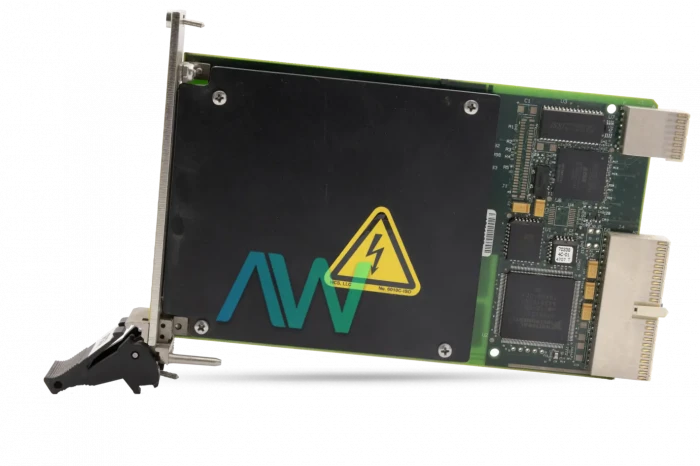

National Instruments PXI-2584 PXI Multiplexer Switch Module
The PXI-2584 (part number: 778572-84) is a 1-wire, 12-channel PXI multiplexer switch module designed for high-voltage applications. The NI PXI-2584 comes equipped with reed relays featuring 0.4 ms (typical) relay operating time and 3 × 108 cycle mechanical relay life. The reed relays guarantee quicker actuation times and longer-lasting test equipment. This module can be utilized in multimodule arrangements for completing measurements on hundreds of channels. With this module, the user can achieve various topologies, such as a 1-wire 12 × 1 multiplexer, 2-wire 6 × 1 multiplexer, 1-wire dual 6 × 1 multiplexers, and a 2-wire 11 x 1 interleaved multiplexer. The device has a switch bandwidth of 900 kHz. The PXI-2584 can be utilized with the NI-SWITCH Front Panel for easy relay functions. It can also be utilized for debugging switch code/execution.
This Multiplexer Switch Module has a CAT II certification at 300 V and can route general-purpose ATE loads or high-voltage, low-current signals. The PXI-2584 also has 600 V CAT I channel-to-ground isolation, which makes it well-suited for fuel cell and battery stack applications. This module can withstand less than or equal to 2,500 V surge voltage. The NI PXI-2584 can provide 10 watts of switching power and 0.5 A of carry or switching current per channel. This module is also designed to offer a 600 channels/s maximum scan rate.
The reed relays incorporated in the National Instruments PXI-2584 have a rhodium relay contact material. For receiving and outputting trigger signals, the NI PXI-2584 utilizes PXI trigger lines <0...7>. It can accept signals generated at a 150 ns minimum pulse width and can generate signals over a broad range of programmable pulse widths, i.e., 1 µs to 62 µs. As far as its power requirements are concerned, the NI PXI-2584 is an efficient module since it consumes only 1.6 W at 5 V.
The NI device weighs 7.5 oz and measures 8.5 x 0.8 x 5.1 in. in physical dimensions. It has a recommended operating temperature range of 0 °C to 55 °C, a storage temperature range of -20 °C to 70 °C, and an operating and non-operating random vibration of 0.31 grms and 2.46 grms, respectively—all at a frequency range of 5 to 500 Hz.
| Model | PXI-2584 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 778572-84 |
| Type | PXI Multiplexer Switch Module |
| Channels | 12 |
| Banks | 1, 2 |
| Switch Bandwidth | 900 kHz |
| I/O Connector | 16 Position Mini-Combicon |
| Maximum Scan Rate | 600 Channels/s |
| Minimum Input Trigger Pulse Width | 150 ns |
| Dimensions | 8.5 in. × 0.8 in. × 5.1 in. |
| Operating Temperature Range | 0 °C to 55 °C |
| Storage Temperature Range | -20 °C to 70 °C |
| Dimensions | 8.5 in. × 0.8 in. × 5.1 in. |
| Weight | 7.5 oz. |
| Warranty | 2-3 Year Warranty |
| PXI-2584 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Request a quote |
Associated part numbers for PXI-2584:
National Instruments PXI-2584 Frequently Asked Questions
Question: What relay type does the PXI-2584 have?
Answer: The PXI Multiplexer Switch Module has reed relays.
Question: What is the scan rate of the module?
Answer: The PXI-2584’s scan rate is 600 cycles/s.
Question: What is the maximum DC switching voltage of the NI PXI-2584?
Answer: The module has a maximum DC switching voltage of 600 V.
Question: What type of I/O connector is on the PXI-2584?
Answer: The PXI-2584 has a mini-combicon, 3.81 mm (16 position) I/O connector.
