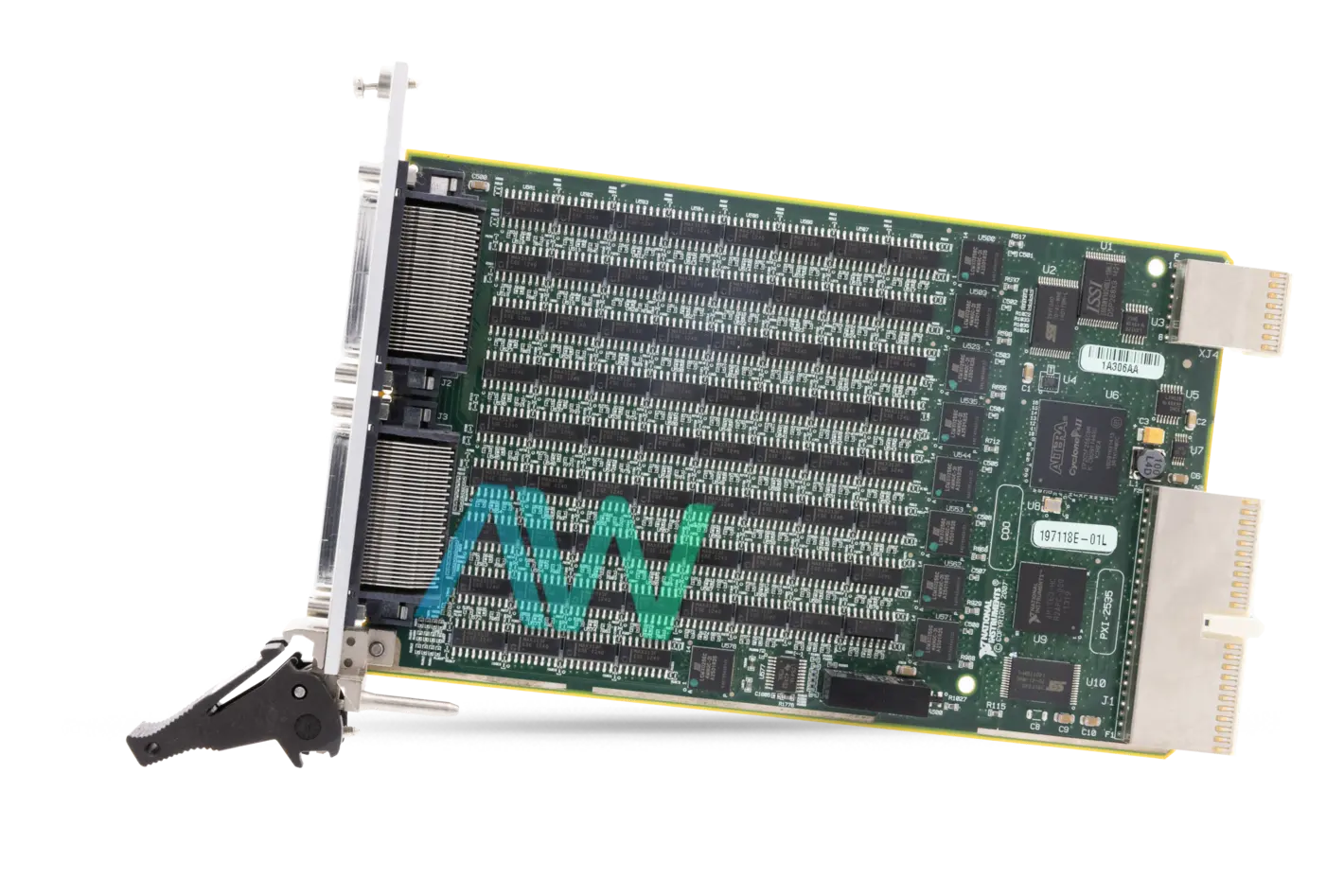

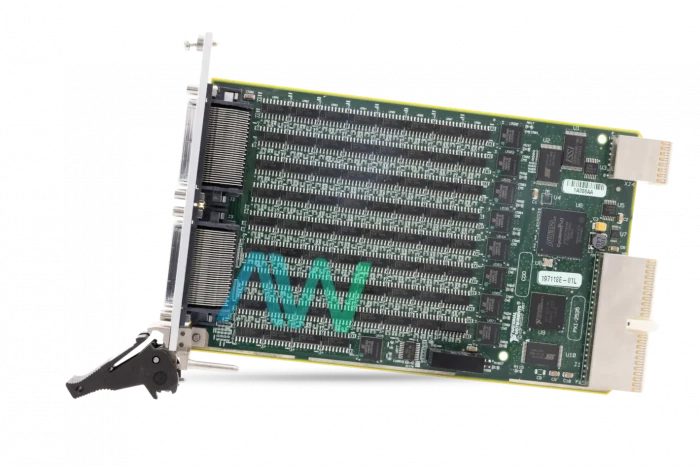

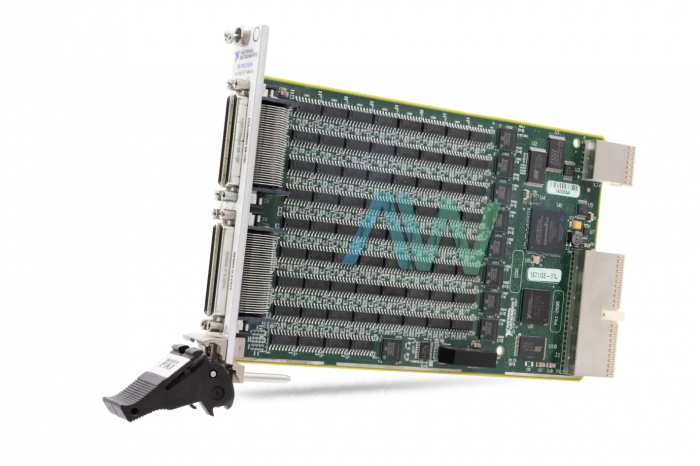

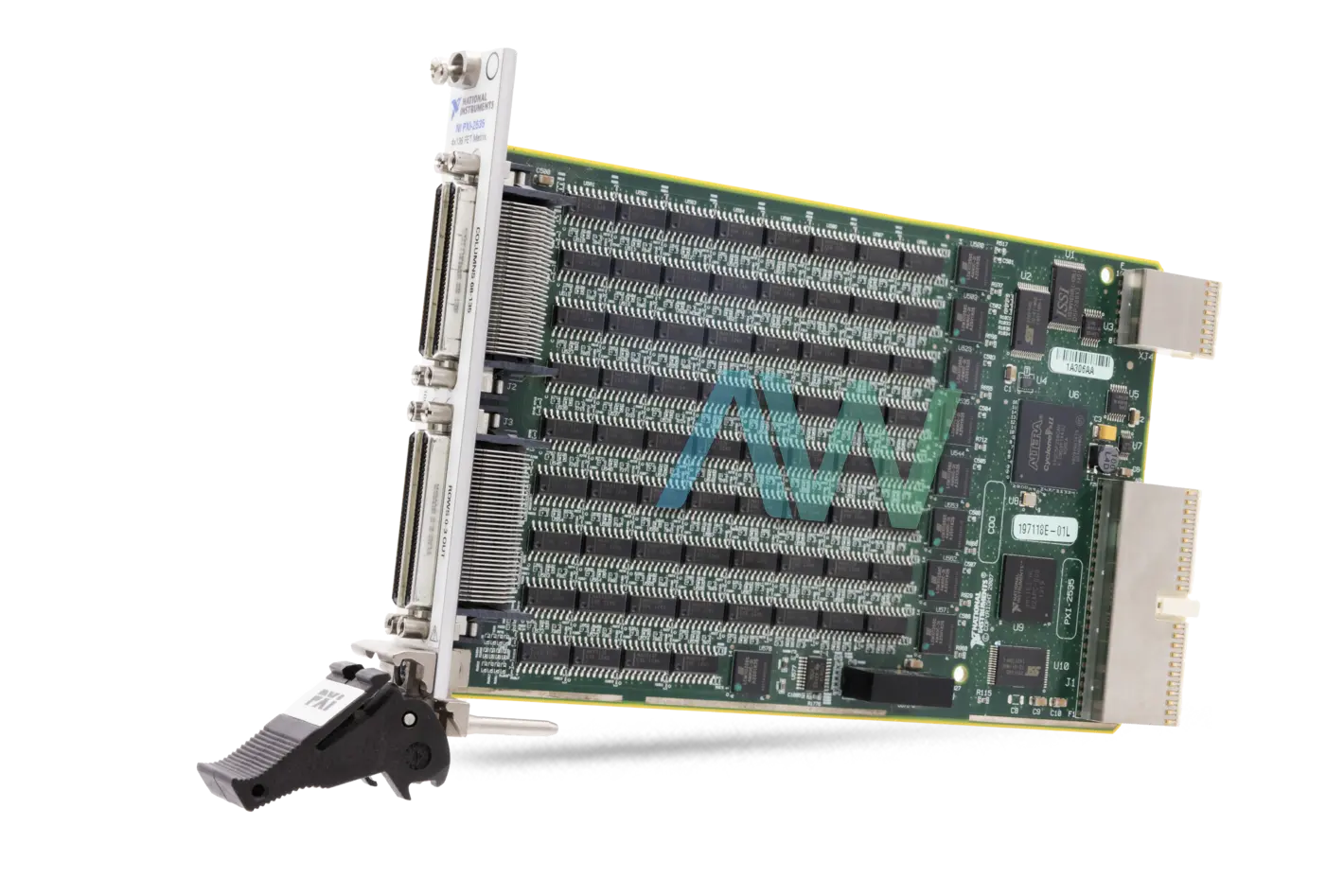

National Instruments PXI-2535 PXI Matrix Switch Module
The National Instruments PXI 2535 (Part Number: 778572-35) is a high-density, 1-wire, 544-crosspoint PXI matrix switch module. This model is perfect for the routing of DC signals (low power) in various applications, just like validation test procedures of mass-manufactured devices, including printed circuit boards (PCBs) and semiconductor chips. This module comes featured with field-effect transistor relays and has an onboard relay-counting provision that can be utilized for deterministic and relay-monitoring operation in conjunction with hardware triggers to enhance test throughput.
The relays constituting the NI PXI-2535 offer tremendous speeds up to 50,000 crosspoints/s and unlimited mechanical lifetime. This Matrix Switch Module is designed to provide ±12 VDC, 8 VAC maximum switching voltage (channel-to-ground), 1.2 W maximum switching power (resistive per channel), and 100 mA maximum switching current. At 23°C, the DC isolation resistance between open terminals of the PXI-2535 remains >1 GΩ, typical. This switch model comes with integrated overvoltage protection circuitry, which actuates at ±36 VDC in the "powered on" state and ±40 VDC in the "powered off" state.
For a one-row-to-one-column-based 50 Ω system, this module can serve >1 MHz single crosspoint bandwidth. This module incorporates high-quality FETs featuring 12 µs typical and 16 µs maximum operating time. Moreover, it has a simultaneous drive limit of up to 544 switches. By design, the National Instruments PXI-2535 is a 3U, one slot PXI module with four 68-pin receptacle VHDCI I/O connectors. While operating within the specified temperature range (i.e., 0 °C to 55 °C), this module consumes 1.7 Watts of power at 3.3 V and 1.3 Watts at 12 V.
| Model | PXI-2535 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 778572-35 |
| Type | PXI Matrix Switch Module |
| Crosspoints | 544 |
| Relay Type | FET Relay |
| Switching Current | 100 mA Maximum |
| Voltage | 3.3 V, 12 V |
| Banks | 1 |
| Rows | 4 |
| Columns | 136 |
| Dimensions | 8.5 x 0.8 x 5.1 in. |
| Weight | 5.6 oz. |
| Warranty | 2-3 Year Warranty |
| PXI-2535 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Request a Quote |
Associated part numbers for PXI-2535:
National Instruments PXI-2535 Frequently Asked Questions
Question: What type of relays are on the PXI-2535?
Answer: The Matrix Switch Modules use FET relays.
Question: What is the switch bandwidth?
Answer: The NI PXI-2535 has a switch bandwidth of 1 MHz.
Question: What is the maximum switching voltage DC of the PXI-2535?
Answer: The maximum switching DC voltage is 12 V.
Question: How many I/O connectors does the PXI-2535 have?
Answer: The Matrix Switch Module has four 68-pin receptacle VHDCI I/O connectors.
Question: How much does the PXI-2535 cost?
Answer: Submit a quote request today for up-to-date pricing information!
| Accessory Type | Model Name | Part Number |
|---|---|---|
| Cable | SHC68-C68-S | 186380-02 (2 m) |
| SHC68-68 | 191945-01 (1 m) | |
| 191945-02 (2 m) | ||
| Remote Terminal Block | CB-68LP | 777145-01 |
| CB-68LPR | 777145-02 |
PXI-2535 PDF Manuals
NI-PXI-2535-SPECIFICATIONS.PDF
PXI-2535-2536-LETTER-OF-VOLATILITY.PDF
PXI-2535 Diagrams
