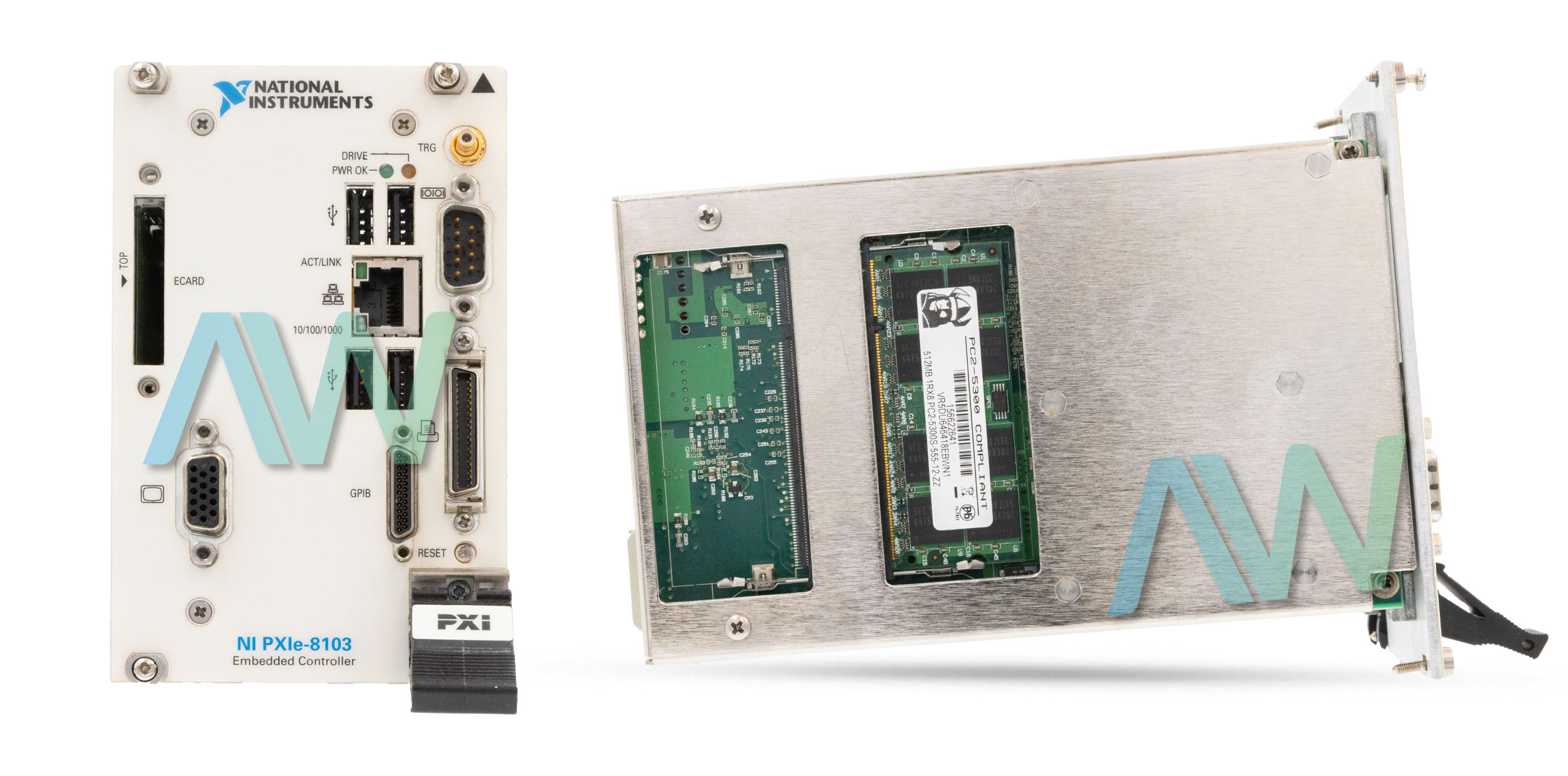

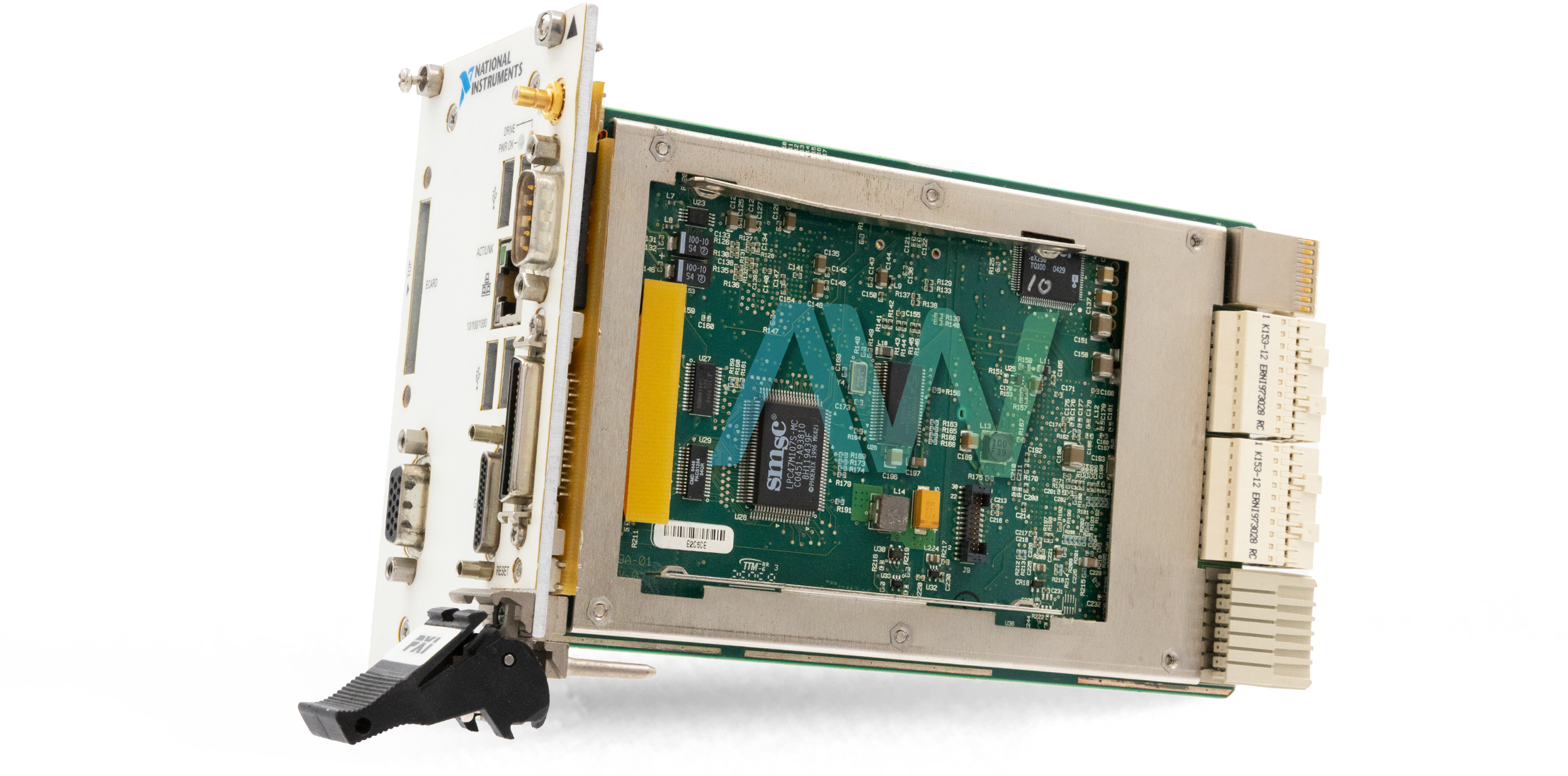

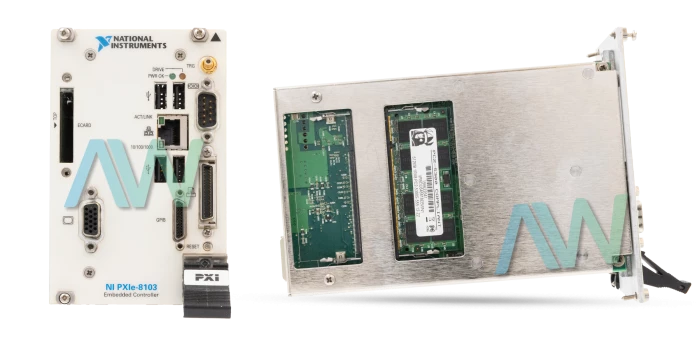

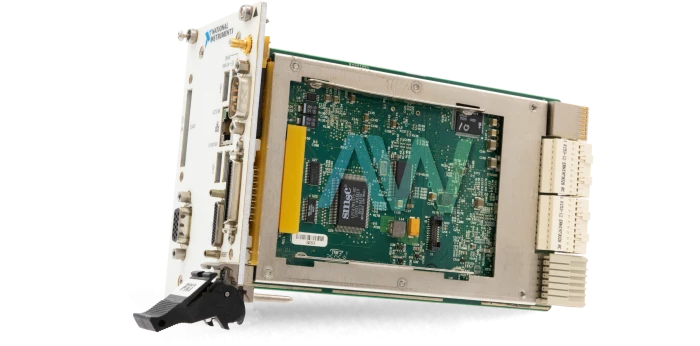

National Instruments PXIe-8103 PXI Express Controller
The PXIe-8103 (part number: 779915-01) PXI express controller is an embedded system unit for instrumentation platforms. It integrates processing storage and peripheral connectivity within a chassis. It uses Intel Pentium M 760 processor operating at 2.0 GHz for reliable performance. The processor includes 2048 kB cache supporting deterministic execution and responsive system behavior. The PXI express controller supports Windows XP Professional for stable industrial deployments and validation. The platform targets automated test measurement and control applications requiring reliability and precision. System architecture emphasizes high bandwidth communication across the PXI Express backplane for modules.
The minimum storage configuration starts at 40 GB ensuring adequate operating system space for deployment. The solid data throughput is maintained through the SATA interface for reliable access during operations. Memory stability contributes to consistent execution of real time test processes and tasks. The video output is provided through a VGA 15 pin DSUB connector for display devices. The graphics are handled by the Intel Extreme Graphics controller for visual rendering and output. Serial communication is available via one COM1 9 pin DSUB port for RS-232 devices.
The PXIe-8103 controller supports system memory configurations from 2 to 8 GB. High capacity memory enables demanding applications with large datasets and complex algorithms for analysis. The controller supports Serial ATA storage with capacities configurable up to 500 GB maximum. The RS-232 interface uses a 16550 UART for reliable signaling in control systems applications. Parallel communication is available using a 36 pin IEEE 1284 port for devices. GPIB connectivity is provided through a 25 pin Micro D connector for instruments.
The stacked receptacle design supports simultaneous connection of multiple USB peripherals for test setups. An Express-Card 34 slot enables flexible hardware expansion capabilities for future interface modules support. The trigger bus allows input and output with the backplane for timing control coordination. The NI PXIe-8103 PXI Controller includes one RS-232 serial port for control devices integration. It includes one parallel port for legacy instrument interfaces support. Four USB ports provide high speed connectivity for external peripherals in test stations use. The controller integrates a GPIB interface for instrument control systems. The PS 2 keyboard and mouse connectors are not provided on this unit.
| Model Name | PXIe-8103 |
|---|---|
| Part Number | 779915-01 |
| Part Type | PXI Express Controller |
| Standard Memory Configuration | 512 MB installed |
| Hard Drive Capacity Range | 32 GB to 500 GB |
| Minimum Hard Drive Configuration | 40 GB Serial ATA |
| Ethernet Interface | 10/100/1000 BaseTX via RJ45 |
| Video Output | VGA, 15-pin DSUB with Intel Extreme Graphics controller |
| GPIB Interface | IEEE 488.2 compliant, 25-pin Micro D connector |
| PXI Express Link Configuration | Supports 4 × x1 links and 2 × x1 links |
