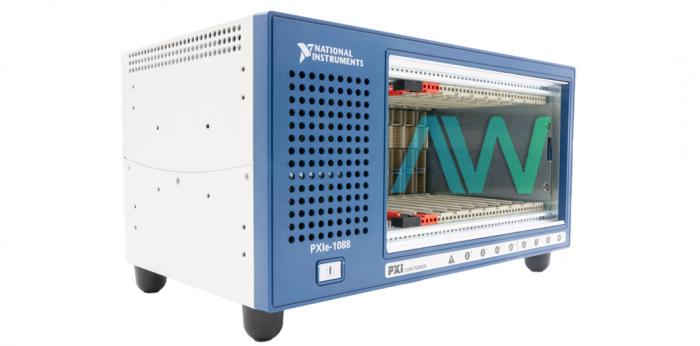

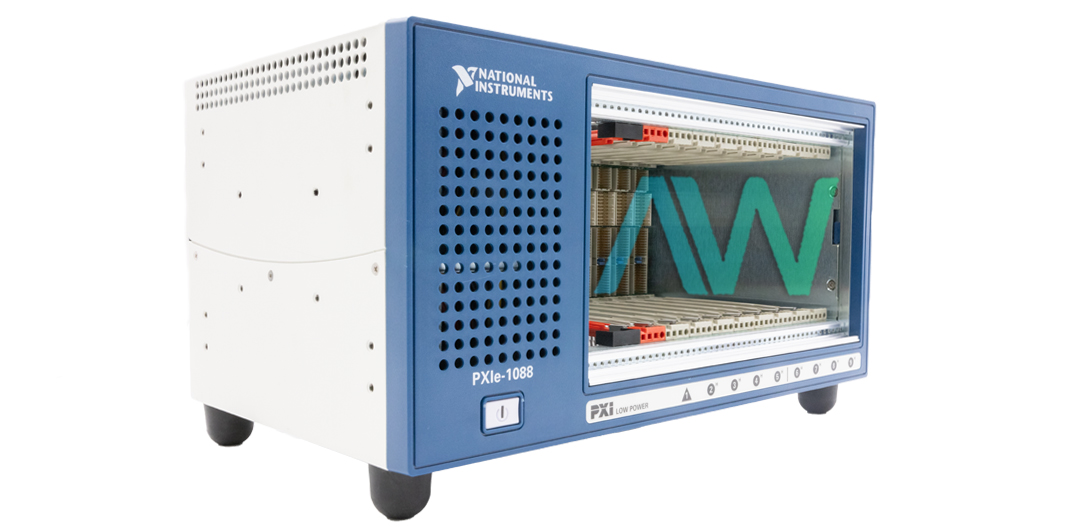

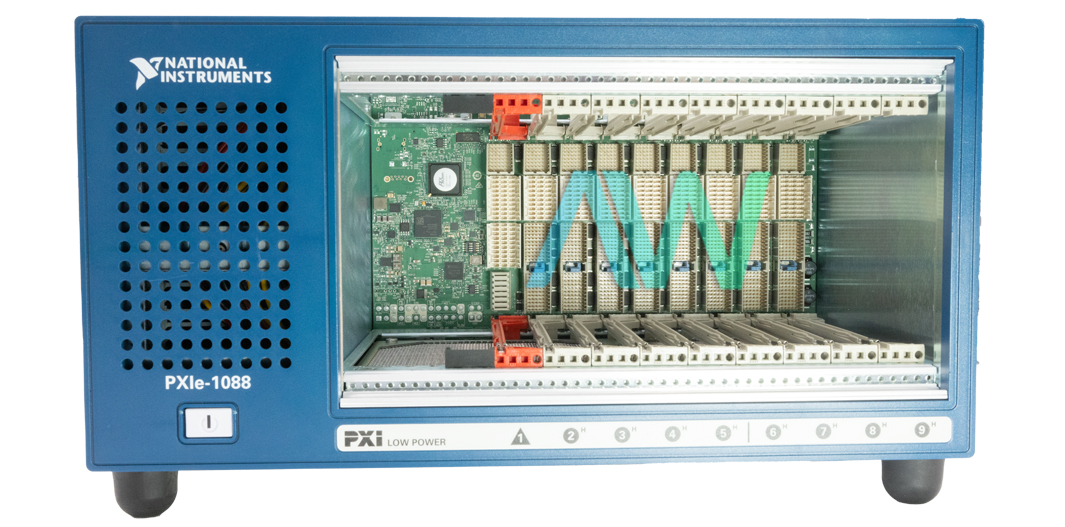

National Instruments PXIe-1088 PXI Chassis
Designed to operate with up to 8 GB/s maximum system bandwidth, the NI PXIe-1088 (Part Number: 784782-01) is a PXI Chassis. This 9-slot Chassis comes equipped with 8 hybrid slots. The backplane of this device is an all-hybrid backplane that supports a comprehensive range of measurement and test applications. In every peripheral slot of this Chassis, there are hybrid connectors, which brings you greater flexibility for the deployment of compatible modules. The NI PXIe-1088 works on AC power and comes with an integrated power supply. This module has a slot cooling capacity of 58 watts for slots 2 through 8; slot 9 (system slot) supports up to 38 watts.
The NI PXIe-1088 PXI Chassis comes with an integrated VCXO clock as well. The system slot of the NI PXIe-1088 (or Slot 1) is a 4-Link system slot as defined by the PXI Express and CompactPCI Express specifications. This chassis features 3 system controller expansion slots as well. These slots are provided for wider system controller modules that require more than one slot for deployment. The hybrid slots incorporated in this PXI Chassis are compatible with a versatile range of peripheral slots. The NI PXIe-1088 has a PXI backplane local bus also.
This PXI Chassis supplies a common system reference clock signal to every peripheral slot. You can use this reference clock signal (PXI_CLK10) to achieve synchronization between multiple modules in a control or measurement system. The cooling fans of the NI PXIe-1088 offer as much as 58 watts of power dissipation while operating in high mode.
| Model | PXIe-1088 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 784782-01 |
| Type | PXI Chassis |
| Hybrid Slots | 8 |
| Maximum System Bandwidth | 8 GB/s |
| Onboard Clock Type | VCXO |
| Slot Cooling Capacity | 58 W (Slots 2–8), 38 W (Slot 9) |
| Power Supply Input Range | 100–240 VAC, 50/60 Hz |
| Maximum Total Available Power | 329 W |
| Reference Clock Accuracy | ±25 ppm |
| Dimensions | 6.98 in. x 14.00 in. x 8.43 in. |
| Weight | 16.8 lb. |
| PXIe-1088 Manual | User Manual and Specifications Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for PXIe-1088:
National Instruments PXIe-1088 PXI Chassis Frequently Asked Questions
Question: What types of modules are compatible with the PXIe-1088 chassis?
Answer: The PXIe-1088 chassis is compliant with the PXI Express Specification and supports both PXI Express and CompactPCI (PICMG 2.0 R 3.0) 3U modules. It features one system slot, three system expansion slots, and eight peripheral slots, including hybrid slots compatible with PXI, PXIe, and hybrid-compatible modules.
Question: What is the total power capacity of the PXIe-1088, and how much can each slot handle?
Answer: The PXIe-1088 provides a maximum total available power of 329 W. Peripheral slots (slots 2–8) support up to 58 W each, while slot 9 supports up to 38 W. The system controller slot supports up to 140 W. The power supply provides regulated DC voltages of +12 V, +5 V, +3.3 V, -12 V, and +5V_AUX with overload and overvoltage protection.
Question: What are the cooling and airflow requirements for the PXIe-1088?
Answer: The PXIe-1088 uses forced-air circulation with two high-efficiency 150 CFM fans. Air flows from the bottom to the top of each module slot, with intake through the bottom and sides and exhaust through the top and rear of the chassis. Adequate clearance is required around the chassis: at least 1.75 inches (44.45 mm) above, behind, and on both sides when rack-mounted, and 1.00 inch (25.4 mm) below when used on a desktop.
