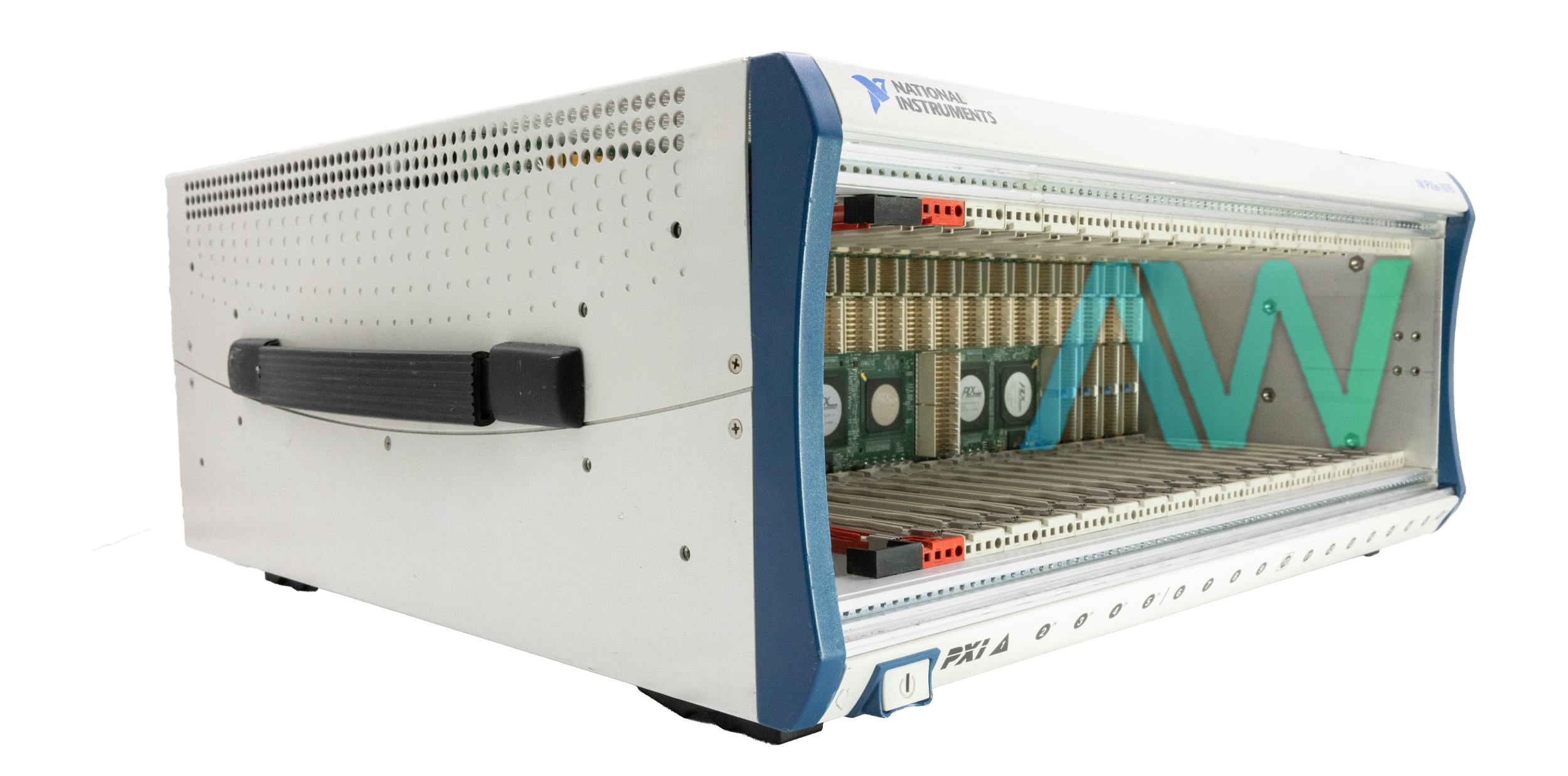

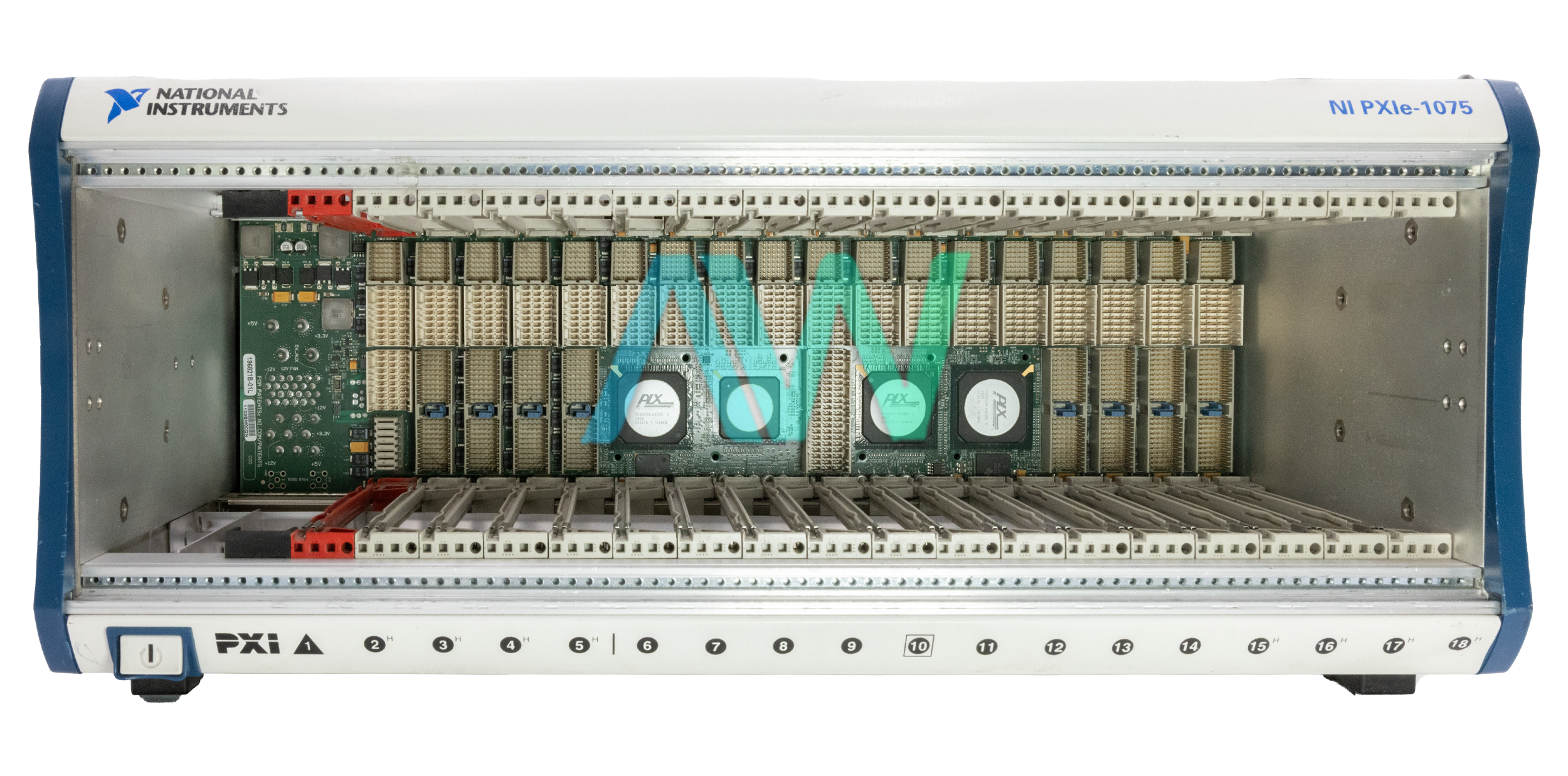

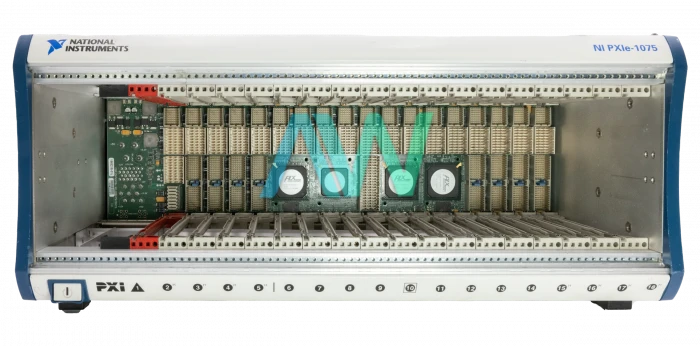

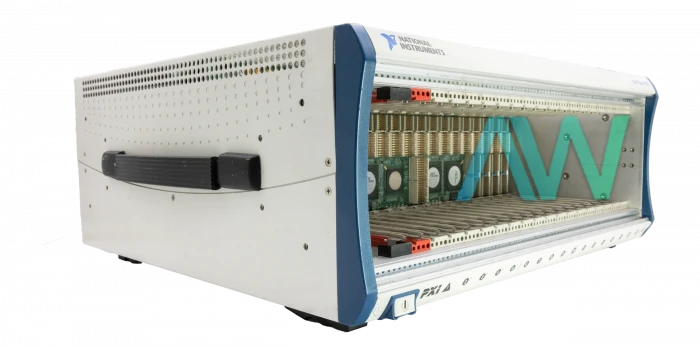

National Instruments PXIe-1075 PXI Chassis

The PXIe-1075 (Part Numbers: 780291-01 and 780292-01) 18-slot PXI Express chassis is designed for a wide range of test and measurement applications and provides a high-bandwidth backplane. The device has a maximum per-slot bandwidth of 1 GB per second in a single direction (x4 PCIe). The NI PXIe-1075 Chassis’ modular design ensures a high level of maintainability and an extremely low mean time to repair (MTTR). The PXIe-1075 Chassis fully complies with the PXI-5 PXI Express Hardware Specification, offering advanced timing and synchronization features. This model features an extended operating temperature range for applications that need cooling performance. This PXI Chassis can function in an instrument rack or on a bench. There must be enough space on the top of the chassis and the sides. Proper clearance will allow the chassis and the modules to remain cool. If these clearances are not met, there is the possibility of thermal-related failures in the modules or chassis.

The National Instruments PXIe-1075 has a maximum per-slot bandwidth of 1 GB/s (single direction per PXI Express slot, x4 PCIe), slot cooling capacity of up to 38.25 W per slot, 8 PXI Express peripheral slots, 1 PXI Express system timing slot, 8 hybrid slots (supporting both PXI and PXI Express modules), remote power-inhibit control, and a variable-speed fan controller which optimizes cooling and acoustic emissions. The user should ensure that the backplane of the device is adequately cooled—this is essential to the device functioning reliably. The device is equipped with J505, J506, J500, J1, J2, J5, and J3 connectors. Part Number 780292-01 is the spare power supply and fan shuttle accessory for the PXIe-1075.

The PXIe-1075 Chassis is Highly Accelerated Life Tested (HALT) for increased reliability with functions such as power supply, temperature, and fan monitoring, a field-replaceable power supply shuttle, a maximum operating temperature of 55 °C, and quiet operation from 0 °C to 30 °C. The NI PXIe-1075 Chassis is compatible with PXI, PXI Express, CompactPCI, and CompactPCI Express modules. The device is AC-powered and weighs 31 lb. It has the dimensions: 6.97 x 18.3 x 18.4 in.

The PXIe-1075 Chassis is no longer available from National Instruments, but it will remain available in perpetuity with Apex Waves for both purchase and repair services.

ModelPXIe-1075
Part Number780291-01, 780292-01
ManufacturerNational Instruments
TypePXI Chassis
Total Slot Count18
PXIe Peripheral Slots8
Hybrid Slots8
PXIe System Timing Slots1
System Controller Slots1
Maximum System Bandwidth1 GB/s per Slot in a Single Direction (x4 PCIe)
Slot Cooling CapacityUp to 38.25 W per Slot
Internal Clocks10 MHz Reference Clock (PXI_CLK10) with ±25 ppm stability,
100 MHz Reference Clock (PXIe_CLK100), PXIe_SYNC100 timing signal
Chassis Power Supply TypeAC
Power Supply ShuttleField-Replaceable Power Supply Shuttle (Part Number: 780292-01)
Module Cooling SystemForced Air Circulation
AC Input Frequency50/60 Hz
Operating Temperature Range0 °C to 55 °C
Storage Temperature Range-40 to 71 °C
Dimensions6.97 x 18.3 x 18.4 in.
Weight31 lb.
WarrantyThree Year Warranty
PXIe-1075 ManualUser Manual and Maintenance Manual Available for Download
PriceRequest a Quote Today for More Information

Associated part numbers for PXIe-1075:

National Instruments PXIe-1075 Frequently Asked Questions



Question: What type of backplane is the PXIe-1075 backplane?

Answer: The backplane is a high-performance 18-slot PXI Express backplane that fully complies with the PXI-5 PXI Express Hardware Specification.



Question: Does the NI PXIe-1075 have a system timing slot?

Answer: Yes, the PXI Chassis has a dedicated PXI Express system timing slot (Slot 10).



Question: What type of cooling system does the NI PXI Chassis have?

Answer: The PXIe-1075 has a forced air cooling system, which includes three 165 cfm chassis cooling fans and two integrated fans in the power supply shuttle.



Question: What is the over-current protection for the NI PXIe-1075?

Answer: For over-current protection, the chassis has a 15 A circuit breaker located on the rear panel.
