National Instruments PXIe-1073 PXI Chassis

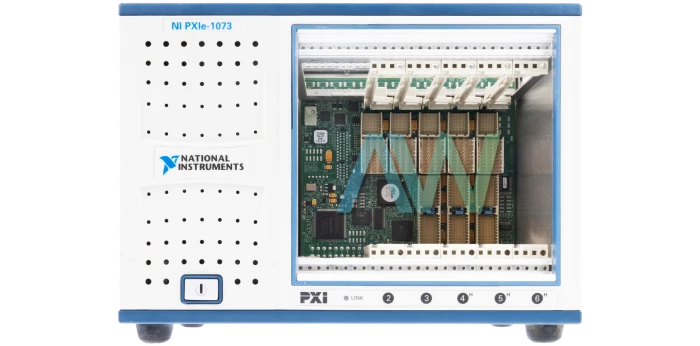

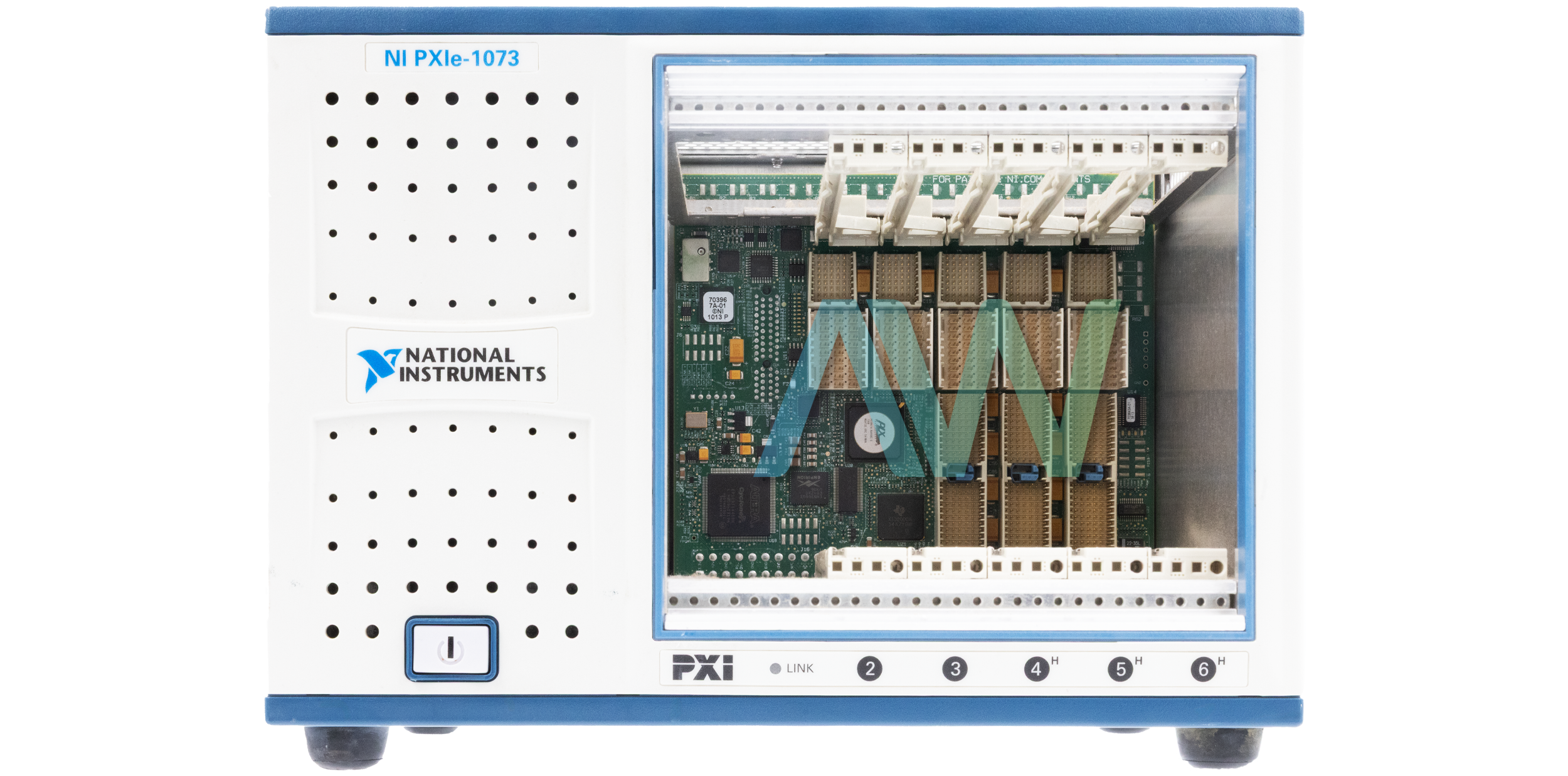

The PXIe-1073 (Part Numbers: 781161-01, 781163-01, and 196695B-01) is an AC PXI Chassis, featuring an integrated controller for remote control applications. This model has a compact and durable design and features five peripheral slots for I/O modules. There are two PXIe slots and three hybrid slots. The NI PXIe-1073 Chassis sustains quiet operation, making it suitable for portable, desktop, and industrial control applications.

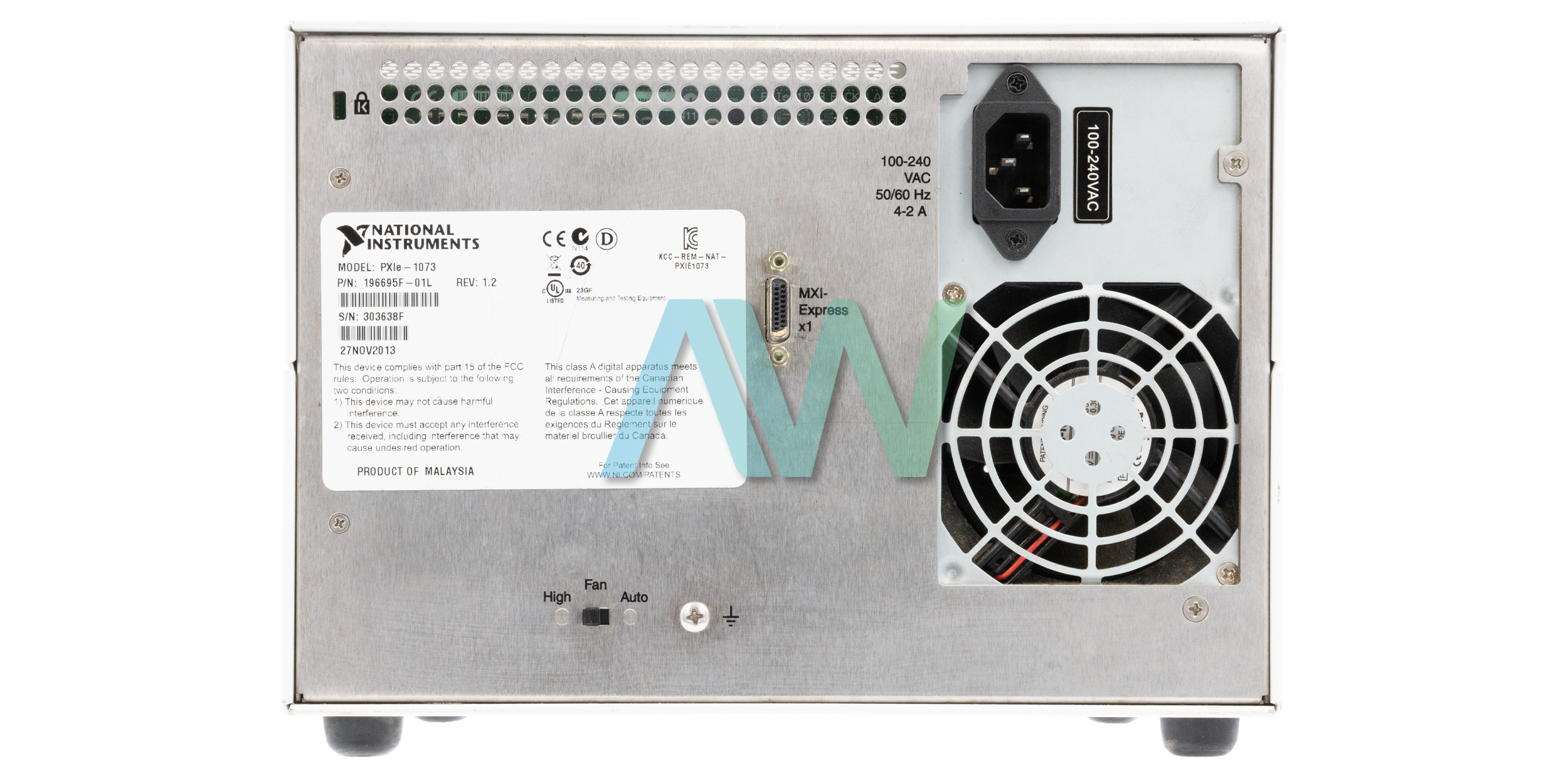

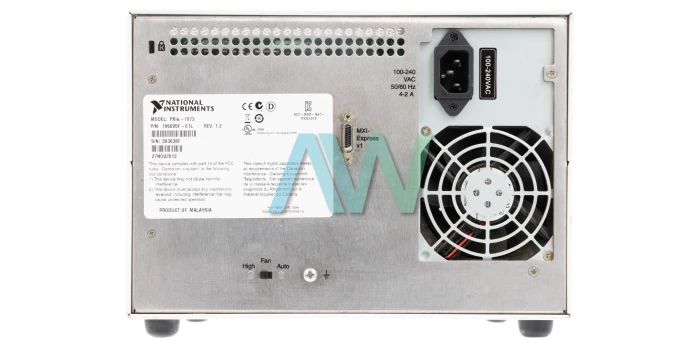

This PXI Chassis comes with an x1 MXI-Express interface which can be accessed via the MXI-Express chassis controller connector on the rear of the chassis. The MXIe interface can be cabled to deliver control of the chassis. There is not a slot number 1 on the NI PXIe-1073. Instead, there is the MXIe interface back connector.
The PXIe-1073 NI can help users create the highest-value PXI Express systems on the market today. The NI PXIe-1073 features an integrated MXI-Express controller, providing a transparent, remote link with up to 208 MB/s sustained throughput to the host computer. The front panel has an On/Standby momentary power switch for convenience for the user.
The PXIe 1073 backplane is fully compliant with PCI timing and synchronization standards for PXI modules. The Chassis includes a 10 MHz reference clock with an accuracy of ±25 parts per million (ppm), less than 5 ps jitter, and a maximum slot-to-slot skew of 250 ps. This Chassis does not offer a system timing slot, which provides the ability to import/export the 10 MHz clock and PXI triggers.
The NI PXIe-1073 features an AUTO/HIGH fan-speed selector that provides a HIGH fan-speed setting to maximize cooling and an AUTO fan setting to minimize acoustic emissions. The PXIe-1073 has up to 250 MB/s per-slot dedicated bandwidth (x1 PCI Express), 250 MB/s total system bandwidth, and acoustic noise as low as 43.3 dBA.
| Model | PXIe-1073 |
|---|---|
| Part Number | 781161-01, 781163-01, and 196695B-01 |
| Manufacturer | National Instruments |
| Type | PXI Chassis |
| Total Slot Count | 5 |
| Hybrid Slots | 3 |
| PXI Express Slots | 2 |
| Slot Cooling Capacity | 38 W |
| Redundant HW Option? | No |
| Maximum System Bandwidth | 250 MB/s |
| Chassis Power Supply Type | AC |
| Dimensions | 10.12 x 8.38 x 6.97 in. |
| Weight | 11 lb. |
| Warranty | Three Year Warranty |
| PXIe-1073 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Request a Quote for Pricing |
Associated part numbers for PXIe-1073:
National Instruments PXIe-1073 Frequently Asked Questions
Question: What is the difference between the part numbers for the PXIe-1073 from NI?
Answer: Part number 781161-01 refers to the bundle of a PXIe-1073 Chassis, PCIe-8361 card, and a 3 m cable. However, part number 781163-01 is only the PXIe-1073 Chassis.
Question: What drivers are used on the PXIe-1073?
Answer: The drivers used are the NI-VISA and NI-DAQmx.
Question: What is the purpose of the AUTO/HIGH temperature-controlled fan speed on the NI PXIe-1073?
Answer: The AUTO/HIGH temperature-controlled fan speed on the chassis is dependent on the air-intake temperature; it allows for noise reduction.
Question: Why does the PXIe-1073 not have a slot number 1?
Answer: The chassis’ slot number 1 is substituted with an MXIe interface back connector.
