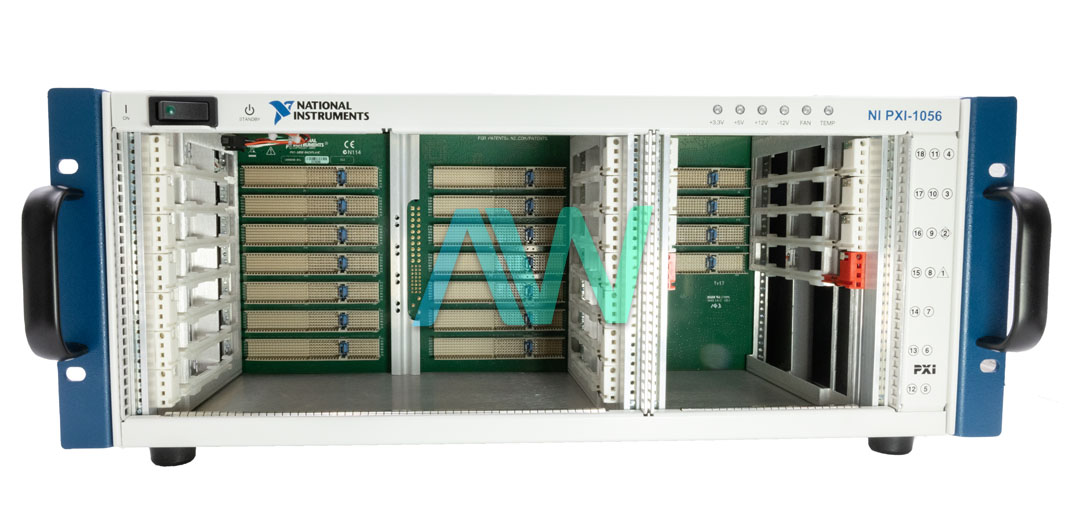

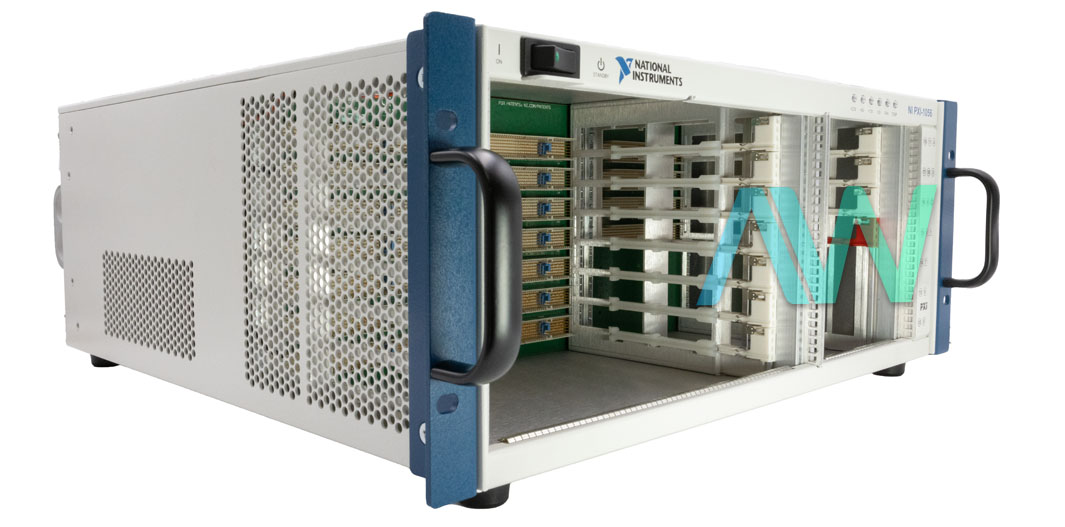

National Instruments PXI-1056 Dual-Stack High-Speed Chassis
The National Instruments PXI-1056 is a 3U/6U dual-stack chassis that can fit a 4-slot controller and 6U and 3U modules. This chassis can fit as many as seven 6U dual stack slots and four 3U slots for a total of seventeen peripheral slots. A 6U module is two times the height of a 3U module. The NI PXI-1056 dual-stacks 3U modules sideways in the chassis. The PXI-1056 acknowledges all NI PXI inserted and remote controllers, including Pentium M and Pentium 4 installed controllers that run Windows or LabVIEW Real-Time. The chassis is intended for applications where custom 6U modules or top-of-the-line RF modules, accessible in the 6U format, should be utilized as part of a single framework with 3U modules monetarily accessible from various sellers. More than 1,150 PXI/CompactPCI products are accessible in the 3U PXI format, so there is a vast number of 3U modules from which to pick. This model offers 5 part numbers: 779469-05 converts 5 6U slots to 10 3U slots, 779469-04 converts 4 6U slots to 8 3U slots, 779470-01 converts 1 6U slot to 2 3U slots, 779469-03 converts 3 6U slots to 6 3U slots, and 779469-02 converts 2 6U slots to 4 3U slots.
The PXI-1056 Chassis gives control over the whole operating scope of 0 to 55°C with a vigorous power supply situated in a removable power carrier with an MTTR of less than 5 minutes. Six double-shading LED markers on the front board show frame status, four demonstrate the status of voltage rails (+3.3, 5, +12, and -12 V), one shows fan status (FAN), and another demonstrates an over-temperature condition (TEMP). There is additionally an AUTO/HIGH fan speed selector switch that modifies fan speed based on the chassis inlet temperature.
| Model | PXI-1056 |
|---|---|
| Manufacturer | National Instruments |
| Part Numbers | 779469-05, 779469-04, 779470-01, 779469-03, 779469-02 |
| Type | PXI Chassis |
| Size | 3U/6U |
| Input Voltage | 100-240 VAC |
| Input Current | 10-5 A |
| Operating Frequency Range | 47–63 Hz |
| Max Clock Skew | 250 ps Between Slots |
| Operating Temp Range | 0 °C to 55 °C |
| Storage Temp Range | –40 °C to 71 °C |
| Per Slot Cooling Capacity | 25 W (When the fan is Set to High) |
| Dimensions | 7.0 (H) x 17.0 (W) x 18.0 (D) in. |
| Weight | 24.3 lbs. |
| Warranty | 2-3 Year Warranty |
| PXI-1056 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Request a Quote for Pricing |
Associated part numbers for PXI-1056:
National Instruments PXI-1056 Frequently Asked Questions
Question: Where can I find the user manual for the NI PXI-1056?
Answer: Official NI manuals and documentation are freely available for download under the "Manuals & PDFs" tab.
Question: What is the overvoltage protection for the PXI-1056?
Answer: The PXI Chassis has an overvoltage protection of 3.3 V, 5 V, +12 V, and –12 V, 130% above nominal output voltage.
Question: What is the operating frequency range?
Answer: The operating frequency range for the PXI-1056 chassis is 47-63 Hz.
Question: Is there a rack-mount kit available for the PXI-1056?
Answer: Yes, the chassis has a rear rack-mount kit with part number 193830-01.
