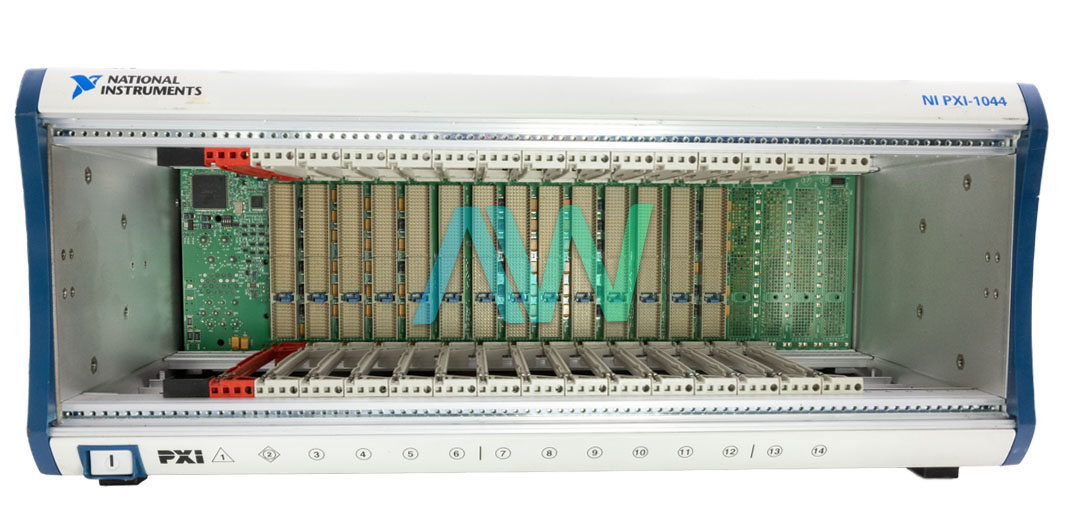

PXI-1044 National Instruments PXI Chassis | Apex Waves | Image

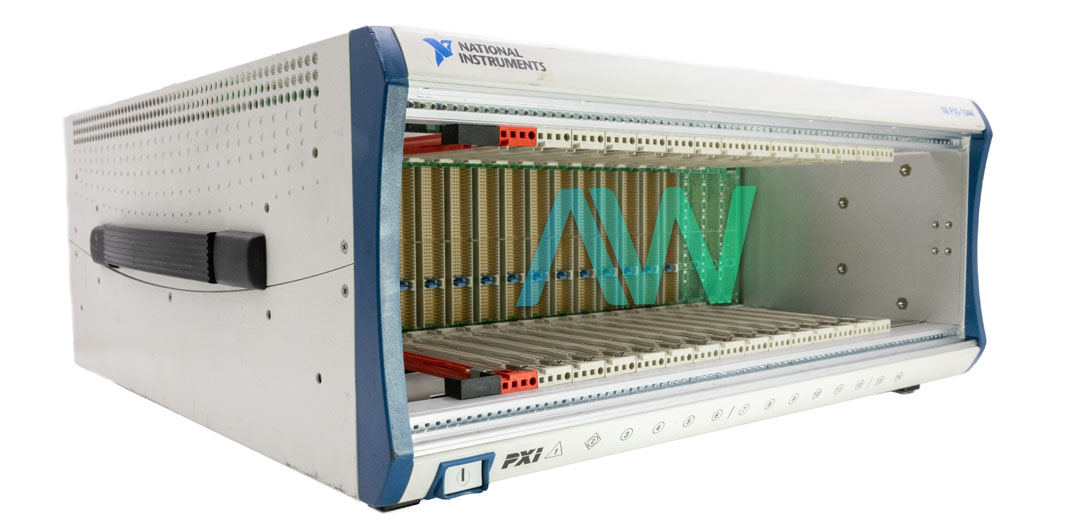

PXI-1044 National Instruments PXI Chassis | Apex Waves | Image
PXI-1044 New
PXI-1044 Refurbished
❮ ❯

Actual item may vary if no part number is provided on quote request.

PXI-1044 National Instruments PXI Chassis | Apex Waves | Image
PXI-1044 National Instruments PXI Chassis | Apex Waves | Image
PXI-1044 New
PXI-1044 Refurbished

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

+Add more parts

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to:   1-919-809-5227

National Instruments PXI-1044 PXI Chassis

The NI PXI-1044 (Part Number: 779218-01, 192011A-01) is a 14-slot PXI Chassis that acknowledges both CompactPCI and PXI modules. This Chassis is an excellent choice for a broad range of testing and measurement applications- it can be rack mounted and has a carrying handle for easy transport. The tilted feet make it ideal for bench-top applications. The NI PXI-1044 accepts both PXI and CompactPCI 3U modules and has a removable power supply.

The PXI Chassis highlights a field-removable power supply shuttle for simple substitution, with a mean time to repair under five minutes and offers a similar extra power supply and fan shuttle. The PXI-1044 offers a 14 slot backplane with a slot cooling capacity of 25 W. For optimal cooling, slot blockers can be used to ensure enough cooling capacity to all PXI modules. This model supplies the PXI 10 MHz framework clock signal (PXI_CLK10) autonomously to every peripheral slot. An independent buffer (having a source impedance coordinated to the backplane and a slew of under 250 ps between slots) drives the clock signal to every peripheral slot. The user can employ this normal reference clock signal to synchronize numerous modules in an estimation or control framework. The user can also drive PXI_CLK10 from an outer source through the PXI_CLK10_IN pin on the P2 connector of the star trigger slot.

The PXI system can be configured using the Measurement & Automation Explorer (MAX) tool. It also features widespread AC input, a front-panel LED which shows power supply failure, and a software programmable trigger routing between bus sections. The PXI-1044 weighs 27.8 lbs., and measures 6.97 x 17.54 x 17.12 in. in physical dimensions. It has a recommended operating temperature range of 0 to 55 °C, and a storage temperature range of –20 to 70 °C. User manuals and other additional manuals for the chassis can be found under the "Manuals & PDFs" tab.

The PXI-1044 is now Obsolete from National Instruments, but the PXI Chassis will still be available in perpetuity for purchase and repairs with Apex Waves.

ModelPXI-1044
ManufacturerNational Instruments
Part Number779218-01, 192011A-01
TypePXI Chassis
Slots14
Slot Cooling Capacity25 W
Operating Frequency Range47–63 Hz
AC Input Voltage Range100–240 VAC
Chassis CoolingForced Air Circulation
Backplane Size1 System Slot, 3U-Sized
External Clock ConnectorsBNC Type
Operating Temp Range0 to 55 °C
Storage Temp Range–20 to 70 °C
Dimensions6.97 in. x 17.54 in. x 17.12 in.
Weight27.8 lb.
Warranty2-3 Year Warranty
PXI-1044 ManualUser Manual and Maintenance Manual Available for Download
PriceRequest a Quote

Associated part numbers for PXI-1044:

National Instruments PXI-1044 Frequently Asked Questions



Question: Which type of power supply does the PXI-1044 have?

Answer: The Chassis has an AC power supply.



Question: What is the input voltage range of the NI PXI-1044?

Answer: The input voltage range is 100–240 VAC.



Question: Which type of external clock output connector does the PXI-1044 have?

Answer: There is a ground-referenced BNC external clock output connector on the back of the chassis.



Question: How many fans does the NI PXI-1044 have?

Answer: The chassis has three 140 cfm fans that have a speed selector of HIGH / AUTO.



Question: What does a solid red light on NI PXI-1044 indicate?

Answer: A consistent solid red LED on the chassis indicates that the exhaust fans are malfunctioning.
