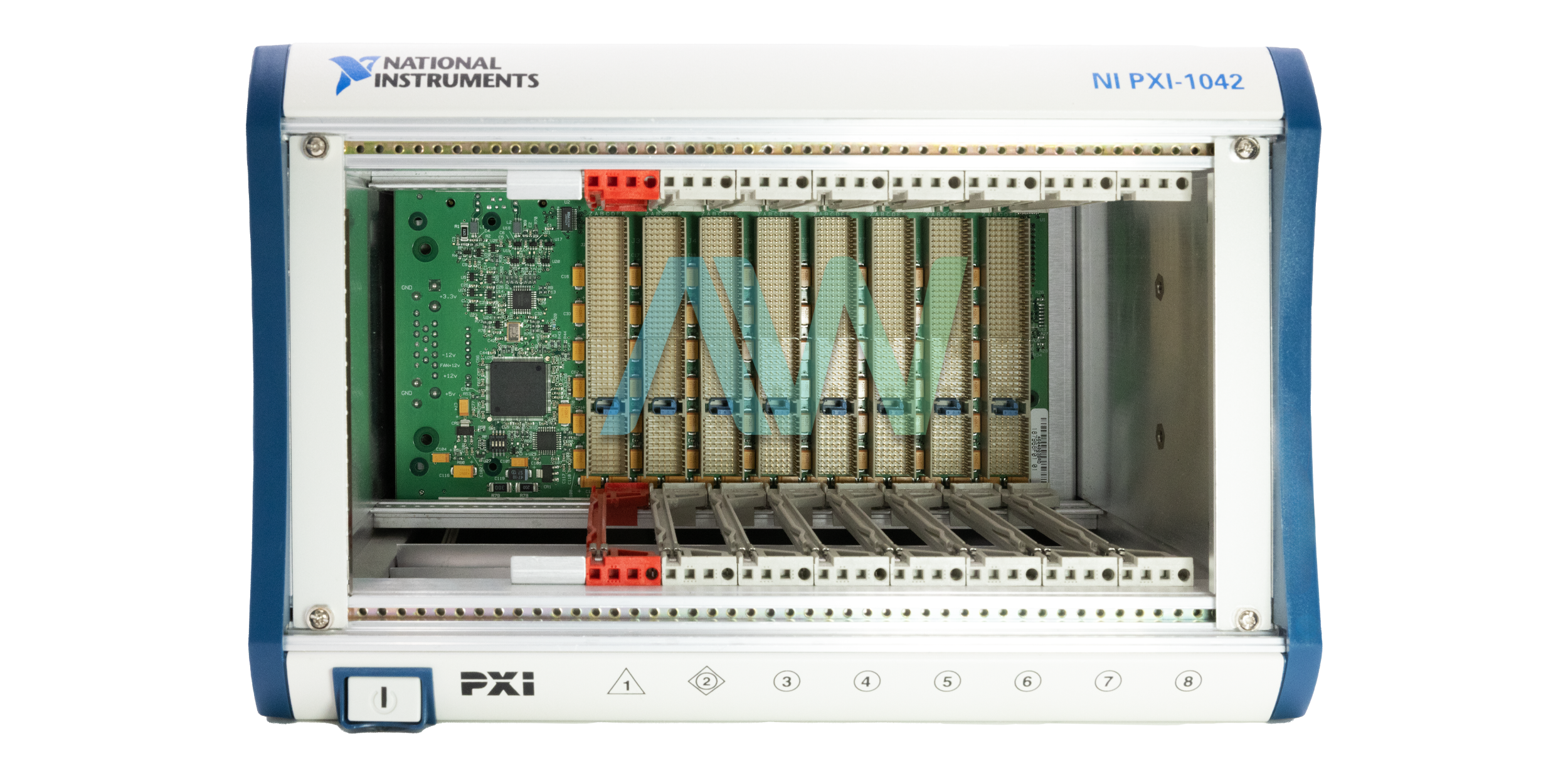

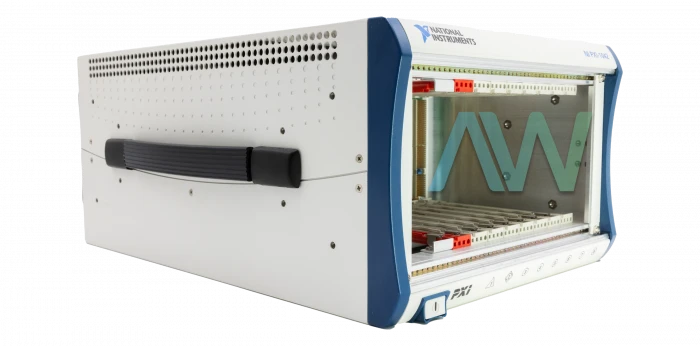

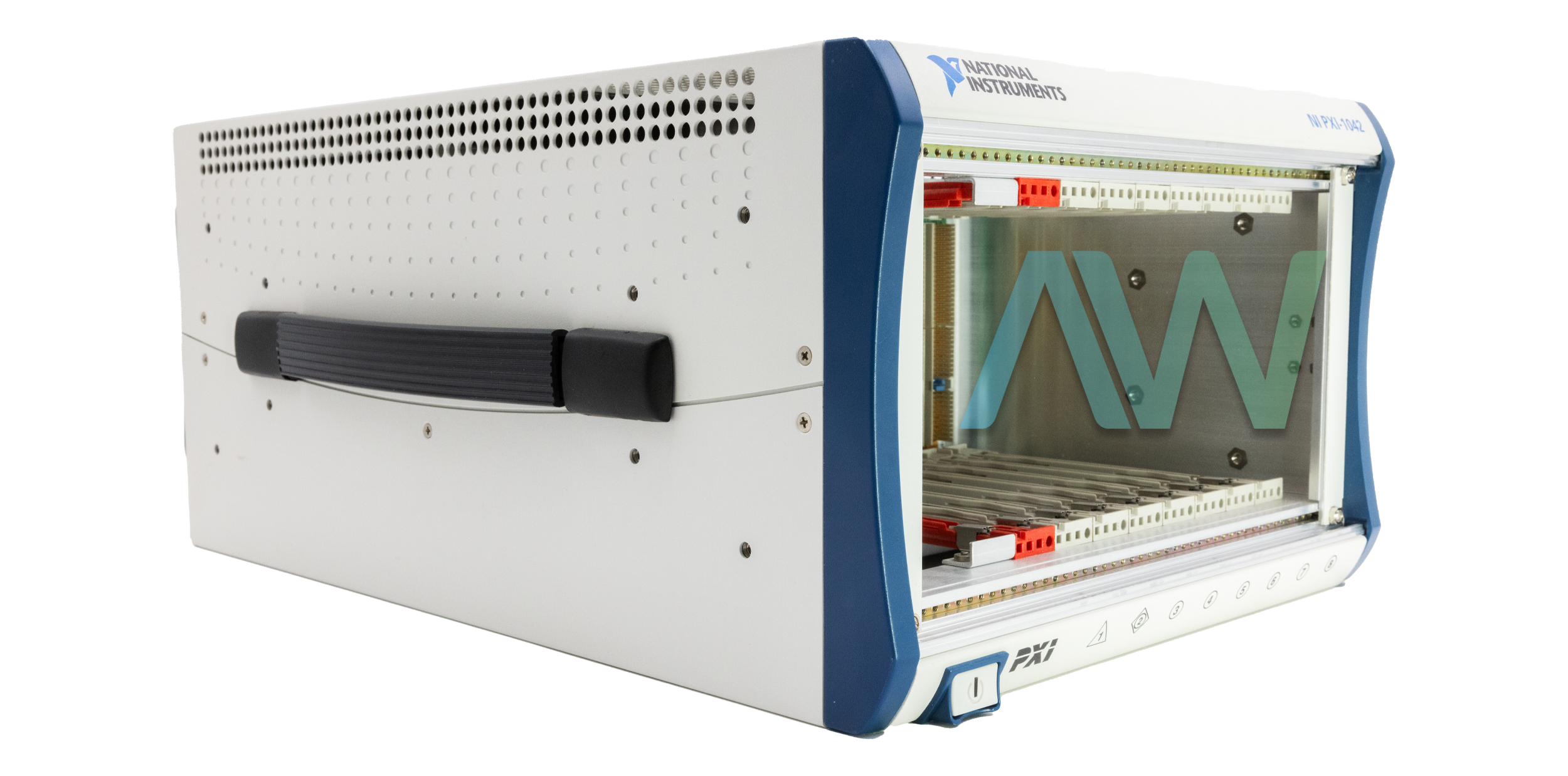

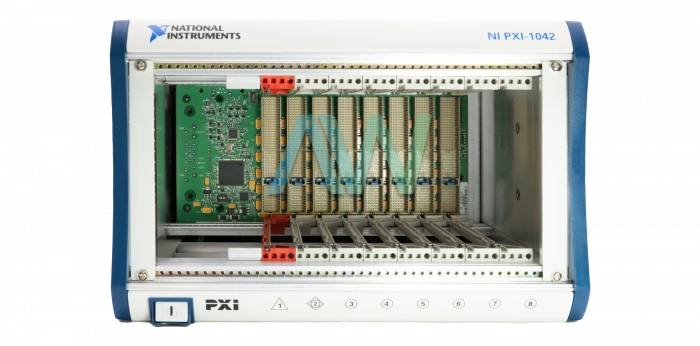

PXI-1042 National Instruments PXI Chassis | Apex Waves | Image
PXI-1042 National Instruments PXI Chassis | Apex Waves | Image
PXI-1042 New
PXI-1042 Refurbished
❮ ❯

Actual item may vary if no part number is provided on quote request.

PXI-1042 National Instruments PXI Chassis | Apex Waves | Image
PXI-1042 National Instruments PXI Chassis | Apex Waves | Image
PXI-1042 New
PXI-1042 Refurbished

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

+Add more parts

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to:   1-919-809-5227

National Instruments PXI-1042 Chassis

The National Instruments NI PXI-1042 (Part Number: 778636-01, 778636-03) The chassis mixes a superior 8-slot PXI backplane with a high-output power supply and an auxiliary design that has been optimized for the greatest convenience in an extensive variety of uses. The frame's modular design guarantees a high level of maintainability, resulting in a low mean time to repair (MTTR). The PXI-1042 chassis complies with the PXI specification, revision 2.0, providing advanced timing and synchronization highlights. The AC-powered chassis has a slot cooling capacity of 25 W.

The backplane of this PXI chassis is interoperable with PXI-compatible items and standard CompactPCI items. This is an imperative element, since certain PXI frameworks may necessitate parts that do not actualize PXI-specific highlights. For instance, the user might need to utilize a standard CompactPCI interface card in a PXI chassis. The signals on the backplane P1 connector meet the necessities of the CompactPCI specification for the system and peripheral modules. The PXI-specific signals are on the P2 connector and are located solely on the signal lines reserved or not utilized as a part of the CompactPCI 64-bit specification. Thus, all modules that meet the necessities of the CompactPCI 64-bit specification will work in the PXI-1042 National Instruments Chassis. The device is equipped with a male 9-pin D-SUB connector on its rear panel and 2 BNC connectors also on its rear.

In the NI PXI-1042, all slots share eight trigger lines. The user can employ these trigger lines in a variety of ways. For instance, they can utilize triggers to synchronize the operation of a few diverse PXI peripheral modules. In different applications, one module can control deliberately timed sequences of operations performed on different modules in the framework. Modules can pass triggers to one another, enabling precisely timed reactions to asynchronous outside events the framework is observing or controlling. The NI device has a recommended operating temperature range of 0 to 55°C. The device weighs 18.6 lbs., and has the dimensions 6.97 x 10.68 x 15.61 in.

The status of the PXI-1042 is now considered obsolete by National Instruments, but the PXI chassis will remain available in perpetuity for both purchase and repair services with Apex Waves.

ModelPXI-1042
ManufacturerNational Instruments
Part Number778636-01, 778636-03
TypePXI Chassis
Slots8
Slot Cooling Capacity25 W
Chassis Power Supply TypeAC
AC Input Voltage Range100 to 240 VAC
Operating Voltage Range90 to 264 VAC
Input Current Rating8 A
Over-Current Protection10-A Circuit Breaker
Operating Temp Range0 to 55 °C
Storage Temp Range–20 to 70 °C
Dimensions6.97 by 10.68 by 15.61 in.
Weight18.6 lb.
Warranty2-3 Year Warranty
PXI-1042 ManualUser Manual and Maintenance Manual Available for Download
PriceRequest a Quote

Associated part numbers for PXI-1042:

National Instruments PXI-1042 Frequently Asked Questions



Question: Does the PXI chassis have external clocking?

Answer: Yes, the PXI-1042 has external clocking.



Question: What is the height for rack-mount installation for the NI PXI-1042?

Answer: The height for rack-mount installation for the chassis is 4U.



Question: What is the over-current protection for the PXI-1042?

Answer: The over-current protection is a 10 A circuit breaker.



Question: What is the chassis's maximum system bandwidth?

Answer: The maximum system bandwidth of the PXI-1042 is 132 MB/s.
