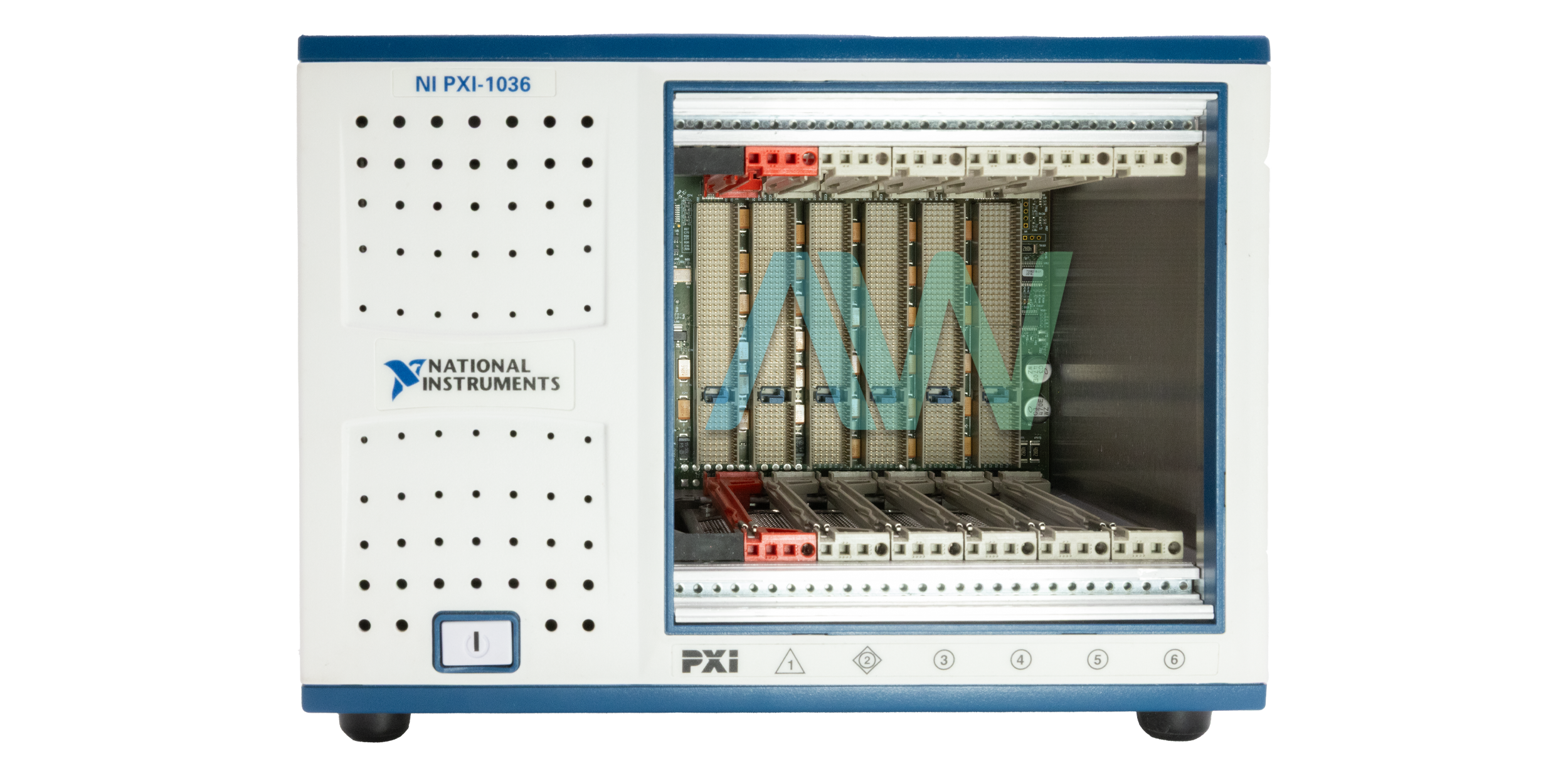

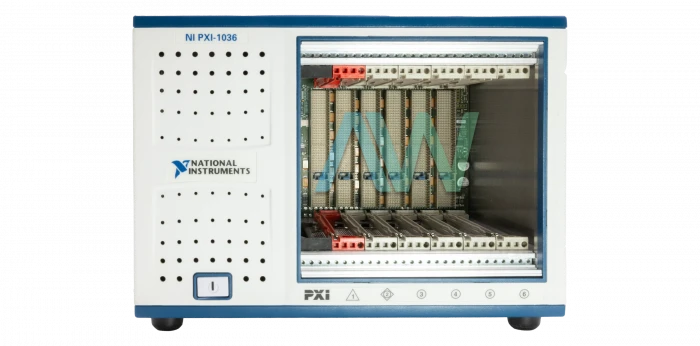

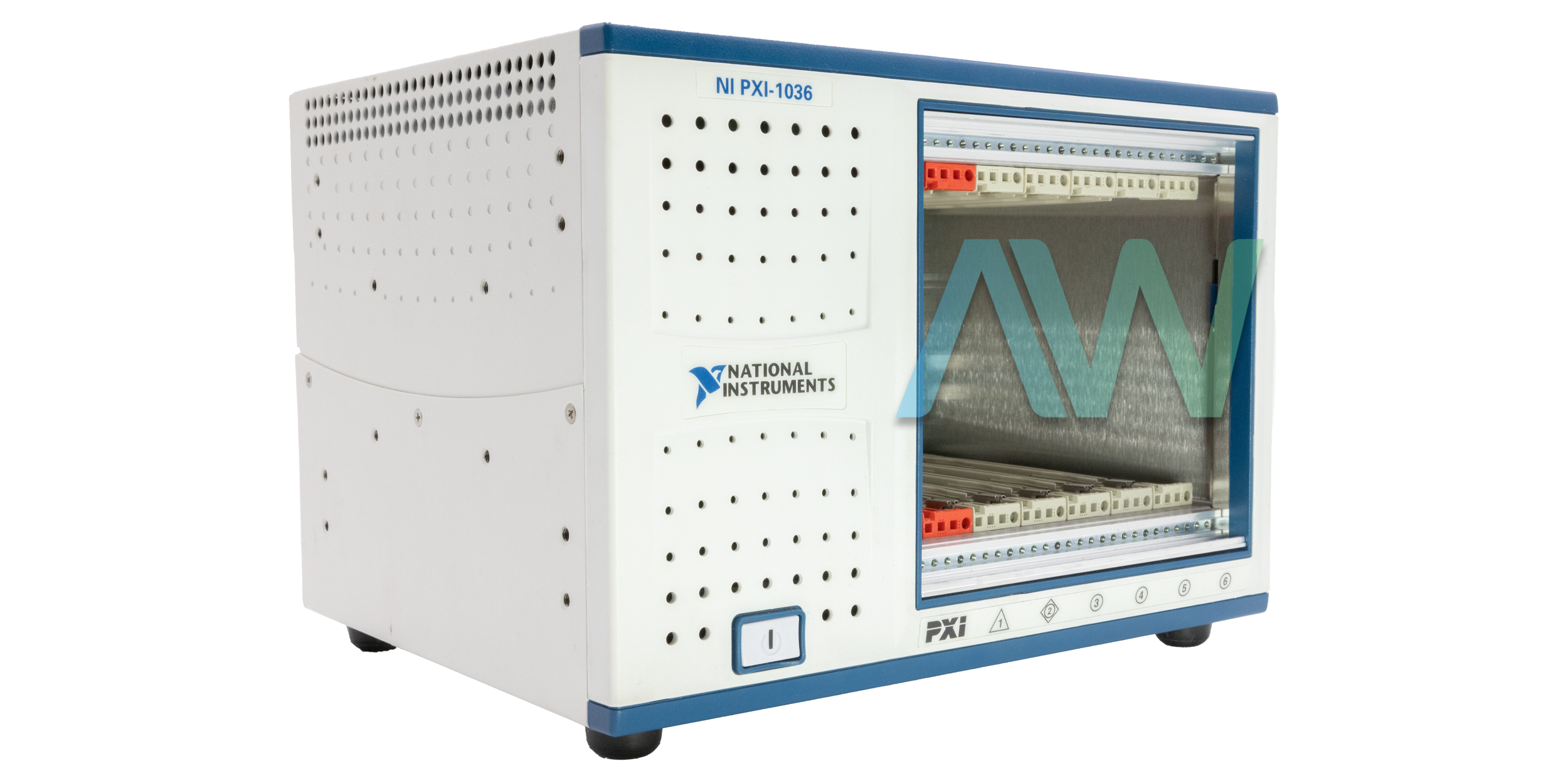

National Instruments PXI-1036 Chassis

The NI PXI-1036 (Part Number: 779382-01) Chassis meets the requesting cooling and power necessities of the present PXI applications. This chassis is perfect for remote, ongoing, and data acquisition applications. The National Instruments PXI-1036 low cost chassis is intended for remote control applications that require five openings for estimation modules. The tiny bundle works with either a remote controller or 2-space inserted controller. For modular instrumentation frameworks, power planning might be required. The AC and DC powered PXI-1036 Chassis offers more openings works with all PXI and CompactPCI modules accessible today. It has a slot cooling capacity of 25 W.

This PXI Chassis incorporates a star trigger (ST) function, where the slot is slot 2. This slot has dedicated equivalent length trigger lines between slot 2 and peripheral slots 3 through 6. Slot 2 is proposed for modules with ST usefulness that can give singular triggers to all other peripheral modules. In addition, if the user does not require advanced trigger usefulness, they can introduce any standard peripheral module in this space. The device has an AC input voltage range of 100 to 240 VAC, an input frequency of 50/60 Hz, and an input current rating of 4-2 A.

All slots on the NI PXI-1036 Chassis share eight PXI trigger lines, so the user can utilize these trigger lines in an assortment of ways. For instance, the user can employ triggers to synchronize the tasks of a few diverse PXI peripheral modules. In different applications, one module situated in slot 2 can control precisely timed sequences of operations performed on different modules in the framework. Modules can pass triggers to each other, enabling definitely timed reactions to asynchronous outer events that the framework is monitoring or controlling. The PXI system can be configured using the Measurement & Automation Explorer (MAX) tool. The AC powered device has a weight of 11 lbs., and measures 6.97 x 10.12 x 8.38 in. in dimensions.

The PXI-1036 is considered Obsolete by National Instruments (NI), but the PXI Chassis will still be available for either purchase or repair services with Apex Waves in perpetuity.

ModelPXI-1036
Part Number779382-01
ManufacturerNational Instruments
TypeChassis
Slots6
Slot Cooling Capacity25 W
Power Supply TypeAC
Sound Pressure Level35.0 dBA (Auto), 51.1 dBA (High)
Sound Power43.4 dBA (Auto),  59.5 dBA (High)
Input Voltage Range100 VAC - 240 VAC
Operating Voltage Range90 VAC - 264 VAC
Operating Temp Range0 °C to 50 °C
Storage Temp Range-20 °C to 70 °C
Dimensions6.97 in. (H) x 10.12 in. (W) x 8.38 in. (D)
Weight11 lbs.
Warranty2-3 Year Warranty
PXI-1036 ManualUser Manual and Maintenance Manual Available for Download
PriceRequest a Quote

Associated part numbers for PXI-1036:

National Instruments PXI-1036 Frequently Asked Questions



Question: Is the NI PXI-1036 compatible with a two-slot embedded controller?

Answer: Yes, the PXI chassis is compatible with either a remote controller or a two-slot embedded controller.



Question: How many peripheral modules can connect to the chassis?

Answer: The PXI-1036 has slots for five peripheral modules.



Question: Is the PXI-1036 compatible with 3U PXI modules?

Answer: Yes, it is compatible with both 3U PXI and CompactPCI modules.



Question: What remote controllers work with the PXI-1036?

Answer: The chassis works with any remote controllers from National Instruments, including MXI-4 and MXI-Express, for control from a PC.
