National Instruments PXI-1033 PXI Chassis

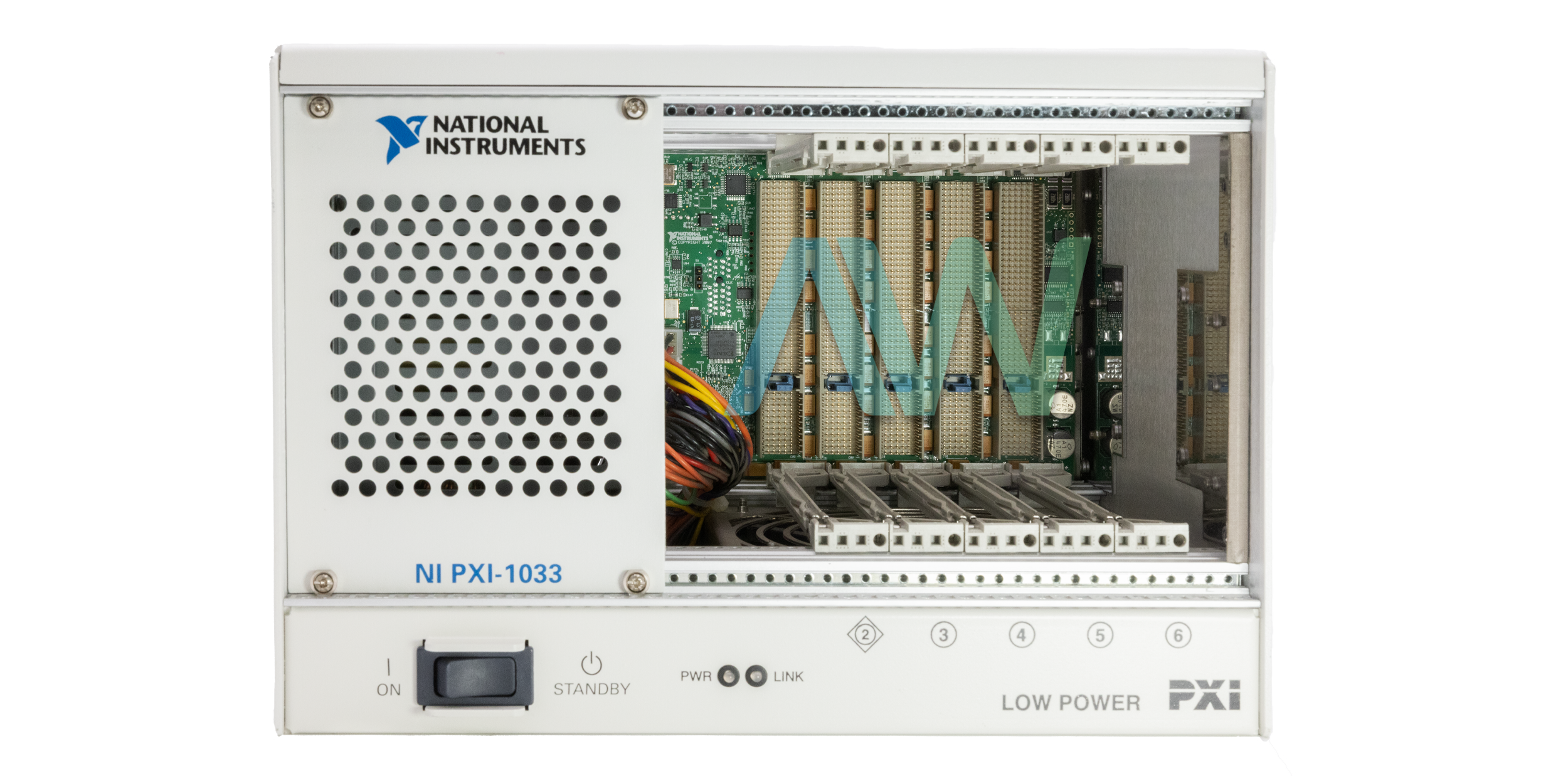

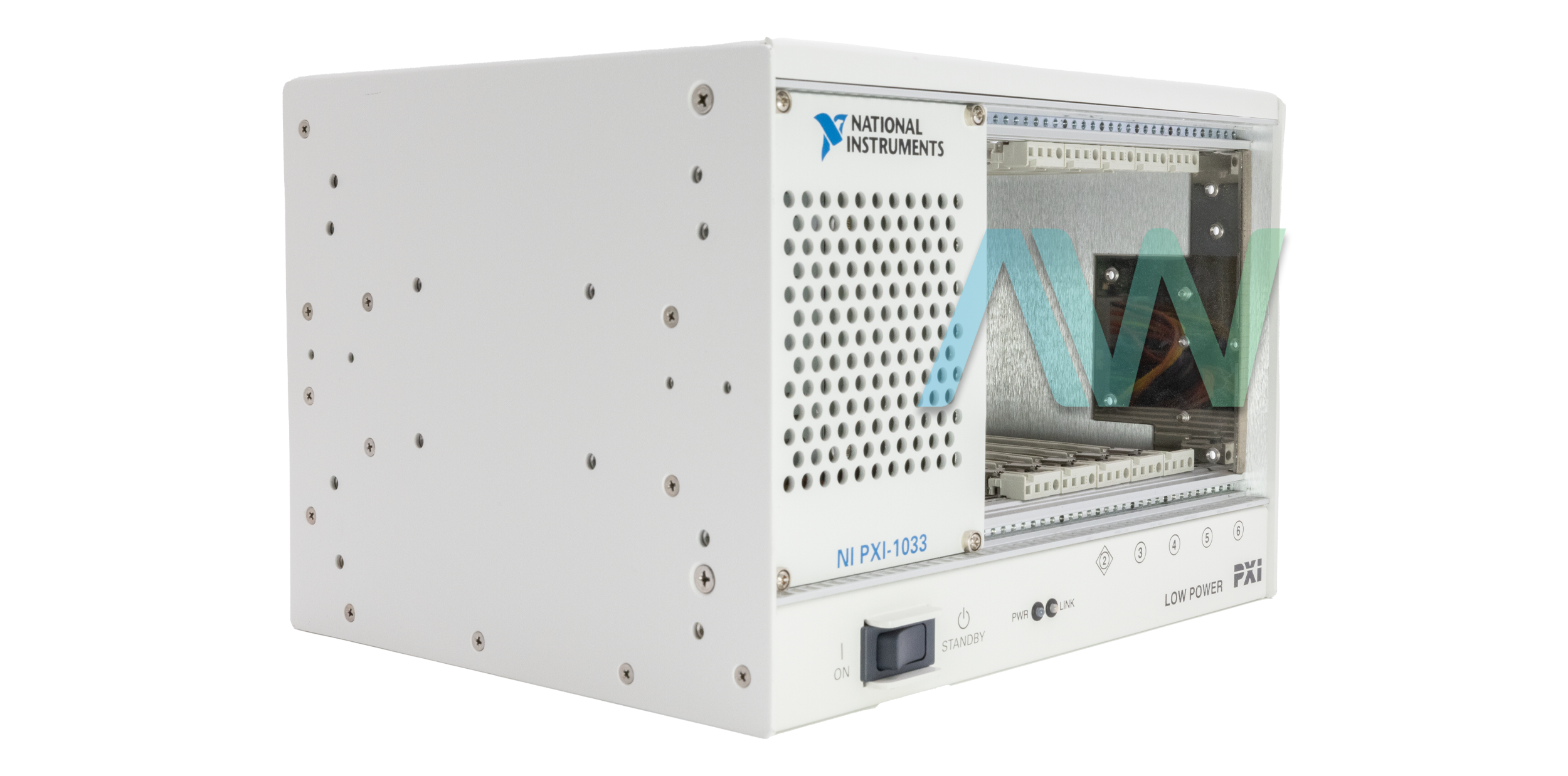

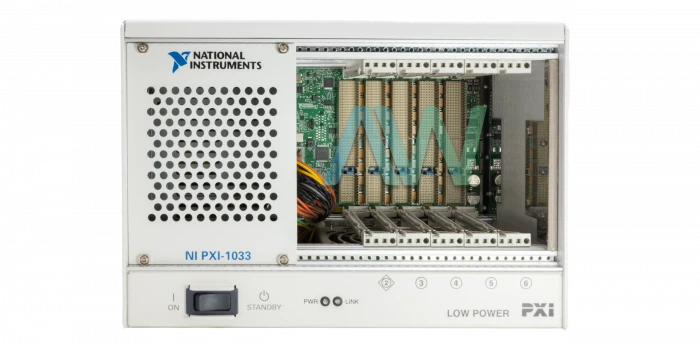

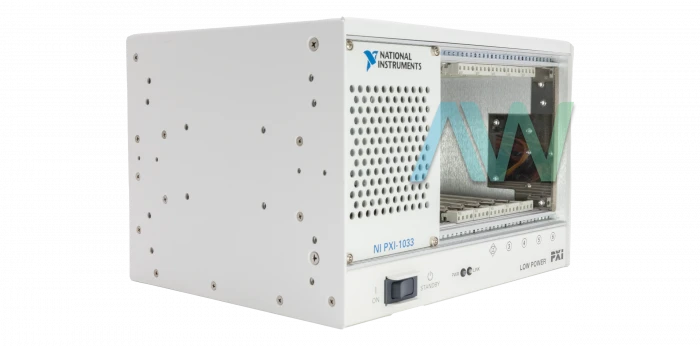

The NI PXI-1033 (Part Number: 779760-01) is a low-cost 5-slot PXI chassis from National Instruments, which is created for remote control applications. The PXI-1033 is a host PCI Express board for desktops. This model offers services as a host express card for laptops and a cable, as well as enhanced usability in a wide range of applications. The NI PXI-1033 chassis accepts 3U PXI and CompactPCI (PICMG 2.0 R 3.0) modules. This PXI chassis can have a carrying handle added, and/or it can be rack-mounted. The device is AC-powered and has a slot cooling capacity of 25 W.
The National Instruments PXI-1033 chassis has a built-in MXI-Express controller with the capability to offer a transparent, remote link with up to 110 MB per second throughput. The NI PXI-1033 meets the cooling and power requirements of the automotive, automated test, and electronics industries. The PXI 1033 comes with five peripheral slots for I/O modules, a compact design, universal AC input, and quiet operation. These features make the PXI-1033 an ideal option for desktop ATE systems. The PXI-1033's economical cost helps reduce the PXI setup price. The device operates using the MXI-Express kit, which is contained in the PXI platform software and can be found in NI driver software products. It can be configured using the Measurement & Automation Explorer (MAX) tool.
The NI PXI-1033 Chassis also offers an AUTO/HIGH fan-speed selector. The HIGH fan setting helps offer more cooling. The PXI-1033 AUTO fan selector reduces the noise level. This AUTO selector also checks the air intake temperature and adjusts the fan speed. The NI PXI-1033 Chassis comes with a sound pressure level of 37.4 dBA for the AUTO fan setting and a sound pressure level of 51.5 dBA for the HIGH fan setting. This model also comes with a system reference clock of 10 MHZ and a built-in clock accuracy of ±25 ppm. The device has a weight of 11 lbs and has the dimensions 6.97 x 10.12 x 8.8 in. Additional datasheets and manuals for the PXI-1033 can be found under the "Manuals & PDFs" tab.
The PXI-1033 is now no longer available from National Instruments (NI), but the PXI chassis will stay available in perpetuity with Apex Waves!
| Model | PXI-1033 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 779760-01 |
| Type | PXI Chassis |
| Slots | 5 |
| Slot Cooling Capacity | 25 W |
| Input Voltage Range | 100-240 VAC |
| Chassis Power Supply Type | AC |
| Input Frequency | 50 / 60 Hz |
| Slot Airflow Direction | P1 to P2 (Bottom to Top of Module) |
| System Cooling Type | Forced Air Circulation |
| Operating Temp Range | 0 to 50 °C |
| Storage Temp Range | –40 to 85 °C |
| Dimensions | Height x Width x Depth 6.97 in. x 10.12 in. x 8.38 in. (177 mm x 257.1 mm x 212.8 mm) |
| Weight | 11.0 lb. (5 kg) |
| Warranty | 2-3 Year Warranty |
| PXI-1033 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Request a Quote |
Associated part numbers for PXI-1033:
National Instruments PXI-1033 Frequently Asked Questions
Question: Which accessories are required for the PXI chassis?
Answer: The PXI-1033 requires an IEC power cord, a device for PXI remote control, and an MXI cable.
Question: Does the NI PXI-1033 have external clocking?
Answer: No, the chassis does not have external clocking.
Question: Can the fan filter in the NI PXI-1033 be replaced?
Answer: Yes, the replacement for the fan filter is part number 150139-C from Air Filtration Products, Inc.
Question: What type of power supply cooling does the PXI chassis have for the system?
Answer: The PXI-1033 has forced air circulation via an integrated fan for the system.
Question: What driver does the PXI-1033 use?
Answer: The chassis uses the NI PXI Platform Services driver.
